Walkthrough 7: Configure agent scripting in your agent application

Agent scripting in Unified Service Desk helps to guide your agents during customer interaction. This walkthrough demonstrates how to create a simple agent script that helps the agents quickly create a new case for an account or browse existing cases from the agent application. The agent script created in this walkthrough is invoked when the agent pulls up an account record to view, which is displayed in a session in the Unified Service Desk client. The script provides the following three options:

• Create a case for the current account

• Display existing cases for the current account

• Close the session

Prerequisites

• You must have completed Walkthrough 1: Build a simple agent application and Walkthrough 4: Display a record in a session in your agent application. The configurations that you completed in those walkthroughs are required in this walkthrough.

• This walkthrough assumes that you’ll be using the same user credential that you used in walkthrough 1 to sign in to the agent application. If a different user will be testing the application, you must assign the user to Contoso Configuration. More information: Walkthrough 1: Build a simple agent application

• You must know be familiar with the following concepts in Unified Service Desk:

  • Agent Scripting type of hosted control and how to configure agent scripts. More information: Agent Scripting (Hosted Control) and Guide customer interactions with agent scripts

  • How to configure Action calls

  • How to configure window navigation rules. More information: Use window navigation rules in Unified Service Desk

  • Filter access using Unified Service Desk configuration. More information: Manage access using Unified Service Desk configuration

In This Walkthrough

Step 1: Create an Agent Scripting type of hosted control

Step 2: Create hosted controls to display the new case form and existing cases

Step 3: Create an agent script task

Step 4: Add the answer, action call, and window navigation rule for creating a case from the agent script

Step 5: Add the answer and action calls for displaying existing cases

Step 6: Add the answer and action calls for closing the session

Step 7: Create an action call to display the agent script

Step 8: Display the agent script when the account record is displayed in a session

Step 9: Add the controls to the configuration

Step 10: Test the application

Conclusion

Step 1: Create an Agent Scripting type of hosted control

An instance of the Agent Scripting type of hosted control must be available in your agent application to display agent scripts.

1. Sign in to the Dynamics 365 instance.

2. Go to Settings > Unified Service Desk.

3. Click Hosted Controls.

4. Click New.

5. On the New Hosted Control page, specify the following values.

   Field	Value
   Name	Contoso Agent Scripting
   USD Component Type	Agent Scripting
   Display Group	WorkflowPanel



6. Click Save.

Step 2: Create hosted controls to display the new case form and existing cases

In this step, you’ll create two hosted controls of CRM Page type to display the new case creation form and existing cases for the current account.

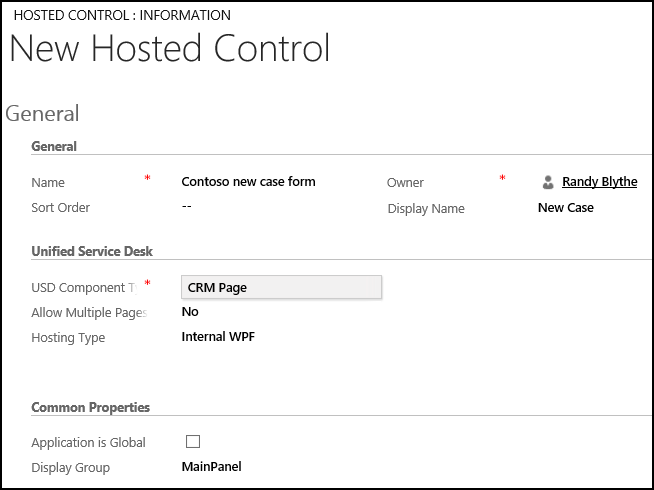

1. On the hosted controls page, click New.

2. On the New Hosted Control page, specify the following values:

   Field	Value
   Name	Contoso new case form
   Display Name	New Case
   USD Component Type	CRM Page
   Allow Multiple Pages	No
   Hosting Type	Internal WPF
   Application is Global	Not checked
   Display Group	MainPanel



3. Click Save.

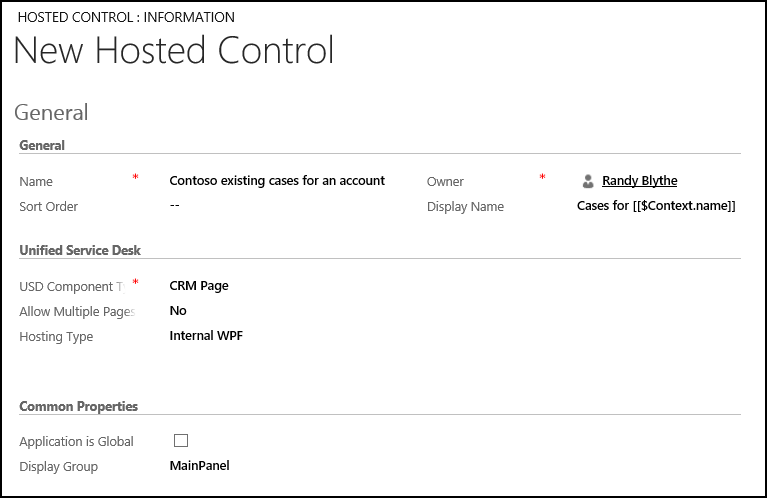

4. On the hosted controls page, click New to create another hosted control.

5. On the New Hosted Control page, specify the following values:

   Field	Value
   Name	Contoso existing cases for an account
   Display Name	Cases for [[$Context.name]] Note: We are using the replacement parameter to dynamically display the name of the current account from the execution context as the hosted control display name.
   USD Component Type	CRM Page
   Allow Multiple Pages	No
   Hosting Type	Internal WPF
   Application is Global	Not checked
   Display Group	MainPanel



6. Click Save.

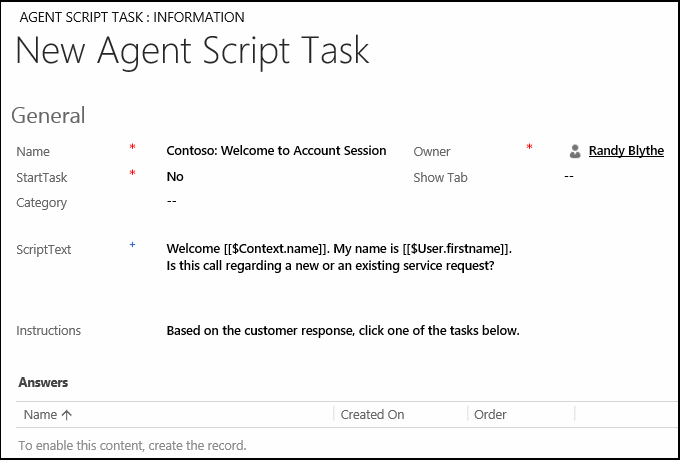

Step 3: Create an agent script task

Create an agent script task to display when an account record is displayed in a session.

1. Sign in to the Dynamics 365 instance.

2. Go to Settings > Unified Service Desk.

3. Click Agent Scripts.

4. Click New.

5. On the New Agent Script Task page, specify the following values:

   Field	Value
   Name	Contoso: Welcome to Account Session
   Start Task	No
   ScriptText	Welcome [[$Context.name]]. My name is [[$User.firstname]]. Is this call regarding a new or an existing service request? Note: We are using replacement parameters to dynamically display the account name and the current agent’s name to the agent at runtime.
   Instructions	Based on the customer response, click one of the tasks below.



6. Click Save to create the agent script.

Step 4: Add the answer, action call, and window navigation rule for creating a case from the agent script

In this step, you’ll create answer, action call, and window navigation rule for displaying a new case form with some prepopulated values from the currently active account record.

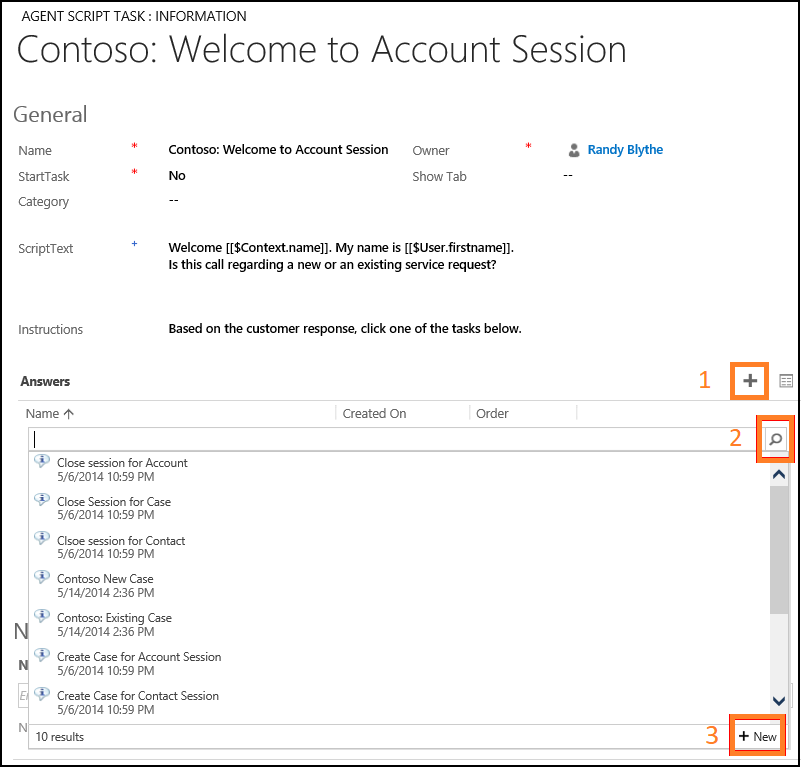

1. In the Answers area of the agent script task that you created in step 4, click + to create answer.

2. In the search box, press ENTER or click the search icon, and then click New in the search results box.



3. On the New Agent Script Answer page, specify the following values:

   Field	Value
   Name	Contoso: New case
   Answer Text	Create a case
   Linked Task	Contoso: Welcome to Account Session
   Order	1



4. Click Save.

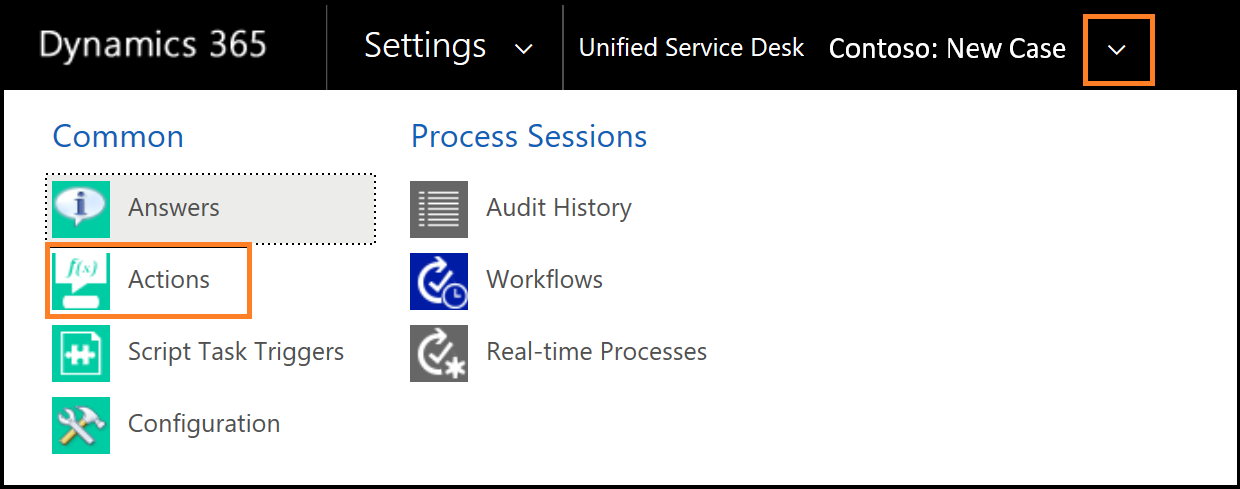

5. Next, add an action call to this answer to display a new case form for the account when the agent clicks this answer. On the nav bar, click the down arrow next to Contoso: New case, and select Actions.



6. On the next page, click Add Existing Action Call.

7. In the search box, press ENTER or click the search icon, and then click New to create an action call.

8. On the New Action Call page, specify the following values:

   Field	Value
   Name	Contoso Action Call: Create Case
   Order	1
   Hosted Control	Contoso new case form
   Action	New_CRM_Page
   Data	LogicalName=incident customerid=EntityReference([[$Context.InitialEntity]],[[$Context.Id]]) customeridname=[[$Context.name]] primarycontactid=[[$Context.primarycontactid.id]+] primarycontactidname=[[$Context.primarycontactid.name]+] Note: The new case form will be populated with the current account record data to help the agent quickly create a case for the customer.



9. Click Save.

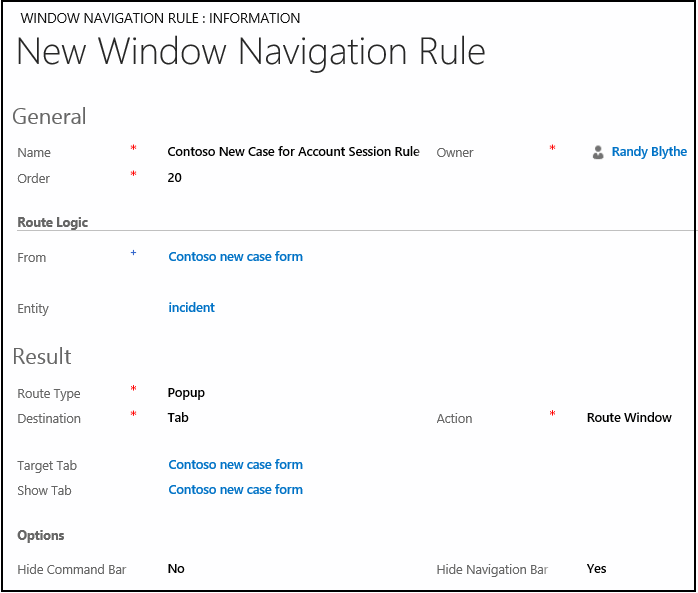

10. Next, create a window navigation rule to display the new case form. Go to Settings > Unified Service Desk.

11. Click Window Navigation Rules.

12. Click New.

13. On the New Window Navigation Rule page, specify the following values.

    Field	Value
    Name	Contoso New Case for Account Session Rule
    Order	20
    From	Contoso new case form
    Entity	incident
    Route Type	Popup
    Destination	Tab
    Action	Route Window
    Target Tab	Contoso new case form
    Show Tab	Contoso new case form
    Hide Command Bar	No
    Hide Navigation Bar	Yes



14. Click Save.

Step 5: Add the answer and action calls for displaying existing cases

In this step, add answer and action calls for displaying existing cases for the current account.

1. In the Answers area of the Contoso: Welcome to Account Session agent script, click + to create an answer.

2. In the search box, press ENTER or click the search icon, and then click New in the search results box.

3. On the New Agent Script Answer page, specify the following values.

   Field	Value
   Name	Contoso: Existing cases
   Answer Text	Display existing cases
   Linked Task	Contoso: Welcome to Account Session
   Order	2

4. Click Save.

5. Next, add an action call to this answer to display the existing cases for the current account. On the nav bar, click the down arrow next to Contoso: Existing Cases, and select Actions.

6. On the next page, click Add Existing Action Call.

7. In the search box, press ENTER or click the search icon, and then click New to create an action call.

8. On the New Action Call page, specify the following values:

   Field	Value
   Name	Contoso Action Call: Display Existing Cases
   Order	1
   Hosted Control	Contoso existing cases for an account
   Action	AssociatedView
   Data	navItemName=Cases Id=[[$Context.Id]] type=[[$Context.etc]] tabset=areaService



9. Click Save.

10. Add another action call to set the focus on the new case form. On the New Action Call page, specify the following values:

    Field	Value
    Name	Contoso Action Call: Set Focus on Existing Cases
    Order	2
    Hosted Control	Contoso Global Manager
    Action	ShowTab
    Data	Contoso existing cases for an account



11. Click Save.

Step 6: Add the answer and action calls for closing the session

In this step, add answer and action calls for closing the current session.

1. In the Answers area of the Contoso: Welcome to Account Session agent script, click + to create an answer.

2. In the search box, press ENTER or click the search icon, and then click New in the search results box.

3. On the New Agent Script Answer page, specify the following values:

   Field	Value
   Name	Contoso: Close session
   Answer Text	Close session
   Linked Task	Contoso: Welcome to Account Session
   Order	3

4. Click Save.

5. Next, add an action call to this answer to close the session. On the nav bar, click the down arrow next to Contoso: Close session, and select Actions.

6. On the next page, click Add Existing Action Call.

7. In the search box, press ENTER or click the search icon, and then click New to create an action call.

8. On the New Action Call page, specify the following values.

   Field	Value
   Name	Contoso Action Call: Close Session
   Hosted Control	Contoso Session Tab Note: The Contoso Session Tab hosted control was created in Walkthrough 4: Display a record in a session in your agent application.
   Action	CloseSession
   Data	sessionid=[[$Context.SessionId]]



9. Click Save.

Step 7: Create an action call to display the agent script

In this step, create an action call to display the agent script.

1. Sign in to the Dynamics 365 instance.

2. Go to Settings > Unified Service Desk.

3. Click Action Calls.

4. Click New.

5. On the New Action Call page, specify the following values.

   Field	Value
   Name	Contoso Action Call: Load Agent Script
   Hosted Control	Contoso Agent Scripting
   Action	GoToTask
   Data	Contoso: Welcome to Account Session



6. Click Save.

Step 8: Display the agent script when the account record is displayed in a session

In this step, add the action call created in the previous step to the BrowserDocumentComplete event on the Contoso Account Session hosted control so that after it’s loaded, the action call is executed to load the agent script. The Contoso Account Session hosted control was created in Walkthrough 4: Display a record in a session in your agent application.

1. Sign in to the Dynamics 365 instance.

2. Go to Settings > Unified Service Desk.

3. Click Hosted Controls.

4. Search for the Contoso Account Session hosted control, and click it to open the hosted control definition.

5. On the nav bar, click the down arrow next to Contoso Account Session, and then click Events.



6. On the events page, click BrowserDocumentComplete.

7. On the BrowserDocumentComplete page, click + in the Active Actions area to add an action call to the event.

8. In the search box, type “Contoso Action Call: Load Agent Script”, and press ENTER or click the search icon.

9. In the search results, click Contoso Action Call: Load Agent Script to add it.

10. Click Save.

Step 9: Add the controls to the configuration

In this step, add the action calls, agent script, hosted controls, and window navigation rule that you configured in this walkthrough to Contoso Configuration to display these controls to the user who is assigned to the configuration. Contoso Configuration was created in Walkthrough 1: Build a simple agent application.

Add the following to Contoso Configuration.

Control name	Control type
Contoso Action Call: Create Case	Action call
Contoso Action Call: Display Existing Cases	Action Call
Contoso Action Call: Set Focus on Existing Cases	Action Call
Contoso Action Call: Close Session	Action Call
Contoso Action Call: Load Agent Script	Action Call
Contoso: Welcome to Account Session	Agent Script
Contoso Agent Scripting	Hosted Control
Contoso new case form	Hosted Control
Contoso existing cases for an account	Hosted Control
Contoso New Case for Account Session Rule	Window navigation rule

To add a control to the configuration:

1. Sign in to the Dynamics 365 instance.

2. Go to Settings > Unified Service Desk.

3. Click Configuration.

4. Click Contoso Configuration to open the definition.

5. On the nav bar, click the down arrow next to Contoso Configuration, and select Action Calls.

6. On the next page, click Add Existing Action Call, type “Contoso Action Call” in the search bar, and then press ENTER or click the search icon.

7. Select the five action calls from the search results box to add them to Contoso Configuration.

8. Similarly, add the agent script, hosted controls, and window navigation rule by clicking the down arrow next to Contoso Configuration, and clicking Agent Scripts Hosted Controls and Window navigation Rules respectively.

9. Click Save.

Step 10: Test the application

1. Start the Unified Service Desk client application, and sign in to the Dynamics 365 instance where you configured Unified Service Desk by using the same user credentials that is assigned to Contoso Configuration in Walkthrough 1: Build a simple agent application. For information about connecting to Dataverse instance using the Unified Service Desk client application, see Connect to CRM instance using the Unified Service Desk client

2. Click the down arrow next to the SEARCH button in the toolbar, and then click Account to display the account records from your Dataverse instance.

3. Click the expander to display the left pane.



4. Click on any of the account records to display the respective account information in a session. In the left pane, the Contoso: Welcome to Account Session agent script appears.



5. In the agent script:

   1. Click New case to open a new case form with pre-populated values (in the red box) from the current account record.



   2. Click Display existing cases to display the associated cases for the current account record.



   3. Click Close session to close the current session.

Conclusion

In this walkthrough, you learned how to configure a simple agent script to guide your call center agents. Unified Service Desk allows you to create more complex scripts with branching logic that contain child answers and actions. You also learned how to filter access to Unified Service Desk controls using configuration.
