Walkthrough 4: Display a record in a session in your agent application

This walkthrough demonstrates how to display records in a session in your agent application using window navigation rules and session controls in Unified Service Desk. It also demonstrates the use of replacement parameters to dynamically display the name of the hosted control based on the currently displayed account record. This walkthrough is built on top of the previous walkthrough, Walkthrough 3: Display records in your agent application, to display an account record in a session when you select on one of the accounts in the Account search result window.

Prerequisites

• You must have completed Walkthrough 1: Build a simple agent application and Walkthrough 3: Display records in your agent application. The configurations that you completed in these walkthroughs are required in this walkthrough.

• This walkthrough assumes that you’ll be using the same user credential that you used in walkthrough 1 to sign in to the agent application at the end of the walkthrough to test the application. If a different user will be testing the application, you must assign the user to Contoso Configuration. More information: Walkthrough 1: Build a simple agent application

• You must know about the following in Unified Service Desk:

  • Session Tabs type of hosted control. More information: Session Tabs (Hosted Control)

  • How to configure Action calls

  • How to configure window navigation rules. More information: Use window navigation rules in Unified Service Desk

  • Filter access using Unified Service Desk configuration. More information: Manage access using Unified Service Desk configuration

In This Walkthrough

Step 1: Create a session-scoped hosted control to display account record in a session

Step 2: Configure the event to close the hosted control from where the search originated

Step 3: Create a Session Tabs hosted control

Step 4: Create a window navigation rule to display the account record in a session

Step 5: Add the controls to the configuration

Step 6: Test the application

Conclusion

Step 1: Create a session-scoped hosted control to display account record in a session

In this step, you’ll create a session-scoped hosted control to display an account record in a session.

1. Sign in to the Dynamics 365 instance.

2. Go to Settings > Unified Service Desk.

3. Select Hosted Controls.

4. Select New.

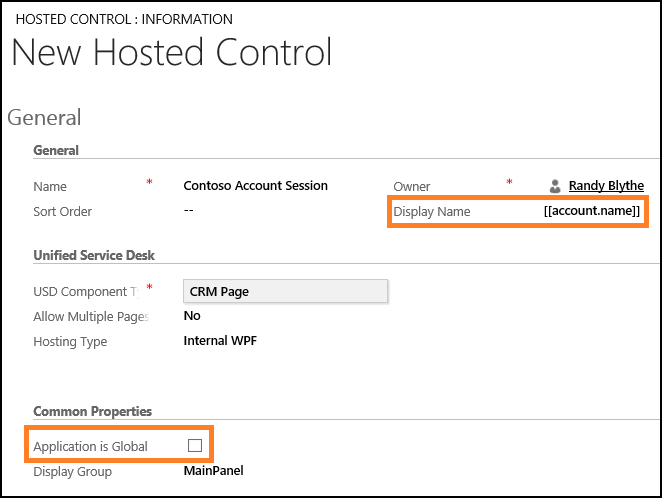

5. On the New Hosted Control page, specify the following values.

   Field	Value
   Name	Contoso Account Session
   Display Name	[[account.name]] Note: We will use replacement parameter to dynamically display the name of the selected account as hosted control display name.
   USD Component Type	CRM Page
   Allow Multiple Pages	No
   Hosting Type	Internal WPF
   Application is Global	Not checked Note: This ensures that the hosted control is session-scoped, that is, only displayed in a session.
   Display Group	MainPanel



6. Select Save.

Step 2: Configure the event to close the hosted control from where the search originated

In this step, you’ll configure the BrowserDocumentComplete event on the Contoso Account Session hosted control so that when it’s loaded, the parent hosted control from where the user selected to open the account, Contoso Accounts Search, is closed. The Contoso Accounts Search hosted control was created in Walkthrough 3: Display records in your agent application. This is done to ensure that the user can’t open other account information in the same session tab.

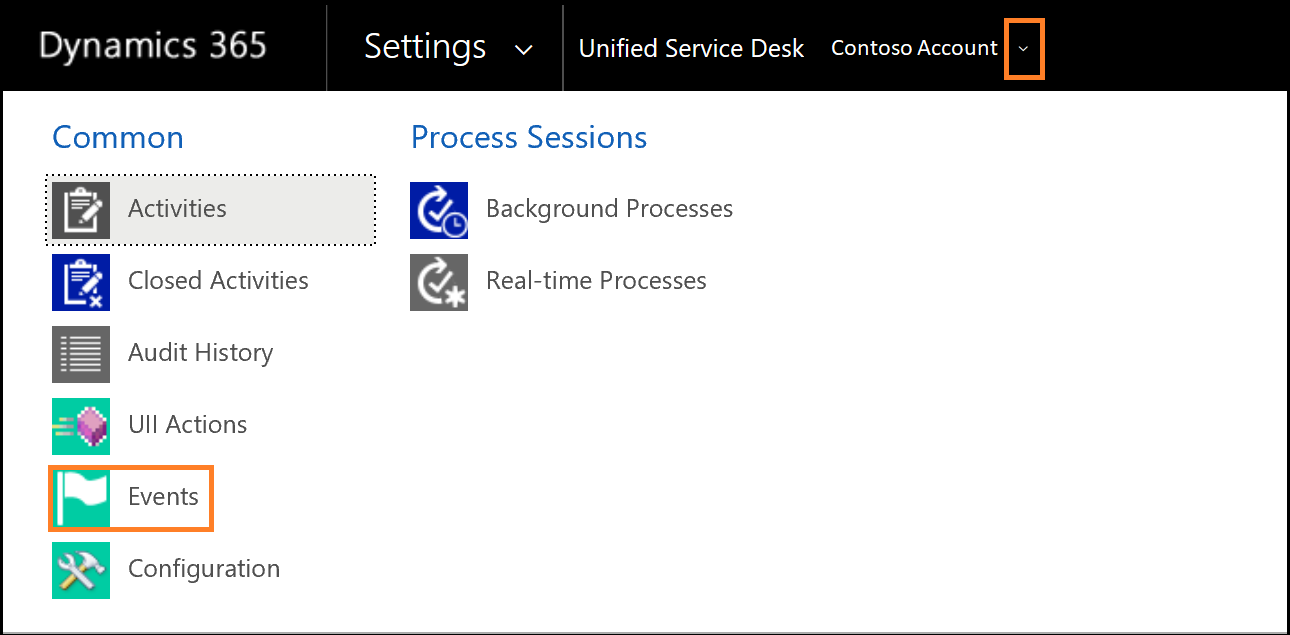

1. On the nav bar, select the down arrow next to the Contoso Account Session hosted control, and select Events.



2. On the events page, select BrowserDocumentComplete.

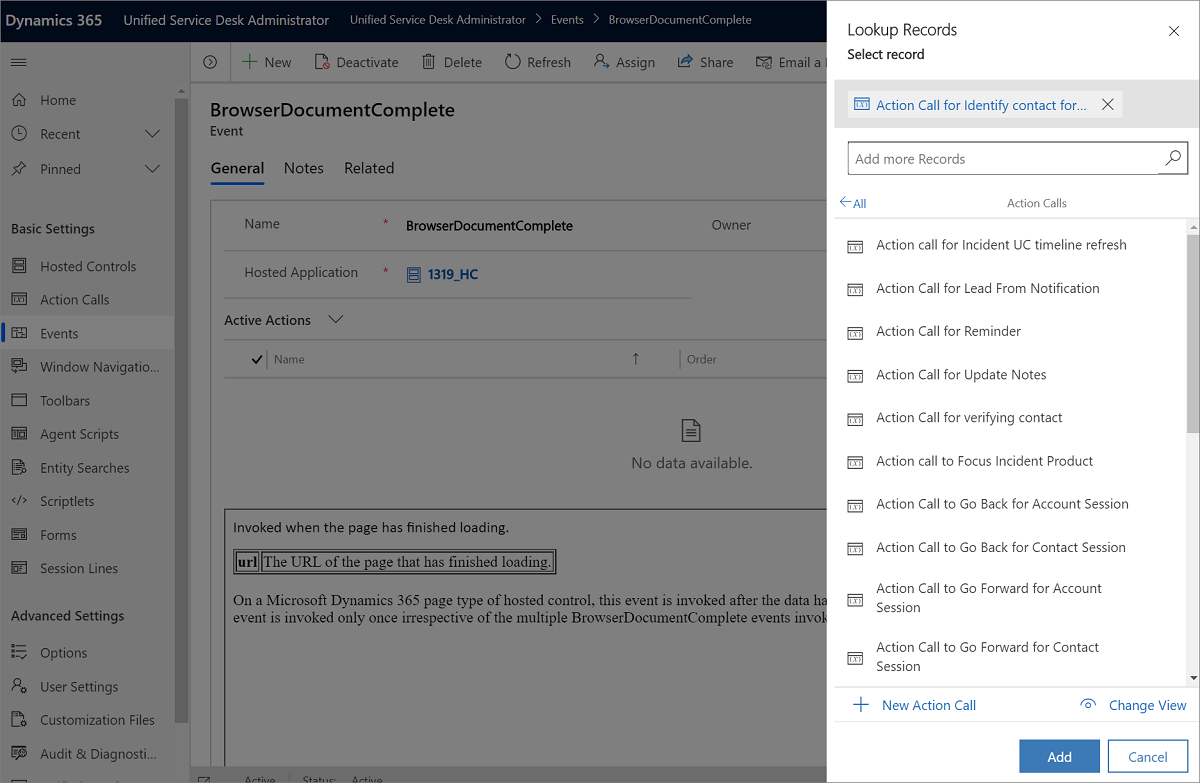

3. On the BrowserDocumentComplete page, select + in the Active Actions area to add an action call to the event.

4. In the search box, select the search icon or press ENTER, and then select New in the lower-right corner of the search results box.



5. On the New Action Call page, specify the following values.

   Field	Value
   Name	Contoso Action Call: Close Accounts Search
   Hosted Control	Contoso Account Search
   Action	Close



6. Select Save to add the action call to the BrowserDocumentComplete event.

Step 3: Create a Session Tabs hosted control

To display records in sessions in your agent application, an instance of the Session Tabs type of hosted control must be configured in your agent application.

1. On the hosted control page, select New.

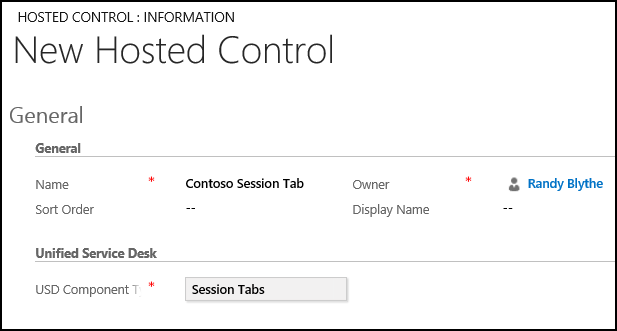

2. On the New Hosted Control page, specify the following values.

   Field	Value
   Name	Contoso Session Tab
   USD Component Type	Session Tabs



3. Update the XML in the Extensions XML field. To learn more, see Chat indicator XML.

4. Select Save.

Step 4: Create a window navigation rule to display the account record in a session

In this step, you’ll create a window navigation rule that displays the record in a session when the user selects any of the accounts in the search results window.

1. Sign in to the Dynamics 365 instance.

2. Go to Settings > Unified Service Desk.

3. Select Window Navigation Rules.

4. Select New.

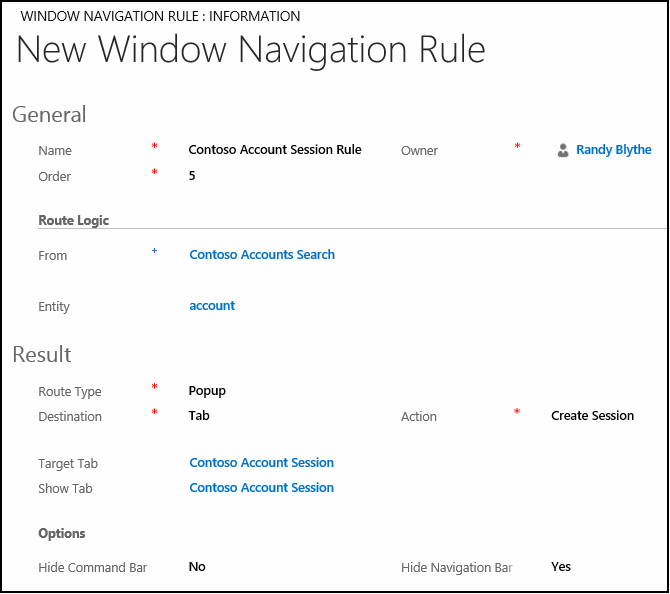

5. On the New Window Navigation Rule page, specify the following values.

   Field	Value
   Name	Contoso Account Session Rule
   Order	5
   From	Contoso Accounts Search
   Entity	account
   Route Type	Popup
   Destination	Tab
   Action	Create Session
   Target Tab	Contoso Account Session
   Show Tab	Contoso Account Session
   Hide Command Bar	No
   Hide Navigation Bar	Yes



6. Select Save.

Step 5: Add the controls to the configuration

In this step, you’ll add the action call, event, hosted controls, and window navigation rule configured in this walkthrough to Contoso Configuration to display these controls to the user who is assigned to the configuration. Contoso Configuration was created in Walkthrough 1: Build a simple agent application.

Add the following to Contoso Configuration.

Control name	Control type
Contoso Action Call: Close Accounts Search	Action call
BrowserDocumentComplete	Event for the Contoso Account Session hosted control
Contoso Account Session	Hosted Control
Contoso Session Tab	Hosted Control
Contoso Account Session Rule	Window navigation rule

To add a control to the configuration:

1. Sign in to the Dynamics 365 instance.

2. Go to Settings > Unified Service Desk.

3. Select Configuration.

4. Select Contoso Configuration to open the definition.

5. On the nav bar, select the down arrow next to Contoso Configuration, and select Action Calls.

6. On the next page, select Add Existing Action Call, type “Contoso Action Call: Close Accounts Search” in the search bar, and then press ENTER or select the search icon.

7. In the search result box, select the action call to add it to Contoso Configuration.

8. Similarly, add the event, hosted controls and window navigation rule by selecting the down arrow next to Contoso Configuration, and selecting Events Hosted Controls and Window navigation Rules respectively.

9. Select Save.

Step 6: Test the application

1. Start the Unified Service Desk client application, and sign in to the Dynamics 365 instance where you configured Unified Service Desk by using the same user credentials that is assigned to Contoso Configuration in Walkthrough 1: Build a simple agent application. For information about connecting to Dataverse instance using the Unified Service Desk client application, see Connect to CRM instance using the Unified Service Desk client.

2. To display the account records from your Dataverse instance, select the down arrow next to the Search button in the toolbar, and then select Account.

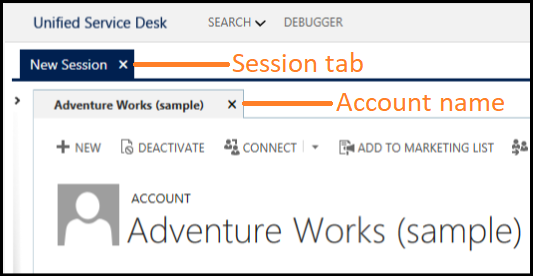

3. Select any of the account records to display the respective account information in a session; the information is displayed under a session tab. Note that the name of the hosted control tab that contains the account record automatically displays the account name because earlier you used replacement parameters to dynamically display the current account name instead of a static value.

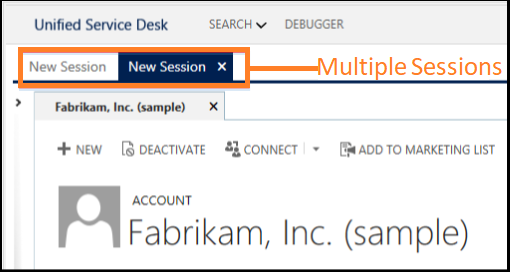

4. If you open another account record, it will be displayed in another session in your client application. To open another account, select the down arrow next to the Search button, select Account, and then select an account name to display the account information in another session.



Conclusion

In this walkthrough, you learned how to use the session hosted control and window navigation rules to display records in a session in your agent application. You also learned how to filter access to Unified Service Desk controls using configuration.

Note

Try the next walkthrough to present enhanced session information in your agent application: Walkthrough 5: Display enhanced session information by displaying session name and overview data.
