The Bing Maps REST services provides a number of useful services. The Elevation API provides elevation data from around the world. This code sample shows how to generate an elevation profile along a route.
<!DOCTYPE html>
<html>
<head>
<title></title>
<meta charset="utf-8" />
<script type='text/javascript' src='https://www.bing.com/api/maps/mapcontrol?callback=GetMap' async defer></script>
<!-- Load external jQuery and D3 libraries. -->
<script type='text/javascript' src="http://ajax.aspnetcdn.com/ajax/jQuery/jquery-3.1.1.min.js"></script>
<script src="https://d3js.org/d3.v4.min.js"></script>
<script type='text/javascript'>
var map, sessionKey;
var elevationServiceURL = 'https://dev.virtualearth.net/REST/v1/Elevation/List';
var maxElevationSteps = 300;
function GetMap()
{
map = new Microsoft.Maps.Map('#myMap', {
credentials: 'Your Bing Maps Key'
});
//Get a session key from the map and use with the REST services to make requests non-billable transactions.
map.getCredentials(function (c) {
sessionKey = c;
});
//Load the directions and spatial math modules.
Microsoft.Maps.loadModule(['Microsoft.Maps.Directions', 'Microsoft.Maps.SpatialMath'], function () {
//Create an instance of the directions manager.
directionsManager = new Microsoft.Maps.Directions.DirectionsManager(map);
directionsManager.setRequestOptions({
routeMode: Microsoft.Maps.Directions.RouteMode.driving
});
//Create waypoints to route between.
var start = new Microsoft.Maps.Directions.Waypoint({ address: 'Seatle, WA' });
directionsManager.addWaypoint(start);
var end = new Microsoft.Maps.Directions.Waypoint({ address: 'Redmond, WA' });
directionsManager.addWaypoint(end);
//Add an event handler to the directions manager.
Microsoft.Maps.Events.addHandler(directionsManager, 'directionsUpdated', directionsUpdated);
//Calculate directions.
directionsManager.calculateDirections();
});
}
function directionsUpdated(e) {
//Get the current route index.
var routeIdx = directionsManager.getRequestOptions().routeIndex;
var route = e.route[routeIdx];
var locs = [];
var distances = [0];
var incrementer = 1;
//If there are too many locations, the URL to the elevation service will be too long for the browser.
//For simplicity skip every n'th location.
if (route.routePath.length > maxElevationSteps) {
incrementer = Math.ceil(route.routePath.length / maxElevationSteps);
}
var distance = 0;
var loc = route.routePath[0];
for (var i = 1; i < route.routePath.length; i += incrementer) {
//Calculate the current distance along the route path.
distance += Microsoft.Maps.SpatialMath.getDistanceTo(loc, route.routePath[i], Microsoft.Maps.SpatialMath.DistanceUnits.Miles);
distances.push(distance);
//Add the current location to the location array.
loc = route.routePath[i];
locs.push(loc);
}
//Request elevation data from the Bing Maps REST Elevation Service.
$.ajax({
url: elevationServiceURL,
data: {
//Encode the location array as required by the elevation service.
points: Microsoft.Maps.PointCompression.encode(locs),
key: sessionKey,
},
dataType: "jsonp",
jsonp: "jsonp",
context: this,
success: function (data) {
if (data != null &&
data.resourceSets &&
data.resourceSets.length > 0 &&
data.resourceSets[0].resources &&
data.resourceSets[0].resources.length > 0) {
var elevations = data.resourceSets[0].resources[0].elevations;
createElevationProfile(distances, elevations);
}
},
error: function (e) {
alert(e);
}
});
}
function createElevationProfile(distances, elevations) {
var data = [];
//Combine the distances and elevations into a x/y data set that the chart control can understand.
for (var i = 0; i < elevations.length; i++) {
data.push({ x: distances[i], y: elevations[i] });
}
//Get the chart area SVG.
var svg = d3.select('#chartArea');
//Remove any previously generated chart content.
svg.selectAll('*').remove();
//Get the height and width of the SVG area.
var width = svg.attr('width');
var height = svg.attr('height');
//Specify some margins around the chart.
var margins = {
top: 40,
right: 20,
bottom: 40,
left: 50
};
//Create the x and y ranges.
var xRange = d3.scaleLinear().range([margins.left, width - margins.right])
.domain([d3.min(data, function (d) {
return d.x;
}), d3.max(data, function (d) {
return d.x;
})]);
var yRange = d3.scaleLinear().range([height - margins.top, margins.bottom])
.domain([d3.min(data, function (d) {
return d.y;
}), d3.max(data, function (d) {
return d.y;
})]);
//Create the x-axis.
svg.append('g')
.attr('transform', 'translate(0,' + (height - margins.bottom) + ')')
.call(d3.axisBottom(xRange));
svg.append('text')
.attr('x', width/2)
.attr('y', height)
.style('text-anchor', 'middle')
.text('Distance (miles)');
//Create the y-axis.
svg.append('g')
.attr('transform', 'translate(' + (margins.left) + ',0)')
.call(d3.axisLeft(yRange));
svg.append('text')
.attr('x', -(height / 2))
.attr('y', 10)
.attr('transform', 'rotate(-90)')
.style('text-anchor', 'middle')
.text('Elevation (meters)');
//Create a function for getting the points for the SVG path.
var lineFunc = d3.line()
.x(function (d) {
return xRange(d.x);
})
.y(function (d) {
return yRange(d.y);
});
//Create the elvation profile line.
svg.append('svg:path')
.attr('d', lineFunc(data))
.attr('stroke', 'blue')
.attr('stroke-width', 2)
.attr('fill', 'none');
}
</script>
</head>
<body>
<div id="myMap" style="position:relative;width:600px;height:400px;"></div>
<svg id="chartArea" width="600" height="250"></svg>
</body>
</html>

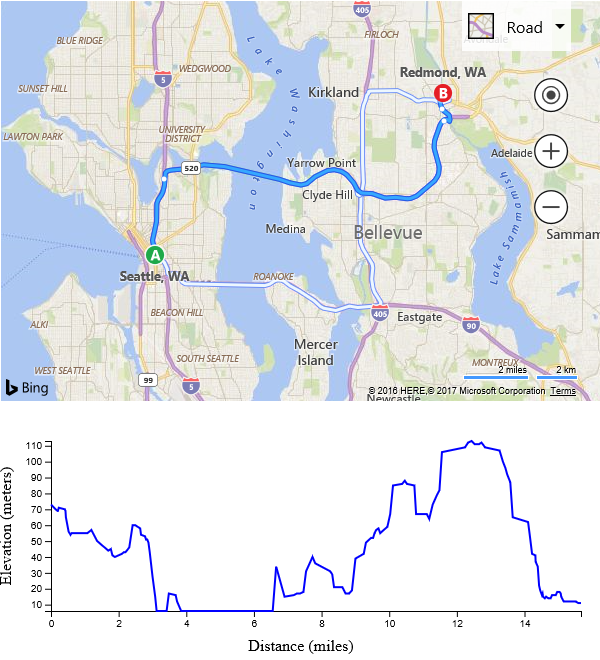

If you run this code in a browser, you will see a map with a route from Seattle, WA to Redmond, WA displayed. Below the map will be a chart displaying the elevation profile of the route.
