조작 및 관성 샘플

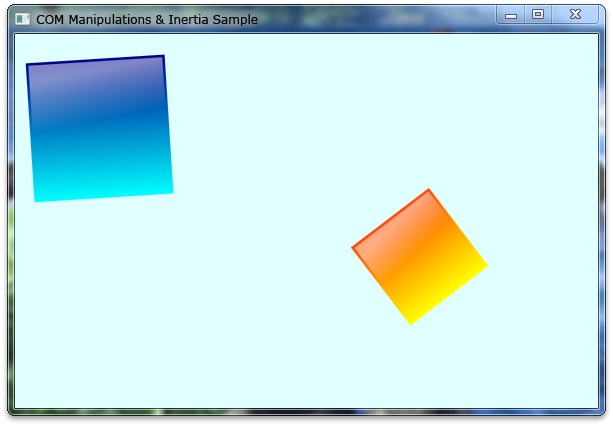

조작 및 관성 샘플은 Windows Touch API를 사용하는 네이티브 Windows 기반 애플리케이션에 Windows Touch 지원을 추가하는 방법을 보여 줍니다. 이 샘플은 개체에 대한 변환, 회전 및 크기 조정을 사용하도록 설정하고 관성 속성을 적용하는 API의 기본 기능을 구현합니다. 이 샘플에서는 Windows Touch 애플리케이션에 기본 마우스 지원을 제공하는 방법도 보여 줍니다. 다음 이미지는 샘플이 실행되면 어떻게 보이는지 보여줍니다.
사용자가 Windows Touch를 지원하는 컴퓨터에서 애플리케이션을 실행할 때 그라데이션이 있는 상자는 독립적으로 조작할 수 있습니다.
터치 창 등록
터치 입력을 받으려면 먼저 다음 함수를 호출하여 애플리케이션이 Windows Touch 애플리케이션임을 시스템에 알려야 합니다.
RegisterTouchWindow(g_hWnd, 0);
_IManipulationEventSink 인터페이스 구현
_IManipulationEvents 이벤트 싱크에는 ManipulationStarted, ManipulationDelta 및 ManipulationCompleted의 세 가지 함수가 포함되어 있습니다. 이러한 콜백 함수는 IManipulationProcessor 인터페이스 및 IInertiaProcessor 인터페이스에서 ProcessTime, ProcessUpWithTime, ProcessDownWithTime 및 ProcessMoveWithTime 함수를 호출한 후 프로세서에서 계산한 값을 반환하는 데 사용됩니다. 다음 코드 예제에서는 _IManipulationEvents 인터페이스의 구현 예제를 보여 있습니다.
#include "cmanipulationeventsink.h"
#include <math.h>
CManipulationEventSink::CManipulationEventSink(HWND hWnd, CDrawingObject *dObj, int iTimerId, BOOL inertia) {
// Manipulation & Inertia Processors
m_manip = NULL;
m_inert = NULL;
// Connection points for COM.
m_pConPointContainer = NULL;
m_pConnPoint = NULL;
// Reference to an object associated with this event sink.
m_dObj = dObj;
// Handle to the window used for computing boundaries.
m_hWnd = hWnd;
// The unique timer id for this manipulation event sink.
m_iTimerId = iTimerId;
m_bInertia = inertia;
m_cRefCount = 1;
}
CManipulationEventSink::~CManipulationEventSink()
{
}
HRESULT STDMETHODCALLTYPE CManipulationEventSink::ManipulationStarted(
FLOAT x,
FLOAT y)
{
KillTimer(m_hWnd, m_iTimerId);
return S_OK;
}
HRESULT STDMETHODCALLTYPE CManipulationEventSink::ManipulationDelta(
FLOAT x,
FLOAT y,
FLOAT translationDeltaX,
FLOAT translationDeltaY,
FLOAT scaleDelta,
FLOAT expansionDelta,
FLOAT rotationDelta,
FLOAT cumulativeTranslationX,
FLOAT cumulativeTranslationY,
FLOAT cumulativeScale,
FLOAT cumulativeExpansion,
FLOAT cumulativeRotation)
{
FLOAT pivot = 0.0f;
// Apply transformation based on rotationDelta (in radians).
FLOAT rads = 180.0f / 3.14159f;
m_dObj->Rotate(rotationDelta*rads, x, y);
// Apply translation based on scaleDelta.
m_dObj->Scale(scaleDelta);
// Apply translation based on translationDelta.
m_dObj->Translate(translationDeltaX, translationDeltaY);
if(!m_bInertia)
{
// Set values for one-finger rotations.
FLOAT fPivotRadius = (FLOAT)(sqrt(pow(m_dObj->GetWidth()/2, 2)
+ pow(m_dObj->GetHeight()/2, 2)))*0.4f;
FLOAT fPivotPtX = m_dObj->GetCenterX();
FLOAT fPivotPtY = m_dObj->GetCenterY();
m_manip->put_PivotPointX(fPivotPtX);
m_manip->put_PivotPointY(fPivotPtY);
m_manip->put_PivotRadius(fPivotRadius);
}
return S_OK;
}
HRESULT STDMETHODCALLTYPE CManipulationEventSink::ManipulationCompleted(
FLOAT x,
FLOAT y,
FLOAT cumulativeTranslationX,
FLOAT cumulativeTranslationY,
FLOAT cumulativeScale,
FLOAT cumulativeExpansion,
FLOAT cumulativeRotation)
{
if(!m_bInertia)
{
SetupInertia();
// Kick off timer that handles inertia.
SetTimer(m_hWnd, m_iTimerId, DESIRED_MILLISECONDS, NULL);
}
else
{
// Stop timer that handles inertia.
KillTimer(m_hWnd, m_iTimerId);
}
return S_OK;
}
COM 개체 만들기 및 IManipulationProcessor 및 IInertiaProcessor 인터페이스 설정
API는 IManipulationProcessor 및 IInertiaProcessor 인터페이스의 구현을 제공합니다. 이전에 구현된 IManipulationEvents 이벤트 싱크에서 COM 개체의 인스턴스를 만들고 참조해야 합니다.
WM_TOUCH 메시지 처리
입력 데이터는 WM_TOUCH 메시지에서 추출한 다음 나중에 올바른 조작 프로세서를 공급하기 위해 처리되어야 합니다.
switch (msg)
{
case WM_TOUCH:
iNumContacts = LOWORD(wParam);
hInput = (HTOUCHINPUT)lParam;
pInputs = new TOUCHINPUT[iNumContacts];
// Get each touch input info and feed each
// tagTOUCHINPUT into the process input handler.
if(pInputs != NULL)
{
if(GetTouchInputInfo(hInput, iNumContacts,
pInputs, sizeof(TOUCHINPUT)))
{
for(int i = 0; i < iNumContacts; i++)
{
// Bring touch input info into client coordinates.
ptInputs.x = pInputs[i].x/100;
ptInputs.y = pInputs[i].y/100;
ScreenToClient(g_hWnd, &ptInputs);
pInputs[i].x = ptInputs.x;
pInputs[i].y = ptInputs.y;
g_ctDriver->ProcessInputEvent(pInputs[i]);
}
}
}
delete [] pInputs;
break;
}
참고 항목
ScreenToClient 함수를 사용하려면 애플리케이션에서 높은 DPI 지원이 있어야 합니다. 높은 DPI를 지원하는 방법에 대한 자세한 내용은 높은 DPI를 참조하세요.
TOUCHINPUT 구조를 적절한 프로세서에 전달
GetTouchInputInfo 함수를 사용하여 WM_TOUCH 메시지에서 데이터를 추출한 후 TOUCHINPUT 구조의 dwFlag 집합에 따라 ProcessUpWithTime, ProcessDownWithTime 또는 ProcessMoveWithTime 함수를 호출하여 데이터를 조작 프로세서에 공급합니다.
참고 항목
여러 조작을 지원할 때 TOUCHINPUT 구조에 정의된 dwID를 사용하여 데이터를 올바른 IManipulationProcessor 개체로 보내야 하는 경우 새 조작 프로세서를 만들어야 합니다.
CoreObject* coCurrent = m_coHead;
while(coCurrent!=NULL && !bFoundObj)
{
if(dwEvent & TOUCHEVENTF_DOWN)
{
DownEvent(coCurrent, inData, &bFoundObj);
}
else if(dwEvent & TOUCHEVENTF_MOVE)
{
MoveEvent(coCurrent, inData);
}
else if(dwEvent & TOUCHEVENTF_UP)
{
UpEvent(coCurrent, inData);
}
coCurrent = coCurrent->coNext;
}
VOID CComTouchDriver::DownEvent(CoreObject* coRef, tagTOUCHINPUT inData, BOOL* bFound) {
DWORD dwPCursor = inData.dwID;
DWORD dwPTime = inData.dwTime;
int x = inData.x;
int y = inData.y;
// Check that the user has touched within an object's region and fed to the object's manipulation processor.
if(coRef->doDrawing->InRegion(x, y) &&
!HasCursor(coRef, dwPCursor))
{
...
// Feed values to the Manipulation Processor.
coRef->manipulationProc->ProcessDownWithTime(dwPCursor, (FLOAT)x, (FLOAT)y, dwPTime);
...
}
}
ManipulationCompleted 내에서 관성 설정
ManipulationCompleted 메서드가 호출된 후 IManipulationProcessor 개체는 관성을 호출하기 위해 IManipulationProcessor에 연결된 IInertiaProcessor 개체의 값을 설정해야 합니다. 다음 코드 예제에서는 IManipulationProcessor 메서드 ManipulationCompleted에서 IInertiaProcessor 개체를 설정하는 방법을 보여 줍니다.
int iVWidth = GetSystemMetrics(SM_CXVIRTUALSCREEN);
int iVHeight = GetSystemMetrics(SM_CYVIRTUALSCREEN);
RECT rc;
GetClientRect(m_hWnd, &rc);
FLOAT lCWidth = (FLOAT)rc.right;
FLOAT lCHeight = (FLOAT)rc.bottom;
// Set properties for inertia events.
// Deceleration for tranlations in pixel / msec^2.
m_inert->put_DesiredDeceleration(0.001f);
// Deceleration for rotations in radians / msec^2.
m_inert->put_DesiredAngularDeceleration(0.00001f);
// Calculate borders and elastic margin to be set.
// They are relative to the width and height of the object.
FLOAT fHOffset = m_dObj->GetWidth() * 0.5f;
FLOAT fVOffset = m_dObj->GetHeight() * 0.5f;
// Elastic margin is in pixels - note that it offsets the boundary.
FLOAT fHElasticMargin = 25.0f;
FLOAT fVElasticMargin = 25.0f;
FLOAT fBoundaryLeft = fHOffset + fHElasticMargin;
FLOAT fBoundaryTop = fVOffset + fVElasticMargin;
FLOAT fBoundaryRight = lCWidth - fHOffset - fHElasticMargin;
FLOAT fBoundaryBottom = lCHeight - fVOffset - fVElasticMargin;
// Set borders and elastic margin.
m_inert->put_BoundaryLeft(fBoundaryLeft);
m_inert->put_BoundaryTop(fBoundaryTop);
m_inert->put_BoundaryRight(fBoundaryRight);
m_inert->put_BoundaryBottom(fBoundaryBottom);
m_inert->put_ElasticMarginLeft(fHElasticMargin);
m_inert->put_ElasticMarginTop(fVElasticMargin);
m_inert->put_ElasticMarginRight(fHElasticMargin);
m_inert->put_ElasticMarginBottom(fVElasticMargin);
// Set initial origins.
m_inert->put_InitialOriginX(m_dObj->GetCenterX());
m_inert->put_InitialOriginY(m_dObj->GetCenterY());
FLOAT fVX;
FLOAT fVY;
FLOAT fVR;
m_manip->GetVelocityX(&fVX);
m_manip->GetVelocityY(&fVY);
m_manip->GetAngularVelocity(&fVR);
// Set initial velocities for inertia processor.
m_inert->put_InitialVelocityX(fVX);
m_inert->put_InitialVelocityY(fVY);
m_inert->put_InitialAngularVelocity(fVR);
COM 개체 정리
애플리케이션이 닫히면 COM 개체를 정리해야 합니다. 다음 코드에서는 샘플에 할당된 리소스를 해제하는 방법을 보여 줍니다.
CComTouchDriver::~CComTouchDriver(VOID) {
CoreObject* coCurrent = m_coHead;
// Clean up COM objects.
while(coCurrent!=NULL)
{
coCurrent->inertiaEventSink->Release();
coCurrent->manipulationEventSink->Release();
coCurrent->inertiaProc->Release();
coCurrent->manipulationProc->Release();
coCurrent = coCurrent->coNext;
}
}
