Manage runbooks for Service Management Automation

As a Service Management Automation (SMA) administrator, you need to configure and run runbooks. Activities including setting up the runbook workers and scheduling and tracking runbooks. There are two system runbooks that are included with SMA in addition to the runbooks you author:

• DiscoverAllLocalModules: Runs immediately after you install a runbook worker. This runbook discovers all the native modules on the Windows Server system on which the runbook worker is installed. It extracts activities and activity metadata for these modules so that their activities can be used when you author runbooks in Microsoft Azure Pack.
• SetAutomationModuleActivityMetadata: Runs immediately after you import a module into SMA. This runbook extracts activities and activity metadata from a newly imported module so that its activities can be used when you author runbooks in Microsoft Azure Pack.

Configure runbook workers

By default, when you start a runbook job in SMA, it's picked by a random runbook worker. However, you might want to use a specific runbook worker. To do this, use the RunbookWorker property. Learn more about runbook execution.

Designate a runbook worker with the PowerShell ISE Add-on.

1. In the SMA ISE Add-on > Configuration, sign in with your SMA account. After sign-in, you can see your runbooks in the Runbooks tab.
2. In the Runbooks tab, select one or more runbooks to run against a particular runbook worker.
3. Select configure, and in Configure Runbook properties, select a runbook worker from the dropdown menu.
4. Select Make changes.

Designate a runbook worker through the SMA PowerShell module

You can also set the runbook worker property using the following command-line command:

$webServer = 'https://MyServer'
$port = 9090
$runbookName = "Sample-TestRunbook"
$workerName = "Worker1"

Set-SmaRunbookConfiguration -WebServiceEndpoint $webServer -Port $port -Name $runbookName -RunbookWorker $workerName

You can see a list of all the runbook workers deployed as follows:

$webServer = 'https://MyServer'
$port = 9090

Get-SmaRunbookWorkerDeployment -WebServiceEndpoint $webServer -Port $port

Note

You can't currently use the Microsoft Azure Pack portal to designate a runbook worker. Use either the SMA ISE Add-on or PowerShell cmdlets.

Schedule runbooks

To schedule a runbook to start at a specified time, you link it to one or more schedules. A schedule can be configured to run once or set to recur. A runbook can be linked to multiple schedules, and a schedule can have multiple runbooks linked to it.

Create a schedule

You can create a schedule with the Management Portal or with Windows PowerShell.

Create a schedule in the Management Portal

1. In the Management Portal, select Automation.
2. In the Assets tab, select Add Setting > Add Schedule.
3. Enter a name and description for the new schedule, and select whether it will run One Time or Daily.
4. Specify a Start Time, and the other options as required. The time zone of the start time will match the time zone of the local computer.

Create a schedule with Windows PowerShell

You can use the Set-SmaSchedule cmdlet to create a schedule, or to modify an existing schedule. You must specify the start time for the schedule, and whether it should run once or repeatedly.

The following sample creates a new schedule called My Daily Schedule. It starts on the current day, and continues for one year every day at noon.

$webServer = 'https://MyServer'
$port = 9090
$scheduleName = 'My Daily Schedule'
$startTime = (Get-Date).Date.AddHours(12)
$expiryTime = $startTime.AddYears(1)

Set-SmaSchedule -WebServiceEndpoint $webServer -Port $port -Name $scheduleName -ScheduleType OneTimeSchedule -StartTime $startTime -ExpiryTime $expiryTime -DayInterval 1

Link a schedule to a runbook

A runbook can be linked to multiple schedules, and a schedule can have multiple runbooks linked to it. If a runbook has parameters, then you can provide values for them to be used when the runbook starts. You must provide values for any mandatory parameters.

Link a schedule in the Management Portal

1. In the Management Portal, select Automation > Runbooks.
2. Select the name of the runbook to schedule, and select the Schedule tab.
3. If the runbook is currently linked to a schedule, select Link. Then select Link to a New Schedule, and create a new one, or select Link to an Existing Schedule and select a schedule.
4. If the runbook has parameters, you will be prompted for their values.

Link schedule with Windows PowerShell

You can use the Start-SmaRunbook with the ScheduleName parameter to link a schedule to a runbook. You can specify values with the Parameters parameter. Learn more about parameter values.

The following sample commands show how to link a schedule to a runbook.

$webServer = 'https://MyServer'
$port = 9090
$runbookName = "Test-Runbook"
$scheduleName = "Sample-DailySchedule"

Start-SmaRunbook -WebServiceEndpoint $webServer -Port $port -Name $runbookName -ScheduleName $scheduleName -Parameters $params

Track runbooks

When you start a runbook in SMA, a job is created. A job is a single execution instance of a runbook. A single runbook may have multiple jobs, each with their own set of values for the runbook parameters.

• If the RunbookWorker property of the runbook is populated, then that worker server will service the job.
• If the worker server isn't available, then the job will fail with an error.
• If the RunbookWorker property isn't populated, then SMA will randomly select an available worker server to service the request.

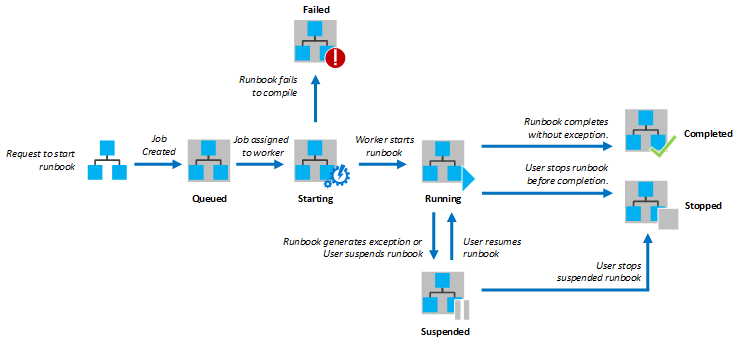

The following diagram shows the lifecycle of a runbook job for PowerShell Workflow runbooks.

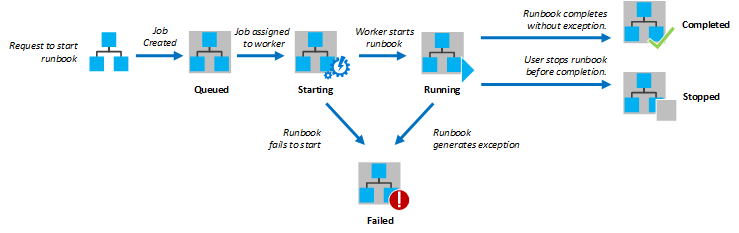

The following diagram shows the lifecycle of a runbook job for PowerShell script runbooks.

Job status

The following table describes the different statuses that are possible for a job.

Status	Description
Completed	The job completed successfully.
Failed	The job ended with an exception.
Queued	The job is waiting for resources on an Automation worker to come available so that it can be started.
Starting	The job has been assigned to a worker, and the system is in the process of starting it.
Resuming	The system is in the process of resuming the job after it was suspended.
Running	The job is running.
Stopped	The job was stopped by the user before it was completed.
Stopping	The system is in the process of stopping the job.
Suspended	The job was suspended by the user, by the system, or by a command in the runbook. A job that is suspended can be started again. It resumes from its last checkpoint, or from the beginning of the runbook if it has no checkpoints. The runbook is only suspended by the system in the case of an exception that has a possibility to resume. By default, ErrorActionPreference is set to Continue, meaning that the job keeps running when an exception occurs. If this variable is set to Stop, then the job is suspended when an exception occurs.
Suspending	The system attempts to suspend the job at the request of the user. The runbook must reach its next checkpoint before it can be suspended. If it has already passed its last checkpoint, then it completes before it can be suspended.

View job status in the Management Portal

The Automation Dashboard shows a summary of all of the runbooks in the SMA environment.

• The summary graph shows the number of total jobs for all runbooks that entered each status over a given number of days or hours.
• You can select the time range on the top right corner of the graph.
• The time axis of the chart changes according to the type of time range that you select.
• You can choose whether to display the line for a particular status by clicking on it at the top of the screen.

Display the dashboard as follows:

1. In the Management Portal, select Automation.
2. Select the Dashboard tab.

Display the dashboard

The Runbook Dashboard shows a summary for a single runbook. The summary graph shows the number of total jobs for the runbook that entered each status over a given number of days or hours. You can select the time range at the top right corner of the graph. The time axis of the chart changes according to the type of time range that you select. You can choose whether to display the line for a particular status by clicking on it at the top of the screen.

Display the dashboard as follows:

1. In the Management Portal, select Automation.
2. Select the name of a runbook.
3. Select the Dashboard tab.

View job details

You can view a list of all the jobs that have been created for a particular runbook and their most recent status.

• You can filter the list by job status and the range of dates for the last change to the job.
• Select the name of a job to view its detailed information and its output.
• The detailed view of the job includes the values for the runbook parameters that were provided to that job.
• The job history includes output, warning, and error messages with time stamps of when the record was created.
• Learn more about runbook output and messages.
• The source for a job is the source code of the workflow when the job was run. This may not be the same as the current version of the runbook if it was updated after the job was run.

You can use the following steps to view the jobs for a runbook.

1. In the Management Portal, select Automation.
2. Select the name of a runbook, and select the Jobs tab.
3. Select the Job Created column for a job to view its detail and output.
4. Select the History tab to view the job history. Select a history record and select View Details at the bottom of the screen for a detailed view of the record.
5. From the History tab, select View Source.

Retrieve job status using Windows PowerShell

You can use the Get-SmaJob to retrieve the jobs created for a runbook and the details of a particular job.

• If you start a runbook with Windows PowerShell using Start-SmaRunbook, then it returns the resulting job.
• Use Get-SmaJobOutput to get a job's output.

The following sample command retrieves the last job for a sample runbook and displays its status, the values provided for the runbook parameters, and the output from the job.

$webServer = 'https://MyServer'
$port = 9090
$runbookName = "Test-Runbook"

$job = (Get-SmaJob -WebServiceEndpoint $webServer -Port $port -RunbookName $runbookName | sort LastModifiedDate -desc)[0]
$job.Status
$job.JobParameters
Get-SmaJobOutput -WebServiceEndpoint $webServer -Port $port -Id $job.Id -Stream Output

Configure runbook settings

Each runbook has multiple settings. You can use these settings to help locate and manage runbooks. You can also change runbook logging by configuring these settings. Each of these settings is described below, followed by procedures on how to modify them.

Name and description

You can't change the name of a runbook after it has been created. The Description is optional and can be up to 512 characters.

Tags

Tags allow you to assign distinct words and phrases to help identify a runbook. You can specify multiple tags for a runbook by separating them with commas.

Logging

By default, Verbose and Progress records aren't written to job history. You can change the settings for a particular runbook to log these records. For more information on these records, see Runbook Output and Messages.

Designated runbook worker

By default, a runbook job is to be assigned to a random runbook worker to execute. You can change the settings for a particular runbook to execute the runbook on a particular runbook worker.

Change runbook settings in the Management Portal

You can change the settings for a runbook in the Management Portal from the Configure page for the runbook.

1. In the Management Portal, select Automation.

2. Select the Runbooks tab.

3. Select the name of a runbook.

4. Select the Configure tab.

Change runbook settings with PowerShell

You can use the Set-SmaRunbookConfiguration cmdlet to change all the settings for a runbook except for tags. You can only change and add Tags for the existing runbooks using the Management Portal. You can only set tags for runbooks with PowerShell when you import a runbook using Import-SmaRunbook.

The following sample commands show how to set the properties for a runbook. This sample adds a description and specifies that verbose records should be logged:

$webServer = 'https://MyServer'
$port = 9090
$runbookName = "Sample-TestRunbook"

Set-SmaRunbookConfiguration -WebServiceEndpoint $webServer -Port $port -Name $runbookName -Description "Sample runbook" -LogVerbose $true

Encrypt Runbook worker and SQL server connection

Secure the connection between the Runbook worker processes and SQL server using SSL.

Next steps

• Read about managing global assets.
• Learn about the role of SMA in a Microsoft Azure Pack implementation.
