Create and provision IoT Edge for Linux on Windows devices at scale using X.509 certificates

Applies to: IoT Edge 1.1

Important

IoT Edge 1.1 end of support date was December 13, 2022. Check the Microsoft Product Lifecycle for information about how this product, service, technology, or API is supported. For more information about updating to the latest version of IoT Edge, see Update IoT Edge.

This article provides end-to-end instructions for autoprovisioning one or more IoT Edge for Linux on Windows devices using X.509 certificates. You can automatically provision Azure IoT Edge devices with the Azure IoT Hub device provisioning service (DPS). If you're unfamiliar with the process of autoprovisioning, review the provisioning overview before continuing.

The tasks are as follows:

1. Generate certificates and keys.
2. Create either an individual enrollment for a single device or a group enrollment for a set of devices.
3. Deploy a Linux virtual machine with the IoT Edge runtime installed and connect it to the IoT Hub.

Using X.509 certificates as an attestation mechanism is an excellent way to scale production and simplify device provisioning. Typically, X.509 certificates are arranged in a certificate chain of trust. Starting with a self-signed or trusted root certificate, each certificate in the chain signs the next lower certificate. This pattern creates a delegated chain of trust from the root certificate down through each intermediate certificate to the final downstream device certificate installed on a device.

Prerequisites

Cloud resources

• An active IoT hub
• An instance of the IoT Hub device provisioning service in Azure, linked to your IoT hub
  • If you don't have a device provisioning service instance, you can follow the instructions in the Create a new IoT Hub device provisioning service and Link the IoT hub and your device provisioning service sections of the IoT Hub device provisioning service quickstart.
  • After you have the device provisioning service running, copy the value of ID Scope from the overview page. You use this value when you configure the IoT Edge runtime.

Device requirements

A Windows device with the following minimum requirements:

• System Requirements

  • Windows 10¹/11 (Pro, Enterprise, IoT Enterprise)
  • Windows Server 2019¹/2022
    _{¹ Windows 10 and Windows Server 2019 minimum build 17763 with all current cumulative updates installed.}

• Hardware requirements

  • Minimum Free Memory: 1 GB
  • Minimum Free Disk Space: 10 GB

• Virtualization support

  • On Windows 10, enable Hyper-V. For more information, see Install Hyper-V on Windows 10.
  • On Windows Server, install the Hyper-V role and create a default network switch. For more information, see Nested virtualization for Azure IoT Edge for Linux on Windows.
  • On a virtual machine, configure nested virtualization. For more information, see nested virtualization.

• Networking support

  • Windows Server does not come with a default switch. Before you can deploy EFLOW to a Windows Server device, you need to create a virtual switch. For more information, see Create virtual switch for Linux on Windows.
  • Windows Desktop versions come with a default switch that can be used for EFLOW installation. If needed, you can create your own custom virtual switch.

Tip

If you want to use GPU-accelerated Linux modules in your Azure IoT Edge for Linux on Windows deployment, there are several configuration options to consider.

You will need to install the correct drivers depending on your GPU architecture, and you may need access to a Windows Insider Program build. To determine your configuration needs and satisfy these prerequisites, see GPU acceleration for Azure IoT Edge for Linux on Windows.

Make sure you take the time to satisfy the prerequisites for GPU acceleration now. You will need to restart the installation process if you decide you want GPU acceleration during installation.

Developer tools

You can use either PowerShell or Windows Admin Center to manage your IoT Edge devices. Each utility has its own prerequisites:

PowerShell

If you want to use PowerShell, use the following steps to prepare your target device for the installation of Azure IoT Edge for Linux on Windows and the deployment of the Linux virtual machine:

1. Set the execution policy on the target device to AllSigned. You can check the current execution policy in an elevated PowerShell prompt using the following command:

   Get-ExecutionPolicy -List


   If the execution policy of local machine is not AllSigned, you can set the execution policy using:

   Set-ExecutionPolicy -ExecutionPolicy AllSigned -Force


For more information on the Azure IoT Edge for Linux on Windows PowerShell module, see the PowerShell functions reference.

Windows Admin Center

If you want to use Windows Admin Center, use the following steps to download and install Windows Admin Center and install the Windows Admin Center Azure IoT Edge extension:

1. Download and run the Windows Admin Center installer. Follow the install wizard prompts to install Windows Admin Center.

2. Once installed, use a supported browser to open Windows Admin Center. Supported browsers include Microsoft Edge (Windows 10, version 1709 or later), Google Chrome, and Microsoft Edge Insider.

3. On the first use of Windows Admin Center, you will be prompted to select a certificate to use. Select Windows Admin Center Client as your certificate.

4. Install the Azure IoT Edge extension. Select the gear icon in the top right of the Windows Admin Center dashboard.



5. On the Settings menu, under Gateway, select Extensions.

6. On the Available extensions tab, find Azure IoT Edge in the list of extensions. Choose it, and select the Install prompt above the list of extensions.

7. After the installation completes, you should see Azure IoT Edge in the list of installed extensions on the Installed extensions tab.

Generate device identity certificates

The device identity certificate is a downstream certificate that connects through a certificate chain of trust to the top X.509 certificate authority (CA) certificate. The device identity certificate must have its common name (CN) set to the device ID that you want the device to have in your IoT hub.

Device identity certificates are only used for provisioning the IoT Edge device and authenticating the device with Azure IoT Hub. They aren't signing certificates, unlike the CA certificates that the IoT Edge device presents to modules or downstream devices for verification. For more information, see Azure IoT Edge certificate usage detail.

After you create the device identity certificate, you should have two files: a .cer or .pem file that contains the public portion of the certificate, and a .cer or .pem file with the private key of the certificate. If you plan to use group enrollment in DPS, you also need the public portion of an intermediate or root CA certificate in the same certificate chain of trust.

You need the following files to set up automatic provisioning with X.509:

• The device identity certificate and its private key certificate. The device identity certificate is uploaded to DPS if you create an individual enrollment. The private key is passed to the IoT Edge runtime.
• A full chain certificate, which should have at least the device identity and the intermediate certificates in it. The full chain certificate is passed to the IoT Edge runtime.
• An intermediate or root CA certificate from the certificate chain of trust. This certificate is uploaded to DPS if you create a group enrollment.

Note

Currently, a limitation in libiothsm prevents the use of certificates that expire on or after January 1, 2038.

Use test certificates (optional)

If you don't have a certificate authority available to create new identity certs and want to try out this scenario, the Azure IoT Edge git repository contains scripts that you can use to generate test certificates. These certificates are designed for development testing only, and must not be used in production.

To create test certificates, follow the steps in Create demo certificates to test IoT Edge device features. Complete the two required sections to set up the certificate generation scripts and to create a root CA certificate. Then, follow the steps to create a device identity certificate. When you're finished, you should have the following certificate chain and key pair:

• <WRKDIR>\certs\iot-edge-device-identity-<name>-full-chain.cert.pem
• <WRKDIR>\private\iot-edge-device-identity-<name>.key.pem

You need both these certificates on the IoT Edge device. If you're going to use individual enrollment in DPS, then you will upload the .cert.pem file. If you're going to use group enrollment in DPS, then you also need an intermediate or root CA certificate in the same certificate chain of trust to upload. If you're using demo certs, use the <WRKDIR>\certs\azure-iot-test-only.root.ca.cert.pem certificate for group enrollment.

Create a DPS enrollment

Use your generated certificates and keys to create an enrollment in DPS for one or more IoT Edge devices.

If you are looking to provision a single IoT Edge device, create an individual enrollment. If you need multiple devices provisioned, follow the steps for creating a DPS group enrollment.

When you create an enrollment in DPS, you have the opportunity to declare an Initial Device Twin State. In the device twin, you can set tags to group devices by any metric you need in your solution, like region, environment, location, or device type. These tags are used to create automatic deployments.

For more information about enrollments in the device provisioning service, see How to manage device enrollments.

Individual enrollment

Create a DPS individual enrollment

Individual enrollments take the public portion of a device's identity certificate and match that to the certificate on the device.

Tip

The steps in this article are for the Azure portal, but you can also create individual enrollments using the Azure CLI. For more information, see az iot dps enrollment. As part of the CLI command, use the edge-enabled flag to specify that the enrollment is for an IoT Edge device.

1. In the Azure portal, navigate to your instance of IoT Hub device provisioning service.

2. Under Settings, select Manage enrollments.

3. Select Add individual enrollment then complete the following steps to configure the enrollment:

   • Mechanism: Select X.509.

   • Primary Certificate .pem or .cer file: Upload the public file from the device identity certificate. If you used the scripts to generate a test certificate, choose the following file:

     <WRKDIR>\certs\iot-edge-device-identity-<name>.cert.pem

   • IoT Hub Device ID: Provide an ID for your device if you'd like. You can use device IDs to target an individual device for module deployment. If you don't provide a device ID, the common name (CN) in the X.509 certificate is used.

   • IoT Edge device: Select True to declare that the enrollment is for an IoT Edge device.

   • Select the IoT hubs this device can be assigned to: Choose the linked IoT hub that you want to connect your device to. You can choose multiple hubs, and the device will be assigned to one of them according to the selected allocation policy.

   • Initial Device Twin State: Add a tag value to be added to the device twin if you'd like. You can use tags to target groups of devices for automatic deployment. For example:

     {
         "tags": {
            "environment": "test"
         },
         "properties": {
            "desired": {}
         }
     }


4. Select Save.

Under Manage Enrollments, you can see the Registration ID for the enrollment you just created. Make note of it, as it can be used when you provision your device.

Now that an enrollment exists for this device, the IoT Edge runtime can automatically provision the device during installation.

Group enrollment

Create a DPS group enrollment

Group enrollments use an intermediate or root CA certificate from the certificate chain of trust used to generate the individual device identity certificates.

Verify your root certificate

When you create an enrollment group, you have the option of using a verified certificate. You can verify a certificate with DPS by proving that you have ownership of the root certificate. For more information, see How to do proof-of-possession for X.509 CA certificates.

1. In the Azure portal, navigate to your instance of IoT Hub device provisioning service.

2. Select Certificates from the left-hand menu.

3. Select Add to add a new certificate.

4. Enter a friendly name for your certificate, then browse to the .cer or .pem file that represents the public part of your X.509 certificate.

   If you're using the demo certificates, upload the <wrkdir>\certs\azure-iot-test-only.root.ca.cert.pem certificate.

5. Select Save.

6. Your certificate should now be listed on the Certificates page. Select it to open the certificate details.

7. Select Generate Verification Code then copy the generated code.

8. Whether you brought your own CA certificate or are using the demo certificates, you can use the verification tool provided in the IoT Edge repository to verify proof of possession. The verification tool uses your CA certificate to sign a new certificate that has the provided verification code as the subject name.

   New-CACertsVerificationCert "<verification code>"


9. In the same certificate details page in the Azure portal, upload the newly generated verification certificate.

10. Select Verify.

Create enrollment group

For more information about enrollments in the device provisioning service, see How to manage device enrollments.

Tip

The steps in this article are for the Azure portal, but you can also create group enrollments using the Azure CLI. For more information, see az iot dps enrollment-group. As part of the CLI command, use the edge-enabled flag to specify that the enrollment is for IoT Edge devices. For a group enrollment, all devices must be IoT Edge devices or none of them can be.

1. In the Azure portal, navigate to your instance of IoT Hub device provisioning service.

2. Under Settings, select Manage enrollments.

3. Select Add enrollment group then complete the following steps to configure the enrollment:

   • Group name: Provide a memorable name for this group enrollment.

   • Attestation Type: Select Certificate.

   • IoT Edge device: Select True. For a group enrollment, all devices must be IoT Edge devices or none of them can be.

   • Certificate Type: Select CA Certificate.

   • Primary certificate: Choose your certificate from the dropdown list.

   • Select the IoT hubs this device can be assigned to: Choose the linked IoT hub that you want to connect your device to. You can choose multiple hubs, and the device will be assigned to one of them according to the selected allocation policy.

   • Initial Device Twin State: Add a tag value to be added to the device twin if you'd like. You can use tags to target groups of devices for automatic deployment. For example:

     {
         "tags": {
            "environment": "test"
         },
         "properties": {
            "desired": {}
         }
     }


4. Select Save.

Under Manage Enrollments, you can see the Registration ID for the enrollment you just created. Make note of it, as it can be used when you provision your devices.

Now that an enrollment exists for these devices, the IoT Edge runtime can automatically provision the devices during installation.

Install IoT Edge

Deploy Azure IoT Edge for Linux on Windows on your target device.

PowerShell

Install IoT Edge for Linux on Windows on your target device.

Note

The following PowerShell process outlines how to deploy IoT Edge for Linux on Windows onto the local device. To deploy to a remote target device using PowerShell, you can use Remote PowerShell to establish a connection to a remote device and run these commands remotely on that device.

1. In an elevated PowerShell session, run each of the following commands to download IoT Edge for Linux on Windows.

   $msiPath = $([io.Path]::Combine($env:TEMP, 'AzureIoTEdge.msi'))
   $ProgressPreference = 'SilentlyContinue'
   Invoke-WebRequest "https://aka.ms/AzEflowMSI" -OutFile $msiPath


2. Install IoT Edge for Linux on Windows on your device.

   Start-Process -Wait msiexec -ArgumentList "/i","$([io.Path]::Combine($env:TEMP, 'AzureIoTEdge.msi'))","/qn"


   You can specify custom IoT Edge for Linux on Windows installation and VHDX directories by adding INSTALLDIR="<FULLY_QUALIFIED_PATH>" and VHDXDIR="<FULLY_QUALIFIED_PATH>" parameters to the install command. For example, if you want to use the D:\EFLOW folder for installation and the D:\EFLOW-VHDX for the VHDX, you can use the following PowerShell cmdlet.

   Start-Process -Wait msiexec -ArgumentList "/i","$([io.Path]::Combine($env:TEMP, 'AzureIoTEdge.msi'))","/qn","INSTALLDIR=D:\EFLOW", "VHDXDIR=D:\EFLOW-VHDX"


3. Set the execution policy on the target device to AllSigned if it is not already. See the PowerShell prerequisites for commands to check the current execution policy and set the execution policy to AllSigned.

4. Create the IoT Edge for Linux on Windows deployment. The deployment creates your Linux virtual machine and installs the IoT Edge runtime for you.

   Deploy-Eflow


   Tip

   By default, the Deploy-Eflow command creates your Linux virtual machine with 1 GB of RAM, 1 vCPU core, and 16 GB of disk space. However, the resources your VM needs are highly dependent on the workloads you deploy. If your VM does not have sufficient memory to support your workloads, it will fail to start.

   You can customize the virtual machine's available resources using the Deploy-Eflow command's optional parameters.

   For example, the command below creates a virtual machine with 4 vCPU cores, 4 GB of RAM (represented in MB), and 20 GB of disk space:

   Deploy-Eflow -cpuCount 4 -memoryInMB 4096 -vmDiskSize 20


   For information about all the optional parameters available, see PowerShell functions for IoT Edge for Linux on Windows.

   Warning

   By default, the EFLOW Linux virtual machine has no DNS configuration. Deployments using DHCP will try to obtain the DNS configuration propagated by the DHCP server. Please check your DNS configuration to ensure internet connectivity. For more information, see AzEFLOW-DNS.

   You can assign a GPU to your deployment to enable GPU-accelerated Linux modules. To gain access to these features, you will need to install the prerequisites detailed in GPU acceleration for Azure IoT Edge for Linux on Windows.

   To use a GPU passthrough, add the gpuName, gpuPassthroughType, and gpuCount parameters to your Deploy-Eflow command. For information about all the optional parameters available, see PowerShell functions for IoT Edge for Linux on Windows.

   Warning

   Enabling hardware device passthrough may increase security risks. Microsoft recommends a device mitigation driver from your GPU's vendor, when applicable. For more information, see Deploy graphics devices using discrete device assignment.

5. Enter 'Y' to accept the license terms.

6. Enter 'O' or 'R' to toggle Optional diagnostic data on or off, depending on your preference.

7. Once the deployment is complete, the PowerShell window reports Deployment successful.



   After a successful deployment, you are ready to provision your device.

Windows Admin Center

Note

The Azure IoT Edge extension for Windows Admin Center is currently in public preview. The management process may be different than for generally available features.

1. Install and open Windows Admin Center.

   On the Windows Admin Center start page, under the list of connections, you will see a local host connection representing the PC where you are running Windows Admin Center. Any additional servers, PCs, or clusters that you manage will also show up here.

   You can use Windows Admin Center to manage Azure IoT Edge for Linux on Windows on either your local device or remote managed devices. In this guide, the local host connection will serve as the target device for the deployment of Azure IoT Edge for Linux on Windows.

2. Confirm that your local device is listed under All connections, like shown below.



   If you want to deploy to a remote target device instead of your local device and you do not see your desired target device in the list, follow the instructions to add your device.

3. Select + Add to begin creating your deployment. The deployment creates your Linux virtual machine and installs the IoT Edge runtime for you.

4. On the Add or create resources pane, locate the Azure IoT Edge tile. Select Create new to install a new instance of Azure IoT Edge for Linux on Windows on a device.

   If you already have IoT Edge for Linux on Windows running on a device, you could select Add to connect to that existing IoT Edge device and manage it with Windows Admin Center.



5. The Create an Azure IoT Edge for Linux on Windows deployment pane will open. On the 1. Getting Started tab, review the minimum requirements and select Next.

6. Review the license terms, check I Accept, and select Next.

7. You can toggle Optional diagnostic data on or off, depending on your preference.

8. Select Next: Deploy.



9. On the 2. Deploy tab, under Select a target device, click on your listed device to validate it meets the minimum requirements. Once its status is confirmed as supported, select Next.



10. On the 2.2 Settings tab, review the configuration settings of your deployment. The table below shows the settings and their default values.

    Setting	Default value
    Virtual disk size in GB	16
    Memory in MB (even number)	1024
    Number of cores	2
    Azure IoT Edge version	1.1 (LTS)

    Note

    IoT Edge for Linux on Windows uses a default switch, which assigns the Linux virtual machine an internal IP address. This internal IP address cannot be reached from outside the Windows machine. You can connect to the virtual machine locally while logged onto the Windows machine.

    If you are using Windows Server, set up a default switch before deploying IoT Edge for Linux on Windows.

    You can assign a GPU to your deployment to enable GPU-accelerated Linux modules. To gain access to these features, you will need to install the prerequisites detailed in GPU acceleration for Azure IoT Edge for Linux on Windows. If you are only installing these prerequisites at this point in the deployment process, you will need to start again from the beginning.

    There are two options for GPU passthrough available: Direct Device Assignment (DDA) and GPU Paravirtualization (GPU-PV), depending on the GPU adaptor you assign to your deployment.

    For the direct device assignment method, select the number of GPU processors to allocate to your Linux virtual machine.

    For the paravirtualization method, no additional settings are needed.

    Warning

    Enabling hardware device passthrough may increase security risks. Microsoft recommends a device mitigation driver from your GPU's vendor, when applicable. For more information, see Deploy graphics devices using discrete device assignment.

    Once you are satisfied with the settings, select Next.

11. On the 2.3 Deployment tab, you can watch the progress of the deployment. The full process includes downloading the Azure IoT Edge for Linux on Windows package, installing the package, configuring the host device, and setting up the Linux virtual machine. This process may take several minutes to complete. A successful deployment is pictured below.



12. Once your deployment is complete, you are ready to provision your device. Select Next: Connect to proceed to the 3. Connect tab, which handles Azure IoT Edge device provisioning.

Provision the device with its cloud identity

Once the runtime is installed on your device, configure the device with the information it uses to connect to the device provisioning service and IoT Hub.

Have the following information ready:

• The DPS ID Scope value. You can retrieve this value from the overview page of your DPS instance in the Azure portal.
• The device identity certificate chain file on the device.
• The device identity key file on the device.

You can use either PowerShell or Windows Admin Center to provision your IoT Edge device.

PowerShell

For PowerShell, run the following command with the placeholder values updated with your own values:

Provision-EflowVm -provisioningType DpsX509 -scopeId PASTE_YOUR_ID_SCOPE_HERE -registrationId PASTE_YOUR_REGISTRATION_ID_HERE -identityCertPath PASTE_ABSOLUTE_PATH_TO_IDENTITY_CERTIFICATE_HERE -identityPrivKeyPath PASTE_ABSOLUTE_PATH_TO_IDENTITY_PRIVATE_KEY_HERE

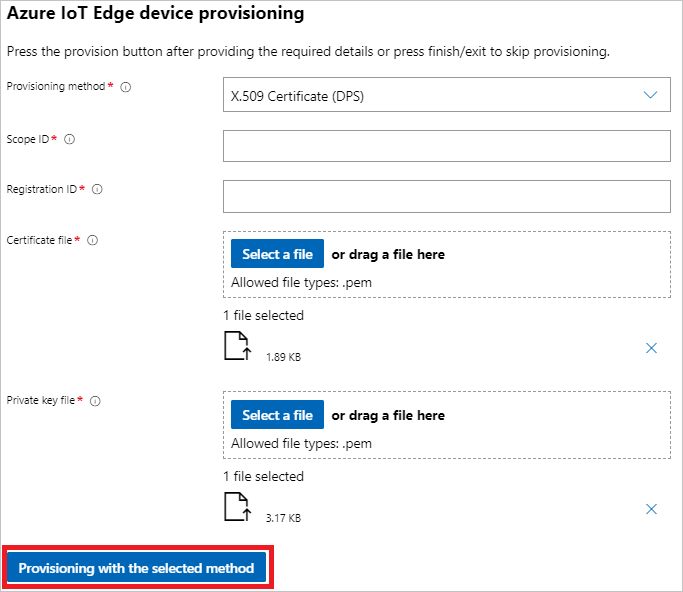

Windows Admin Center

For Windows Admin Center, use the following steps:

1. On the Azure IoT Edge device provisioning pane, select X509 Certificate (DPS) from the provisioning method dropdown.

2. Provide your DPS scope ID, device registration ID, and enrollment primary key or derived key in the Windows Admin Center fields.

3. Choose Provisioning with the selected method.



4. Once the provisioning is complete, select Finish. You will be taken back to the main dashboard. Now, you should see a new device listed, whose type is IoT Edge Devices. You can select the IoT Edge device to connect to it. Once on its Overview page, you can view the IoT Edge Module List and IoT Edge Status of your device.

Verify successful installation

Verify that IoT Edge for Linux on Windows was successfully installed and configured on your IoT Edge device.

Individual enrollment

You can verify that the individual enrollment that you created in device provisioning service was used. Navigate to your device provisioning service instance in the Azure portal. Open the enrollment details for the individual enrollment that you created. Notice that the status of the enrollment is assigned and the device ID is listed.

Group enrollment

You can verify that the group enrollment that you created in device provisioning service was used. Navigate to your device provisioning service instance in the Azure portal. Open the enrollment details for the group enrollment that you created. Go to the Registration Records tab to view all devices registered in that group.

PowerShell

1. Log in to your IoT Edge for Linux on Windows virtual machine using the following command in your PowerShell session:

   Connect-EflowVm


   Note

   The only account allowed to SSH to the virtual machine is the user that created it.

2. Once you are logged in, you can check the list of running IoT Edge modules using the following Linux command:

   sudo iotedge list


3. If you need to troubleshoot the IoT Edge service, use the following Linux commands.

   1. If you need to troubleshoot the service, retrieve the service logs.

      sudo journalctl -u iotedge


   2. Use the check tool to verify configuration and connection status of the device.

      sudo iotedge check


   Note

   On a newly provisioned device, you may see an error related to IoT Edge Hub:

   × production readiness: Edge Hub's storage directory is persisted on the host filesystem - Error

   Could not check current state of edgeHub container

   This error is expected on a newly provisioned device because the IoT Edge Hub module isn't running. To resolve the error, in IoT Hub, set the modules for the device and create a deployment. Creating a deployment for the device starts the modules on the device including the IoT Edge Hub module.

Windows Admin Center

1. Select your IoT Edge device from the list of connected devices in Windows Admin Center to connect to it.

2. The device overview page displays some information about the device:

   • The IoT Edge Module List section shows running modules on the device. When the IoT Edge service starts for the first time, you should only see the edgeAgent module running. The edgeAgent module runs by default and helps to install and start any additional modules that you deploy to your device.

   • The IoT Edge Status section shows the service status, and should be reporting active (running).

When you create a new IoT Edge device, it will display the status code 417 -- The device's deployment configuration is not set in the Azure portal. This status is normal, and means that the device is ready to receive a module deployment.

Uninstall IoT Edge for Linux on Windows

If you want to remove the Azure IoT Edge for Linux on Windows installation from your device, use the following commands.

1. Open Settings on Windows
2. Select Add or Remove Programs
3. Select Azure IoT Edge LTS app
4. Select Uninstall

Next steps

The device provisioning service enrollment process lets you set the device ID and device twin tags at the same time as you provision the new device. You can use those values to target individual devices or groups of devices using automatic device management. Learn how to Deploy and monitor IoT Edge modules at scale using the Azure portal or using Azure CLI.

You can also:

• Continue to deploy IoT Edge modules to learn how to deploy modules onto your device.
• Learn how to manage certificates on your IoT Edge for Linux on Windows virtual machine and transfer files from the host OS to your Linux virtual machine.
• Learn how to configure your IoT Edge devices to communicate through a proxy server.
