Set up Android device with the Microsoft Intune app and DISA Purebred
Enroll your device with the Microsoft Intune app to gain secure, mobile access to your work email, files, and apps. After your device is enrolled, it becomes managed, which means your organization can assign policies and apps to the device through a mobile device management (MDM) provider, such as Microsoft Intune.
During enrollment, you also install a derived credential on your device. Your organization might require you to use the derived credential as an authentication method when accessing resources, or for signing and encrypting emails.
You likely need to set up a derived credential if you use a smart card to:
- Sign in to school or work apps, Wi-Fi, and virtual private networks (VPN)
- Sign and encrypt school or work emails using S/MIME certificates
In this article, you learn how to:
- Enroll a mobile Android device with the Intune app
- Set up your smart card by installing a derived credential from your organization's derived credential provider, DISA Purebred
What are derived credentials?
A derived credential is a certificate that's derived from your smart card credentials and installed on your device. It grants you remote access to work resources, while preventing unauthorized users from accessing sensitive information.
Derived credentials are used to:
- Authenticate students and employees who sign in to school or work apps, Wi-Fi, and VPN
- Sign and encrypt school or work emails with S/MIME certificates
Derived credentials are an implementation of the National Institute of Standards and Technology (NIST) guidelines for Derived Personal Identity Verification (PIV) credentials as part of Special Publication (SP) 800-157.
Prerequisites
To complete enrollment, you must have:
- Your school or work-provided smart card
- Access to a computer or kiosk where you can sign in with your smart card
- A new or factory-reset device running Android 8.0 or later
- The Microsoft Intune app installed on your device
- The Purebred app installed on your device (App should automatically install shortly after device setup. If it doesn't, contact your IT support person.)
You must also contact a Purebred agent or representative during setup.
Enroll device
Turn on your new or factory-reset device.
On the Welcome screen, select your language. If you were instructed to enroll with a QR code or NFC, complete the step that matches the method:
NFC: Tap your NFC-supported device against a programmer device to connect to your organization's network. Follow the onscreen prompts. When you reach the screen for Chrome's Terms of Service, continue to step 5.
QR code: Complete the steps in QR code enrollment.
If you were instructed to use another method, continue to step 3.
Connect to Wi-Fi and tap NEXT. Follow the step that matches your enrollment method.
- Token: When you get to the Google sign-in screen, complete the steps in Token enrollment.
- Google Zero Touch: After you connect to Wi-Fi, your organization can recognize your device. Continue to step 4 and follow the onscreen prompts until setup is complete.
Review Google's terms. Then tap ACCEPT & CONTINUE.
Review Chrome's Terms of Service. Then tap ACCEPT & CONTINUE.
On the sign-in screen, tap Sign-in options and then Sign in from another device.
Write down the onscreen code.
Switch to your smart card-enabled device and go to the web address that appears on your screen.
Enter the code you previously wrote down.
Insert your smart card to sign in.
On the sign-in screen, select your work or school account. Then switch back to your mobile device.
Depending on your organization's requirements, you might be prompted to update settings, such as screen lock or encryption. If you see these prompts, tap SET and follow the onscreen instructions.
To install work apps on your device, tap INSTALL. After installation is complete, tap NEXT.
Tap START to open the Microsoft Intune app.
Return to the Intune app on your mobile device and follow the onscreen instructions until enrollment is done.
Continue to the set up your smart card section in this article to finish setting up your device.
QR code enrollment
In this section, you scan your company-provided QR code. When you're done, we'll redirect you back to the device enrollment steps.
- On the Welcome screen, tap the screen five times to start QR code setup.
- Follow any onscreen instructions to connect to Wi-Fi.
- If your device doesn't have a QR code scanner, the setup screens show the installation progress as a scanner installs. Wait for installation to complete.
- Scan the enrollment profile QR code that your organization gave you.
- Return to Enroll device > step 4 to continue setup.
Token enrollment
In this section, you enter your company-provided token. When you're done, we'll redirect you back to the device enrollment steps.
On the Google sign-in screen, in the Email or phone box, type afw#setup. Tap Next.
Choose Install for the Android Device Policy app. Continue through the installation. Depending on your device, you might need to review and accept other terms.
On the Enroll this device screen, select Next.
Select Enter code.
On the Scan or enter code screen, type in the code that your organization gave you. Then click Next.
Return to Enroll device > step 4 to continue setup.
Set up smart card
Note
The Purebred app is required to complete these steps and automatically installs on your device after enrollment. If you still don't have the app after waiting a short while, contact your IT support person.

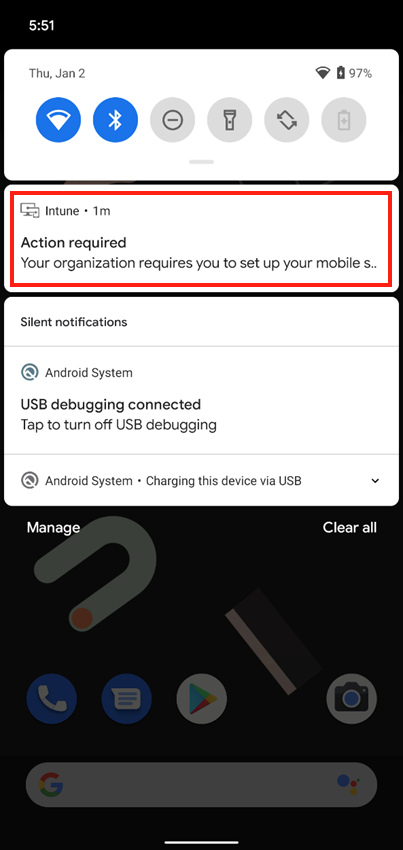

After enrollment is complete, the Intune app prompts you to set up your smart card via a notification. Tap the notification. If you don't get a notification, check your email.

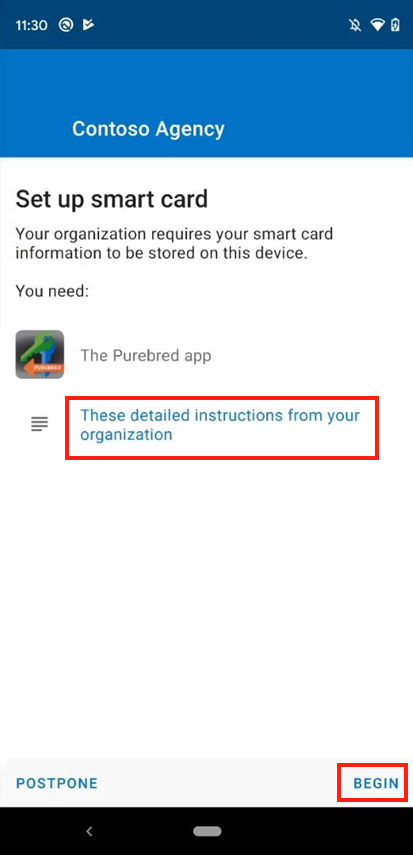

On the Set up smart card screen:
Tap the link to your organization's setup instructions and review them. If your organization doesn't provide other instructions, you're sent to this article.
Tap BEGIN.

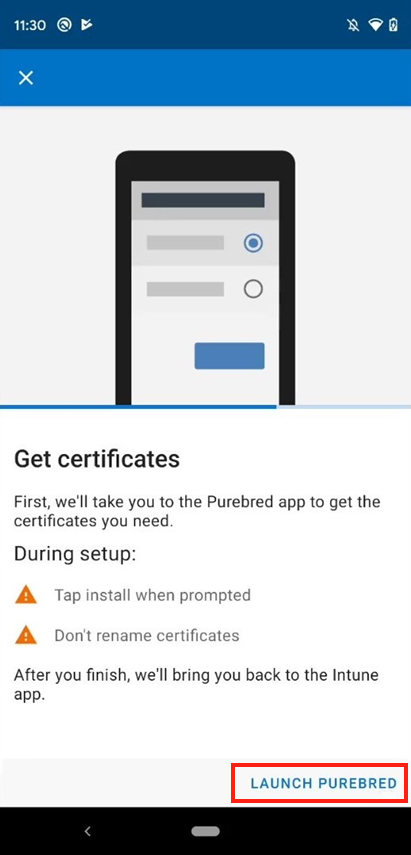

On the Get certificates screen, tap LAUNCH PUREBRED to open the Purebred app. (The app should be on your device already, because it installs automatically. If you don't have it, contact your support person.)
The Purebred app might need other permissions from you in order to run properly. Tap Allow or Allow all the time when prompted. For more information about why these permissions are required, speak with your support person or Purebred agent.
Once you're in the Purebred app, work with your organization's Purebred agent to download and install the certificates you need to access work or school resources.
Important
During this process, tap OK or Install when prompted. Don't change the names of any certificate authorities (CAs) or certificates that you're prompted to install.

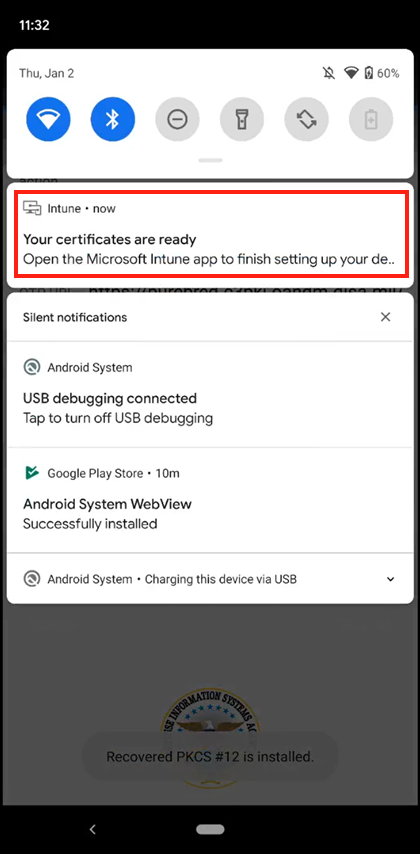

After installation is complete, you receive a notification that your certificates are ready. Tap the notification to return to the Intune app.

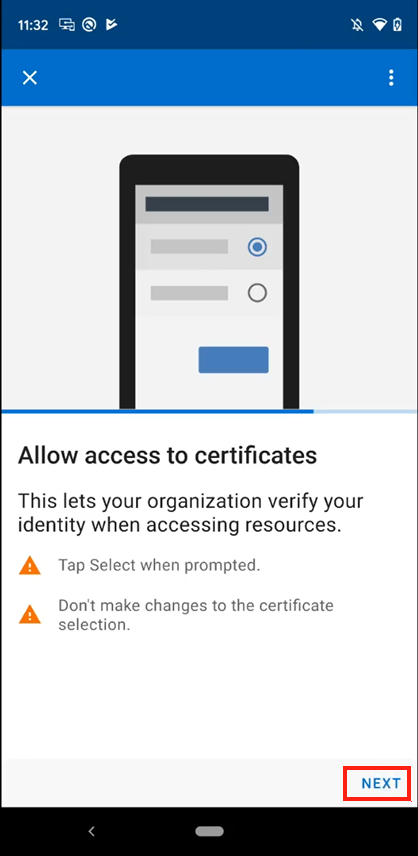

From the Allow access to certificates screen, give the Intune app permission to access the derived credential you got from DISA Purebred. This step ensures that your organization can verify your identity whenever you access protected work or school resources.
Tap NEXT.

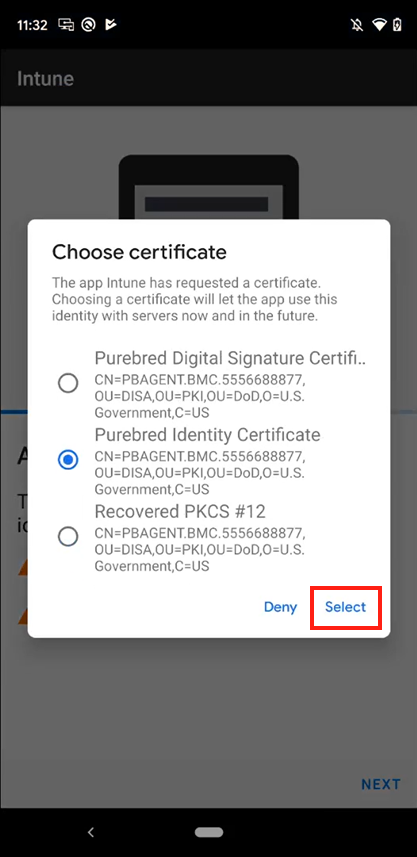

When you're prompted to Choose certificate, don't change the selection. The correct certificate is already selected, so just tap Select or OK.
Your derived credential is made up of multiple certificates, so you might see the Choose certificate prompt multiple times. Repeat the previous step until no more prompts appear.

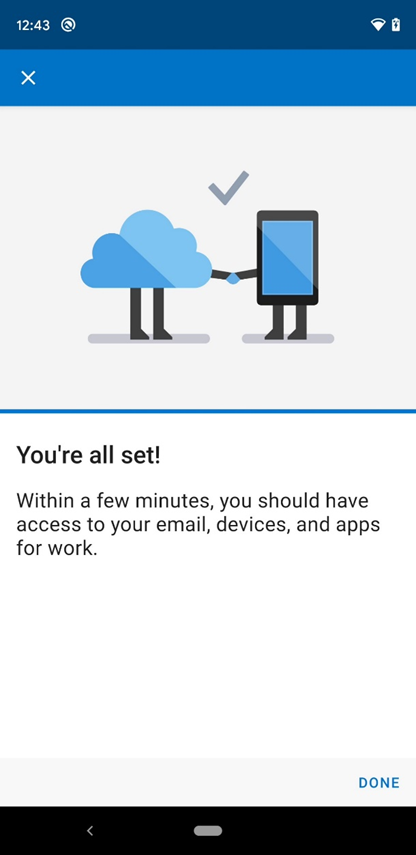

Once all of the certificates are processed, wait for the Intune app to finish setting up your device. You know setup is complete when you see the You're all set! screen.
Next steps
After enrollment is complete, you have access to work resources, such as email, Wi-Fi, and any apps that your organization makes available. For more information about how to get, search for, install, and uninstall apps in the Intune app see:
Still need help? Contact your company support. For contact information, check the Company Portal website.
