Create and provision an IoT Edge for Linux on Windows device at scale by using a TPM

Applies to: IoT Edge 1.1

Important

IoT Edge 1.1 end of support date was December 13, 2022. Check the Microsoft Product Lifecycle for information about how this product, service, technology, or API is supported. For more information about updating to the latest version of IoT Edge, see Update IoT Edge.

This article provides instructions for autoprovisioning an Azure IoT Edge for Linux on Windows device by using a Trusted Platform Module (TPM). You can automatically provision Azure IoT Edge devices with the Azure IoT Hub device provisioning service. If you're unfamiliar with the process of autoprovisioning, review the provisioning overview before you continue.

This article outlines two methodologies. Select your preference based on the architecture of your solution:

• Autoprovision a Linux on Windows device with physical TPM hardware.
• Autoprovision a Linux on Windows device by using a simulated TPM. We recommend this methodology only as a testing scenario. A simulated TPM doesn't offer the same security as a physical TPM.

The tasks are as follows:

Physical TPM

• Install IoT Edge for Linux on Windows.
• Retrieve the TPM information from your device.
• Create an individual enrollment for the device.
• Provision your device with its TPM information.

Simulated TPM

• Install IoT Edge for Linux on Windows.
• Set up your simulated TPM and retrieve its provisioning information.
• Create an individual enrollment for the device.
• Provision your device with its TPM information.

Prerequisites

Cloud resources

• An active IoT hub
• An instance of the IoT Hub device provisioning service in Azure, linked to your IoT hub
  • If you don't have a device provisioning service instance, you can follow the instructions in the Create a new IoT Hub device provisioning service and Link the IoT hub and your device provisioning service sections of the IoT Hub device provisioning service quickstart.
  • After you have the device provisioning service running, copy the value of ID Scope from the overview page. You use this value when you configure the IoT Edge runtime.

Device requirements

A Windows device with the following minimum requirements:

• System Requirements

  • Windows 10¹/11 (Pro, Enterprise, IoT Enterprise)
  • Windows Server 2019¹/2022
    _{¹ Windows 10 and Windows Server 2019 minimum build 17763 with all current cumulative updates installed.}

• Hardware requirements

  • Minimum Free Memory: 1 GB
  • Minimum Free Disk Space: 10 GB

• Virtualization support

  • On Windows 10, enable Hyper-V. For more information, see Install Hyper-V on Windows 10.
  • On Windows Server, install the Hyper-V role and create a default network switch. For more information, see Nested virtualization for Azure IoT Edge for Linux on Windows.
  • On a virtual machine, configure nested virtualization. For more information, see nested virtualization.

• Networking support

  • Windows Server does not come with a default switch. Before you can deploy EFLOW to a Windows Server device, you need to create a virtual switch. For more information, see Create virtual switch for Linux on Windows.
  • Windows Desktop versions come with a default switch that can be used for EFLOW installation. If needed, you can create your own custom virtual switch.

Tip

If you want to use GPU-accelerated Linux modules in your Azure IoT Edge for Linux on Windows deployment, there are several configuration options to consider.

You will need to install the correct drivers depending on your GPU architecture, and you may need access to a Windows Insider Program build. To determine your configuration needs and satisfy these prerequisites, see GPU acceleration for Azure IoT Edge for Linux on Windows.

Make sure you take the time to satisfy the prerequisites for GPU acceleration now. You will need to restart the installation process if you decide you want GPU acceleration during installation.

Developer tools

You can use either PowerShell or Windows Admin Center to manage your IoT Edge devices. Each utility has its own prerequisites:

PowerShell

If you want to use PowerShell, use the following steps to prepare your target device for the installation of Azure IoT Edge for Linux on Windows and the deployment of the Linux virtual machine:

1. Set the execution policy on the target device to AllSigned. You can check the current execution policy in an elevated PowerShell prompt using the following command:

   Get-ExecutionPolicy -List


   If the execution policy of local machine is not AllSigned, you can set the execution policy using:

   Set-ExecutionPolicy -ExecutionPolicy AllSigned -Force


For more information on the Azure IoT Edge for Linux on Windows PowerShell module, see the PowerShell functions reference.

Windows Admin Center

If you want to use Windows Admin Center, use the following steps to download and install Windows Admin Center and install the Windows Admin Center Azure IoT Edge extension:

1. Download and run the Windows Admin Center installer. Follow the install wizard prompts to install Windows Admin Center.

2. Once installed, use a supported browser to open Windows Admin Center. Supported browsers include Microsoft Edge (Windows 10, version 1709 or later), Google Chrome, and Microsoft Edge Insider.

3. On the first use of Windows Admin Center, you will be prompted to select a certificate to use. Select Windows Admin Center Client as your certificate.

4. Install the Azure IoT Edge extension. Select the gear icon in the top right of the Windows Admin Center dashboard.



5. On the Settings menu, under Gateway, select Extensions.

6. On the Available extensions tab, find Azure IoT Edge in the list of extensions. Choose it, and select the Install prompt above the list of extensions.

7. After the installation completes, you should see Azure IoT Edge in the list of installed extensions on the Installed extensions tab.

Note

TPM 2.0 is required when you use TPM attestation with the device provisioning service.

You can only create individual, not group, device provisioning service enrollments when you use a TPM.

Install IoT Edge

Deploy Azure IoT Edge for Linux on Windows on your target device.

PowerShell

Install IoT Edge for Linux on Windows on your target device.

Note

The following PowerShell process outlines how to deploy IoT Edge for Linux on Windows onto the local device. To deploy to a remote target device using PowerShell, you can use Remote PowerShell to establish a connection to a remote device and run these commands remotely on that device.

1. In an elevated PowerShell session, run each of the following commands to download IoT Edge for Linux on Windows.

   $msiPath = $([io.Path]::Combine($env:TEMP, 'AzureIoTEdge.msi'))
   $ProgressPreference = 'SilentlyContinue'
   Invoke-WebRequest "https://aka.ms/AzEflowMSI" -OutFile $msiPath


2. Install IoT Edge for Linux on Windows on your device.

   Start-Process -Wait msiexec -ArgumentList "/i","$([io.Path]::Combine($env:TEMP, 'AzureIoTEdge.msi'))","/qn"


   You can specify custom IoT Edge for Linux on Windows installation and VHDX directories by adding INSTALLDIR="<FULLY_QUALIFIED_PATH>" and VHDXDIR="<FULLY_QUALIFIED_PATH>" parameters to the install command. For example, if you want to use the D:\EFLOW folder for installation and the D:\EFLOW-VHDX for the VHDX, you can use the following PowerShell cmdlet.

   Start-Process -Wait msiexec -ArgumentList "/i","$([io.Path]::Combine($env:TEMP, 'AzureIoTEdge.msi'))","/qn","INSTALLDIR=D:\EFLOW", "VHDXDIR=D:\EFLOW-VHDX"


3. Set the execution policy on the target device to AllSigned if it is not already. See the PowerShell prerequisites for commands to check the current execution policy and set the execution policy to AllSigned.

4. Create the IoT Edge for Linux on Windows deployment. The deployment creates your Linux virtual machine and installs the IoT Edge runtime for you.

   Deploy-Eflow


   Tip

   By default, the Deploy-Eflow command creates your Linux virtual machine with 1 GB of RAM, 1 vCPU core, and 16 GB of disk space. However, the resources your VM needs are highly dependent on the workloads you deploy. If your VM does not have sufficient memory to support your workloads, it will fail to start.

   You can customize the virtual machine's available resources using the Deploy-Eflow command's optional parameters.

   For example, the command below creates a virtual machine with 4 vCPU cores, 4 GB of RAM (represented in MB), and 20 GB of disk space:

   Deploy-Eflow -cpuCount 4 -memoryInMB 4096 -vmDiskSize 20


   For information about all the optional parameters available, see PowerShell functions for IoT Edge for Linux on Windows.

   Warning

   By default, the EFLOW Linux virtual machine has no DNS configuration. Deployments using DHCP will try to obtain the DNS configuration propagated by the DHCP server. Please check your DNS configuration to ensure internet connectivity. For more information, see AzEFLOW-DNS.

   You can assign a GPU to your deployment to enable GPU-accelerated Linux modules. To gain access to these features, you will need to install the prerequisites detailed in GPU acceleration for Azure IoT Edge for Linux on Windows.

   To use a GPU passthrough, add the gpuName, gpuPassthroughType, and gpuCount parameters to your Deploy-Eflow command. For information about all the optional parameters available, see PowerShell functions for IoT Edge for Linux on Windows.

   Warning

   Enabling hardware device passthrough may increase security risks. Microsoft recommends a device mitigation driver from your GPU's vendor, when applicable. For more information, see Deploy graphics devices using discrete device assignment.

5. Enter 'Y' to accept the license terms.

6. Enter 'O' or 'R' to toggle Optional diagnostic data on or off, depending on your preference.

7. Once the deployment is complete, the PowerShell window reports Deployment successful.



   After a successful deployment, you are ready to provision your device.

Windows Admin Center

Note

The Azure IoT Edge extension for Windows Admin Center is currently in public preview. The management process may be different than for generally available features.

1. Install and open Windows Admin Center.

   On the Windows Admin Center start page, under the list of connections, you will see a local host connection representing the PC where you are running Windows Admin Center. Any additional servers, PCs, or clusters that you manage will also show up here.

   You can use Windows Admin Center to manage Azure IoT Edge for Linux on Windows on either your local device or remote managed devices. In this guide, the local host connection will serve as the target device for the deployment of Azure IoT Edge for Linux on Windows.

2. Confirm that your local device is listed under All connections, like shown below.



   If you want to deploy to a remote target device instead of your local device and you do not see your desired target device in the list, follow the instructions to add your device.

3. Select + Add to begin creating your deployment. The deployment creates your Linux virtual machine and installs the IoT Edge runtime for you.

4. On the Add or create resources pane, locate the Azure IoT Edge tile. Select Create new to install a new instance of Azure IoT Edge for Linux on Windows on a device.

   If you already have IoT Edge for Linux on Windows running on a device, you could select Add to connect to that existing IoT Edge device and manage it with Windows Admin Center.



5. The Create an Azure IoT Edge for Linux on Windows deployment pane will open. On the 1. Getting Started tab, review the minimum requirements and select Next.

6. Review the license terms, check I Accept, and select Next.

7. You can toggle Optional diagnostic data on or off, depending on your preference.

8. Select Next: Deploy.



9. On the 2. Deploy tab, under Select a target device, click on your listed device to validate it meets the minimum requirements. Once its status is confirmed as supported, select Next.



10. On the 2.2 Settings tab, review the configuration settings of your deployment. The table below shows the settings and their default values.

    Setting	Default value
    Virtual disk size in GB	16
    Memory in MB (even number)	1024
    Number of cores	2
    Azure IoT Edge version	1.1 (LTS)

    Note

    IoT Edge for Linux on Windows uses a default switch, which assigns the Linux virtual machine an internal IP address. This internal IP address cannot be reached from outside the Windows machine. You can connect to the virtual machine locally while logged onto the Windows machine.

    If you are using Windows Server, set up a default switch before deploying IoT Edge for Linux on Windows.

    You can assign a GPU to your deployment to enable GPU-accelerated Linux modules. To gain access to these features, you will need to install the prerequisites detailed in GPU acceleration for Azure IoT Edge for Linux on Windows. If you are only installing these prerequisites at this point in the deployment process, you will need to start again from the beginning.

    There are two options for GPU passthrough available: Direct Device Assignment (DDA) and GPU Paravirtualization (GPU-PV), depending on the GPU adaptor you assign to your deployment.

    For the direct device assignment method, select the number of GPU processors to allocate to your Linux virtual machine.

    For the paravirtualization method, no additional settings are needed.

    Warning

    Enabling hardware device passthrough may increase security risks. Microsoft recommends a device mitigation driver from your GPU's vendor, when applicable. For more information, see Deploy graphics devices using discrete device assignment.

    Once you are satisfied with the settings, select Next.

11. On the 2.3 Deployment tab, you can watch the progress of the deployment. The full process includes downloading the Azure IoT Edge for Linux on Windows package, installing the package, configuring the host device, and setting up the Linux virtual machine. This process may take several minutes to complete. A successful deployment is pictured below.



12. Once your deployment is complete, you are ready to provision your device. Select Next: Connect to proceed to the 3. Connect tab, which handles Azure IoT Edge device provisioning.

There are some steps to prepare your device for provisioning with TPM. Leave your deployment open while you prepare your device. You'll return to your deployment later in the article.

Enable TPM passthrough

The IoT Edge for Linux on Windows VM has a TPM feature that can be enabled or disabled. By default, it's disabled. When this feature is enabled, the VM can access the host machine's TPM.

1. Open PowerShell in an elevated session.

2. If you haven't already, set the execution policy on your device to AllSigned so that you can run the IoT Edge for Linux on Windows PowerShell functions.

   Set-ExecutionPolicy -ExecutionPolicy AllSigned -Force


3. Turn on the TPM feature.

   Set-EflowVmFeature -feature 'DpsTpm' -enable


Retrieve the TPM information from your device

Physical TPM

To provision your device, you need an Endorsement key for your TPM chip and Registration ID for your device. You provide this information to your instance of the device provisioning service so that the service can recognize your device when it tries to connect.

The endorsement key is unique to each TPM chip. It is obtained from the TPM chip manufacturer associated with it. You can derive a unique registration ID for your TPM device by, for example, creating an SHA-256 hash of the endorsement key.

IoT Edge for Linux on Windows provides a PowerShell script to help retrieve this information from your TPM. To use the script, follow these steps on your device:

1. Open PowerShell in an elevated session.

2. Run the command.

   Get-EflowVmTpmProvisioningInfo | Format-List


Simulated TPM

If you don't have a physical TPM available and want to test this provisioning method, you can simulate a TPM on your device.

The IoT Hub device provisioning service provides samples that simulate a TPM and return the endorsement key and registration ID for you.

1. Choose one of the samples from the following list, based on your preferred language.
2. Stop following the device provisioning service sample steps after you have the simulated TPM running and have collected the Endorsement key and Registration ID. Don't select Enter to run registration in the sample application.
3. Keep the window hosting the simulated TPM running until you're finished testing this scenario.
4. Return to this article to create a device provisioning service enrollment and configure your device.

Simulated TPM samples:

• C
• Java
• C#
• Node.js
• Python

Create a device provisioning service enrollment

Use your TPM's provisioning information to create an individual enrollment in the device provisioning service.

When you create an enrollment in the device provisioning service, you have the opportunity to declare an Initial Device Twin State. In the device twin, you can set tags to group devices by any metric used in your solution, like region, environment, location, or device type. These tags are used to create automatic deployments.

Tip

The steps in this article are for the Azure portal, but you can also create individual enrollments by using the Azure CLI. For more information, see az iot dps enrollment. As part of the CLI command, use the edge-enabled flag to specify that the enrollment is for an IoT Edge device.

1. In the Azure portal, go to your instance of the IoT Hub device provisioning service.

2. Under Settings, select Manage enrollments.

3. Select Add individual enrollment, and then complete the following steps to configure the enrollment:

   1. For Mechanism, select TPM.

   2. Provide the Endorsement key and Registration ID that you copied from your VM or physical device.

   3. Provide an ID for your device if you want. If you don't provide a device ID, the registration ID is used.

   4. Select True to declare that your VM or physical device is an IoT Edge device.

   5. Choose the linked IoT hub that you want to connect your device to, or select Link to new IoT Hub. You can choose multiple hubs, and the device will be assigned to one of them according to the selected assignment policy.

   6. Add a tag value to the Initial Device Twin State if you want. You can use tags to target groups of devices for module deployment. For more information, see Deploy IoT Edge modules at scale.

   7. Select Save.

Now that an enrollment exists for this device, the IoT Edge runtime can automatically provision the device during installation.

Provision the device with its cloud identity

PowerShell

1. Open an elevated PowerShell session on the Windows device.

2. Provision your device by using the Scope ID that you collected from your instance of the device provisioning service.

   Provision-EflowVM -provisioningType "DpsTpm" -scopeId "SCOPE_ID_HERE"


   If you have enrolled the device using a custom Registration Id, you must specify that registration ID as well when provisioning:

   Provision-EflowVM -provisioningType "DpsTpm" -scopeId "SCOPE_ID_HERE" -registrationId "REGISTRATION_ID_HERE"


Windows Admin Center

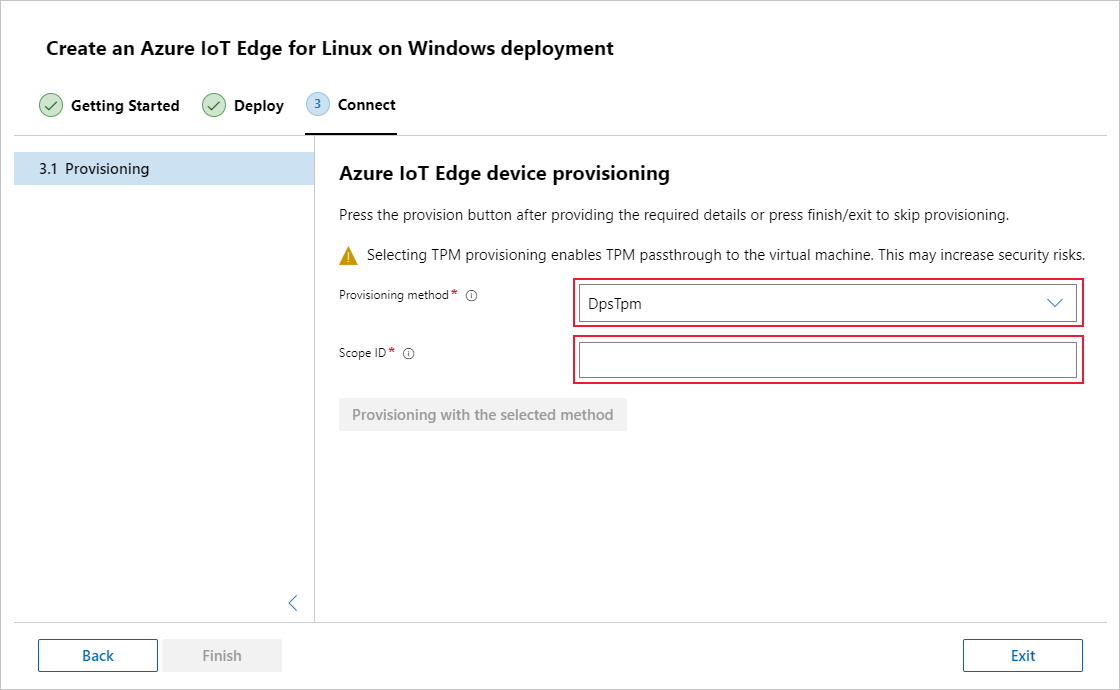

1. On the Connect step, provision your device.

   1. Select the DpsTpm provisioning method.

   2. Provide the Scope ID that you retrieve from your instance of the device provisioning service.



2. Select Provisioning with the selected method.

3. After IoT Edge has successfully been installed and provisioned on your device, select Finish to exit the deployment wizard.

Verify successful installation

Verify that IoT Edge for Linux on Windows was successfully installed and configured on your IoT Edge device.

If the runtime started successfully, you can go into your IoT hub and start deploying IoT Edge modules to your device.

You can verify that the individual enrollment that you created in the device provisioning service was used. Go to your device provisioning service instance in the Azure portal. Open the enrollment details for the individual enrollment that you created. Notice that the status of the enrollment is assigned and the device ID is listed.

PowerShell

Use the following commands on your device to verify that the IoT Edge installed and started successfully.

1. Connect to your IoT Edge for Linux on Windows VM by using the following command in your PowerShell session:

   Connect-EflowVm


   Note

   The only account allowed to SSH to the VM is the user who created it.

2. After you're signed in, you can check the list of running IoT Edge modules by using the following Linux command:

   sudo iotedge list


3. If you need to troubleshoot the IoT Edge service, use the following Linux commands.

   1. If you need to troubleshoot the service, retrieve the service logs.

      sudo journalctl -u iotedge


   2. Use the check tool to verify configuration and connection status of the device.

      sudo iotedge check


   Note

   On a newly provisioned device, you may see an error related to IoT Edge Hub:

   × production readiness: Edge Hub's storage directory is persisted on the host filesystem - Error

   Could not check current state of edgeHub container

   This error is expected on a newly provisioned device because the IoT Edge Hub module isn't running. To resolve the error, in IoT Hub, set the modules for the device and create a deployment. Creating a deployment for the device starts the modules on the device including the IoT Edge Hub module.

Windows Admin Center

1. Select your IoT Edge device from the list of connected devices in Windows Admin Center to connect to it.

2. The device overview page displays some information about the device:

   • The IoT Edge Module List section shows running modules on the device. When the IoT Edge service starts for the first time, you should only see the edgeAgent module running. The edgeAgent module runs by default and helps to install and start any other modules that you deploy to your device.
   • The IoT Edge Status section shows the service status and should be reporting active (running).

Uninstall IoT Edge for Linux on Windows

If you want to remove the Azure IoT Edge for Linux on Windows installation from your device, use the following commands.

1. Open Settings on Windows
2. Select Add or Remove Programs
3. Select Azure IoT Edge LTS app
4. Select Uninstall

Next steps

The device provisioning service enrollment process lets you set the device ID and device twin tags at the same time as you provision the new device. You can use those values to target individual devices or groups of devices by using automatic device management.

Learn how to deploy and monitor IoT Edge modules at scale by using the Azure portal or the Azure CLI.
