Out Of Box widget catalog
TFS 2017 | TFS 2015
Widgets display information and charts on dashboards. Many widgets are configurable and scoped to a team or to the logged in user account. Many display information available from one or more data stores or charts maintained within the system. You add a widget to a dashboard as described in Add a widget to a dashboard. For example, you can add the Build History widget from the dashboard's Add widget dialog.
This article provides a quick reference of all out of box (OOB) widgets that you can add to your dashboard. In addition to the OOB widgets, you may find more widgets in the Marketplace or create your own.
Supported OOB widgets
Widgets listed in the following table are provided out-of-box. They're organized under the service they support. Widgets are annotated as follows:
- Build: Widget derives data for a selected build pipeline
- Release: Widget derives data for a selected release pipeline
- Team: Widget is scoped to a single team
- User: Widget is scoped to the logged in user account
Work
- Assigned to me (User)
- Chart for work items
- New Work item
- Query results
- Query tile
- Sprint burndown
- Sprint capacity
- Sprint overview
- Work links
Repos
- Code tile (Repository, Branch, Folder)
- Pull request (Team, User)
Build & Release
- Build history (Build pipeline)
- Deployment status (Build pipeline)
- Requirements quality (Query, Build or Release pipeline)
Test
- Chart for test plans
- Test results trend (Build or Release pipeline)
Information and links
Prerequisites
- To add widgets to a dashboard, you must be a member of a project. If you haven't been added as a project member, get added now.
- To add widgets from the marketplace, you must be a member of the Project Collection Administrators group.
- To add, edit, or manage a team dashboard, you must have Basic access or greater and be a team admin, a project admin, or have dashboard permissions. In general, you need to be a team admin for the currently selected team to edit dashboards. Request your current team or project admin to add you as a team admin.
Note
Data displayed within a chart or widget is subject to permissions granted to the signed in user. To learn more, see FAQs on Azure DevOps dashboards, charts, and reports, Access and permissions.
Work widgets
Add work tracking widgets to your dashboards to show status, progress, or trends. You use work items to plan and track work.
In addition to the widgets listed here, you can add a work item query chart to your dashboard. To learn more, see Track progress with status and trend query-based charts.
Assigned to me
Chart for work items
Adds a tile to display a progress or trend chart that builds off a shared work item query.
From the configuration dialog, select a shared query and specify the chart type and values.
New Work item
Enables you to add work items from the dashboard. Work items that you add using this widget are automatically scoped to the team's default **Area Path**. The **Iteration Path** assigned matches the last **Iteration Path** assigned to a work item by the currently signed in user.
To change team defaults, see About teams and Agile tools.
Query results
Adds a configurable tile that lists the results of a shared query. From the configuration dialog, select either a team favorite or shared query.
To create a shared query, see Use the query editor to list and manage queries.
Query tile
Adds a configurable tile to display the summary of shared query results. From the configuration dialog, select either a team favorite or shared query. You can optionally specify rules to change the query tile color based on the number of work items returned by the query.
To create a shared query, see Use the query editor to list and manage queries.
Sprint burndown
Adds the team's burndown chart for the current sprint to the dashboard. This chart always displays data for the current sprint.
Teams use the burndown chart to mitigate risk and check for scope creep throughout the sprint cycle.
Sprint capacity
Inserts the team's capacity bar chart for the current sprint. To plan and monitor their sprint resources, team set capacity and update Remaining Work throughout the sprint.
See Set capacity.
Sprint overview
Inserts a configurable overview of sprint progress. You can choose between a count of story points or number of work items.
Teams plan their sprints by defining sprints and assigning backlog items to an iteration.
Work links
Code widgets
Add code tracking widgets to track changes made within a repository or get quick access to Git pull requests for your team.
Code tile

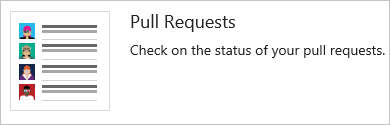

Pull request
Adds a configurable widget to display active PRs requested by the team, or assigned to or requested by the person logged in. Select the team and Git repository for the pull requests of interest.
To learn more about pull requests, see Review code with pull requests.
Build and Release widgets
Add build and release pipeline widgets to track the health of your builds and releases.
Build history
Adds a tile to display a histogram of all builds run for the configured build pipeline. From the configuration dialog, select the build you want to monitor. Hover over a bar to learn how long the build took to complete. Select the bar to open the summary for that specific build. Bar color indicates: green-completed, red-failed, and yellow-completed without tests.
Deployment status
Configurable widget that shows a combined view of the deployment status and test pass rate across multiple environments for a recent set of builds. You configure the widget by specifying a build pipeline, branch, and linked release pipelines. To view the test summary across multiple environments in a release, the widget provides a matrix view of each environment and corresponding test pass rate.
You can choose any cell to see a more detailed view for the selected environment.
Requires TFS 2017.1 or later version.

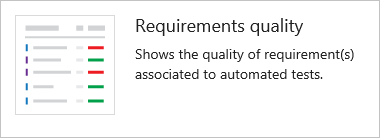

Requirements quality
Configurable widget that you can use to track quality continuously from a build or release pipeline. The widget shows the mapping between a requirement and latest test results executed against that requirement. It provides insights into requirements traceability. For example, requirements not meeting the quality, requirements not tested, and so on.
To learn more about setting up traceability see Requirements traceability
Test widgets
Add test tracking widgets to your dashboards to show status, progress, or trends of your testing efforts. In addition to the widgets listed here, you can add test tracking charts to your dashboard. To learn more, see Track test status.
Chart for test plans
Adds a configurable widget that lets you track the progress of test case authoring or status of test execution for tests in a test plan. Get started by selecting a test plan and a test suite. Then select test case chart for test authoring progress or test results for test execution progress. Finally, select the chart type and the pivots.
To learn more, see Track your test results.
Test results trend
Adds a configurable tile that displays the trend of test results for the selected build or release pipeline. The widget helps you visualize the test trends over a period of time, thereby surfacing patterns about test failures, test duration etc.
From the configuration dialog, select the build or release whose test results you'd like to monitor. There are multiple chart options to choose from (Line, Column & Stacked Column) based on your preference. Optionally you can map the trend of test duration on the existing chart by adding a secondary line chart.
To get deeper insights and higher configurability view Test Analytics
Informational content and other links
Add one or more of the following widgets to support adding:
- Configurable content
- Links to features
- Functions your team accesses often
Embedded web page
Adds a configurable tile to display the contents of a web page.
Only webpages that allow iframe embedding are supported.

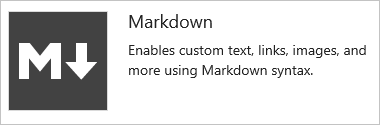

Markdown
Adds a configurable tile to display any type of information, guidance, or links that you want. You can also configure the widget to point to a file stored in your repository. From the configuration dialog, add the information you want to share with your team.
To learn more, see Add Markdown to a dashboard.
Other links
The following links are displayed when the corresponding resource is configured for the project:
To add or update reports for a project, see Add reports to a project.

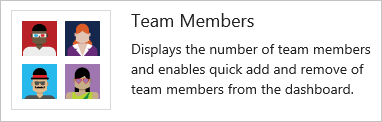

Team members
Shows team member profiles and, on-hover, their user alias.
For team admins, supports access to the quick dialog to add or remove team members.
Note
This widget is a convenient way to add team members to specific teams within projects. If you remove it, you can still add members to your team from the team administration page.
Team room
Provides status and access to [team rooms](../../notifications/collaborate-in-a-team-room.md). Available for TFS 2015.1 through TFS 2017.2 versions. Team rooms support increased team productivity by providing a space to discuss work in progress, ask questions, share status, and clarify issues that arise. Team administrators can create more team rooms.
Note
Team Rooms have been deprecated as described in Deprecation of Team Rooms blog post. Several good solutions are available that integrate well with TFS that support notifications and chat, such as Microsoft Teams and Slack.
Visual Studio Shortcuts
Provides links to open or download Visual Studio.
The Visual Studio IDE client comes with the Team Explorer plug-in which provides quick access to several features (some of which aren't available through the web portal).

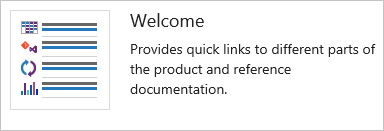

Welcome
Marketplace widgets
You may find more widgets of interest in the Marketplace.
If your organization owner or project collection administrator disables a marketplace widget, you'll see the following image:
To regain access to it, request your admin to reinstate or reinstall the widget.
Extensibility
Using the REST API service, you can create a dashboard widget. To learn more about the REST APIs for dashboards and widgets, see Dashboards (API).
