Add widgets to a dashboard
TFS 2017 | TFS 2015
Widgets smartly format data to provide access to easily consumable data. You add widgets to your team dashboards to gain visibility into the status and trends occurring as you develop your software project.
Each widget provides access to a chart, user-configurable information, or a set of links that open a feature or function. You can add one or more charts or widgets to your dashboard. Up to 200 widgets total. You add several widgets at a time simply by selecting each one. See Manage dashboards to determine the permissions you need to add and remove widgets from a dashboard.
Prerequisites
- You must be a member of a project. If you don't have a project yet, create one.
- If you haven't been added as a project member, get added now.
- Anyone with access to a project, including stakeholders, can view dashboards.
- To add, edit, or manage a team dashboard, you must have Basic access or greater and be a team admin, a project admin, or have dashboard permissions. In general, you need to be a team admin for the currently selected team to edit dashboards. Request your current team or project admin to add you as a team admin.
Note
Data displayed within a chart or widget is subject to permissions granted to the signed in user. To learn more, see FAQs on Azure DevOps dashboards, charts, and reports, Access and permissions.
Open a dashboard
All dashboards are associated with a team. You need to be a team administrator, project administrator, or a team member with permissions to modify a dashboard.
Open a web browser, connect to your project, and select Dashboards.
Select the team whose dashboards you want to view. To switch your team focus, see Switch project or team focus.
Select the name of the dashboard to modify it.
For example, here we select to view the Work in Progress dashboard.
If you need to switch to a different project, select the
Azure DevOps logo to browse all projects.
Add a widget
Select
to modify a dashboard. Select
to add a widget to the dashboard.
The widget catalog describes all available widgets, many of which are scoped to the selected team context.
Or, you can drag and drop a widget from the catalog onto the dashboard.
Configure a widget
Most widgets support configuration, which may include specifying the title, setting the widget size, and other widget-specific variables.
To configure a widget, add the widget to a dashboard and then select the
configure icon.

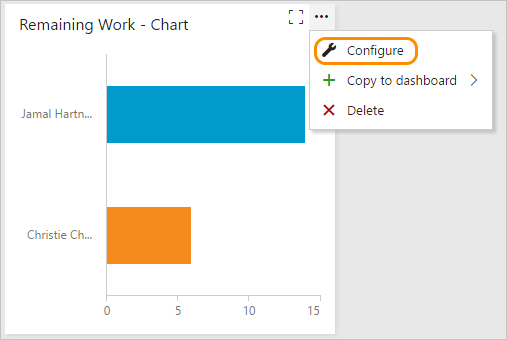

Once you've configured the widget, you can edit it by opening the actions menu.
Move or delete a widget
To move a widget, you need to enable the dashboard edit mode. To delete a widget, select the delete option provided from the widget's More actions menu.
Select to modify your dashboard. You can then drag tiles to reorder their sequence on the dashboard.
To remove a widget, select the widget's
or
delete icons.
When you're finished with your changes, select
to exit dashboard editing.
Widget size
Some widgets are pre-sized and can't be changed. Others are configurable through their configuration dialog.
For example, the Chart for work items widget allows you to select an area size ranging from 2 x 2 to 4 x 4 (tiles).
Extensibility and Marketplace widgets
In addition to the widgets described in the Widget catalog, you can:
- Add widgets from the Marketplace.
- Create your own widgets using the Widget REST APIs.
Disabled Marketplace widgets

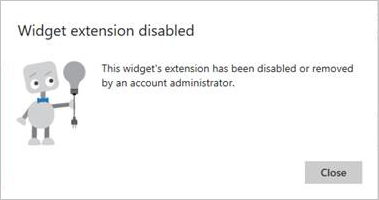

If your organization owner or project collection administrator disables a marketplace widget, you'll see the following image:
To regain access to it, request your admin to reinstate or reinstall the widget.
