Update add-in web components in SharePoint

發行項
09/26/2023

Important

The SharePoint Add-In model in SharePoint Online has been deprecated as of November 27th 2023, checkout the full retirement announcement to learn more.

Deprecation means that the feature will not get any new investments, but it's still supported. SharePoint add-in model is retired fully on April 2nd, 2026 and is no longer available after that time. Primary replacement technology for the SharePoint add-in model is SharePoint Framework (SPFx) which continues to be supported also in future.

Prerequisites for updating the add-in web components:

Be familiar with Update SharePoint Add-ins and the prerequisites and core concepts included in it.
You have developed and tested the latest version of the add-in as described in the Create and debug the new version as if it were a brand new add-in.

Update SharePoint components in the add-in web

All of the SharePoint components that are deployed to the add-in web are contained in Web-scoped Features in the add-in package. For that reason, updating these components is a matter of updating one or more of the Features. This process has not changed since SharePoint 2010 and is documented in Add Elements to an Existing Feature in the SharePoint 2010 SDK.

Other articles in the Upgrading Features node may be helpful also, but consider that add-ins must not include custom code on the SharePoint server, so some aspects of Feature upgrading in SharePoint 2010 are not relevant to updating add-ins. For example, you can't use the CustomUpgradeAction element when you upgrade the Feature of a SharePoint Add-in.

What can and cannot be done declaratively

With a SharePoint-hosted add-in, you can only use XML markup to update an add-in, and there are some limits on how you can declaratively change an add-in in an update. In a provider-hosted add-in, you can implement an UpdatedEventEndpoint handler to do things that can't be done declaratively.

Adding components to an add-in is easy. Any component that is eligible to be included in an add-in can also be added in an update (for details, see Types of SharePoint components that can be in a SharePoint Add-in). But when you want to modify an existing component declaratively, consider the following points.

The data type of a list or content type field (column) cannot be changed after its initial deployment in any circumstance. In particular, do not change the data type of a field as part of an add-in update (not even programmatically). As an alternative, you can add a new field. If the add-in includes custom item create, edit, or view forms, be sure to make corresponding changes in these forms. For example, add UI for the new field and remove UI for the old one. (In a provider-hosted add-in, you can programmatically move data from the old field to the new one and then delete the old.)
Lists, list instances, content types, or fields cannot be deleted in the update markup.
Files cannot be deleted from the add-in web in update markup. However, you can change the contents of any file.
The CustomUpgradeAction and MapFile elements cannot be used when updating a SharePoint Add-in, although they may appear available in Visual Studio intellisense.

Update the add-in web for the first time

The procedures in this section explain how to add or update content types, lists, files, and other SharePoint components in the add-in web. For simplicity, we assume that all the components are part of a single Feature in the add-in web, but add-in webs can have multiple Features and you can update more than one in the same update.

The Microsoft Office Developer Tools for Visual Studio are oriented to creating new add-ins, and the default behavior of the tools is sometimes not optimal when you are updating an add-in. To get more control over the process, you should begin by disabling the Feature Designer by using the following procedure so that you can directly edit the raw feature XML.

To edit the Feature XML

In Solution Explorer, open the {FeatureName}.features file. It opens in the Feature designer.
Open the Manifest tab and expand Edit Options.
Select Overwrite generated XML and edit manifest in the XML editor.
Select Yes to the prompt to disable the designer.
On the view that opens, select Edit manifest in the XML editor. The {FeatureName}.Template.xml file opens.

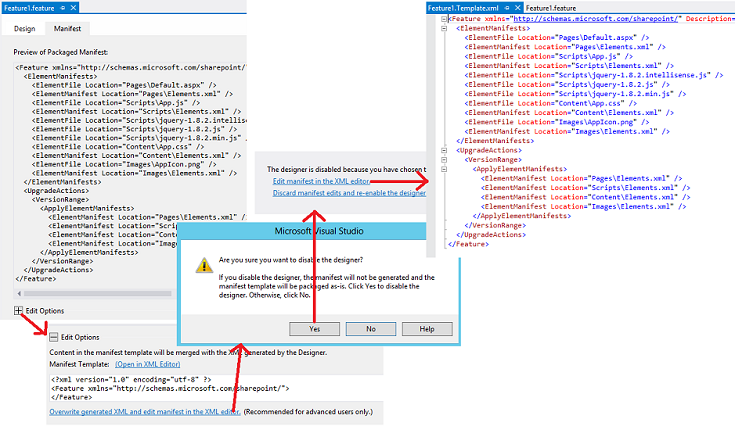

Figure 1. Opening the Feature XML editor

Steps to open the Feature XML editor

Caution

Do not add "" comments to the {FeatureName}.features file. Comments are not supported by the upgrade infrastructure, and the upgrade fails if comments are in the file. They are used in the markup examples of this article only to indicate to you where your markup should go.

To update the add-in web Feature the first time

Increment the Version attribute of the Feature element, if the Office Developer Tools for Visual Studio did not already do so when you incremented the version number in the add-in manifest (the tools don't do this in every scenario, so you need to verify).

You should use the same version number that you use for the add-in. You should even consider raising the Feature version when other components of the add-in are being updated, but not the add-in web Feature itself. The logic of the VersionRange element (which is discussed in the section Subsequent updates of the add-in web) is easier to manage when the add-in version and the Feature version are always the same.
Don't delete anything in the ElementManifests section of the file. Nothing is ever deleted from this section.
If they are not already present, add the following elements to the file:
- An UpgradeActions child element in the Feature element. Do not add ReceiverAssembly or ReceiverClass attributes to the element. These have no use when you are updating a SharePoint Add-in. (These attributes refer to a custom assembly, which is not supported in SharePoint Add-ins. If you include a custom assembly in an add-in, SharePoint will not install the add-in.)
- A VersionRange child element in the UpgradedActions element. Do not add BeginVersion or EndVersion attributes to the element. These serve no purpose when an add-in is being updated for the first time. Their use is discussed in the section Subsequent updates of the add-in web.
- An ApplyElementManifests child element in the VersionRange element.

At this point the file should resemble the following example.

Important

The Office Developer Tools for Visual Studio may have already added the above markup and copied some elements from the ElementManifests section to the ApplyElementManifests section as an illustration. Delete these. Although you may end up putting some of them back in later steps, it is easier and safer to start with an empty ApplyElementManifests section. Redundant entries for components that have not changed can have bad consequences, including possibly lengthening the update process enough that it times-out and fails.

 <Feature <!-- Some attributes omitted -->
                Version="2.0.0.0">
   <ElementManifests>
     <!-- ElementManifest elements omitted -->
   </ElementManifests>
   <UpgradeActions>
    <VersionRange>
      <ApplyElementManifests>

      </ApplyElementManifests>
    </VersionRange>
   </UpgradeActions>
 </Feature>

To add components to the add-in

Add any new components to the Feature exactly as you would if you were creating a new SharePoint Add-in project.
When you add a component of a type that wasn't in the previous verison of the add-in, such as adding a list to an add-in that did not previously have a list, the Office Developer Tools for Visual Studio adds an elements.xml file to the project. This is the elements manifest for the component. You should add the new version number of the add-in to this file (for example, elements.2.0.0.0.xml). This can be helpful in troubleshooting. Be sure to make the change in Solution Explorer to ensure that references to the file, such as in the csproj file and the feature XML, are changed accordingly.
For each new element manifest, add an ElementManifest element as a child to both the ElementManifests and the ApplyElementManifests elements of the feature xml (the exact same ElementManifest element in both places). The Location attribute of the element should point to the relative path of the elements.2.0.0.0.xml file. For example, if you added a list named MyCustomList, the ElementManifest element would look like the following:
```
  <ElementManifest Location="MyCustomList\elements.2.0.0.0.xml" />
```
Some kinds of components add files to the project. For example, a schema.xml file is created when you add a list; when you add a page, a page file is created. For each such file, add an ElementFile element as a child to the ElementManifests element (do not add it to the ApplyElementManifests element). The Location attribute should point to the relative path of the file. For example, if you added a list, the ElementFile element for the schema.xml would look like the following:
```
  <ElementFile Location="MyCustomList\Schema.xml" />
```
When you add another item of a type that was already in the previous version of the add-in, the Office Developer Tools for Visual Studio may add a reference to the new item to an existing elements manifest instead of creating a new one. For example, the standard way to add a page to an add-in web is to right-click the Pages node in Solution Explorer and then go to Add > New Item > Page > Add. The Office Developer Tools for Visual Studio will add a new File element to the Pages module in the existing elements manifest file (usually called elements.xml) rather than create a new element manifest.

This is not desirable. The best practice is to avoid, when possible, editing any existing element manifest files when updating an add-in (that is, any element manifests from previous versions of the add-in). In general, new items should be in new element manifest files (which are themselves referenced in the ApplyElementManifests element of the Feature XML). (A few of exceptions to this practice are described later.) For example, to add a new page, take these steps:
1. Create a new module named Pages.2.0.0.0.
2. Remove the sample.txt file from it that the Office Developer Tools for Visual Studio added automatically.
3. Rename the elements manifest in the new module to elements.2.0.0.0.xml.
4. Right-click the Pages.2.0.0.0 module and then go to Add > New Item > Page > Add. The new page is created, and it is referenced in the elements manifest for Pages.2.0.0.0 instead of Pages.
5. Ensure that there is an ElementsFile element for the new page in the ElementManifests element of the feature XML, and ensure that there is an ElementManifest element for the elements.2.0.0.0.xml file in both the ElementManifests and ApplyElementManifests sections.

  Another option in any situation in which Office Developer Tools for Visual Studio has changed an existing elements manifest, is to manually create a new elements.2.0.0.0.xml file and move the markup that was added to the old manifest to your new one (you can put the new one in the same Solution Explorer node as the old one if you want).
If you add a field to a content type in the Feature, add an AddContentTypeField element to the VersionRange section. Be sure to assign the correct values to the ContentTypeId and FieldId attributes. Optionally, use the PushDown attribute to specify whether the new field should be added to any derived content types. The following is an example.
```
 <VersionRange>
   <AddContentTypeField
     ContentTypeId="0x0101000728167cd9c94899925ba69c4af6743e"
     FieldId="{CCDD361F-A3FB-40D8-A272-3A3C858F4116}"
     PushDown="TRUE" />

 </VersionRange>
```

To modify existing components of the add-in

If you have changed a file that is referenced in an elements manifest file, such as a Default.aspx file, you do not have to change the ElementFile element for the file at all. But you do have to tell the update infrastructure to replace the old version of the file with the new one. You do this by adding an ElementManifest element for the module to the ApplyElementManifests section.

Because there is already such an element in the ElementManifests section, simply copying (not moving) it to the ApplyElementManifests is sometimes an option, but this is only advisable if every file that is referenced in the manifest has been changed. As a general practice, you shouldn't replace an unchanged file with a copy of itself. In some scenarios this can have bad effects. For example, if the page has been configured to allow users to customize it, replacing it can cause the customizations to be removed. (If you had changed the page, you'd have to accept this consequence, but you don't want to impose this inconvenience on your customers pointlessly.)

To ensure that only the changed files in the module are replaced, create a second element manifest for the module that only references the changed files, and apply the second manifest in the ApplyElementManifests by following these steps:
1. Right-click the module's node in Solution Explorer and add an XML file (not a page) named elements.2.0.0.0.xml.
2. Select the new file in Solution Explorer to make its property pane visible, and change the Deployment Type property to ElementManifest. This is important to ensure that the Office Developer Tools for Visual Studio handles the file properly.
3. Copy the contents of the original manifest to the new one, and then delete from the new manifest all the File elements that correspond to files that have not changed.
4. Add an ElementManifest element to the ApplyElementManifests section that references the new manifest file such as in this example.
```
      <ElementManifest Location="Pages\elements.2.0.0.0.xml" />
```
  Note

  Do not delete the original manifest. The Feature XML is using both of the old and new ones. Do not copy any ElementFile elements from the ElementManifests section to the ApplyElementManifests section even if the file that is referenced in the ElementFile has been changed.
Open every element manifest file that is referenced in the ApplyElementManifests section and ensure that any File elements have a ReplaceContents attribute that is set to TRUE.

The following is an example. The Office Developer Tools for Visual Studio may have done this already, but you should verify it. Do this even for the element manifests from previous versions of the add-in. This is one of the few ways in which it is a good practice to edit an existing element manifest file.
```
 <Module Name="Pages">
   <File Path="Pages\Default.aspx" Url="Pages/Default.aspx" ReplaceContent="TRUE" />
 </Module>
```
Pages can have web parts embedded in them as explained in Include a web part in a webpage on the add-in web. If you change a page that has a web part on it (or change the properties of the web part), there is an additional step: you have to add the following markup to the page to prevent SharePoint from adding a second copy of the web part onto the page. The markup should be added to the asp:Content element with the ID PlaceHolderAdditionalPageHead. (The Office Developer Tools for Visual Studio may have already added it when the page was first created, but you should verify that it is there.)
```
  <meta name="WebPartPageExpansion" content="full" />
```
Note

If the page was configured to allow users to customize it, this markup has the side effect of removing those customizations. Users have to repeat them. If the web part was added to the page following the guidance in Include a web part in a webpage on the add-in web, the web part markup is in the elements manifest, so changing the web part's properties is an exception to the general rule that you should not edit an element manifest file as part of an add-in update.
As an alternative to changing a page, you also have the option of using redirection to a new page by using the following steps:
1. Create the new page and configure its update markup as described in the earlier procedure To add components to the add-in.
2. Open the old page and remove all markup from the asp:Content element with the ID PlaceHolderAdditionalPageHead.
3. Add the following markup to the asp:Content element, and then replace {RelativePathToNewPageFile} with the new path and file name. This script redirects the browser to the new page and includes the query parameters. It also keeps the old page out of the browser history.
```
 <script type="text/javascript">
       var queryString = window.location.search.substring(1);
       window.location.replace("{RelativePathToNewPageFile}" + "?" + queryString);
 </script>
```
4. Delete any other asp:Content elements on the page.
5. If the page you are replacing is the start page for the add-in, change the StartPage element in the add-in manifest to point to the new page.
If the add-in web of the add-in contains a CustomAction or a ClientWebPart, and you modify it as part of an update, you must modify the element manifest because that is where these components are defined. (This is an exception to the general practice that you should not edit an element manifest from a previous version of the add-in when updating the add-in.) You also have to copy (not move) the ElementManifest element from the ElementManifests section to the ApplyElementManifests section.

Example of Feature XML for upgrading an add-in the first time

The following is an example of a complete {FeatureName}.Template.xml file for a first-time update of an add-in. The updated add-in in this example includes a modified Default.aspx file that is referenced in the Pages\Elements.xml file, and it deploys three new jQuery files, each of which is referenced in the Scripts\Elements.xml file. Note that all instances of ElementFile go in the ElementManifests section, and note how <ElementManifest Location="Pages\Elements.xml" /> has been copied (not moved) from the ElementManifests section to the ApplyElementManifests section.

 <Feature xmlns="http://schemas.microsoft.com/sharepoint/" Title="MyApp Feature1"
       Description="SharePoint Add-in Feature" Id="85d309a8-107e-4a7d-b3a2-51341d3b11ff"
       Scope="Web" Version="2.0.0.0">
   <ElementManifests>
     <ElementFile Location="Pages\Default.aspx" />
     <ElementManifest Location="Pages\Elements.xml" />
     <ElementFile Location="Content\App.css" />
     <ElementManifest Location="Content\Elements.xml" />
     <ElementFile Location="Images\AppIcon.png" />
     <ElementManifest Location="Images\Elements.xml" />
     <ElementFile Location="Scripts\jquery-3.0.0.intellisense.js" />
     <ElementFile Location="Scripts\jquery-3.0.0.js" />
     <ElementFile Location="Scripts\jquery-3.0.0.min.js" />
   </ElementManifests>
   <UpgradeActions>
       <VersionRange>
         <ApplyElementManifests>
           <ElementManifest Location="Pages\Elements.xml" />
           <ElementManifest Location="Scripts\elements.2.0.0.0.xml" />
         </ApplyElementManifests>
       </VersionRange>
   </UpgradeActions>
 </Feature>

Subsequent updates of the add-in web

When you update a SharePoint Add-in for the second (or third, and so on) time, you have to consider that some of your customers may not have made the previous updates. So if a user responds to the "update is available" prompt after your latest update is deployed to the organization's add-in catalog or to the Office Store, their instance of the add-in may be updated through multiple versions in a single update process.

For the most part, this is exactly what should occur: you want every earlier version of the add-in updated to the latest version. But you do not always want every update action for the add-in web Feature to reoccur for every instance of the add-in. There are some update actions that should not occur multiple times on a given add-in instance. For example, if you add a field to a content type in one update, you do not want that field added again in the next update. The following procedure shows how to use the VersionRange element to control which update actions occur based on the version of the Feature that is being updated.

To change the add-in web Feature on later updates

Open the FeatureName.Template.xml file for editing as described in the procedure To edit the Feature XML earlier in this article, and increment the Version attribute of the Feature element. You should use the same version number for the Feature as you used for the add-in.

For purposes of a continuing example, let's suppose that you previously updated the add-in from version 1.0.0.0 to version 2.0.0.0, and now you are updating it to version 3.0.0.0, so set the Version attribute to 3.0.0.0.
Add a new VersionRange element under all existing VersionRange elements. Do not add a BeginVersion or EndVersion attribute to this element.
Populate the VersionRange element as described in the procedure To update the add-in web Feature the first time earlier in this article to account for the changes that you have made in this updated version of the Feature. Whenever that procedure refers to the ApplyElementManifests section, treat this as referring to the ApplyElementManifests element that is a child of the VersionRange element that you just added; that is, the lowest one in the Feature XML file.
Go to the previous VersionRange element (the one you added the last time you updated the add-in—from 1.0.0.0 to 2.0.0.0 in the continuing example), and add an EndVersion attribute to it. You want the upgrade actions in this VersionRange to be applied to any versions of the add-in to which they haven't already been applied (version 1.0.0.0), but you don't want them to be reapplied to versions to which they were already applied (version 2.0.0.0). The EndVersion value is exclusive, so you set it to the lowest version to which you do not want the upgrade actions applied. In the continuing example, you set it to 2.0.0.0. Your file should now resemble the following.
```
<Feature
               Version="3.0.0.0">
  <ElementManifests>

  </ElementManifests>
  <UpgradeActions>
    <VersionRange EndVersion="2.0.0.0">

    </VersionRange>
    <VersionRange>

    </VersionRange>
  </UpgradeActions>
</Feature>
```
Each time that you upgrade the Feature, follow the same pattern. Add a new VersionRange for the latest update actions. Add an EndVersion element to the previous VersionRange element and set it to the previous version number. In the continuing example, the file would resemble the following for the update from 3.0.0.0 to 4.0.0.0.
```
<Feature
                Version="4.0.0.0">
  <ElementManifests>

  </ElementManifests>
  <UpgradeActions>
    <VersionRange EndVersion="2.0.0.0">

    </VersionRange>
    <VersionRange EndVersion="3.0.0.0">

    </VersionRange>
    <VersionRange>

    </VersionRange>
  </UpgradeActions>
</Feature>
```
Notice that the most recent VersionRange element has no BeginVersion or EndVersion attributes. This ensures that the upgrade actions that go into this VersionRange element are applied to all previous versions of the Feature, which is what you want because all the latest changes are referenced in this VersionRange, and none of them have already occurred for any instance of the Feature.

Notice also that the BeginVersion attribute is not used in any of the instances of VersionRange. This is because the default value for the BeginVersion attribute is 0.0.0.0, and that is the value that you want because you want all upgrade actions applied to every instance of the add-in that is earlier than the version that is specified in the EndVersion attribute.

Important

The VersionRange element determines only which versions of the Feature the upgrades are applied to. It does not determine which versions of the add-in get a notification that an update is available (the notification is triggered only by the add-in version number). Within 24 hours of a new version of the add-in being available in the organization's add-in catalog or the Office Store, every installed instance of the add-in, regardless of version, has the notification that an update is available appear on its tile in the Site Contents page. The VersionRange does not affect the new version number of the newly upgraded Feature or the newly updated add-in. Those two numbers are always changed to the latest version number, regardless of what version range the Feature was in before the upgrade.

This provides another good reason to avoid using a BeginVersion attribute. The BeginVersion attribute can be used to block some upgrade actions from ever occurring on some add-in instances. But it cannot block the Feature or add-in versions from being raised to the latest version. So the use of a BeginVersion attribute could create a situation in which two instances of your add-in could have the same add-in version number and the same add-in web Feature version number, but have different components in their add-in webs.

Verify deployment of add-in web components

Follow these steps to verify the deployment of the add-in web Feature and its components.

To verify the provisioning of the add-in web

Open the Site Settings page of the host web. In the Site Collection Administration section, select the Site hierarchy link.
On the Site Hierarchy page, you see your add-in web listed by its URL. Do not start it. Instead, copy the URL, and use the URL in the remaining steps.
Go to URL_of_app_web/_layouts/15/ManageFeatures.aspx and, on the Site Features page that opens, verify that the Feature is a member of the alphabetical list of Features and that its status is Active.
If your add-in web Feature includes custom site columns, open URL_of_app_web/_layouts/15/mngfield.aspx and, on the Site Columns page that opens, verify that your new custom site columns are listed.
If your add-in web Feature includes any custom content types, open URL_of_app_web/_layouts/15/mngctype.aspx and, on the Site Content Types page that opens, verify that your new content types are listed.
For each custom content type, and each content type to which you have added a column, select the link to the content type. On the Site Content Type page that opens, verify that the content type has the site columns it should have.
If your add-in web Feature includes any list instances, open URL_of_app_web/_layouts/15/mcontent.aspx and, on the Site Libraries and Lists page that opens, verify that there is a Customize "name_of_list" link for each custom list instance.
For each of these custom list instances, select the Customize "name_of_list " link, and verify on the list settings page that the list has the expected content types and columns.

Note

If there is no Content Types section on the page, you must enable management of content types. Select the Advanced Settings link and, on the Advanced Settings page, enable management of content types, and then select OK. You are returned to the previous page, and there is now a list of Content Types section.
Near the top of the page is the web address of the list. If you included sample items in your list instance definition, copy the address and paste it into the address bar of your browser, and then go to the list. Verify that the list has the sample items that you created.

Next steps

Return to Major steps in updating an add-in, or go directly to one of the following articles to learn how to update the next major component of your SharePoint Add-in.
