Developer Home on the Console (Dev Home)

發行項
08/09/2017

Dev Home is a tools experience on the Xbox One development kit designed to aid developer productivity. Dev Home offers functionality to manage and configure your development kit, manage users, launch installed titles and perform captures and traces. In future releases we will continue to expand the functionality to enable additional features based on your feedback, and also to enable extensibility and the addition of your own tools.

We are very interested in your feedback on Dev Home and the scenarios you are most interested in seeing it support. Please provide your comments through the methods described under Send Feedback in the main menu of the app or through your Developer Account Manager (DAM).

To launch Dev Home on the November 2015 or later recovery:

Open the guide by moving left on Home, or double clicking the Nexus button
Move down to Settings (the gear icon)
Select All settings
From the default Developer page, select Developer Home (the home icon)

Screenshot of the Developer page in Settings.

On earlier recoveries select the Dev Home tile on the right side of the home screen in featured content or view the application list in Xbox One Manager and launch Dev Home.
Screenshot of the APPLICATIONS tab showing with the Launch option highlighted.

User Interface

The header of the Dev Home user interface contains the following important "at a glance" info about the development console:

Console IP: The current IP address of the console.
Console name: The current hostname of the console.
Sandbox: The name of the sandbox that the console is in.
OS version: The current recovery version that is running on the console.
Current system time.

The rest of the Dev Home UI is divided into the following pages. For more information about the tools on these pages, see their individual topics.

By pressing the menu button on your controller, you can access the main menu that allows configuration of the app workspace, the ability to manage credentials for accessing network locations and information on providing feedback on the app.

Customizing Dev Home

Dev Home has been designed to be customizable and personal. You can configure the app to suit your workflow, and then save that as a workspace. This workspace can be exported and imported, allowing you to copy the layout to other consoles as needed. These options are found in the main menu under workspace. The exported file will be located on the system scratch drive in the Dev Home\Workspaces directory.

Resizing and Reordering Tools

To change the size or position of a tool, use the context menu button (view button on your controller) while the title has focus. From the context menu select Move or Resize.

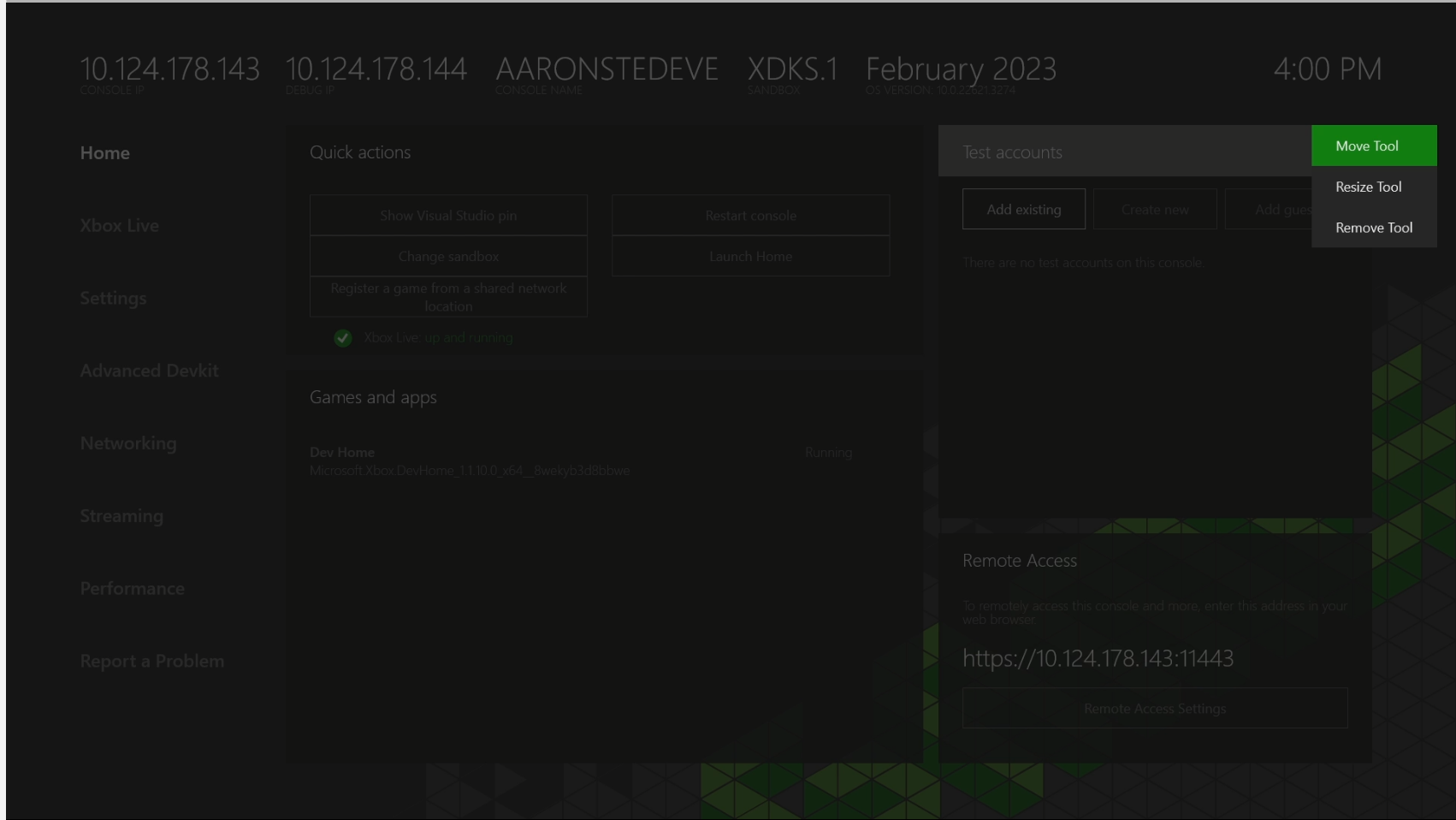

Screenshot of the DEV HOME page showing the Move option highlighted.

Changing theme color and background image

From the Main Menu, you can select Workspace and then Change theme color. Select a new color and select Save to update the theme color used for focus highlighting.

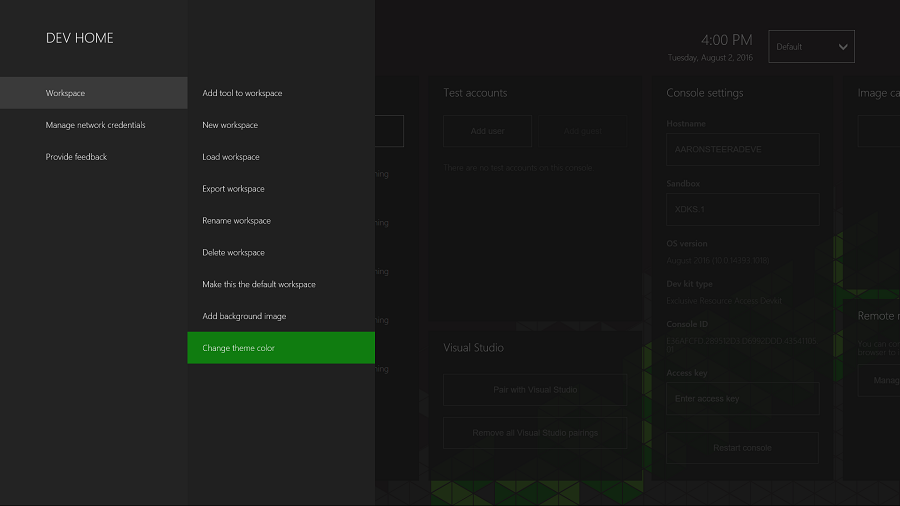

Screenshot of the DEV HOME page showing Workspace and Change theme color options selected.

Setting the default application for a package

If a package contains multiple applications, Dev Home will allow you to set the default application to be launched. Highlight the package in the launcher and press the A button to open the list of available applications. Highlight the one you wish to set as the default and press the view button, and then choose Set as Default from the context menu.

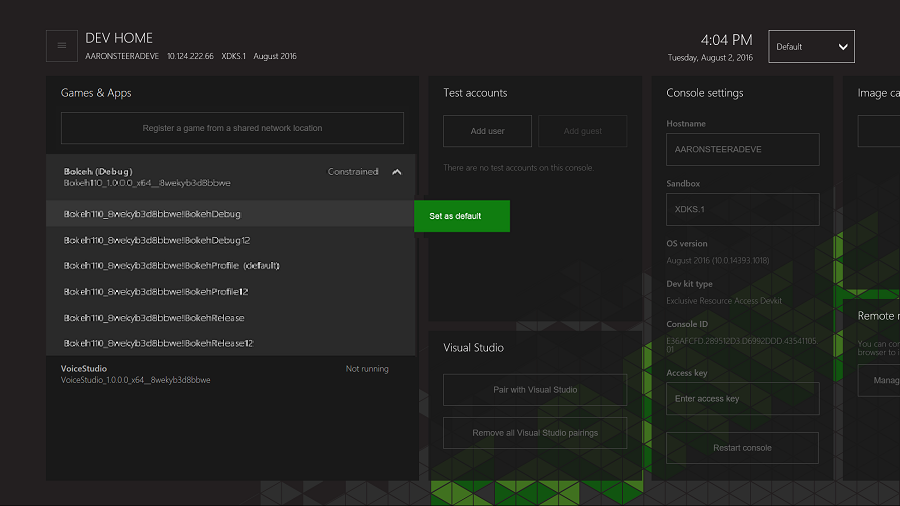

Screenshot of the DEV HOME page with the Set as default option highlighted.

From the launcher, at the bottom of the installed apps and games list, you can select the option Register a game from a network share to run a loose file version of a title remotely.

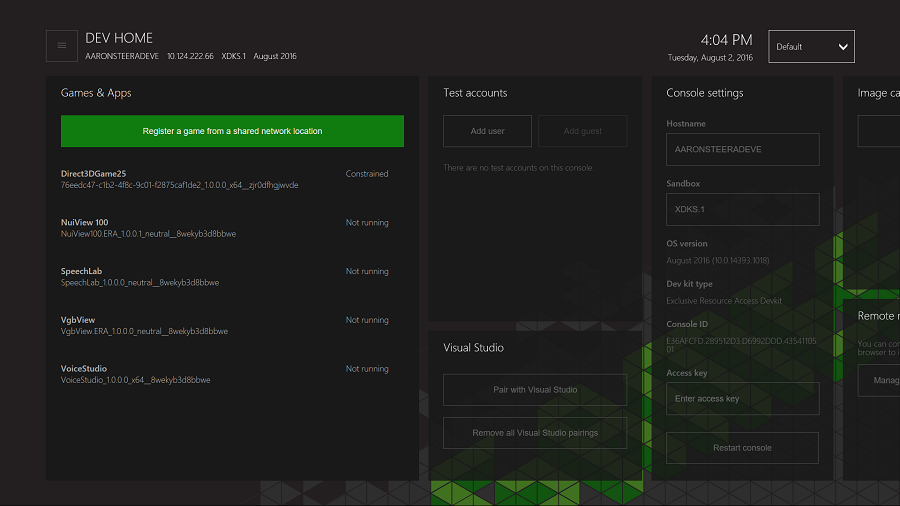

Screenshot of the DEV HOME page with the Register a game from a network share option highlighted.

You can then enter the network path to the appxmanifest.xml file for the title you wish to register. Dev Home will attempt to register the title using any existing credentials for that share, and if needed will prompt for new network credentials. If you need to access additional shares (for example to access symbolically linked resources on a separate server) then you will need to add those via the option below.

You can manage these stored credentials (and add additional ones) on the console via the main menu's Manage network credentials option.

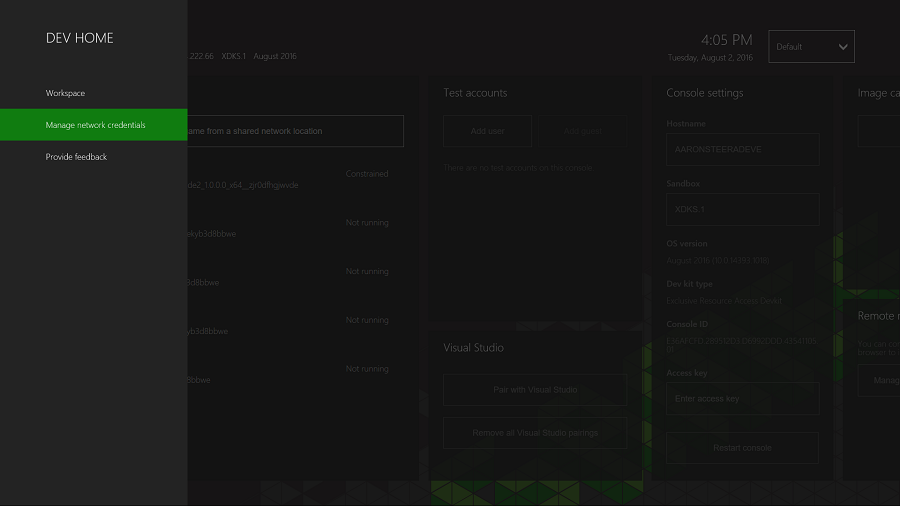

Screenshot of the DEV HOME page with the Manage network credentials option highlighted.

You can view the credentials currently on the console, edit credentials by selecting the path of the credential and clicking A button and remove a credential by selecting the remove link and clicking A button.
