使用 Azure 通訊服務 UI 連結庫要求相機和麥克風存取

重要

此 Azure 通訊服務功能目前處於預覽狀態。

提供的預覽 API 和 SDK 並無服務等級協定。 建議您不要將其用於生產工作負載。 部分功能可能不受支援，或是在功能上有所限制。

如需詳細資訊，請參閱 Microsoft Azure 預覽版增補使用規定。

本教學課程是接續三部分的通話整備教學課程，並遵循先前的指示: 確定使用者位於支援的瀏覽器上。

下載程式碼

在 GitHub 上存取本教學課程的完整程式碼。

要求存取相機和麥克風

對於呼叫應用程式，使用者通常必須授與使用麥克風和相機的權限。 在本節中，我們會建立一系列元件，鼓勵使用者授與相機和麥克風的存取權。 我們會向使用者顯示提示，引導他們透過授與存取權。 如果未授與存取權，我們會提示使用者。

建立相機和麥克風存取的提示

我們先建立一系列裝置權限提示，讓使用者進入他們接受麥克風和相機權限的狀態。 這些提示會從 UI 連結庫使用 CameraAndMicrophoneSitePermissions 元件。 如同不支援的瀏覽器提示，我們會在 FluentUI modal 內裝載這些提示。

src/DevicePermissionPrompts.tsx

import { CameraAndMicrophoneSitePermissions } from '@azure/communication-react';
import { Modal } from '@fluentui/react';

/** Modal dialog that prompt the user to accept the Browser's device permission request. */
export const AcceptDevicePermissionRequestPrompt = (props: { isOpen: boolean }): JSX.Element => (
  <PermissionsModal isOpen={props.isOpen} kind="request" />
);

/** Modal dialog that informs the user we are checking for device access. */
export const CheckingDeviceAccessPrompt = (props: { isOpen: boolean }): JSX.Element => (
  <PermissionsModal isOpen={props.isOpen} kind="check" />
)

/** Modal dialog that informs the user they denied permission to the camera or microphone with corrective steps. */
export const PermissionsDeniedPrompt = (props: { isOpen: boolean }): JSX.Element => (
  <PermissionsModal isOpen={props.isOpen} kind="denied" />
);

/** Base component utilized by the above prompts for better code separation. */
const PermissionsModal = (props: { isOpen: boolean, kind: "denied" | "request" | "check" }): JSX.Element => (
  <Modal isOpen={props.isOpen}>
    <CameraAndMicrophoneSitePermissions
      appName={'this site'}
      kind={props.kind}
      onTroubleshootingClick={() => alert('This callback should be used to take the user to further troubleshooting')}
    />
  </Modal>
);

檢查相機和麥克風存取

在這裡，我們新增了兩個新的公用程式函式，以檢查和要求相機和麥克風存取。 使用兩個函式建立名為 devicePermissionUtils.ts 的檔案，checkDevicePermissionsState 和 requestCameraAndMicrophonePermissions。 checkDevicePermissionsState 使用 PermissionAPI。 不過，Firefox 不支援查詢相機和麥克風，因此我們可確保此方法在此案例中傳回 unknown。 稍後我們會確保我們會在提示使用者提供權限時處理 unknown 案例。

src/DevicePermissionUtils.ts

import { DeviceAccess } from "@azure/communication-calling";
import { StatefulCallClient } from "@azure/communication-react";

/**
 * Check if the user needs to be prompted for camera and microphone permissions.
 *
 * @remarks
 * The Permissions API we are using is not supported in Firefox, Android WebView or Safari < 16.
 * In those cases this returns 'unknown'.
 */
export const checkDevicePermissionsState = async (): Promise<{camera: PermissionState, microphone: PermissionState} | 'unknown'> => {
  try {
    const [micPermissions, cameraPermissions] = await Promise.all([
      navigator.permissions.query({ name: "microphone" as PermissionName }),
      navigator.permissions.query({ name: "camera" as PermissionName })
    ]);
    console.info('PermissionAPI results', [micPermissions, cameraPermissions]); // view console logs in the browser to see what the PermissionsAPI info is returned
    return { camera: cameraPermissions.state, microphone: micPermissions.state };
  } catch (e) {
    console.warn("Permissions API unsupported", e);
    return 'unknown';
  }
}

/** Use the DeviceManager to request for permissions to access the camera and microphone. */
export const requestCameraAndMicrophonePermissions = async (callClient: StatefulCallClient): Promise<DeviceAccess> => {
  const response = await (await callClient.getDeviceManager()).askDevicePermission({ audio: true, video: true });
  console.info('AskDevicePermission response', response); // view console logs in the browser to see what device access info is returned
  return response
}

提示使用者授與相機和麥克風的存取權

現在我們有提示並檢查和要求邏輯，我們會建立 DeviceAccessComponent 來提示使用者有關裝置權限。 在此元件中，我們會根據裝置權限狀態向使用者顯示不同的提示:

• 如果裝置權限狀態未知，我們會向使用者顯示提示，告知我們正在檢查裝置權限。
• 如果我們要求權限，我們會向使用者顯示提示，鼓勵他們接受權限要求。
• 如果權限遭到拒絕，我們會向使用者顯示提示，告知他們他們已拒絕權限，而且他們需要授與權限才能繼續。

src/DeviceAccessChecksComponent.tsx

import { useEffect, useState } from 'react';
import { CheckingDeviceAccessPrompt, PermissionsDeniedPrompt, AcceptDevicePermissionRequestPrompt } from './DevicePermissionPrompts';
import { useCallClient } from '@azure/communication-react';
import { checkDevicePermissionsState, requestCameraAndMicrophonePermissions } from './DevicePermissionUtils';

export type DevicesAccessChecksState = 'runningDeviceAccessChecks' |
  'checkingDeviceAccess' |
  'promptingForDeviceAccess' |
  'deniedDeviceAccess';

/**
 * This component is a demo of how to use the StatefulCallClient with CallReadiness Components to get a user
 * ready to join a call.
 * This component checks the browser support and if camera and microphone permissions have been granted.
 */
export const DeviceAccessChecksComponent = (props: {
  /**
   * Callback triggered when the tests are complete and successful
   */
  onTestsSuccessful: () => void
}): JSX.Element => {
  const [currentCheckState, setCurrentCheckState] = useState<DevicesAccessChecksState>('runningDeviceAccessChecks');


  // Run call readiness checks when component mounts
  const callClient = useCallClient();
  useEffect(() => {
    const runDeviceAccessChecks = async (): Promise<void> => {

      // First we check if we need to prompt the user for camera and microphone permissions.
      // The prompt check only works if the browser supports the PermissionAPI for querying camera and microphone.
      // In the event that is not supported, we show a more generic prompt to the user.
      const devicePermissionState = await checkDevicePermissionsState();
      if (devicePermissionState === 'unknown') {
        // We don't know if we need to request camera and microphone permissions, so we'll show a generic prompt.
        setCurrentCheckState('checkingDeviceAccess');
      } else if (devicePermissionState.camera === 'prompt' || devicePermissionState.microphone === 'prompt') {
        // We know we need to request camera and microphone permissions, so we'll show the prompt.
        setCurrentCheckState('promptingForDeviceAccess');
      }

      // Now the user has an appropriate prompt, we can request camera and microphone permissions.
      const devicePermissionsState = await requestCameraAndMicrophonePermissions(callClient);

      if (!devicePermissionsState.audio || !devicePermissionsState.video) {
        // If the user denied camera and microphone permissions, we prompt the user to take corrective action.
        setCurrentCheckState('deniedDeviceAccess');
      } else {
        // Test finished successfully, trigger callback to parent component to take user to the next stage of the app.
        props.onTestsSuccessful();
      }
    };

    runDeviceAccessChecks();
    // eslint-disable-next-line react-hooks/exhaustive-deps
  }, []);

  return (
    <>
      {/* We show this when we are prompting the user to accept device permissions */}
      <AcceptDevicePermissionRequestPrompt isOpen={currentCheckState === 'promptingForDeviceAccess'} />

      {/* We show this when the PermissionsAPI is not supported and we are checking what permissions the user has granted or denied */}
      <CheckingDeviceAccessPrompt isOpen={currentCheckState === 'checkingDeviceAccess'} />

      {/* We show this when the user has failed to grant camera and microphone access */}
      <PermissionsDeniedPrompt isOpen={currentCheckState === 'deniedDeviceAccess'} />
    </>
  );
}

完成建立此元件之後，我們會將它新增至 App.tsx。 首先，新增匯入:

import { DeviceAccessChecksComponent } from './DeviceAccessChecksComponent';

然後將 TestingState 類型更新為下列值:

type TestingState = 'runningEnvironmentChecks' | 'runningDeviceAccessChecks' | 'finished';

最後，更新 App 元件:

/**
 * Entry point of a React app.
 *
 * This shows a PreparingYourSession component while the CallReadinessChecks are running.
 * Once the CallReadinessChecks are finished, the TestComplete component is shown.
 */
const App = (): JSX.Element => {
  const [testState, setTestState] = useState<TestingState>('runningEnvironmentChecks');

  return (
    <FluentThemeProvider>
      <CallClientProvider callClient={callClient}>
        {/* Show a Preparing your session screen while running the environment checks */}
        {testState === 'runningEnvironmentChecks' && (
          <>
            <PreparingYourSession />
            <EnvironmentChecksComponent onTestsSuccessful={() => setTestState('runningDeviceAccessChecks')} />
          </>
        )}

        {/* Show a Preparing your session screen while running the device access checks */}
        {testState === 'runningDeviceAccessChecks' && (
          <>
            <PreparingYourSession />
            <DeviceAccessChecksComponent onTestsSuccessful={() => setTestState('finished')} />
          </>
        )}


        {/* After the device setup is complete, take the user to the call. For this sample we show a test complete page. */}
        {testState === 'finished' && <TestComplete />}
      </CallClientProvider>
    </FluentThemeProvider>
  );
}

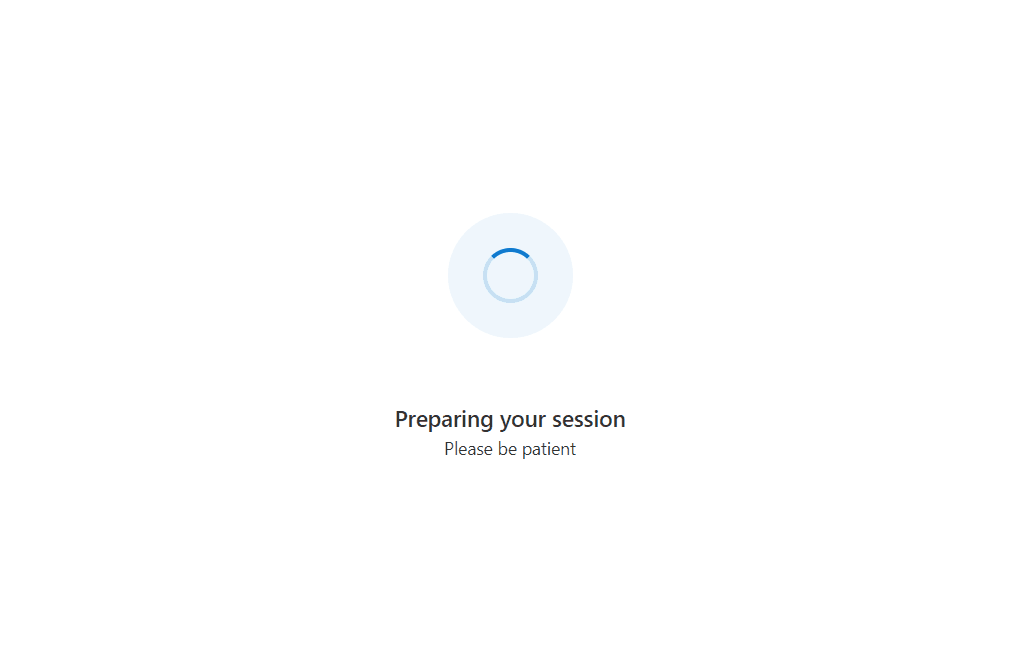

應用程式會向使用者呈現提示，以引導他們完成裝置存取:

注意

若要進行測試，建議您在 InPrivate/Incognito 模式中瀏覽您的應用程式，讓相機和麥克風權限先前未獲授與 localhost:3000。

下一步

第 3 部分: 選取通話的麥克風和相機
