Email notifications for automatic tuning

  • บทความ

Applies to: Azure SQL Database Azure SQL Managed Instance

Azure SQL Database tuning recommendations are generated by Azure SQL Database automatic tuning. This solution continuously monitors and analyzes workloads of databases providing customized tuning recommendations for each individual database related to index creation, index deletion, and optimization of query execution plans.

Azure SQL Database automatic tuning recommendations can be viewed in the Azure portal, retrieved with REST API calls, or by using T-SQL and PowerShell commands. This article is based on using a PowerShell script to retrieve automatic tuning recommendations.

Note

This article uses the Azure Az PowerShell module, which is the recommended PowerShell module for interacting with Azure. To get started with the Az PowerShell module, see Install Azure PowerShell. To learn how to migrate to the Az PowerShell module, see Migrate Azure PowerShell from AzureRM to Az.

Important

The PowerShell Azure Resource Manager (AzureRM) module was deprecated on February 29, 2024. All future development should use the Az.Sql module. Users are advised to migrate from AzureRM to the Az PowerShell module to ensure continued support and updates. The AzureRM module is no longer maintained or supported. The arguments for the commands in the Az PowerShell module and in the AzureRM modules are substantially identical. For more about their compatibility, see Introducing the new Az PowerShell module.

Automate email notifications for automatic tuning recommendations

The following solution automates the sending of email notifications containing automatic tuning recommendations. The solution described consists of automating execution of a PowerShell script for retrieving tuning recommendations using Azure Automation, and automation of scheduling email delivery job using Microsoft Power Automate.

Create Azure Automation account

To use Azure Automation, the first step is to create an automation account and to configure it with Azure resources to use for execution of the PowerShell script. To learn more about Azure Automation and its capabilities, see Getting started with Azure automation.

Follow these steps to create an Azure Automation Account through the method of selecting and configuring an Automation app from Azure Marketplace:

  1. Log into the Azure portal.

  2. Select "+ Create a resource" in the resource menu.

  3. Search for "Automation".

  4. Select the Automation app in the search results.

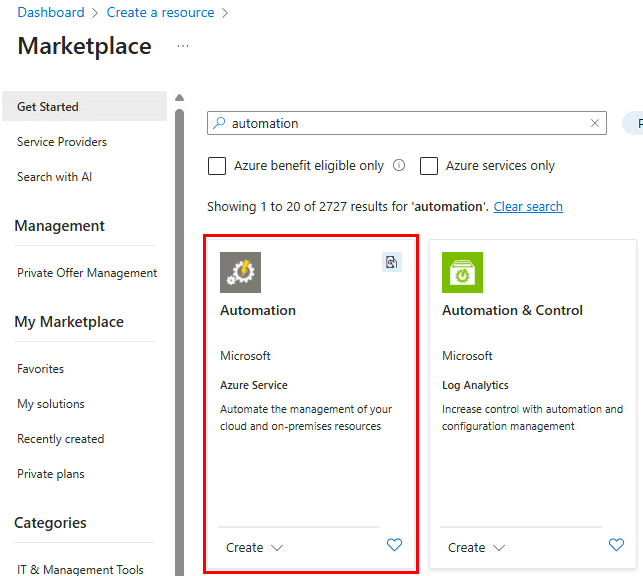

    Screenshot from the Azure portal searching for Automation.

  5. Once inside the "Create an Automation Account" pane, select "Create".

  6. Select a subscription and resource group to be used for the PowerShell script execution. Enter a name for this automation account.

  7. Select Advanced. Verify that System assigned is checked, so that a system assigned managed identity (SAMI) will be created to authenticate to Azure resources.

  8. Select Tags. Consider using Azure tags. For example, the "Owner" or "CreatedBy" tag to identify who created the resource, and the "Environment" tag to identify whether this resource is in production, development, etc. For more information, see Develop your naming and tagging strategy for Azure resources.

  9. Select Review+Create.

  10. Finish creation of the automation account by selecting Create.

Tip

Record your Azure Automation account name, subscription ID, and resources (such as copy-paste to a notepad) exactly as entered while creating the Automation app. You need this information later.

If you have several Azure subscriptions for which you would like to build the same automation, you need to repeat this process for your other subscriptions.

Update Azure Automation modules

The PowerShell script to retrieve automatic tuning recommendation uses Get-AzResource and Get-AzSqlDatabaseRecommendedAction commands for which Azure Module version 4 and above is required.

Create Azure Automation runbook

The next step is to create a Runbook in Azure Automation inside which the PowerShell script for retrieval of tuning recommendations resides.

Follow these steps to create a new Azure Automation runbook:

  1. Access the Azure Automation account you created in the previous step.
  2. Once in the automation account pane, select the "Runbooks" menu item on the left-hand side to create a new Azure Automation runbook with the PowerShell script. To learn more about creating automation runbooks, see Create a new runbook.
  3. To add a new runbook, select the "+Add a runbook" menu option, and then select the "Quick create – Create a new runbook"..
  4. In the Runbook pane, type in the name of your runbook (for the purpose of this example, "AutomaticTuningEmailAutomation" is used), select the type of runbook as PowerShell and write a description of this runbook to describe its purpose.
  5. Select Create to finish creating a new runbook.

Follow these steps to load a PowerShell script inside the runbook created:

  1. Inside the "Edit PowerShell Runbook" pane, select "RUNBOOKS" on the menu tree and expand the view until you see the name of your runbook (in this example "AutomaticTuningEmailAutomation"). Select this runbook.
  2. On the first line of the "Edit PowerShell Runbook" (starting with the number 1), copy-paste the following PowerShell script code. This PowerShell script is provided as-is to get you started. Modify the script to suite your needs.

In the header of the provided PowerShell script, you need to replace <SUBSCRIPTION_ID_WITH_DATABASES> with your Azure subscription ID. To learn how to retrieve your Azure subscription ID, see Getting your Azure Subscription GUID.

In the case of several subscriptions, you can add them as comma-delimited to the "$subscriptions" property in the header of the script.

# PowerShell script to retrieve Azure SQL Database automatic tuning recommendations.
#
# Provided "as-is" with no implied warranties or support.
# The script is released to the public domain.
#
# Replace <SUBSCRIPTION_ID_WITH_DATABASES> in the header with your Azure subscription ID.
#
# Microsoft Azure SQL Database team, 2018-01-22.

# Set subscriptions : IMPORTANT – REPLACE <SUBSCRIPTION_ID_WITH_DATABASES> WITH YOUR SUBSCRIPTION ID
$subscriptions = ("<SUBSCRIPTION_ID_WITH_DATABASES>", "<SECOND_SUBSCRIPTION_ID_WITH_DATABASES>", "<THIRD_SUBSCRIPTION_ID_WITH_DATABASES>")

# Get credentials
$Conn = Get-AutomationConnection -Name AzureRunAsConnection
Connect-AzAccount -ServicePrincipal -Tenant $Conn.TenantID -ApplicationId $Conn.ApplicationID -CertificateThumbprint $Conn.CertificateThumbprint

# Define the resource types
$resourceTypes = ("Microsoft.Sql/servers/databases")
$advisors = ("CreateIndex", "DropIndex");
$results = @()

# Loop through all subscriptions
foreach($subscriptionId in $subscriptions) {
    Select-AzSubscription -SubscriptionId $subscriptionId
    $rgs = Get-AzResourceGroup

    # Loop through all resource groups
    foreach($rg in $rgs) {
        $rgname = $rg.ResourceGroupName;

        # Loop through all resource types
        foreach($resourceType in $resourceTypes) {
            $resources = Get-AzResource -ResourceGroupName $rgname -ResourceType $resourceType

            # Loop through all databases
            # Extract resource groups, servers and databases
            foreach ($resource in $resources) {
                $resourceId = $resource.ResourceId
                if ($resourceId -match ".*RESOURCEGROUPS/(?<content>.*)/PROVIDERS.*") {
                    $ResourceGroupName = $matches['content']
                } else {
                    continue
                }
                if ($resourceId -match ".*SERVERS/(?<content>.*)/DATABASES.*") {
                    $ServerName = $matches['content']
                } else {
                    continue
                }
                if ($resourceId -match ".*/DATABASES/(?<content>.*)") {
                    $DatabaseName = $matches['content']
                } else {
                    continue
                }

                # Skip if master
                if ($DatabaseName -eq "master") {
                    continue
                }

                # Loop through all automatic tuning recommendation types
                foreach ($advisor in $advisors) {
                    $recs = Get-AzSqlDatabaseRecommendedAction -ResourceGroupName $ResourceGroupName -ServerName $ServerName  -DatabaseName $DatabaseName -AdvisorName $advisor
                    foreach ($r in $recs) {
                        if ($r.State.CurrentValue -eq "Active") {
                            $object = New-Object -TypeName PSObject
                            $object | Add-Member -Name 'SubscriptionId' -MemberType Noteproperty -Value $subscriptionId
                            $object | Add-Member -Name 'ResourceGroupName' -MemberType Noteproperty -Value $r.ResourceGroupName
                            $object | Add-Member -Name 'ServerName' -MemberType Noteproperty -Value $r.ServerName
                            $object | Add-Member -Name 'DatabaseName' -MemberType Noteproperty -Value $r.DatabaseName
                            $object | Add-Member -Name 'Script' -MemberType Noteproperty -Value $r.ImplementationDetails.Script
                            $results += $object
                        }
                    }
                }
            }
        }
    }
}

# Format and output results for the email
$table = $results | Format-List
Write-Output $table

Select Save to save the script. When you are satisfied with the script, and select Publish to publish this runbook.

At the main runbook pane, you can choose to select Start to test the script. Select Output to view results of the script executed. This output is going to be the content of your email.

Ensure to adjust the content by customizing the PowerShell script to your needs.

With the above steps, the PowerShell script to retrieve automatic tuning recommendations is loaded in Azure Automation. The next step is to automate and schedule the email delivery job.

Automate the email jobs with Microsoft Power Automate

To complete the solution, as the final step, create an automation flow in Microsoft Power Automate consisting of three actions (jobs):

  • "Azure Automation - Create job" – used to execute the PowerShell script to retrieve automatic tuning recommendations inside the Azure Automation runbook.
  • "Azure Automation - Get job output" – used to retrieve output from the executed PowerShell script.
  • "Office 365 Outlook – Send an email" – used to send out email. E-mails are sent out using the work or school account of the individual creating the flow.

To learn more about Microsoft Power Automate capabilities, see Getting started with Microsoft Power Automate.

Prerequisite for this step is to sign up for a Microsoft Power Automate account and to log in. Once inside the solution, follow these steps to set up a new flow:

  1. Access "My flows" menu item.
  2. Inside My flows, select the "+Create from blank" link at the top of the page.
  3. Select the link the "Search for hundreds of connectors and triggers".
  4. In the search field type "recurrence", and select "Schedule - Recurrence" from the search results to schedule the email delivery job to run.
  5. In the Recurrence pane in the Frequency field, select the scheduling frequency for this flow to execute, such as send automated email each Minute, Hour, Day, Week, etc.

The next step is to add three jobs (create, get output and send email) to the newly created recurring flow. To accomplish adding the required jobs to the flow, follow these steps:

  1. Create action to execute PowerShell script to retrieve tuning recommendations

    1. Select "+New step", followed by "Add an action" inside the Recurrence flow pane.
    2. In the search field type "automation" and select "Azure Automation – Create job" from the search results.
    3. In the Create job pane, configure the job properties. For this configuration, you will need details of your Azure subscription ID, Resource Group and Automation Account previously recorded at the Automation Account pane. To learn more about options available in this section, see Azure Automation - Create Job.
    4. Select Save flow.

  2. Create an action to retrieve output from the executed PowerShell script.

    1. Select "+New step", followed by "Add an action" inside the Recurrence flow pane
    2. In the search field type "automation" and select "Azure Automation – Get job output" from the search results. To learn more about options available in this section, see Azure Automation – Get job output.
    3. Populate fields required (similar to creating the previous job) - populate your Azure subscription ID, Resource Group, and Automation Account (as entered in the Automation Account pane).
    4. Select inside the field "Job ID" for the "Dynamic content" menu to show up. From within this menu, select the option "Job ID".
    5. Select Save flow.

  3. Create an action to send out email using Office 365 integration

    1. Select "+New step", followed by "Add an action" inside the Recurrence flow pane.
    2. In the search field type "send an email" and select "Office 365 Outlook – Send an email" from the search results.
    3. In the "To" field type in the email address to which you need to send the notification email.
    4. In the "Subject" field type in the subject of your email, for example "Automatic tuning recommendations email notification".
    5. Select inside the field "Body" for the "Dynamic content" menu to show up. From within this menu, under "Get job output", select "Content".
    6. Select Save flow.

Tip

To send automated emails to different recipients, create separate flows. In these additional flows, change the recipient email address in the "To" field, and the email subject line in the "Subject" field. Creating new runbooks in Azure Automation with customized PowerShell scripts (such as with change of Azure subscription ID) enables further customization of automated scenarios, such as for example emailing separate recipients on Automated tuning recommendations for separate subscriptions.

The above concludes steps required to configure the email delivery job workflow. The entire flow consisting of three actions built is shown in the following image.

To test the flow, select "Run Now". Statistics of running the automated jobs, showing success of email notifications sent out, can be seen from the Flow analytics pane.

The Flow analytics pane is helpful for monitoring the success of job executions, and if required for troubleshooting. In the case of troubleshooting, you also might want to examine the PowerShell script execution log accessible through the Azure Automation app.

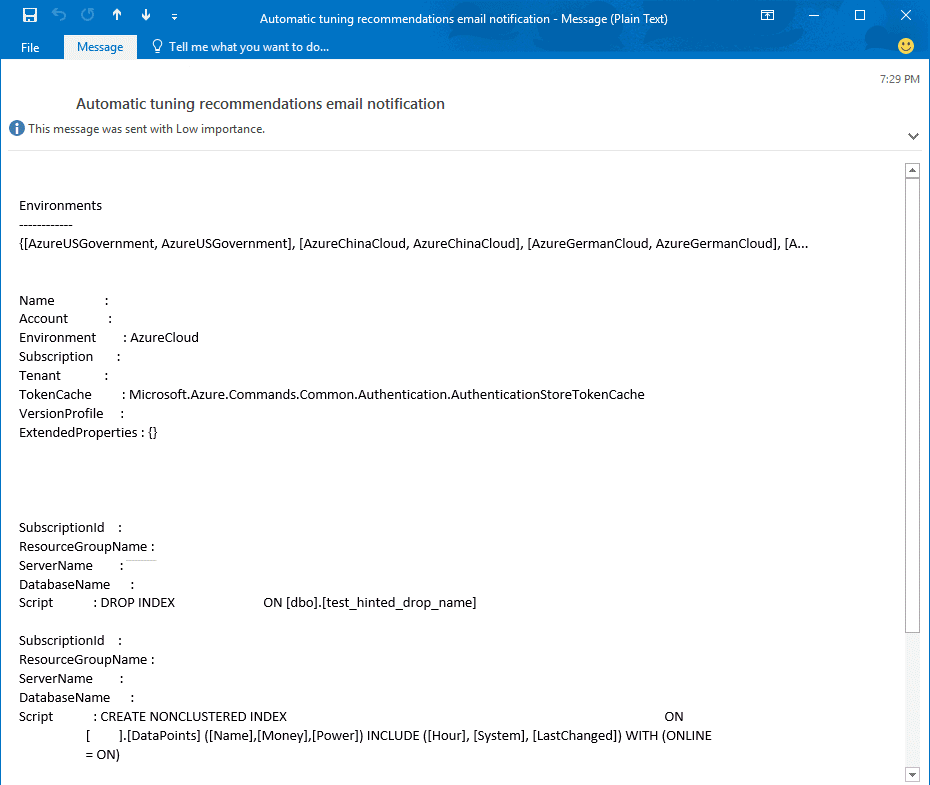

The final output of the automated email looks similar to the following email received after building and running this solution:

Screenshot from Microsoft Outlook of a sample email output from automatic tuning email notifications.

By adjusting the PowerShell script, you can adjust the output and formatting of the automated email to your needs.

You might further customize the solution to build email notifications based on a specific tuning event, and to multiple recipients, for multiple subscriptions or databases, depending on your custom scenarios.
