Azure resource providers and types

บทความ
09/26/2024

An Azure resource provider is a set of REST operations that enable functionality for a specific Azure service. For example, the Key Vault service consists of a resource provider named Microsoft.KeyVault. The resource provider defines REST operations for managing vaults, secrets, keys, and certificates.

The resource provider defines the Azure resources you can deploy to your account. A resource type's name follows the format: {resource-provider}/{resource-type}. The resource type for a key vault is Microsoft.KeyVault/vaults.

In this article, you learn how to:

View all resource providers in Azure
Check registration status of a resource provider
Register a resource provider
View resource types for a resource provider
View valid locations for a resource type
View valid API versions for a resource type

For a list that maps resource providers to Azure services, see Resource providers for Azure services.

Register resource provider

Before you use a resource provider, you must make sure your Azure subscription is registered for the resource provider. Registration configures your subscription to work with the resource provider.

Important

Register a resource provider only when you're ready to use it. This registration step helps maintain least privileges within your subscription. A malicious user can't use unregistered resource providers.

Registering unnecessary resource providers may result in unrecognized apps appearing in your Microsoft Entra tenant. Microsoft adds the app for a resource provider when you register it. These apps are typically added by the Windows Azure Service Management API. To prevent unnecessary apps in your tenant, only register needed resource providers.

Some resource providers are registered by default. For a list of resource providers registered by default, see Resource providers for Azure services.

Other resource providers are registered automatically when you take certain actions. When you create a resource through the portal, the resource provider is typically registered for you. When you deploy an Azure Resource Manager template or Bicep file, resource providers defined in the template are registered automatically. Sometimes, a resource in the template requires supporting resources that aren't in the template. Common examples are monitoring or security resources. You need to register those resource providers manually.

For other scenarios, you may need to manually register a resource provider.

Important

Your application code shouldn't block the creation of resources for a resource provider that is in the registering state. When you register the resource provider, the operation is done individually for each supported region. To create resources in a region, the registration only needs to be completed in that region. By not blocking a resource provider in the registering state, your application can continue much sooner than waiting for all regions to complete.

You must have permission to do the /register/action operation for the resource provider. The permission is included in the Contributor and Owner roles.

You can't unregister a resource provider when you still have resource types from that resource provider in your subscription.

Reregister a resource provider when the resource provider supports new locations that you need to use.

Azure portal

Register resource provider

To see all resource providers, and the registration status for your subscription:

Sign in to the Azure portal.

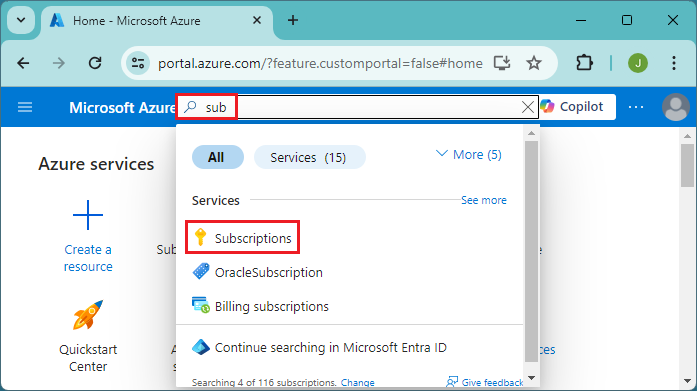

On the Azure portal menu, search for Subscriptions. Select it from the available options.
Select the subscription you want to view.

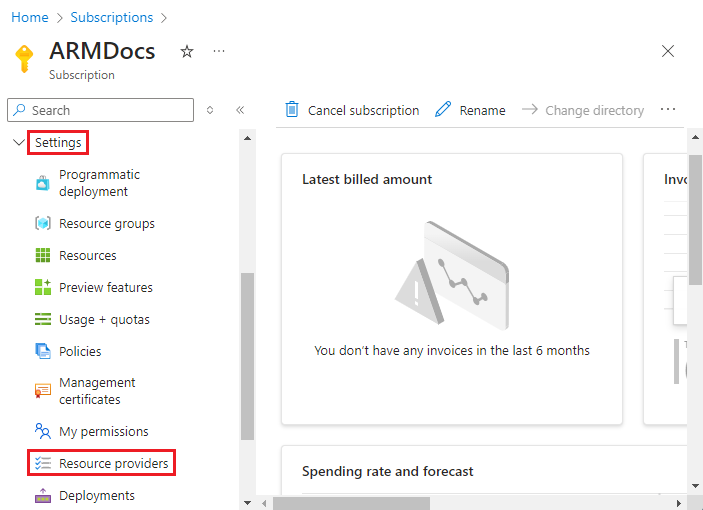

On the left menu, under Settings, select Resource providers.

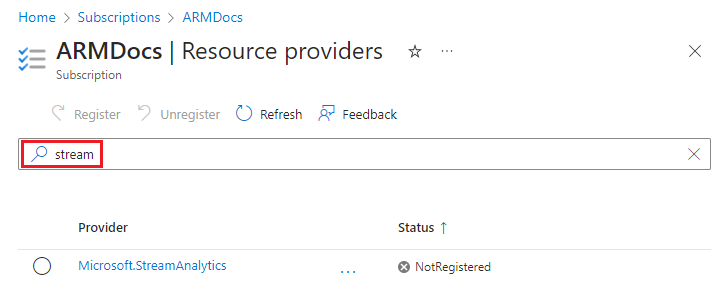

Find the resource provider you want to register.

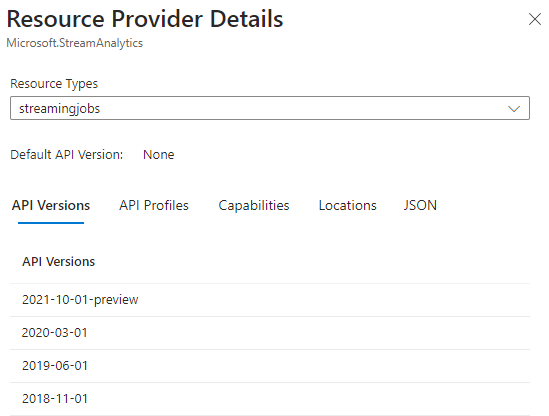

Select the resource provider to see the details of the resource provider.

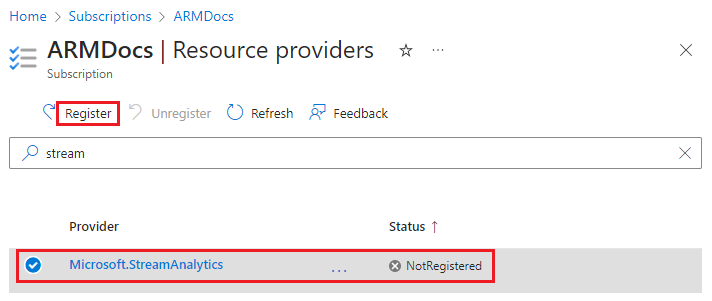

Select the resource provider, and select Register. To maintain least privileges in your subscription, only register those resource providers that you're ready to use.

Important

As noted earlier, don't block the creation of resources for a resource provider that is in the registering state. By not blocking a resource provider in the registering state, your application can continue much sooner than waiting for all regions to complete.

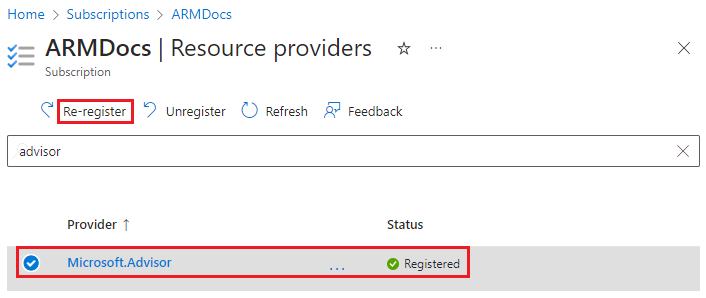

Re-register a resource provider to use locations that have been added since the previous registration.

View resource provider

To see information for a particular resource provider:

Sign in to the Azure portal.
On the Azure portal menu, select All services.

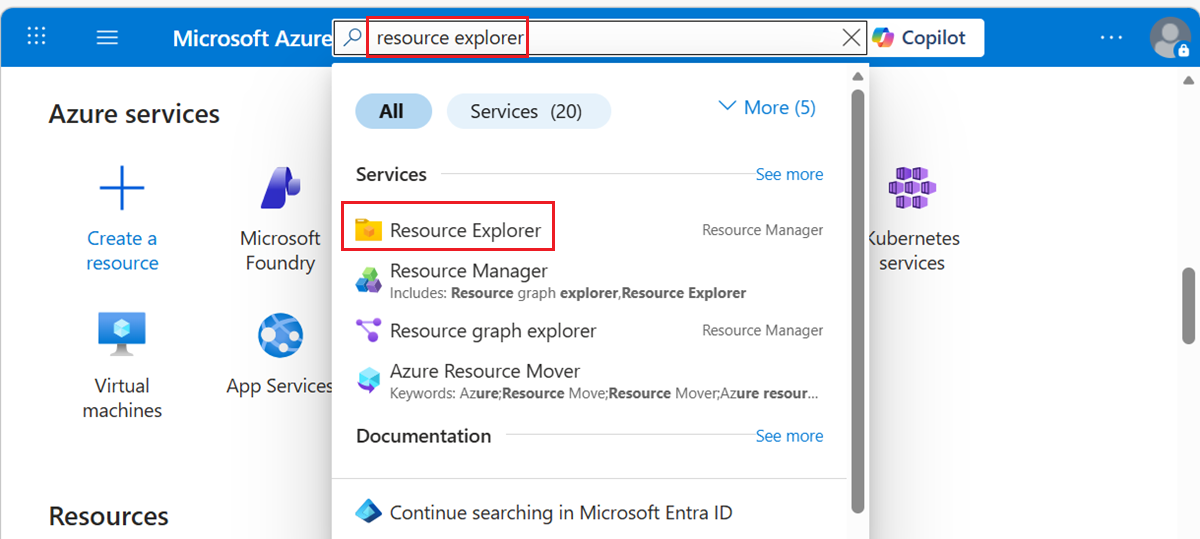

In the All services box, enter resource explorer, and then select Resource Explorer.
Expand Providers by selecting the right arrow.
Expand a resource provider and resource type that you want to view.

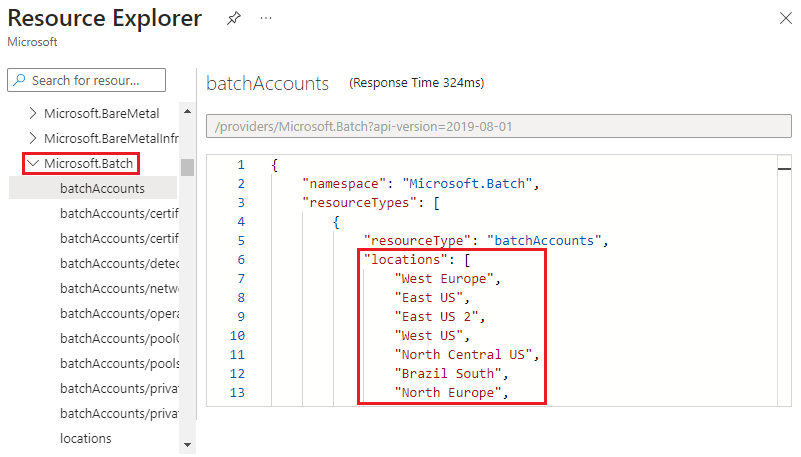

Resource Manager is supported in all regions, but the resources you deploy might not be supported in all regions. Also, there may be limitations on your subscription that prevent you from using some regions that support the resource. The resource explorer displays valid locations for the resource type.

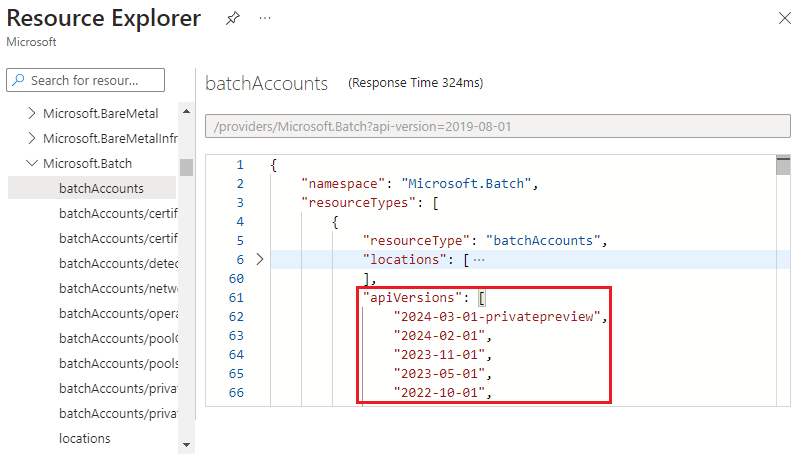

The API version corresponds to a version of the resource provider's REST API operations. As a resource provider enables new features, it releases a new version of the REST API. The resource explorer displays valid API versions for the resource type.

Azure PowerShell

To see all resource providers in Azure, and the registration status for your subscription, use:

Get-AzResourceProvider -ListAvailable | Select-Object ProviderNamespace, RegistrationState

The command returns:

ProviderNamespace                RegistrationState
-------------------------------- ------------------
Microsoft.ClassicCompute         Registered
Microsoft.ClassicNetwork         Registered
Microsoft.ClassicStorage         Registered
Microsoft.CognitiveServices      Registered
...

To see all registered resource providers for your subscription, use:

 Get-AzResourceProvider -ListAvailable | Where-Object RegistrationState -eq "Registered" | Select-Object ProviderNamespace, RegistrationState | Sort-Object ProviderNamespace

To maintain least privileges in your subscription, only register those resource providers that you're ready to use. To register a resource provider, use:

Register-AzResourceProvider -ProviderNamespace Microsoft.Batch

The command returns:

ProviderNamespace : Microsoft.Batch
RegistrationState : Registering
ResourceTypes     : {batchAccounts, operations, locations, locations/quotas}
Locations         : {West Europe, East US, East US 2, West US...}

Important

As noted earlier, don't block the creation of resources for a resource provider that is in the registering state. By not blocking a resource provider in the registering state, your application can continue much sooner than waiting for all regions to complete.

Reregister a resource provider to use locations that have been added since the previous registration. To reregister, run the registration command again.

To see information for a particular resource provider, use:

Get-AzResourceProvider -ProviderNamespace Microsoft.Batch

The command returns:

{ProviderNamespace : Microsoft.Batch
RegistrationState : Registered
ResourceTypes     : {batchAccounts}
Locations         : {West Europe, East US, East US 2, West US...}

...

To see the resource types for a resource provider, use:

(Get-AzResourceProvider -ProviderNamespace Microsoft.Batch).ResourceTypes.ResourceTypeName

The command returns:

batchAccounts
operations
locations
locations/quotas

The API version corresponds to a version of the resource provider's REST API operations. As a resource provider enables new features, it releases a new version of the REST API.

To get the available API versions for a resource type, use:

((Get-AzResourceProvider -ProviderNamespace Microsoft.Batch).ResourceTypes | Where-Object ResourceTypeName -eq batchAccounts).ApiVersions

The command returns:

2023-05-01
2022-10-01
2022-06-01
2022-01-01
2021-06-01
2021-01-01
...

Resource Manager is supported in all regions, but the resources you deploy might not be supported in all regions. Also, there may be limitations on your subscription that prevent you from using some regions that support the resource.

To get the supported locations for a resource type, use.

((Get-AzResourceProvider -ProviderNamespace Microsoft.Batch).ResourceTypes | Where-Object ResourceTypeName -eq batchAccounts).Locations

The command returns:

West Europe
East US
East US 2
West US
...

Azure CLI

To see all resource providers in Azure, and the registration status for your subscription, use:

az provider list --query "[].{Provider:namespace, Status:registrationState}" --out table

The command returns:

Provider                         Status
-------------------------------- ----------------
Microsoft.ClassicCompute         Registered
Microsoft.ClassicNetwork         Registered
Microsoft.ClassicStorage         Registered
Microsoft.CognitiveServices      Registered
...

To see all registered resource providers for your subscription, use:

az provider list --query "sort_by([?registrationState=='Registered'].{Provider:namespace, Status:registrationState}, &Provider)" --out table

To maintain least privileges in your subscription, only register those resource providers that you're ready to use. To register a resource provider, use:

az provider register --namespace Microsoft.Batch

The command returns a message that registration is ongoing.

To see information for a particular resource provider, use:

az provider show --namespace Microsoft.Batch

The command returns:

{
    "id": "/subscriptions/####-####/providers/Microsoft.Batch",
    "namespace": "Microsoft.Batch",
    "registrationsState": "Registering",
    "resourceTypes:" [
        ...
    ]
}

Important

To see the resource types for a resource provider, use:

az provider show --namespace Microsoft.Batch --query "resourceTypes[*].resourceType" --out table

The command returns:

Result
---------------
batchAccounts
operations
locations
locations/quotas

The API version corresponds to a version of the resource provider's REST API operations. As a resource provider enables new features, it releases a new version of the REST API.

To get the available API versions for a resource type, use:

az provider show --namespace Microsoft.Batch --query "resourceTypes[?resourceType=='batchAccounts'].apiVersions | [0]" --out table

The command returns:

Result
---------------
2023-05-01
2022-10-01
2022-06-01
2022-01-01
...

To get the supported locations for a resource type, use.

az provider show --namespace Microsoft.Batch --query "resourceTypes[?resourceType=='batchAccounts'].locations | [0]" --out table

The command returns:

Result
---------------
West Europe
East US
East US 2
West US
...

Python

To see all resource providers in Azure, and the registration status for your subscription, use:

import os
from azure.identity import DefaultAzureCredential
from azure.mgmt.resource import ResourceManagementClient

# Authentication
credential = DefaultAzureCredential()
subscription_id = os.environ["AZURE_SUBSCRIPTION_ID"]

# Initialize Resource Management client
resource_management_client = ResourceManagementClient(credential, subscription_id)

# List available resource providers and select ProviderNamespace and RegistrationState
providers = resource_management_client.providers.list()

for provider in providers:
    print(f"ProviderNamespace: {provider.namespace}, RegistrationState: {provider.registration_state}")

The command returns:

ProviderNamespace: Microsoft.AlertsManagement, RegistrationState: Registered
ProviderNamespace: Microsoft.AnalysisServices, RegistrationState: Registered
ProviderNamespace: Microsoft.ApiManagement, RegistrationState: Registered
ProviderNamespace: Microsoft.Authorization, RegistrationState: Registered
ProviderNamespace: Microsoft.Batch, RegistrationState: Registered
...

To see all registered resource providers for your subscription, use:

# List available resource providers with RegistrationState "Registered" and select ProviderNamespace and RegistrationState
providers = resource_management_client.providers.list()
registered_providers = [provider for provider in providers if provider.registration_state == "Registered"]

# Sort by ProviderNamespace
sorted_registered_providers = sorted(registered_providers, key=lambda x: x.namespace)

for provider in sorted_registered_providers:
    print(f"ProviderNamespace: {provider.namespace}, RegistrationState: {provider.registration_state}")

To maintain least privileges in your subscription, only register those resource providers that you're ready to use. To register a resource provider, use:

import os
from azure.identity import DefaultAzureCredential
from azure.mgmt.resource import ResourceManagementClient

# Authentication
credential = DefaultAzureCredential()
subscription_id = os.environ["AZURE_SUBSCRIPTION_ID"]

# Initialize Resource Management client
resource_management_client = ResourceManagementClient(credential, subscription_id)

# Register resource provider
provider_namespace = "Microsoft.Batch"
registration_result = resource_management_client.providers.register(provider_namespace)

print(f"ProviderNamespace: {registration_result.namespace}, RegistrationState: {registration_result.registration_state}")

The command returns:

ProviderNamespace: Microsoft.Batch, RegistrationState: Registered

Important

Reregister a resource provider to use locations that have been added since the previous registration. To reregister, run the registration command again.

To see information for a particular resource provider, use:

import os
from azure.identity import DefaultAzureCredential
from azure.mgmt.resource import ResourceManagementClient

# Authentication
credential = DefaultAzureCredential()
subscription_id = os.environ["AZURE_SUBSCRIPTION_ID"]

# Initialize Resource Management client
resource_management_client = ResourceManagementClient(credential, subscription_id)

# Get resource provider by ProviderNamespace
provider_namespace = "Microsoft.Batch"
provider = resource_management_client.providers.get(provider_namespace)

print(f"ProviderNamespace: {provider.namespace}, RegistrationState: {provider.registration_state}\n")

# Add resource types, locations, and API versions with new lines to separate results
for resource_type in provider.resource_types:
    print(f"ResourceType: {resource_type.resource_type}\nLocations: {', '.join(resource_type.locations)}\nAPIVersions: {', '.join(resource_type.api_versions)}\n")

The command returns:

ProviderNamespace: Microsoft.Batch, RegistrationState: Registered

ResourceType: batchAccounts
Locations: West Europe, East US, East US 2, West US, North Central US, Brazil South, North Europe, Central US, East Asia, Japan East, Australia Southeast, Japan West, Korea South, Korea Central, Southeast Asia, South Central US, Australia East, Jio India West, South India, Central India, West India, Canada Central, Canada East, UK South, UK West, West Central US, West US 2, France Central, South Africa North, UAE North, Australia Central, Germany West Central, Switzerland North, Norway East, Brazil Southeast, West US 3, Sweden Central, Qatar Central, Poland Central, East US 2 EUAP, Central US EUAP
APIVersions: 2023-05-01, 2022-10-01, 2022-06-01, 2022-01-01, 2021-06-01, 2021-01-01, 2020-09-01, 2020-05-01, 2020-03-01-preview, 2020-03-01, 2019-08-01, 2019-04-01, 2018-12-01, 2017-09-01, 2017-05-01, 2017-01-01, 2015-12-01, 2015-09-01, 2015-07-01, 2014-05-01-privatepreview

...

To see the resource types for a resource provider, use:

# Get resource provider by ProviderNamespace
provider_namespace = "Microsoft.Batch"
provider = resource_management_client.providers.get(provider_namespace)

# Get ResourceTypeName of the resource types
resource_type_names = [resource_type.resource_type for resource_type in provider.resource_types]

for resource_type_name in resource_type_names:
    print(resource_type_name)

The command returns:

batchAccounts
batchAccounts/pools
batchAccounts/detectors
batchAccounts/certificates
operations
locations
locations/quotas
locations/checkNameAvailability
locations/accountOperationResults
locations/virtualMachineSkus
locations/cloudServiceSkus

The API version corresponds to a version of the resource provider's REST API operations. As a resource provider enables new features, it releases a new version of the REST API.

To get the available API versions for a resource type, use:

# Get resource provider by ProviderNamespace
provider_namespace = "Microsoft.Batch"
provider = resource_management_client.providers.get(provider_namespace)

# Filter resource type by ResourceTypeName and get its ApiVersions
resource_type_name = "batchAccounts"
api_versions = [
    resource_type.api_versions
    for resource_type in provider.resource_types
    if resource_type.resource_type == resource_type_name
]

for api_version in api_versions[0]:
    print(api_version)

The command returns:

2023-05-01
2022-10-01
2022-06-01
2022-01-01
...

To get the supported locations for a resource type, use.

# Get resource provider by ProviderNamespace
provider_namespace = "Microsoft.Batch"
provider = resource_management_client.providers.get(provider_namespace)

# Filter resource type by ResourceTypeName and get its Locations
resource_type_name = "batchAccounts"
locations = [
    resource_type.locations
    for resource_type in provider.resource_types
    if resource_type.resource_type == resource_type_name
]

for location in locations[0]:
    print(location)

The command returns:

West Europe
East US
East US 2
West US
...

Next steps

To learn about creating Resource Manager templates, see Authoring Azure Resource Manager templates.
To view the resource provider template schemas, see Template reference.
For a list that maps resource providers to Azure services, see Resource providers for Azure services.
To view the operations for a resource provider, see Azure REST API.

แชร์ผ่าน

Azure resource providers and types

Register resource provider

Azure portal

Register resource provider

View resource provider

Azure PowerShell

Azure CLI

Python

Next steps

คำติชม

แหล่งทรัพยากรเพิ่มเติม
