Connect a bot to LINE

APPLIES TO: SDK v3

You can configure your bot to communicate with people through the LINE app.

Log into the LINE console

Log into the LINE developer console of your LINE account, using Log in with Line.

Note

If you haven't already, download LINE, then go to your settings to register your email address.

Register as a developer

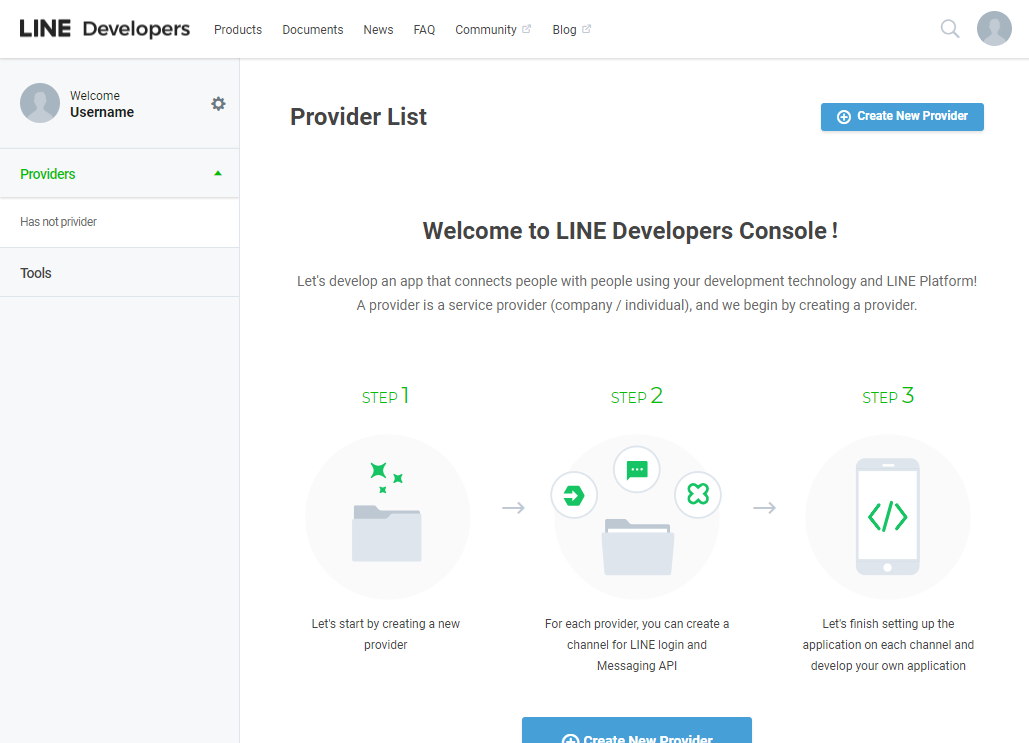

If this is your first time on the LINE developer console, enter your name and email address to create a developer account.

LINE screenshot register developer

Create a new provider

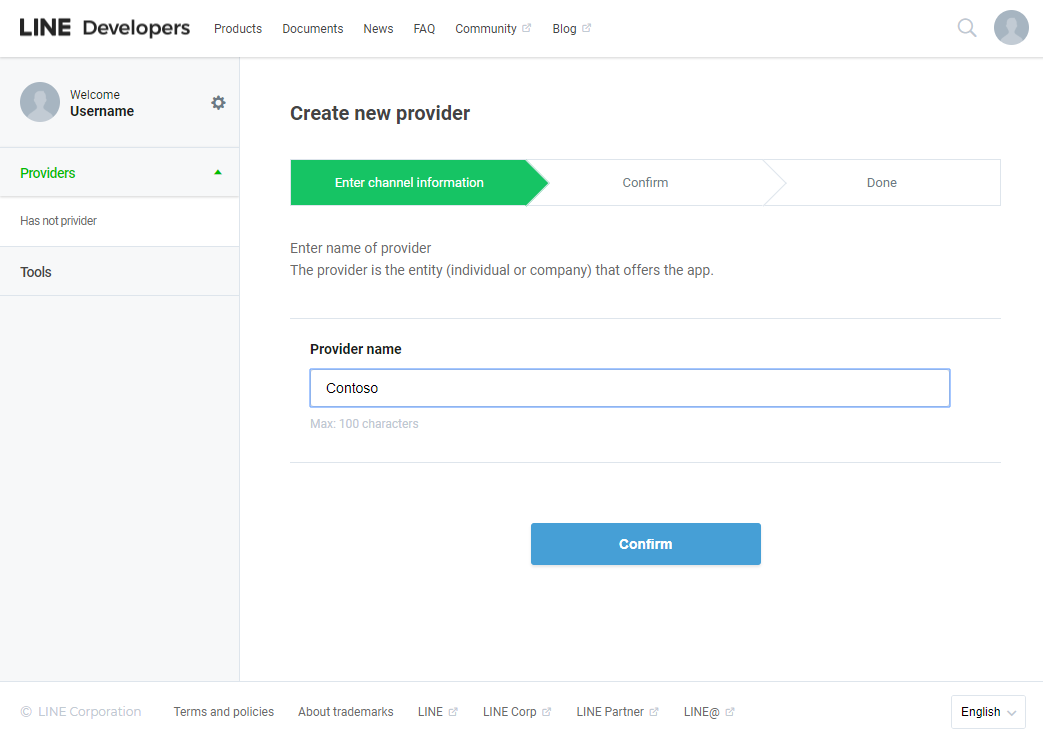

First, create a provider for your bot if you don't already have one set up. The provider is the entity (individual or company) that offers your app.

LINE screenshot create provider

Create a Messaging API channel

Next, create a new Messaging API channel.

LINE screenshot channel type

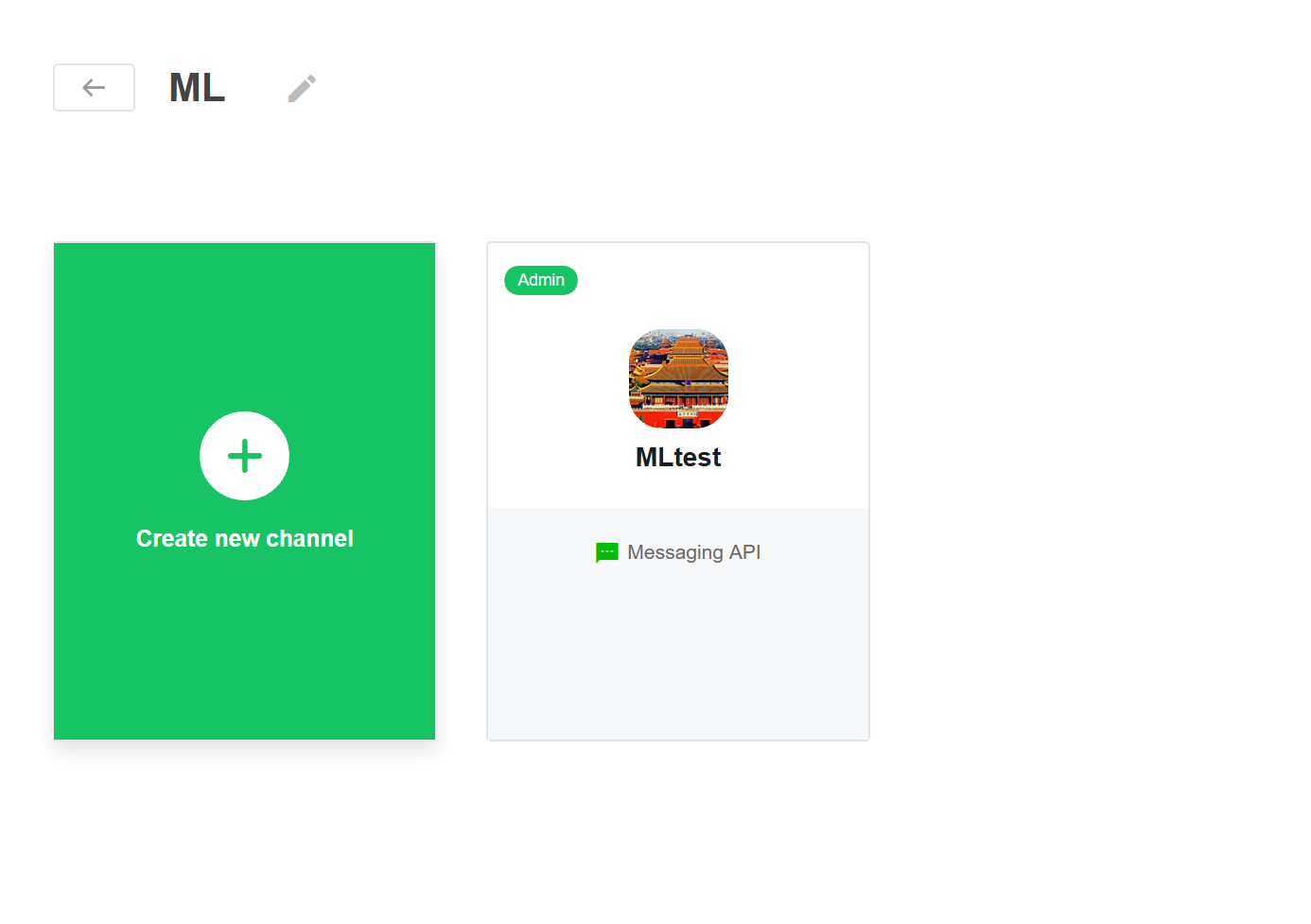

Create a new Messaging API channel by clicking on the green square.

LINE screenshot create channel

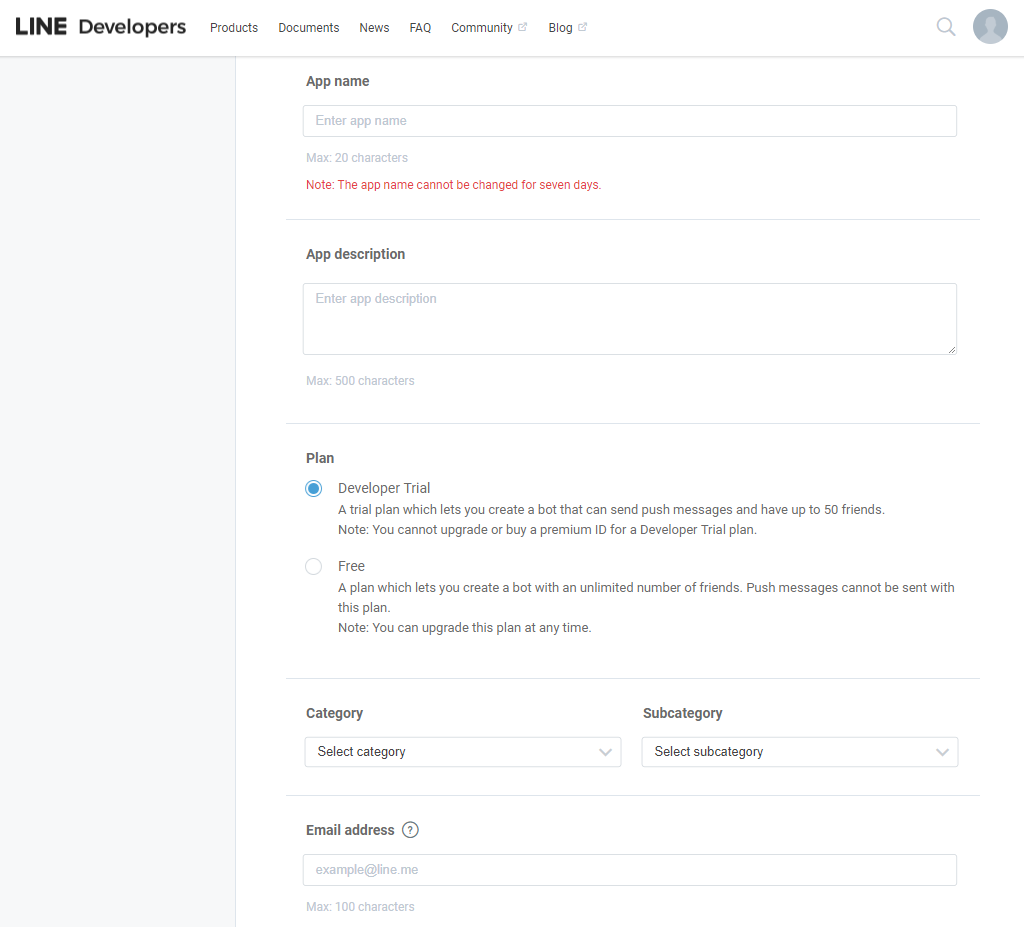

The name cannot include "LINE" or some similar string. Fill out the required fields and confirm your channel settings.

LINE screenshot channel settings

Get necessary values from your channel settings

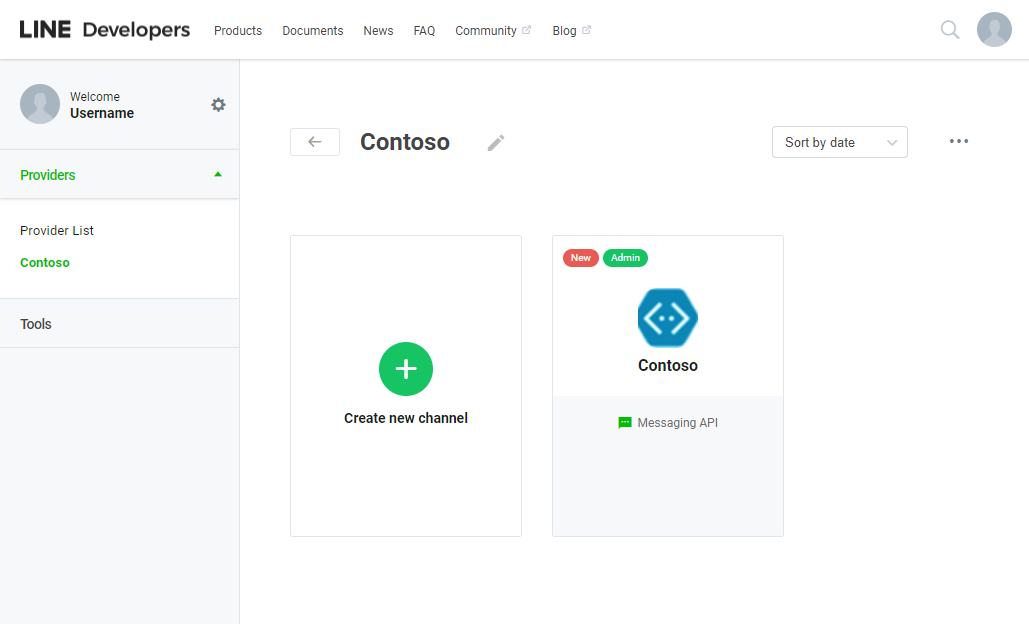

Once you've confirmed your channel settings, you'll be directed to a page similar to this.

LINE screenshot channel page

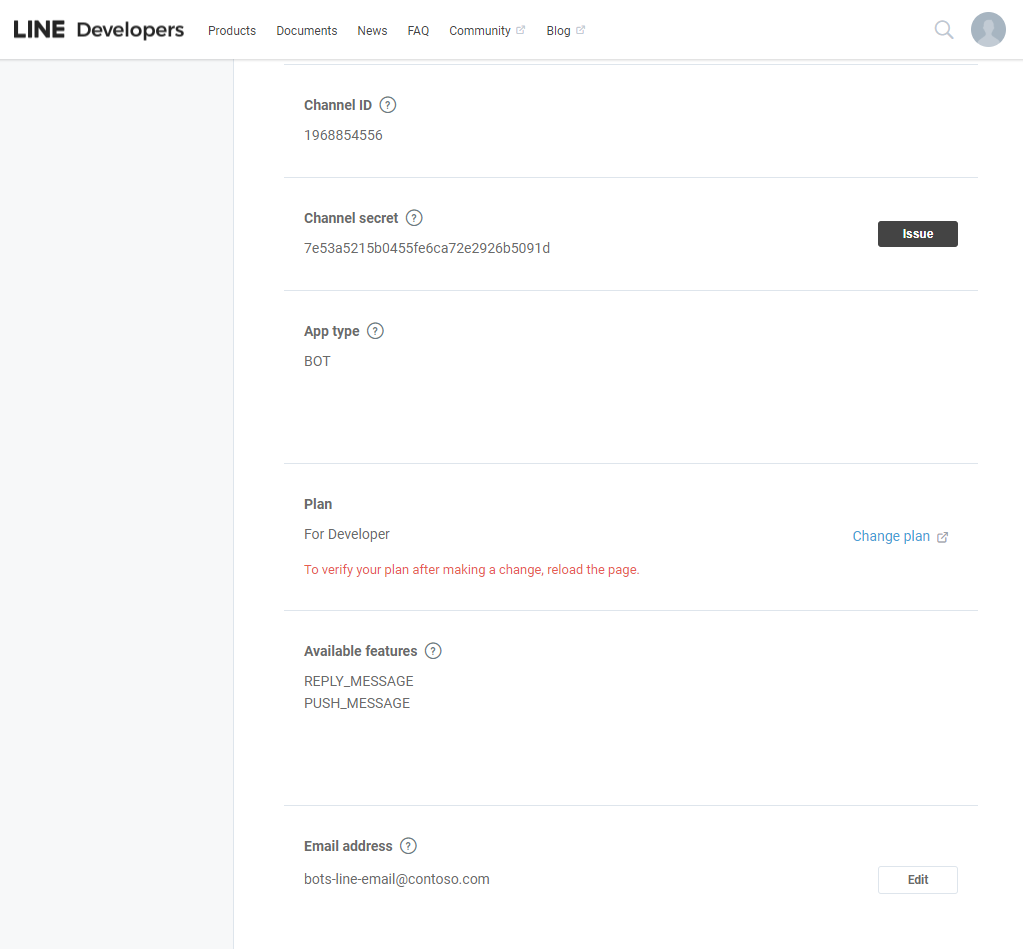

Click on the channel you created to access your channel settings, and scroll down to find the Basic information > Channel secret. Save that somewhere for a moment. Verify the Available features include PUSH_MESSAGE.

LINE screenshot channel secret

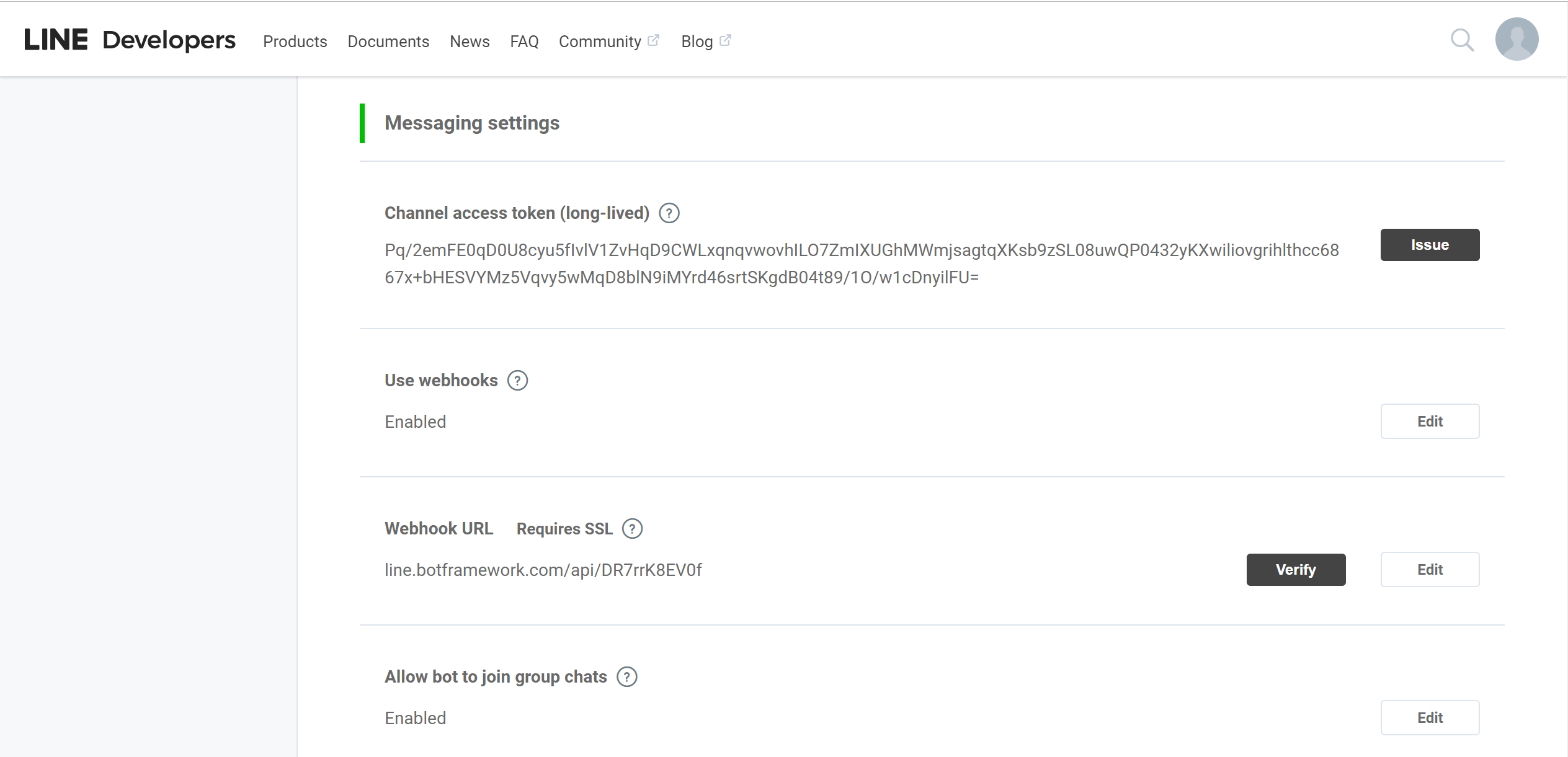

Then, scroll farther to Messaging settings. There, you will see a Channel access token field, with an issue button. Click that button to get your access token, and save that for the moment as well.

LINE screenshot channel token

Connect your LINE channel to your Azure bot

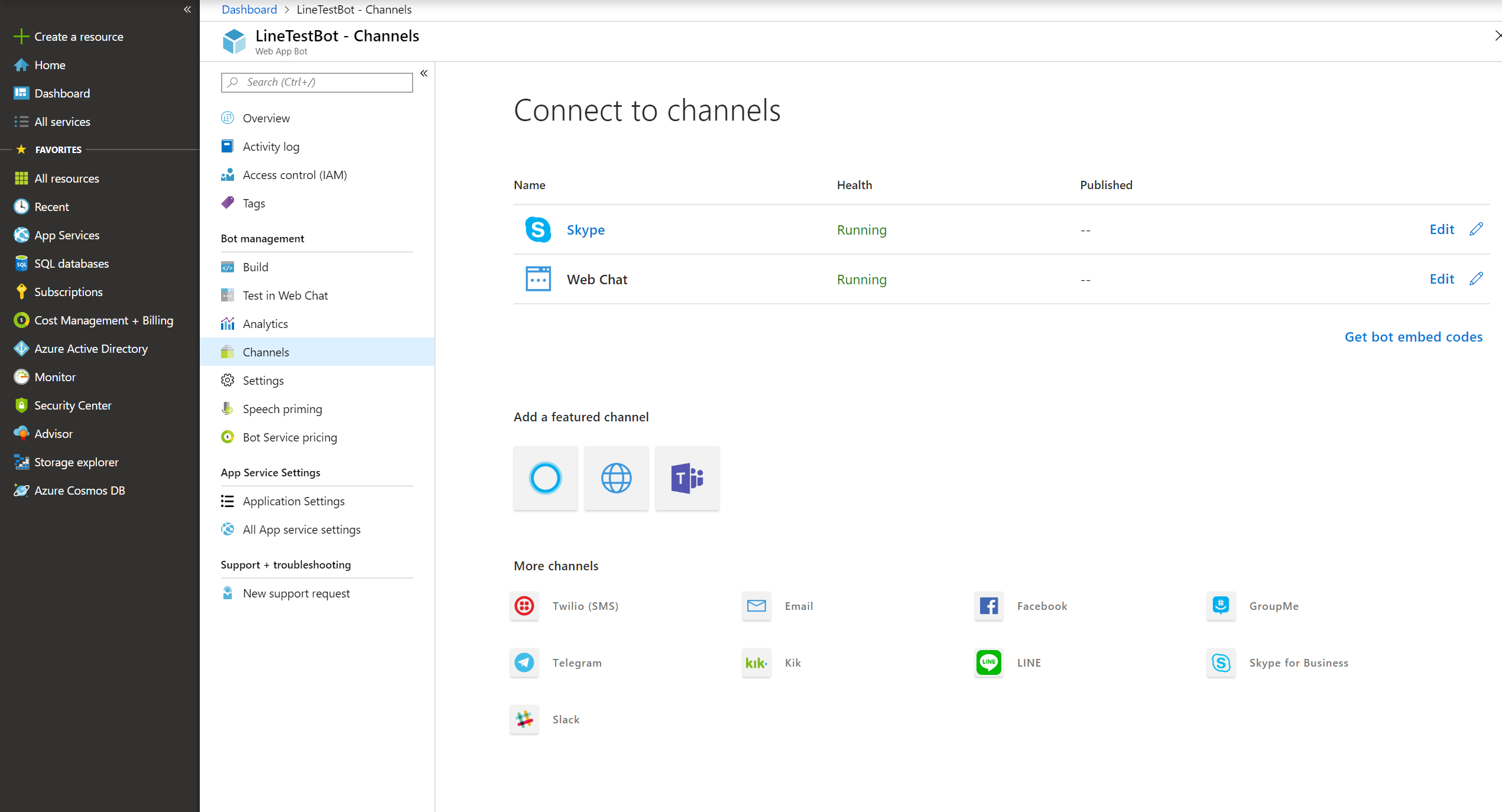

Log in to the Azure portal and find your bot, and click on Channels.

LINE screenshot azure settings

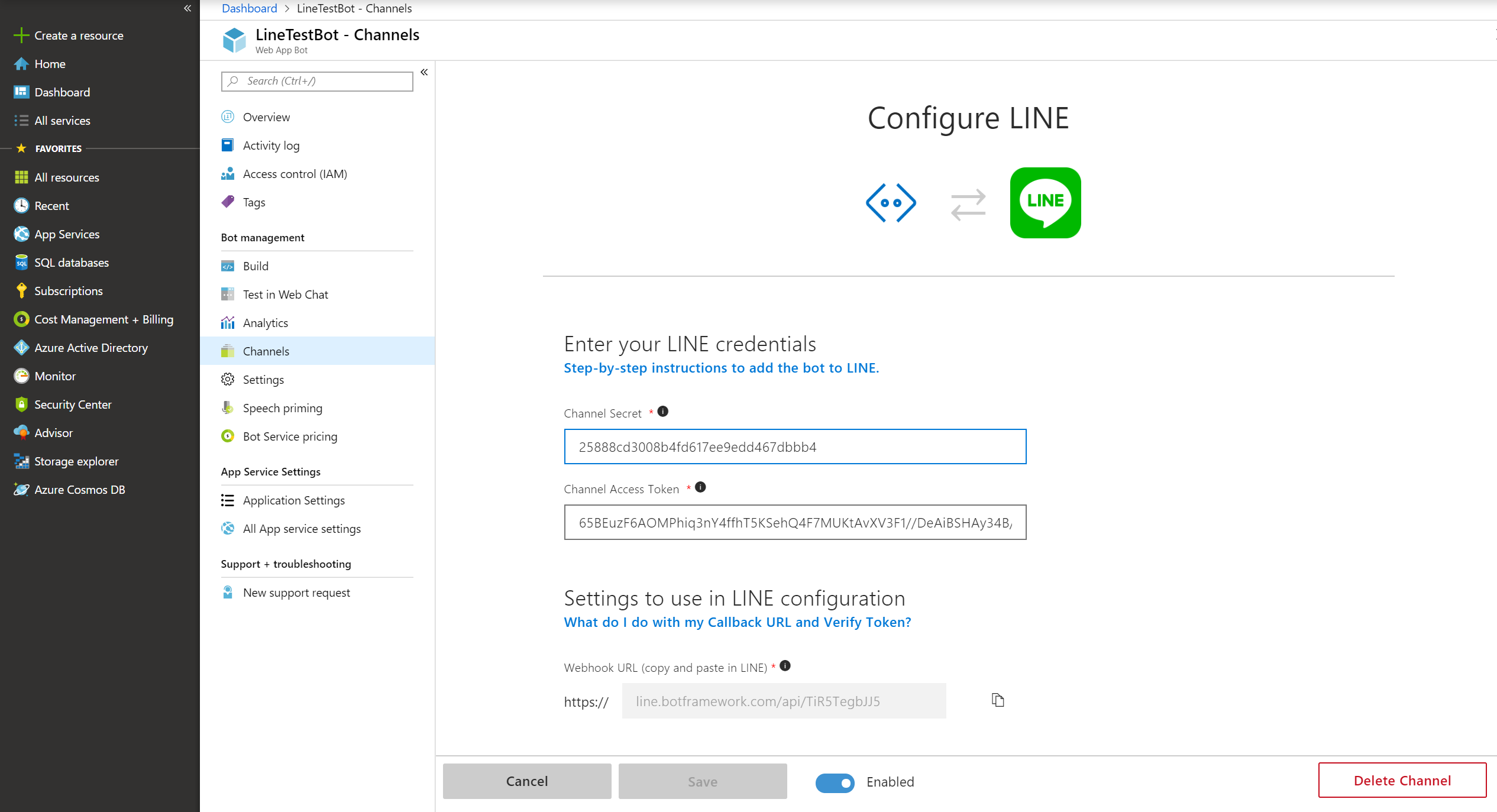

There, select the LINE channel and paste the channel secret and access token from above into the appropriate fields. Be sure to save your changes.

Copy the custom webhook URL that Azure gives you.

LINE screenshot azure settings

Configure LINE webhook settings

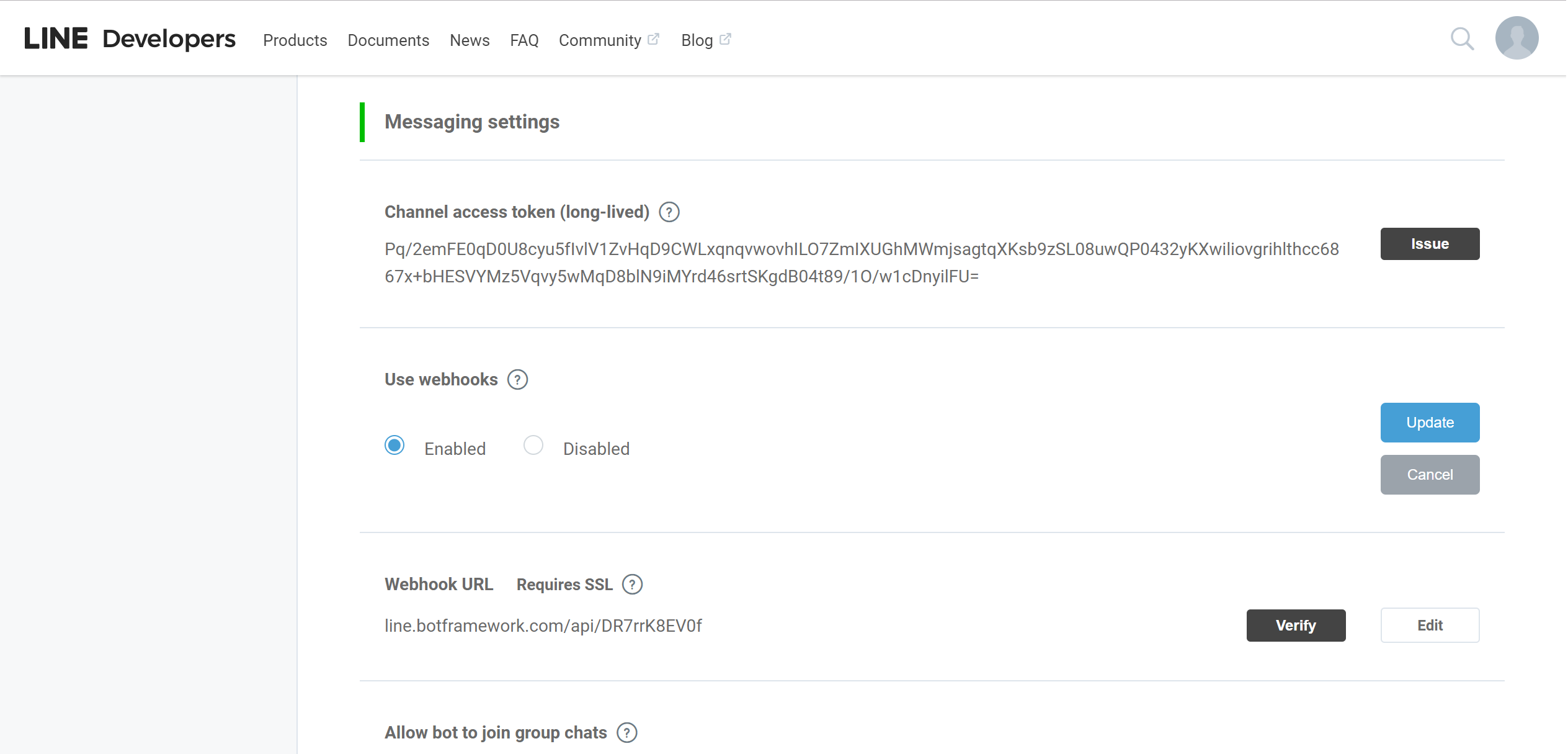

Next, go back to the LINE developer console and paste the webhook URL from Azure into the Message settings > Webhook URL, and click Verify to verify the connection. If you just created the channel in Azure, it may take a few minutes to take effect.

Then, enable Message settings > Use webhooks.

Important

In LINE Developer Console, you must first set the webhook URL, and only then set Use webhooks = Enabled. First enabling webhooks with an empty URL will not set the enabled status, even though the UI may say otherwise.

After you added a webhook URL and then enabled webhooks, make sure to reload this page and verify that these changes were set correctly.

LINE screenshot webhooks

Test your bot

Once you have completed these steps, your bot will be successfully configured to communicate with users on LINE and is ready to test.

Add your bot to your LINE mobile app

In the LINE developer console, navigate to the settings page and you will see a QR code of your bot.

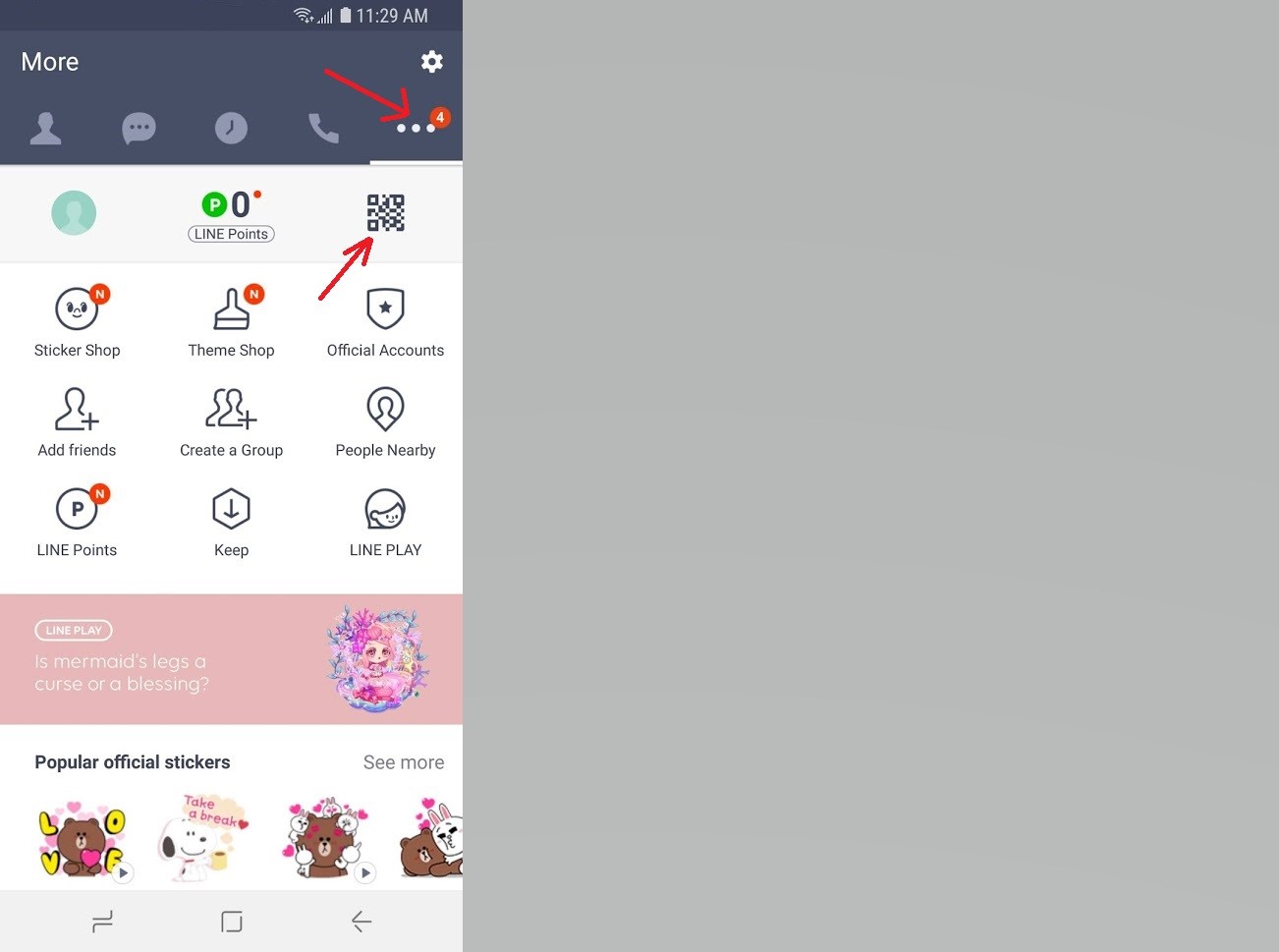

In the Mobile LINE app, go to the right most navigation tab with three dots [...] and tap on the QR code icon.

LINE screenshot mobile app

Point the QR code reader at the QR code in your developer console. You should now be able to interact with your bot in your mobile LINE app and test your bot.

Automatic messages

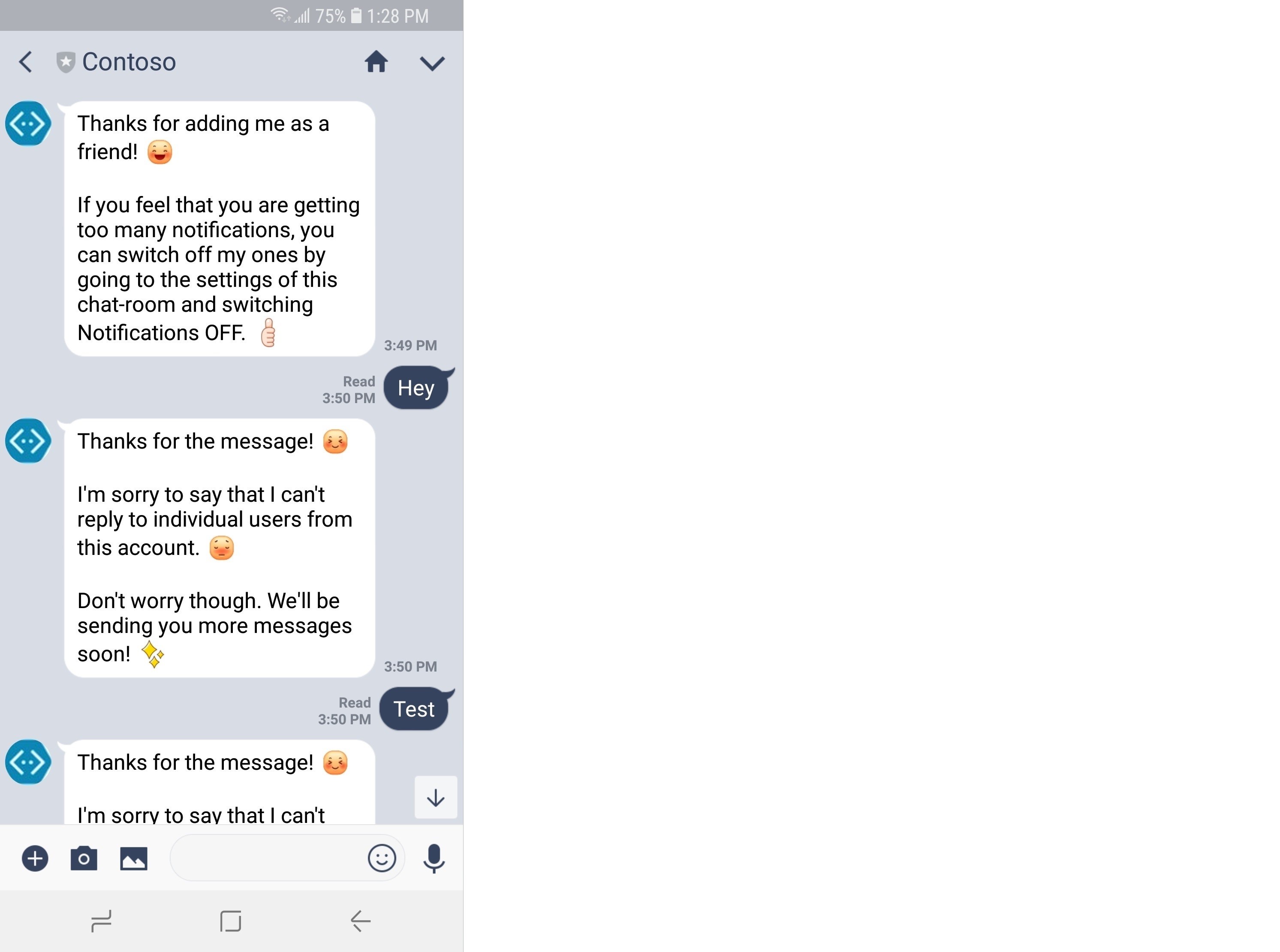

When you start testing your bot, you may notice the bot sends unexpected messages that are not the ones you specified in the conversationUpdate activity. Your dialog may look something like this:

LINE screenshot conversation

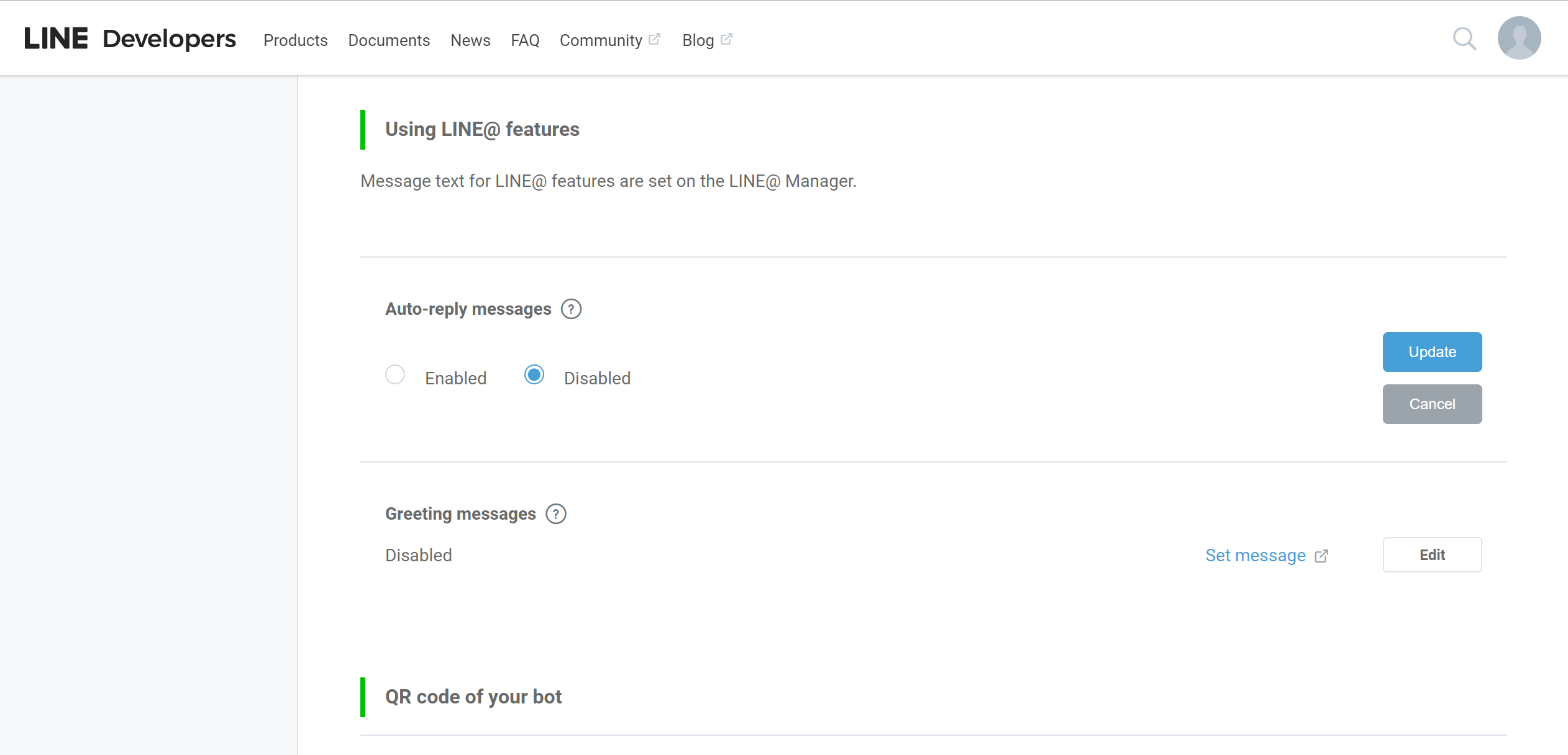

To avoid sending these messages, you need to switch off the Auto-response messages.

LINE screenshot auto response

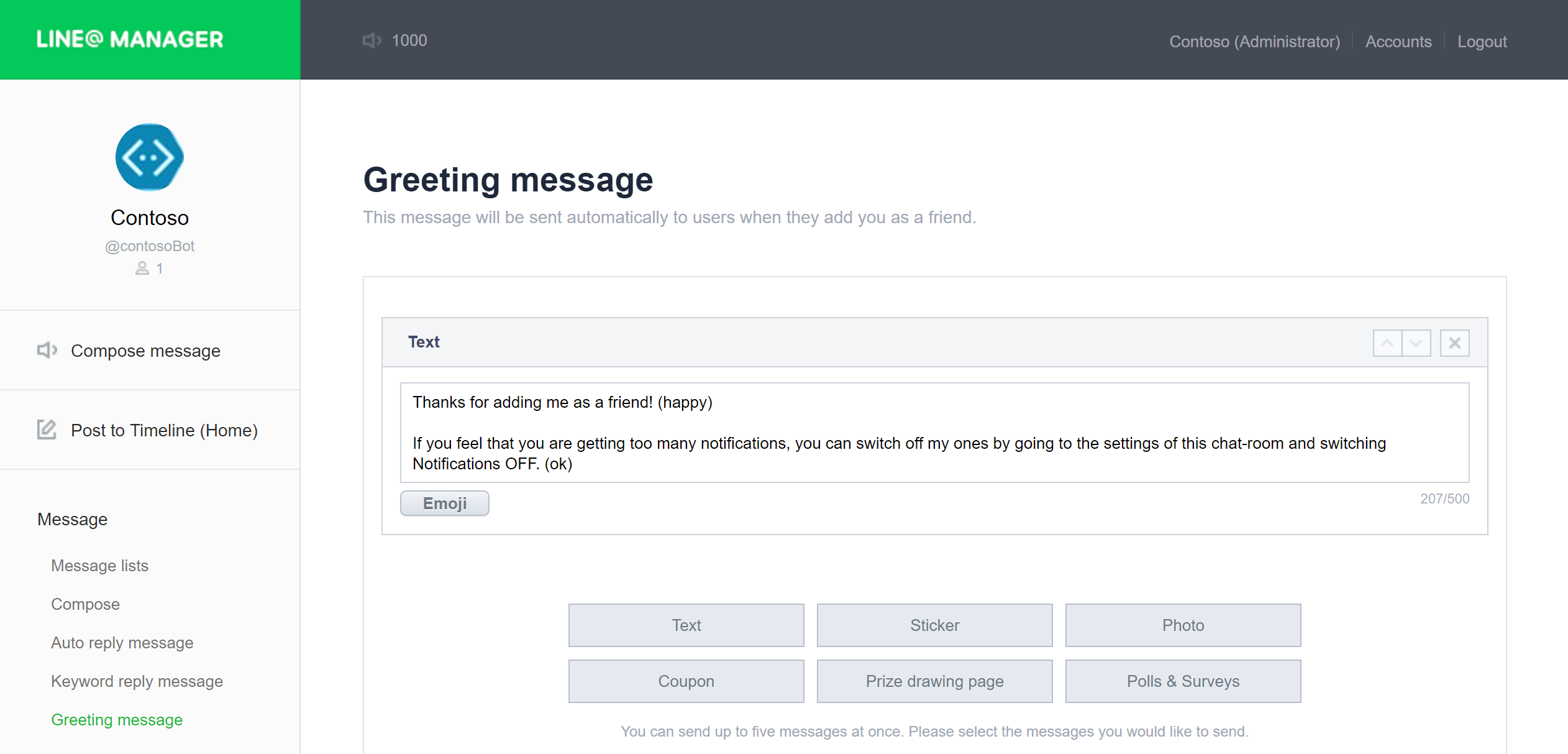

Alternatively, you can choose to keep these messages. In this case, it may be a good idea to click “Set message” and edit it.

LINE screenshot set auto response

Troubleshooting

  • In case your bot is not responding to any of your messages at all, navigate to your bot in Azure portal, and choose Test in Web Chat.
    • If the bot works there, but does not respond in LINE, reload your LINE Developer Console page and repeat the webhook instructions above. Be sure you set the Webhook URL before enabling webhooks.
    • If the bot doesn't work in Web Chat, debug the issue for your bot then come back and finish configuring your LINE channel.
