Customize table and column mappings

The out-of-box table maps have predefined table and column mappings that enable the flow of data between two apps. In this way, they serve as "blueprints." However, because every business is different, the default table maps might sometimes not be enough. Therefore, dual-write fully supports customization by providing ways to change table maps and column mappings.

Note

The Worker Personal details entity in Microsoft Dataverse doesn't contain the Professional Suffix field. However, this field can be added through extensibility. You can't save new values to the Professional Suffix and Personal Suffix fields of the Worker entity while you're mapping the Worker Personal details entity from Dataverse to the Worker entity in finance and operations apps. The DirNameAffixPersonalSuffix data source contains these fields and won't save values to fields that aren't available in finance and operations apps.

Customize column mappings, add transforms, and enable filtering

1. In your finance and operations app, on the Dual-write page, on the Table mappings tab, select the table map to customize.

   Note

   Before you change table mappings, they must be stopped (not running). Otherwise, your changes won't be saved.

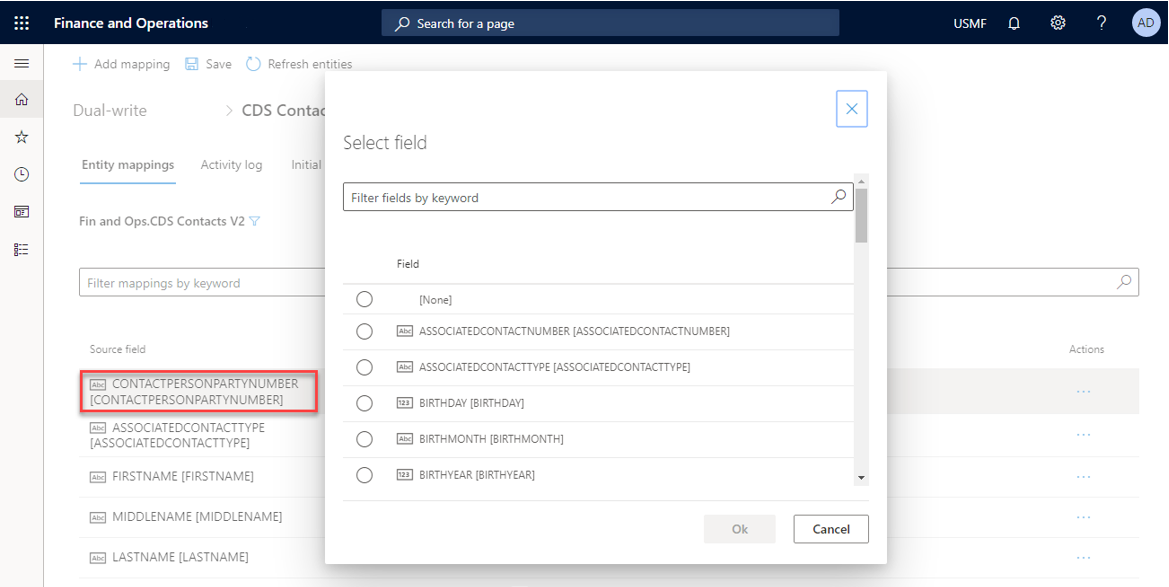

2. On the Table mappings tab, you can customize a column by selecting a new or custom column from either the finance and operations app or Dataverse.

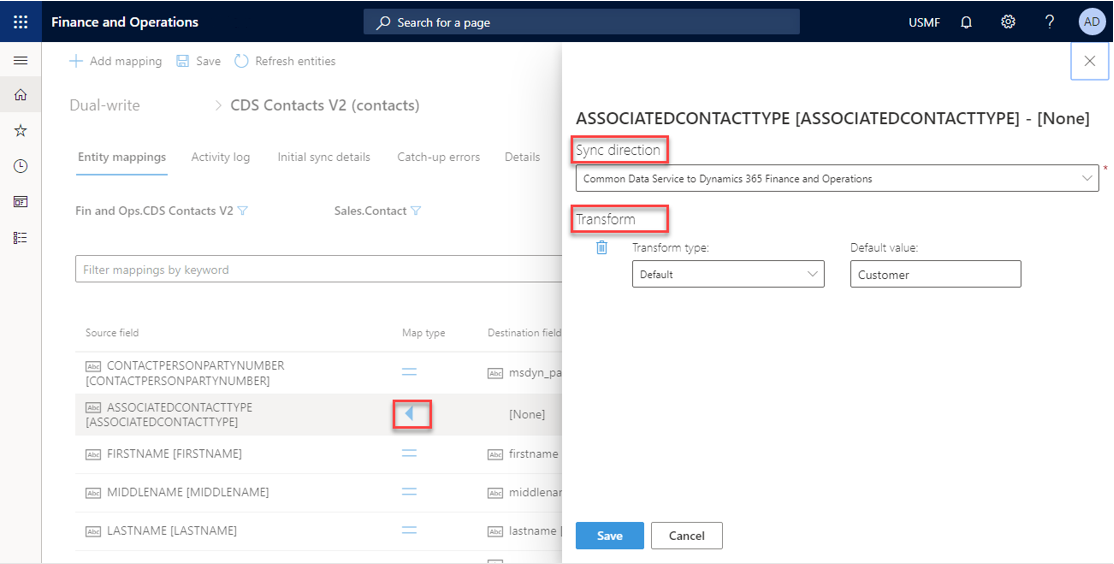

3. You can customize the synchronization direction (unidirectional or bidirectional) and add transforms by selecting the map type.



   The following table describes the available synchronization directions.

   Symbol	Description
   	Bidirectional column assignment
   	Bidirectional column assignment that uses transforms
   	Unidirectional column assignment (left to right)
   	Unidirectional column assignment (right to left)
   	Unidirectional column assignment that uses transforms (left to right)
   	Unidirectional column assignment that uses transforms (right to left)

   The following table describes the available transform types.

   Transform type	Description
   Default	Default values are values that are applied to destination columns when no source column value is available. Use default values for columns that are required on the destination table when you have no corresponding source column.
   Value map	Value maps define how values that are present in one table should be mapped to values in the other table.

   In addition to adding transformation value mappings by adding or updating the mapping fields, you can modify the generated JSON directly. In the Transform section of the slide out pane, select Show JSON to open the field with the generated JSON for the value mappings. When you modify and save the JSON, the value mapping fields are updated to reflect the changes made to the JSON.

   Directly modifying the JSON is useful where the fields may not be able to manage the values needed. For example, entering "null" in a value mapping field considers "null" as a string value rather than a null value. You can work around this situation by modifying the JSON directly. If you need to map the value "0" in finance and operations apps to a null value in Dataverse, you can enter the following JSON:

   [
        {
    	    "transformType": "ValueMap",
    	    "valueMap": {
    		    "0": null
    	    }
        }
    ]



4. You can add a new column by selecting Add mapping and then selecting an existing or custom column in the list.

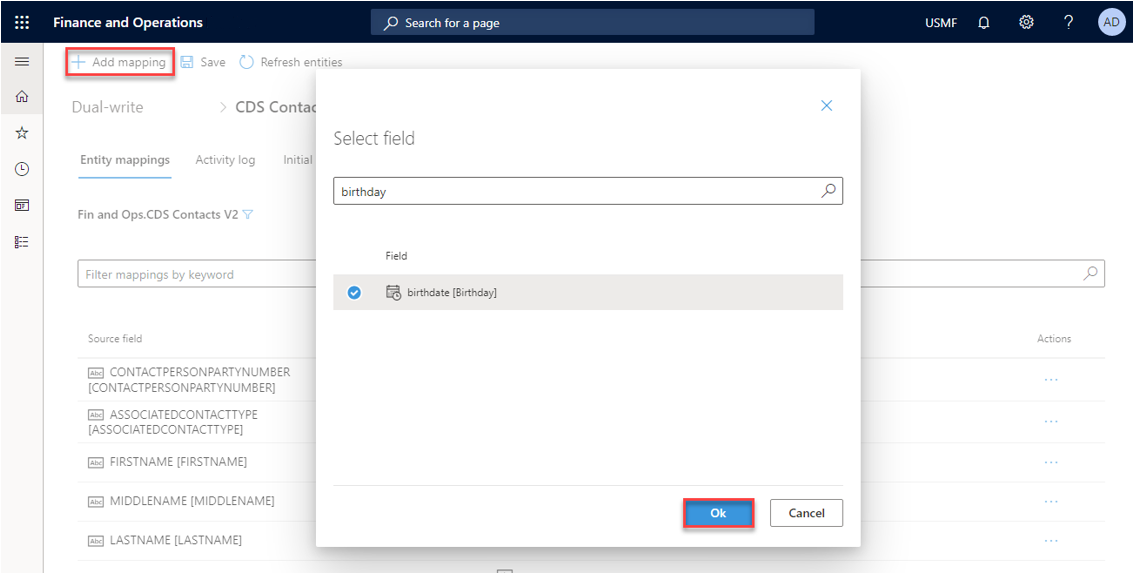

   The following illustration shows an example where a new birthdate column is being added.

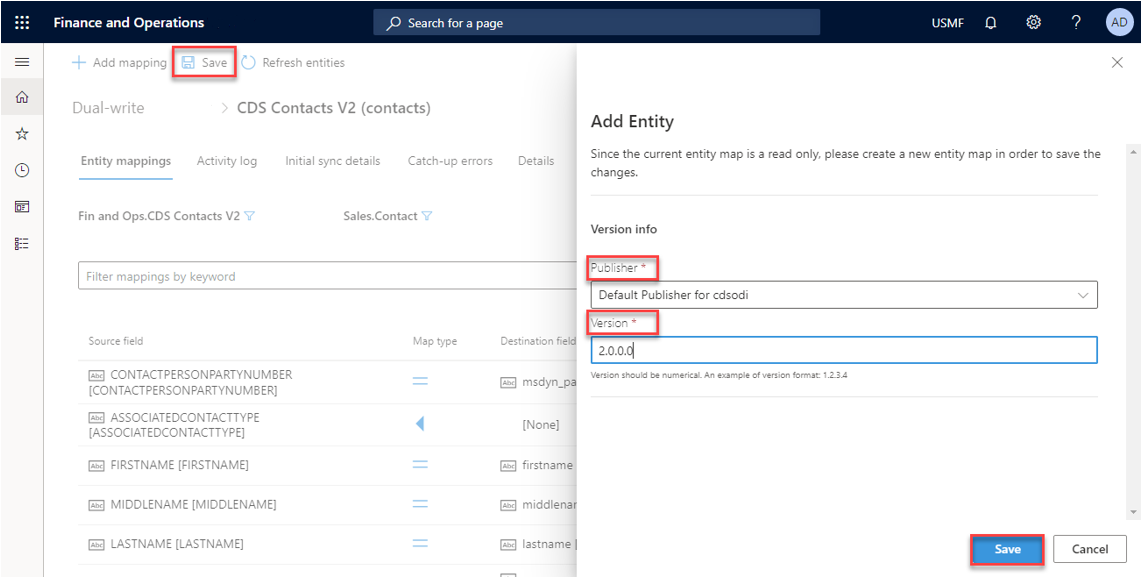

5. When you finish customizing the column mappings, select Save. Then follow the prompts to specify a publisher and a version number.



Filter your data

Dual-write lets you filter data by using Open Data Protocol (OData) filter expressions for Dataverse. For the finance and operations app, filtering resembles range expressions that are used in the query range.

1. On the table mapping page, select the filter button (funnel symbol).

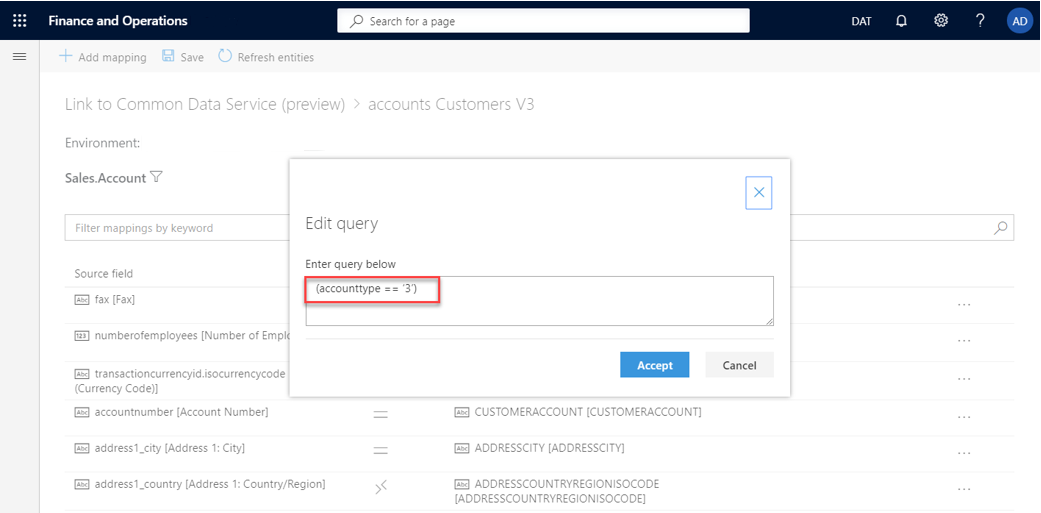

2. In the Edit query dialog box, specify your filters. In this example, the filter that is specified returns only accounts where the account type equals 3.



   The following table shows some examples of filter expressions.

   Filter	Dataverse	Finance and operations apps
   Enumeration fields	AccountType eq '3'	(AccountType == AccountType::Customer)
   Dates	TransactionDate le '2021-06-23'	(TransactionDate <= 23\06\2021)
   Multiple criteria combined	numberofemployees gt 1000 and numberofemployees le 2000	((numberofemployees > 1000) && (numberofemployees <= 2000))

   The following are filter query operators supported by dual-write:

   Type	Operators	More information
   Comparison operators	Use the eq, ne, gt, ge, lt, and le operators to compare a property and a value.	Comparison operators
   Logical operators	Use and, or, and not to create more complex expressions.	Logical operators
   Grouping operators	Use parentheses: ( and ) to specify the precedence to evaluate a complex expression.	Grouping operators

   Note

   Nested lookups aren't supported in dual-write source filters. Only standard filter operators used directly against table columns are supported. For more examples, see Standard filter operators.

   Query filters with the contains operator aren't supported.

   For more examples that show how to use expressions in query ranges, see Using Expressions in Query Ranges.

Add new table maps

Although Microsoft is continuing to add new tables, you can also add standard or custom table maps.

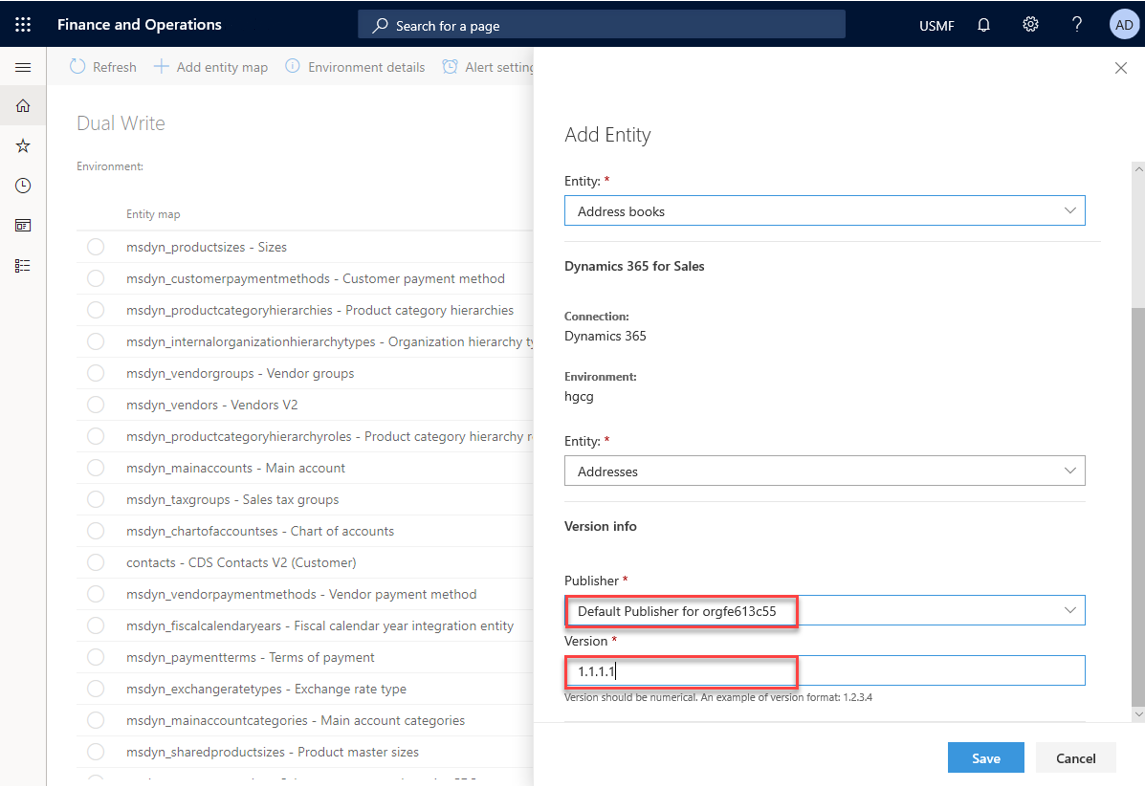

The following example shows how to add a new table map that is named Address books.

1. In the finance and operations app, on the Dual-write page, select Add table map.



   Note

   When you create a new solution that uses these modified table maps, you must specify the same publisher.

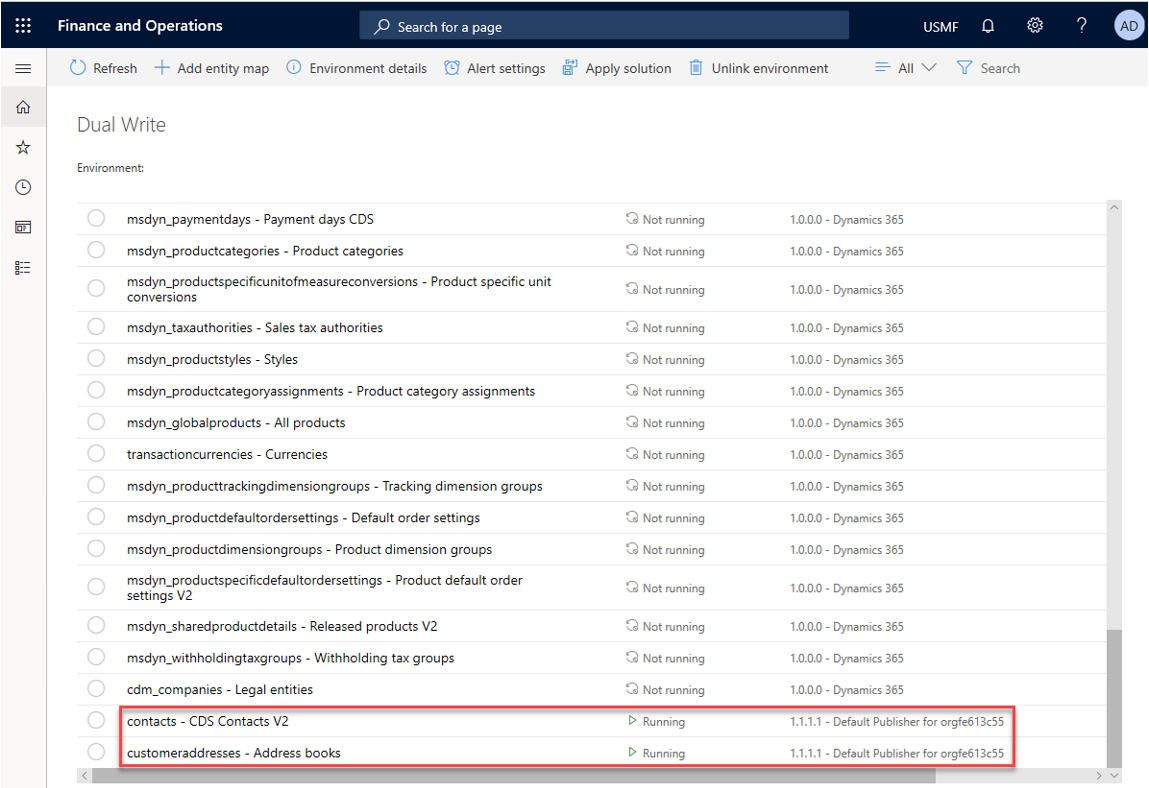

2. Confirm the table maps that you modified and added. Be sure to enable and test them, to ensure that they work as you expect.



Next steps

Error management and alert notifications
