StateContainer

Displaying a specific view when your app is in a specific state is a common pattern throughout any mobile app. Examples range from creating loading views to overlay on the screen, or on a subsection of the screen. Empty state views can be created for when there's no data to display, and error state views can be displayed when an error occurs.

Getting Started

The StateContainer attached properties enables the user to turn any layout element like a VerticalStackLayout, HorizontalStackLayout, or Grid into a state-aware layout. Each state-aware layout contains a collection of View derived elements. These elements can be used as templates for different states defined by the user. Whenever the CurrentState string property is set to a value that matches the StateKey property of one of the View elements, its contents will be displayed instead of the main content. When CurrentState is set to null or empty string, the main content is displayed.

Note

When using StateContainer with a Grid, any defined states inside it will automatically span every row and column of the Grid.

Syntax

StateContainer properties can be used in XAML or C#.

XAML

Including the XAML namespace

In order to use the toolkit in XAML the following xmlns needs to be added into your page or view:

xmlns:toolkit="http://schemas.microsoft.com/dotnet/2022/maui/toolkit"

Therefore the following:

<ContentPage
    x:Class="CommunityToolkit.Maui.Sample.Pages.MyPage"
    xmlns="http://schemas.microsoft.com/dotnet/2021/maui"
    xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml">

</ContentPage>

Would be modified to include the xmlns as follows:

<ContentPage
    x:Class="CommunityToolkit.Maui.Sample.Pages.MyPage"
    xmlns="http://schemas.microsoft.com/dotnet/2021/maui"
    xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
    xmlns:toolkit="http://schemas.microsoft.com/dotnet/2022/maui/toolkit">

</ContentPage>

Using the StateContainer

Below is an example UI created using XAML. This sample UI is connected to the below ViewModel, StateContainerViewModel.

<ContentPage xmlns="http://schemas.microsoft.com/dotnet/2021/maui"
             xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
             xmlns:toolkit="http://schemas.microsoft.com/dotnet/2022/maui/toolkit"
             x:Class="MyProject.MyStatePage"
             BindingContext="StateContainerViewModel">

    <VerticalStackLayout
        toolkit:StateContainer.CurrentState="{Binding CurrentState}"
        toolkit:StateContainer.CanStateChange="{Binding CanStateChange}">

        <toolkit:StateContainer.StateViews>
            <VerticalStackLayout toolkit:StateView.StateKey="Loading">
                <ActivityIndicator IsRunning="True" />
                <Label Text="Loading Content..." />
            </VerticalStackLayout>
            <Label toolkit:StateView.StateKey="Success" Text="Success!" />
        </toolkit:StateContainer.StateViews>

        <Label Text="Default Content" />
        <Button Text="Change State" Command="{Binding ChangeStateCommand}" />

    </VerticalStackLayout>

</ContentPage>

C# Markup

Below is the same UI as the XAML, above, created using C# Markup.

This sample UI is connected to the below ViewModel, StateContainerViewModel.

using CommunityToolkit.Maui.Layouts;
using CommunityToolkit.Maui.Markup;

BindingContext = new StateContainerViewModel();

Content = new VerticalStackLayout()
{
    new Label()
        .Text("Default Content"),

    new Button()
        .Text("Change State")
        .Bind(
            Button.CommandProperty,
            static (StateContainerViewModel vm) => vm.ChangeStateCommand,
            mode: BindingMode.OneTime)
}.Bind(
    StateContainer.CurrentStateProperty,
    static (StateContainerViewModel vm) => vm.CurrentState,
    static (StateContainerViewModel vm, string currentState) => vm.CurrentState = currentState)
 .Bind(
    StateContainer.CanStateChange,
    static (StateContainerViewModel vm) => vm.CanStateChange,
    static (StateContainerViewModel vm, bool canStateChange) => vm.CanStateChange = canStateChange)
 .Assign(out VerticalStackLayout layout);

var stateViews = new List<View>()
{
    //States.Loading
    new VerticalStackLayout()
    {
        new ActivityIndicator() { IsRunning = true },
        new Label().Text("Loading Content")
    },

    //States.Success
    new Label().Text("Success!")
};

StateView.SetStateKey(stateViews[0], States.Loading);
StateView.SetStateKey(stateViews[1], States.Success);

StateContainer.SetStateViews(layout, stateViews);

static class States
{
    public const string Loading = nameof(Loading);
    public const string Success = nameof(Success);
}

ViewModel

When using an ICommand to change CurrentState (e.g. when using Button.Command to change states), we recommended using CanStateBeChanged for ICommand.CanExecute().

Below is an MVVM example using the MVVM Community Toolkit:

[INotifyPropertyChanged]
public partial class StateContainerViewModel
{
    [ObservableProperty]
    [NotifyCanExecuteChangedFor(nameof(ChangeStateCommand))]
    bool canStateChange;

    [ObservableProperty]
    string currentState = States.Loading;

    [RelayCommand(CanExecute = nameof(CanStateChange))]
    void ChangeState()
    {
        CurrentState = States.Success;
    }
}

By default StateContainer changes state without animation. To add a custom animation you can use the ChangeStateWithAnimation method:

async Task ChangeStateWithCustomAnimation()
{
    var targetState = "TargetState";
    var currentState = StateContainer.GetCurrentState(MyBindableObject);
    if (currentState == targetState)
    {
        await StateContainer.ChangeStateWithAnimation(
            MyBindableObject,
            null,
            (element, token) => element.ScaleTo(0, 100, Easing.SpringIn).WaitAsync(token),
            (element, token) => element.ScaleTo(1, 250, Easing.SpringOut).WaitAsync(token),
            CancellationToken.None);
    }
    else
    {
        await StateContainer.ChangeStateWithAnimation(
            MyBindableObject,
            targetState,
            (element, token) => element.ScaleTo(0, 100, Easing.SpringIn).WaitAsync(token),
            (element, token) => element.ScaleTo(1, 250, Easing.SpringOut).WaitAsync(token),
            CancellationToken.None);
    }
}

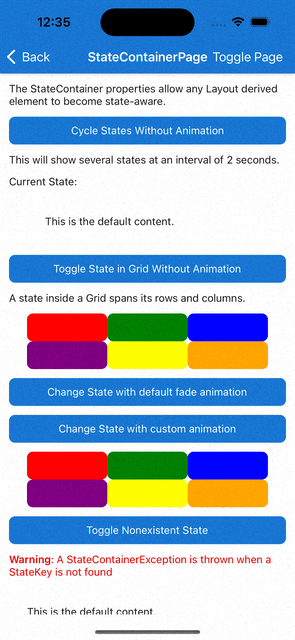

This is how it works on iOS:

Properties

StateContainer

The StateContainer properties can be used on any Layout inheriting element.

Property	Type	Description
StateViews	IList<View>	The available View elements to be used as state templates.
CurrentState	string	Determines which View element with the corresponding StateKey should be displayed. Warning: CurrentState cannot be changed while a state change is in progress
CanStateChange	bool	When true, the CurrentState property can be changed. When false, cannot be changed because it is currently changing. Warning: If CurrentState is changed when CanStateChanged is false, a StateContainerException is thrown.

StateView

The StateView properties can be used on any View inheriting element.

Property	Type	Description
StateKey	string	Name of the state.

Methods

StateContainer

Method	Arguments	Description
ChangeStateWithAnimation (static)	BindableObject bindable, string? state, Animation? beforeStateChange, Animation? afterStateChange, CancellationToken token	Change state with custom animation.
ChangeStateWithAnimation (static)	BindableObject bindable, string? state, Func<VisualElement, CancellationToken, Task>? beforeStateChange, Func<VisualElement, CancellationToken, Task>? afterStateChange, CancellationToken cancellationToken	Change state with custom animation.
ChangeStateWithAnimation (static)	BindableObject bindable, string? state, CancellationToken token	Change state using the default fade animation.

Examples

You can find an example of this feature in action in the .NET MAUI Community Toolkit Sample Application.

API

You can find the source code for StateContainer over on the .NET MAUI Community Toolkit GitHub repository.
