Create a Rule to Send an AD FS 1.x Compatible Claim
In situations in which you are using Active Directory Federation Services (AD FS) to issue claims that will be received by federation servers running AD FS 1.0 (Windows Server 2003 R2) or AD FS 1.1 (Windows Server 2008 or Windows Server 2008 R2), you must do the following:
Create a rule that will send a Name ID claim type with a format of UPN, Email, or Common Name.
All other claims that are sent must have one of the following claim types:
AD FS 1.x Email Address
AD FS 1.x UPN
Common Name
Group
Any other claim type that begins with
https://schemas.xmlsoap.org/claims/, such ashttps://schemas.xmlsoap.org/claims/EmployeeID
Depending on the needs of your organization, use one of the following procedures to create an AD FS 1.x compatible NameID claim:
Create this rule to issue an AD FS 1.x Name ID claim using the Pass Through or Filter an Incoming Claim rule template
Create this rule to issue an AD FS 1.x Name ID claim using the Transform an Incoming Claim rule template. You can use this rule template in situations in which you want to change the existing claim type to a new claim type that will work with AD FS 1. x claims.
Note
For this rule to work as expected, make sure that the relying party trust or claims provider trust where you are creating this rule has been configured to use the AD FS 1.0 and 1.1 profile.
To create a rule to issue an AD FS 1.x Name ID claim using the Pass Through or Filter an Incoming Claim rule template on a Relying Party Trust in Windows Server 2016
In Server Manager, click Tools, and then select AD FS Management.
In the console tree, under AD FS, click Relying Party Trusts.

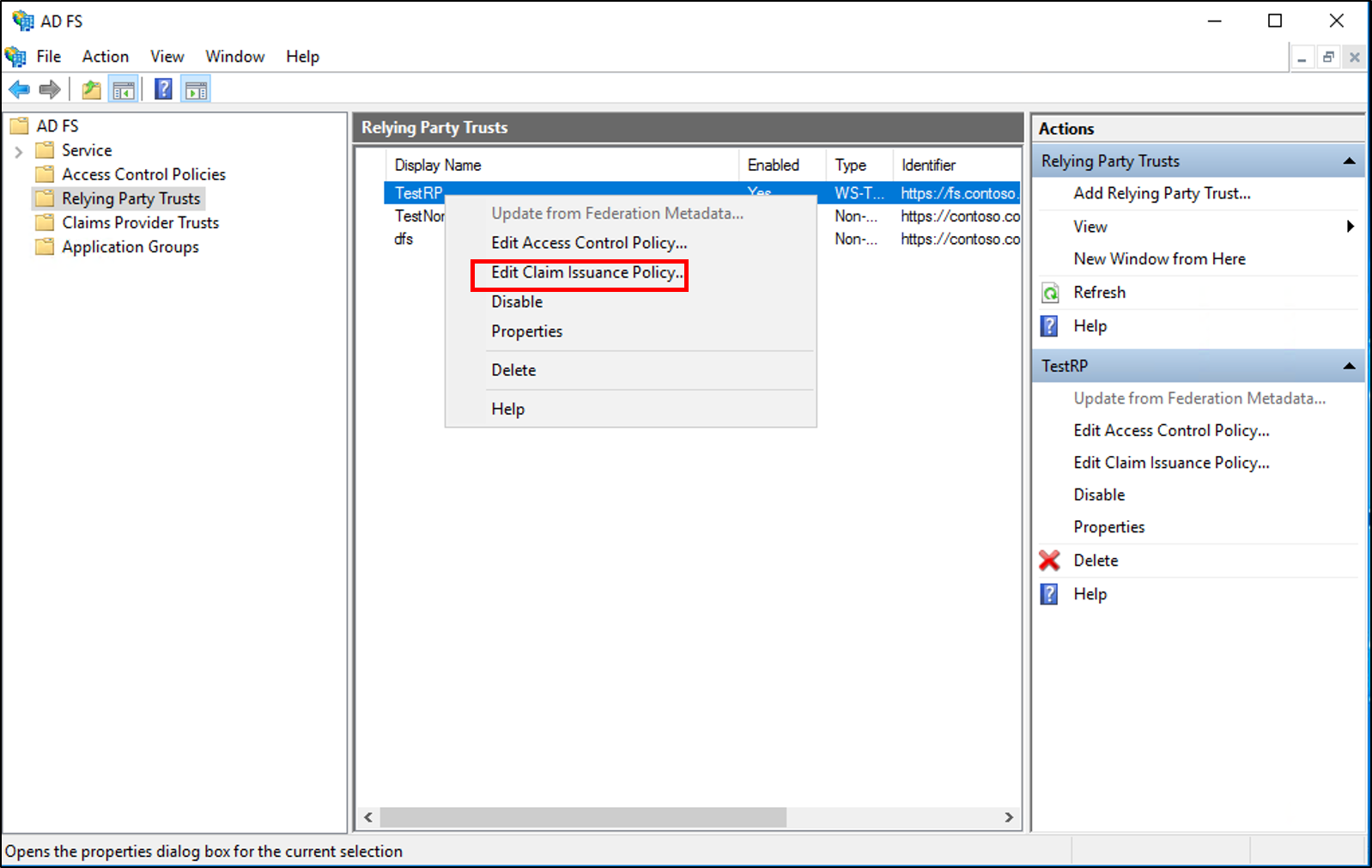

Right-click the selected trust, and then click Edit Claim Issuance Policy.

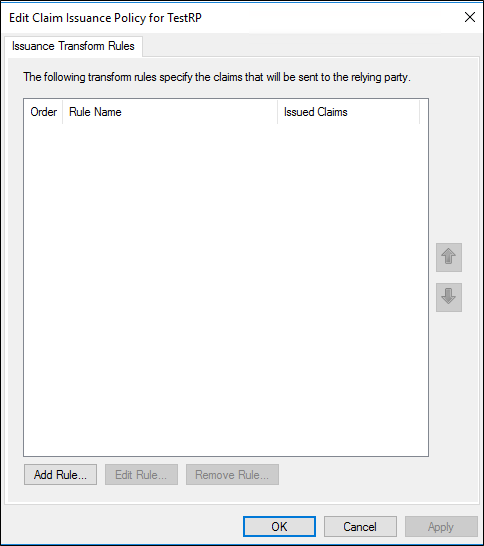

In the Edit Claim Issuance Policy dialog box, under Issuance Transform Rules click Add Rule to start the rule wizard.

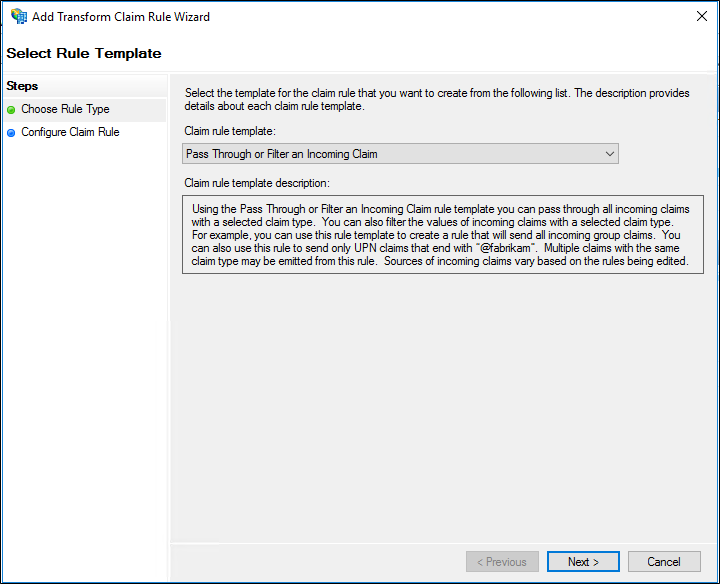

On the Select Rule Template page, under Claim rule template, select Pass Through or Filter an Incoming Claim from the list, and then click Next.

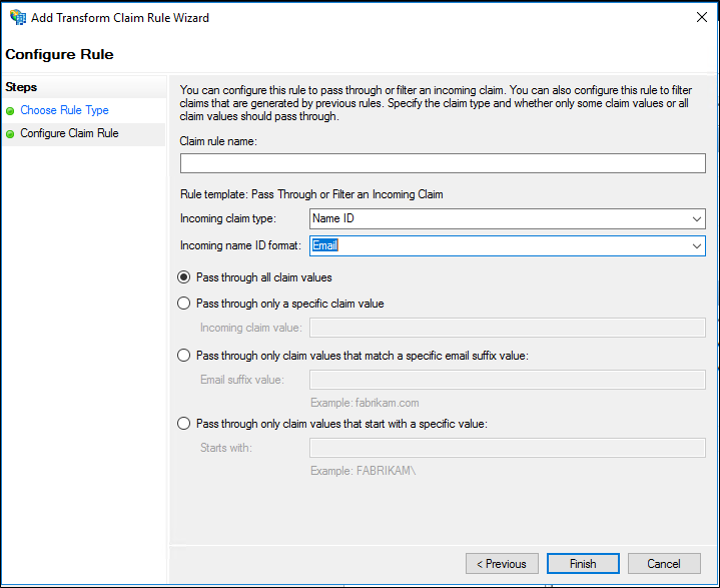

On the Configure Rule page, type a claim rule name.
In Incoming claim type, select Name ID in the list.
In Incoming name ID format, select one of the following AD FS 1.x-compatible claim formats from the list:
UPN
E-Mail
Common Name
Select one of the following options, depending on the needs of your organization:
Pass through all claim values
Pass through only a specific claim value
Pass through only claim values that match a specific email suffix value
Pass through only claim values that start with a specific value
Click Finish, and then click OK to save the rule.
To create a rule to issue an AD FS 1.x Name ID claim using the Pass Through or Filter an Incoming Claim rule template on a Claims Provider Trust in Windows Server 2016
In Server Manager, click Tools, and then select AD FS Management.
In the console tree, under AD FS, click Claims Provider Trusts.
Right-click the selected trust, and then click Edit Claim Rules.

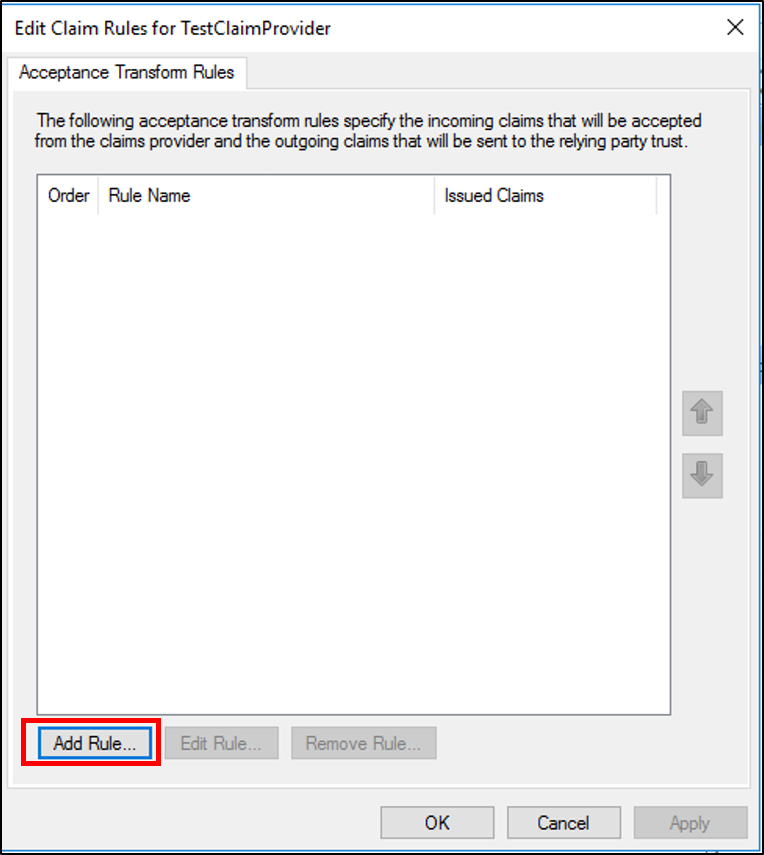

In the Edit Claim Rules dialog box, under Acceptance Transform Rules click Add Rule to start the rule wizard.
On the Select Rule Template page, under Claim rule template, select Pass Through or Filter an Incoming Claim from the list, and then click Next.
On the Configure Rule page, type a claim rule name.
In Incoming claim type, select Name ID in the list.
In Incoming name ID format, select one of the following AD FS 1.x-compatible claim formats from the list:
UPN
E-Mail
Common Name
Select one of the following options, depending on the needs of your organization:
Pass through all claim values
Pass through only a specific claim value
Pass through only claim values that match a specific email suffix value
Pass through only claim values that start with a specific value
Click Finish, and then click OK to save the rule.
To create a rule to transform an incoming claim on a Relying Party Trust in Windows Server 2016
In Server Manager, click Tools, and then select AD FS Management.
In the console tree, under AD FS, click Relying Party Trusts.
Right-click the selected trust, and then click Edit Claim Issuance Policy.
In the Edit Claim Issuance Policy dialog box, under Issuance Transform Rules click Add Rule to start the rule wizard.

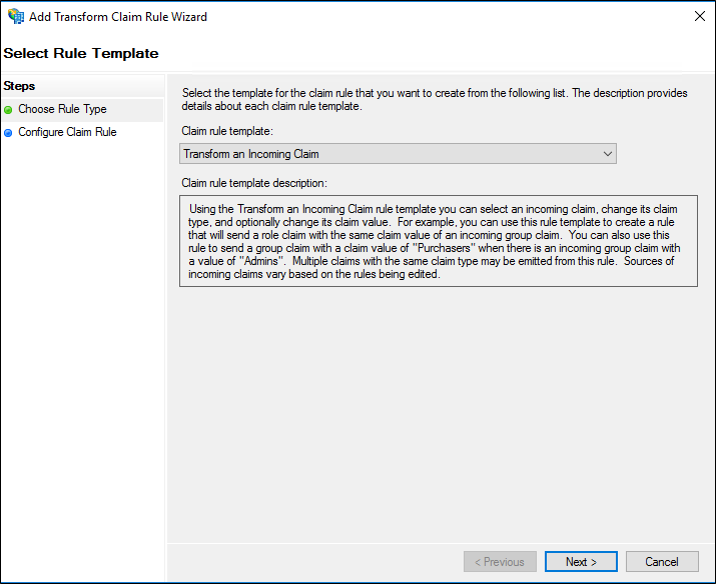

On the Select Rule Template page, under Claim rule template, select Transform an Incoming Claim from the list, and then click Next.

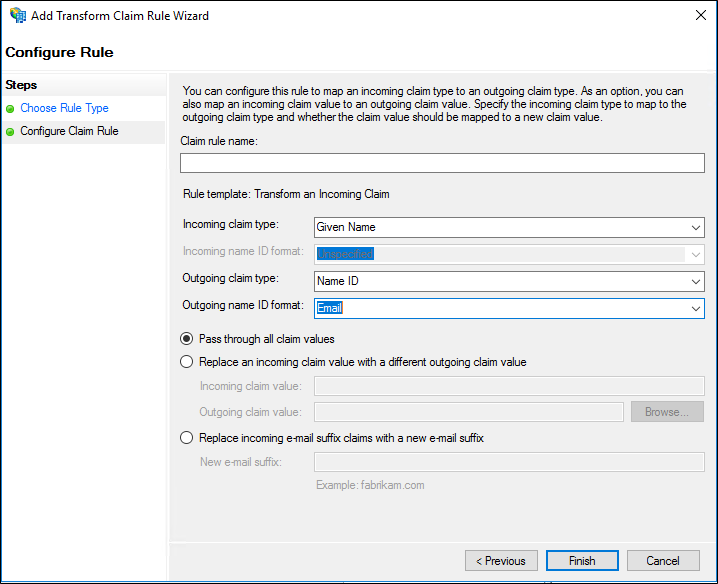

On the Configure Rule page, type a claim rule name.
In Incoming claim type, select the type of incoming claim that you want to transform in the list.
In Outgoing claim type, select Name ID in the list.
In Outgoing name ID format, select one of the following AD FS 1.x-compatible claim formats from the list:
UPN
E-Mail
Common Name
Select one of the following options, depending on the needs of your organization:
Pass through all claim values
Replace an incoming claim value with a different outgoing claim value
Replace incoming e-mail suffix claims with a new e-mail suffix
Click Finish, and then click OK to save the rule.
To create a rule to transform an incoming claim on a Claims Provider Trust in Windows Server 2016
In Server Manager, click Tools, and then select AD FS Management.
In the console tree, under AD FS, click Claims Provider Trusts.
Right-click the selected trust, and then click Edit Claim Rules.
In the Edit Claim Rules dialog box, under Acceptance Transform Rules click Add Rule to start the rule wizard.
On the Select Rule Template page, under Claim rule template, select Transform an Incoming Claim from the list, and then click Next.
On the Configure Rule page, type a claim rule name.
In Incoming claim type, select the type of incoming claim that you want to transform in the list.
In Outgoing claim type, select Name ID in the list.
In Outgoing name ID format, select one of the following AD FS 1.x-compatible claim formats from the list:
UPN
E-Mail
Common Name
Select one of the following options, depending on the needs of your organization:
Pass through all claim values
Replace an incoming claim value with a different outgoing claim value
Replace incoming e-mail suffix claims with a new e-mail suffix
Click Finish, and then click OK to save the rule.
To create a rule to issue an AD FS 1.x Name ID claim using the Pass Through or Filter an Incoming Claim rule template on Windows Server 2012 R2
In Server Manager, click Tools, and then click AD FS Management.
In the console tree, under AD FS\Trust Relationships, click either Claims Provider Trusts or Relying Party Trusts, and then click a specific trust in the list where you want to create this rule.
Right-click the selected trust, and then click Edit Claim Rules.

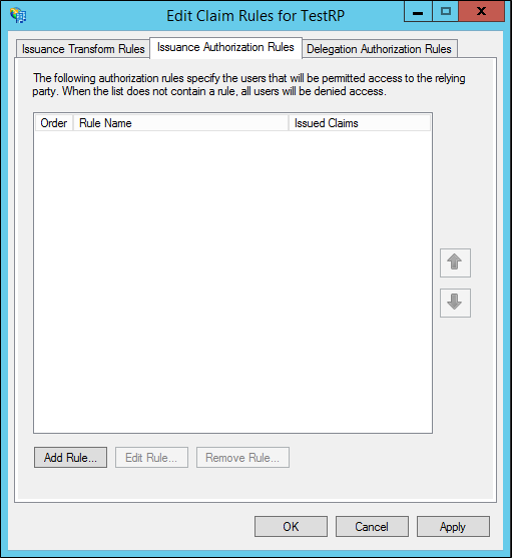

In the Edit Claim Rules dialog box, select one the following tabs, depending on the trust you are editing and which rule set you want to create this rule in, and then click Add Rule to start the rule wizard that is associated with that rule set:
Acceptance Transform Rules
Issuance Transform Rules
Issuance Authorization Rules
Delegation Authorization Rules

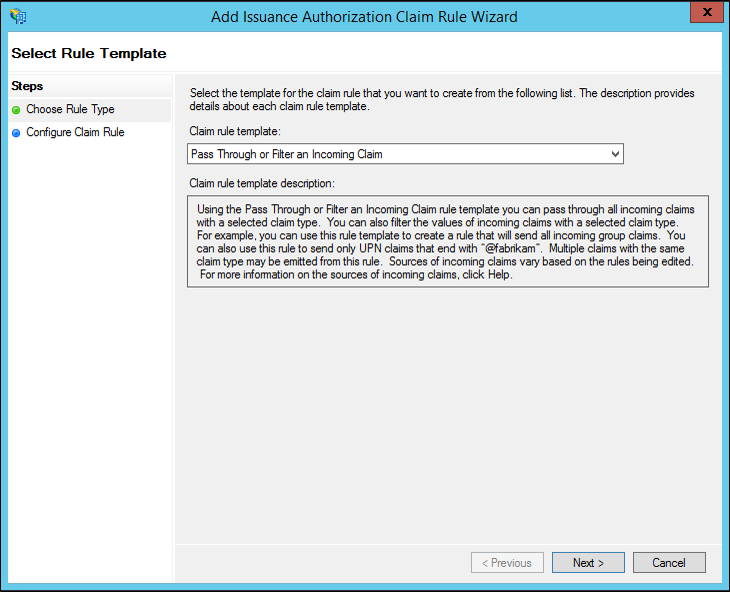

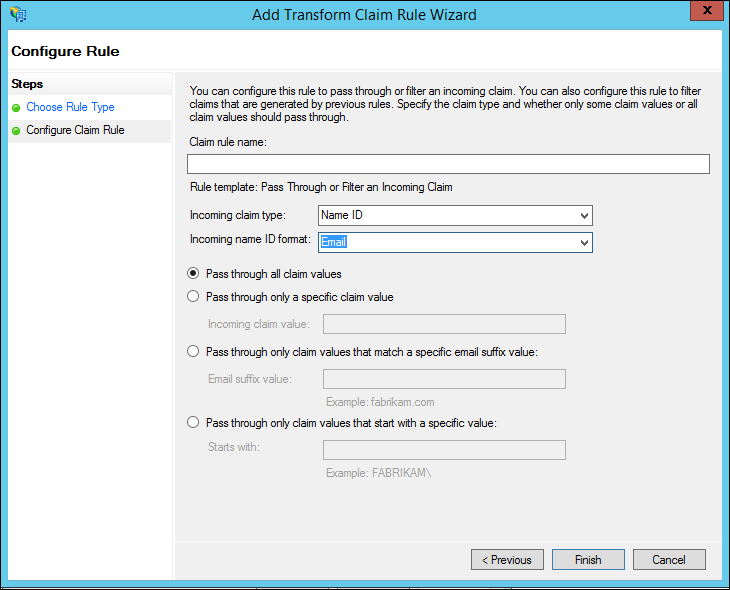

On the Select Rule Template page, under Claim rule template, select Pass Through or Filter an Incoming Claim from the list, and then click Next.
On the Configure Rule page, type a claim rule name.
In Incoming claim type, select Name ID in the list.
In Incoming name ID format, select one of the following AD FS 1.x-compatible claim formats from the list:
UPN
E-Mail
Common Name
Select one of the following options, depending on the needs of your organization:
Pass through all claim values
Pass through only a specific claim value
Pass through only claim values that match a specific email suffix value
Pass through only claim values that start with a specific value
Click Finish, and then click OK to save the rule.
To create a rule to issue an AD FS 1.x Name ID claim using the Transform an Incoming Claim rule template in Windows Server 2012 R2
In Server Manager, click Tools, and then click AD FS Management.
In the console tree, under AD FS\Trust Relationships, click either Claims Provider Trusts or Relying Party Trusts, and then click a specific trust in the list where you want to create this rule.
Right-click the selected trust, and then click Edit Claim Rules.
In the Edit Claim Rules dialog box, select one the following tabs, which depends on the trust that you are editing and in which rule set you want to create this rule, and then click Add Rule to start the rule wizard that is associated with that rule set:
Acceptance Transform Rules
Issuance Transform Rules
Issuance Authorization Rules
Delegation Authorization Rules

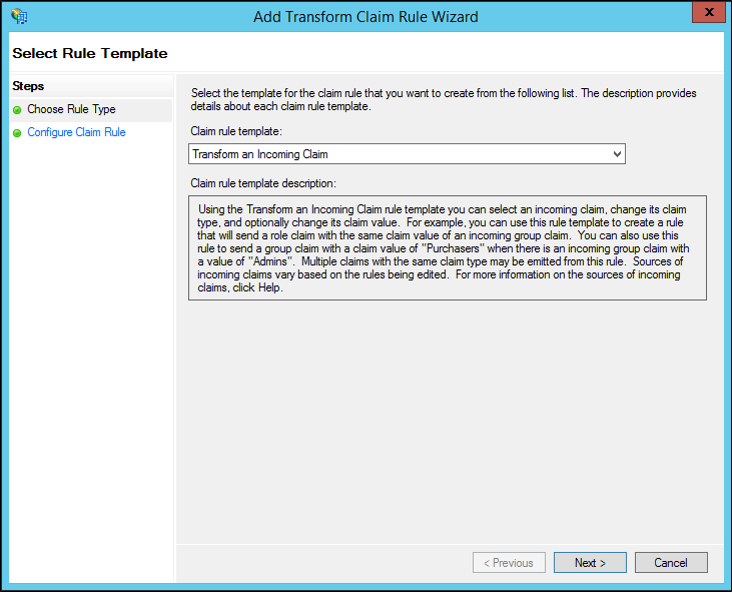

On the Select Rule Template page, under Claim rule template, select Transform an Incoming Claim from the list, and then click Next.

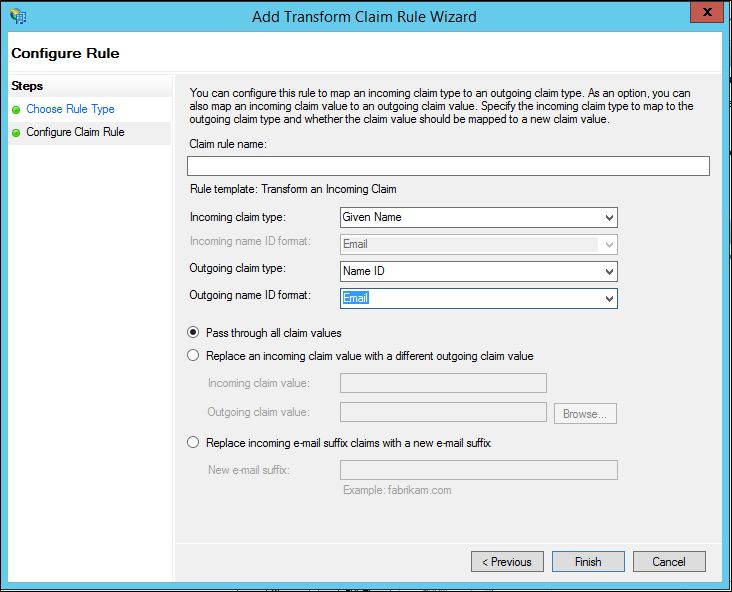

On the Configure Rule page, type a claim rule name.
In Incoming claim type, select the type of incoming claim that you want to transform in the list.
In Outgoing claim type, select Name ID in the list.
In Outgoing name ID format, select one of the following AD FS 1.x-compatible claim formats from the list:
UPN
E-Mail
Common Name
Select one of the following options, depending on the needs of your organization:
Pass through all claim values
Replace an incoming claim value with a different outgoing claim value
Replace incoming e-mail suffix claims with a new e-mail suffix
Click Finish, and then click OK to save the rule.
