Customize build and debug tasks for "Open Folder" development

Artigo
01/31/2022

Applies to: Visual Studio Visual Studio for Mac

Note

This article applies to Visual Studio 2017. If you're looking for the latest Visual Studio documentation, see Visual Studio documentation. We recommend upgrading to the latest version of Visual Studio. Download it here

Visual Studio knows how to run many different languages and codebases, but it doesn't know how to run everything. If you opened a code folder in Visual Studio, and Visual Studio knows how to run your code, you can run it right away without any additional configuration.

If the codebase uses custom build tools that Visual Studio doesn't recognize, you need to provide some configuration details to run and debug the code in Visual Studio. You instruct Visual Studio how to build your code by defining build tasks. You can create one or more build tasks to specify all the items a language needs to build and run its code. You can also create arbitrary tasks that can do nearly anything you want. For example, you can create a task to list the contents of a folder or to rename a file.

Customize your project-less codebase by using the following .json files:

File name	Purpose
tasks.vs.json	Specify custom build commands and compiler switches, and arbitrary (non-build related) tasks. Accessed via the Solution Explorer right-click menu item Configure Tasks.
launch.vs.json	Specify command-line arguments for debugging. Accessed via the Solution Explorer right-click menu item Debug and Launch Settings.

These .json files are located in a hidden folder called .vs in the root folder of your codebase. The tasks.vs.json and launch.vs.json files are created by Visual Studio on an as-needed basis when you choose either Configure Tasks or Debug and Launch Settings on a file or folder in Solution Explorer. These .json files are hidden because users generally don't want to check them into source control. However, if you want to be able to check them into source control, drag the files into the root of your codebase by using your file system, where they then are visible in Solution Explorer and to source control.

Tip

To view hidden files in Visual Studio, choose the Show All Files button on the Solution Explorer toolbar.

Define tasks with tasks.vs.json

You can automate build scripts or any other external operations on the files you have in your current workspace by running them as tasks directly in the IDE. You can configure a new task by right-clicking on a file or folder and selecting Configure Tasks.

This creates (or opens) the tasks.vs.json file in the .vs folder. You can define a build task or arbitrary task in this file, and then invoke it using the name you gave it from the Solution Explorer right-click menu.

Custom tasks can be added to individual files, or to all files of a specific type. For instance, NuGet package files can be configured to have a "Restore Packages" task, or all source files can be configured to have a static analysis task, such as a linter for all .js files.

Define custom build tasks

If your codebase uses custom build tools that Visual Studio doesn't recognize, then you cannot run and debug the code in Visual Studio until you complete some configuration steps. Visual Studio provides build tasks where you can tell Visual Studio how to build, rebuild, and clean your code. The tasks.vs.json build task file couples the Visual Studio inner development loop to the custom build tools used by your codebase.

Consider a codebase that consists of a single C# file called hello.cs. The makefile for such a codebase might look like this:

build: directory hello.exe

hello.exe: hello.cs
	csc -debug hello.cs /out:bin\hello.exe

clean:
	del bin\hello.exe bin\hello.pdb

rebuild: clean build

directory: bin

bin:
	md bin

For such a makefile that contains build, clean, and rebuild targets, you can define the following tasks.vs.json file. It contains three build tasks for building, rebuilding, and cleaning the codebase, using NMAKE as the build tool.

{
  "version": "0.2.1",
  "outDir": "\"${workspaceRoot}\\bin\"",
  "tasks": [
    {
      "taskName": "makefile-build",
      "appliesTo": "makefile",
      "type": "launch",
      "contextType": "build",
      "command": "nmake",
      "args": [ "build" ],
      "envVars": {
        "VSCMD_START_DIR": "\"${workspaceRoot}\""
      }
    },
    {
      "taskName": "makefile-clean",
      "appliesTo": "makefile",
      "type": "launch",
      "contextType": "clean",
      "command": "nmake",
      "args": [ "clean" ],
      "envVars": {
        "VSCMD_START_DIR": "\"${workspaceRoot}\""
      }
    },
    {
      "taskName": "makefile-rebuild",
      "appliesTo": "makefile",
      "type": "launch",
      "contextType": "rebuild",
      "command": "nmake",
      "args": [ "rebuild" ],
      "envVars": {
        "VSCMD_START_DIR": "\"${workspaceRoot}\""
      }
    }
  ]
}

After you define build tasks in tasks.vs.json, additional right-click menu (context menu) items are added to the corresponding files in Solution Explorer. For this example, "build", "rebuild", and "clean" options are added to the context menu of any makefile files.

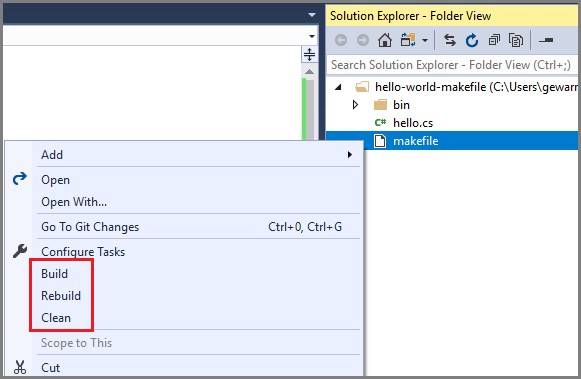

makefile context menu with build, rebuild, and clean

Note

The commands appear in the context menu under the Configure Tasks command due to their contextType settings. "build", "rebuild", and "clean" are build commands, so they appear in the build section in the middle of the context menu.

When you select one of these options, the task executes. Output appears in the Output window, and build errors appear in the Error List.

Define arbitrary tasks

You can define arbitrary tasks in the tasks.vs.json file, to do just about anything you want. For example, you can define a task to display the name of the currently selected file in the Output window, or to list the files in a specified directory.

The following example shows a tasks.vs.json file that defines a single task. When invoked, the task displays the filename of the currently selected .js file.

{
  "version": "0.2.1",
  "tasks": [
    {
      "taskName": "Echo filename",
      "appliesTo": "*.js",
      "type": "default",
      "command": "${env.COMSPEC}",
      "args": [ "echo ${file}" ]
    }
  ]
}

taskName specifies the name that appears in the right-click menu.
appliesTo specifies which files the command can be performed on.
The command property specifies the command to invoke. In this example, the COMSPEC environment variable is used to identify the command line interpreter, typically cmd.exe.
The args property specifies the arguments to be passed to the invoked command.
The ${file} macro retrieves the selected file in Solution Explorer.

After saving tasks.vs.json, you can right-click on any .js file in the folder and choose Echo filename. The file name is displayed in the Output window.

Note

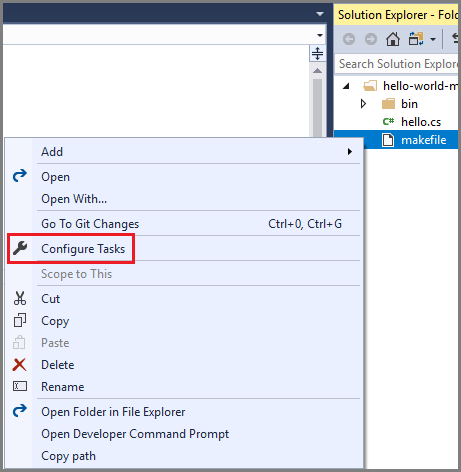

If your codebase doesn't contain a tasks.vs.json file, you can create one by choosing Configure Tasks from the right-click or context menu of a file in Solution Explorer.

The next example defines a task that lists the files and subfolders of the bin directory.

{
  "version": "0.2.1",
  "outDir": "\"${workspaceRoot}\\bin\"",
  "tasks": [
    {
      "taskName": "List Outputs",
      "appliesTo": "*",
      "type": "default",
      "command": "${env.COMSPEC}",
      "args": [ "dir ${outDir}" ]
    }
  ]
}

${outDir} is a custom macro that is first defined before the tasks block. It is then called in the args property.

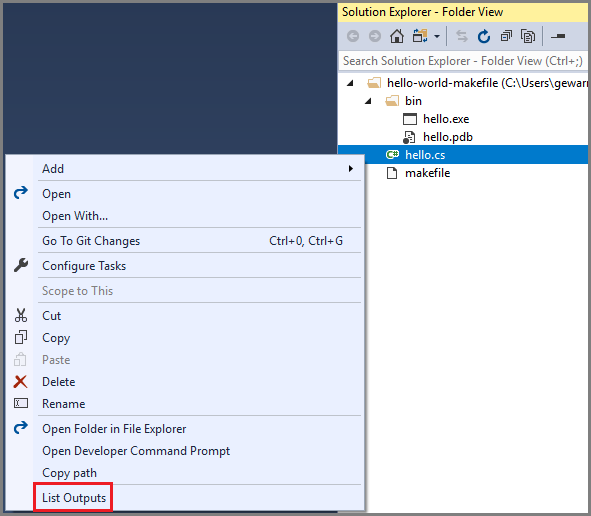

This task applies to all files. When you open the context menu on any file in Solution Explorer, the task's name List Outputs appears at the bottom of the menu. When you choose List Outputs, the contents of the bin directory are listed in the Output window in Visual Studio.

Settings scope

Multiple tasks.vs.json files can exist at the root and subdirectories of a codebase. This design enables the flexibility to have different behavior in different subdirectories of the codebase. Visual Studio aggregates or overrides settings throughout the codebase, prioritizing files in the following order:

Settings files in the root folder’s .vs directory.
The directory where a setting is being computed.
The current directory’s parent directory, all the way up to the root directory.
Settings files in the root directory.

These aggregation rules apply to tasks.vs.json. For information on how settings in other file are aggregated, see the corresponding section for that file in this article.

Properties for tasks.vs.json

This section describes some of the properties you can specify in tasks.vs.json.

appliesTo

You can create tasks for any file or folder by specifying its name in the appliesTo field, for example "appliesTo": "hello.js". The following file masks can be used as values:

File mask	Description
`"*"`	task is available to all files and folders in the workspace
`"*/"`	task is available to all folders in the workspace
`"*.js"`	task is available to all files with the extension .js in the workspace
`"/*.js"`	task is available to all files with the extension .js in the root of the workspace
`"src/*/"`	task is available to all subfolders of the src folder
`"makefile"`	task is available to all makefile files in the workspace
`"/makefile"`	task is available only to the makefile in the root of the workspace

Macros for tasks.vs.json

Macro	Description
`${env.<VARIABLE>}`	Specifies any environment variable (for example, ${env.PATH}, ${env.COMSPEC} and so on) that is set for the developer command prompt. For more information, see Developer Command Prompt and Developer PowerShell.
`${workspaceRoot}`	The full path to the workspace folder (for example, C:\sources\hello)
`${file}`	The full path of the file or folder selected to run this task against (for example, C:\sources\hello\src\hello.js)
`${relativeFile}`	The relative path to the file or folder (for example, src\hello.js)
`${fileBasename}`	The name of the file without path or extension (for example, hello)
`${fileDirname}`	The full path to the file, excluding the filename (for example, C:\sources\hello\src)
`${fileExtname}`	The extension of the selected file (for example, .js)

Configure debugging with launch.vs.json

To configure CMake projects for debugging, see Configure CMake debugging sessions.

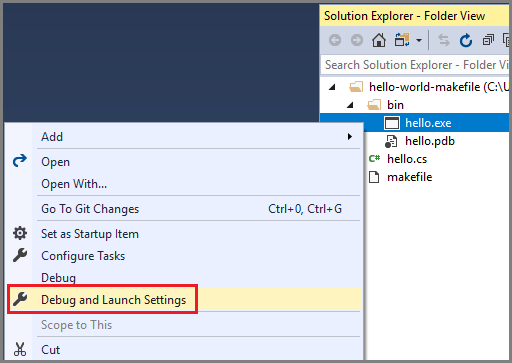

To configure your codebase for debugging, in Solution Explorer choose the Debug and Launch Settings menu item from the right-click or context menu of your executable file.

In the Select a Debugger dialog box, choose an option, and then choose the Select button.

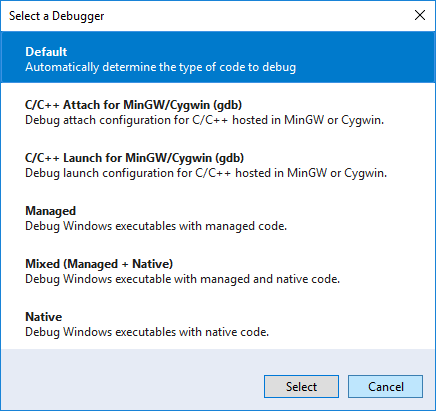

Select a Debugger dialog box

If the launch.vs.json file doesn't already exist, it is created.

{
  "version": "0.2.1",
  "defaults": {},
  "configurations": [
    {
      "type": "default",
      "project": "bin\\hello.exe",
      "name": "hello.exe"
    }
  ]
}

Next, right-click on the executable file in Solution Explorer, and choose Set as Startup Item.

The executable is designated as the startup item for your codebase, and the debugging Start button's title changes to reflect the name of your executable.

When you choose F5, the debugger launches and stops at any breakpoint you may have already set. All the familiar debugger windows are available and functional.

Important

For additional details about custom build and debug tasks in C++ open folder projects, see Open Folder support for C++ build systems in Visual Studio.

Specify arguments for debugging

You can specify command-line arguments to pass in for debugging in the launch.vs.json file. Add the arguments in the args array, as shown in the following example:

{
  "version": "0.2.1",
  "defaults": {},
  "configurations": [
    {
      "type": "default",
      "project": "bin\\hello.exe",
      "name": "hello.exe"
    },
    {
      "type": "default",
      "project": "bin\\hello.exe",
      "name": "hello.exe a1",
      "args": [ "a1" ]
    }
  ]
}

When you save this file, the name of the new configuration appears in the debug target drop-down list, and you can select it to start the debugger. You can create as many debug configurations as you like.

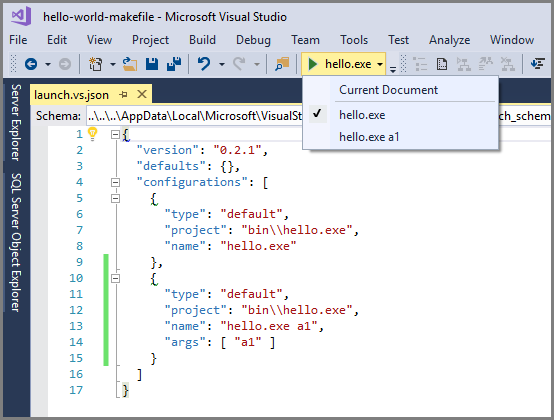

Debug configurations drop-down list

Note

The configurations array property in launch.vs.json is read from two file locations—the root directory for the codebase, and the .vs directory. If there is a conflict, priority is given to the value in .vs\launch.vs.json.

Additional settings files

In addition to the three .json files described in this topic, Visual Studio also reads settings from some additional files, if they exist in your codebase.

.vscode\settings.json

Visual Studio reads limited settings from a file named settings.json, if it is in a directory named .vscode. This functionality is provided for codebases that have previously been developed in Visual Studio Code. Currently, the only setting that is read from .vscode\settings.json is files.exclude, which filters files visually in Solution Explorer and from some search tools.

You can have any number of .vscode\settings.json files in your codebase. Settings read from this file are applied to the parent directory of .vscode and all of its subdirectories.

.gitignore

.gitignore files are used to tell Git which files to ignore; that is, which files and directories you don't want to check in. .gitignore files are usually included as part of a codebase so that the settings can be shared with all developers of the codebase. Visual Studio reads patterns in .gitignore files to filter items visually and from some search tools.

Settings read from the .gitignore file are applied to its parent directory and all subdirectories.
