Integrate with Azure Virtual Desktop (AVD)

  • Artigo

Important

Azure Game Development Virtual Machine is scheduled for retirement on February 1st, 2024. Learn more.

Azure Virtual Desktop (AVD) is a desktop and app virtualization service that runs on the Azure cloud. It enables secure remote work using Windows hosts via a scalable multi-session experience for your end users. It saves costs by using existing eligible Windows licenses. You manage your end-to-end Azure Virtual Desktop deployment alongside other Azure services within the Azure portal, or via PowerShell or CLI.

The Azure Game Development Virtual Machine provisioning supports direct integration with AVD. When this option is selected and the provisioning completes, the virtual machine is auto-registered as a session host within an existing AVD Host Pool and it becomes available for new remote user sessions.

Prerequisites

You must have an existing AVD Host Pool that the new Game Development Virtual Machine will auto-register with.

Azure Virtual Desktop Host Pool

If you do not have an existing host pool, you can create one by following the steps outlined in the create a host pool tutorial. Select Personal for Host pool type when creating the host pool.

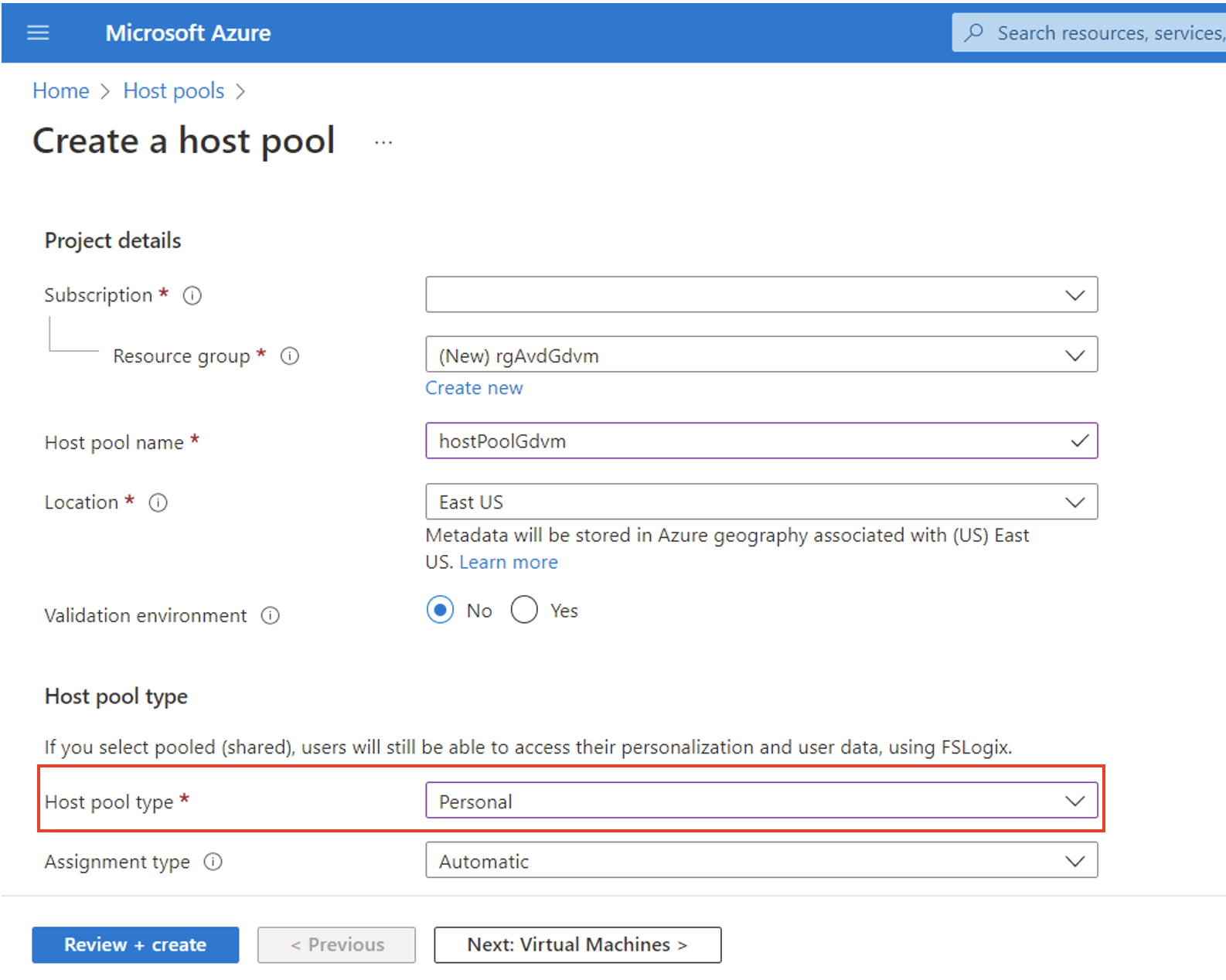

Screenshot showing to use personal host pool type

At the Virtual Machines step, select No to Add Azure virtual machines, and skip the creation of virtual machines at this stage, since the Game Development Virtual Machine provisioning will auto-register the new VM with the selected Host Pool.

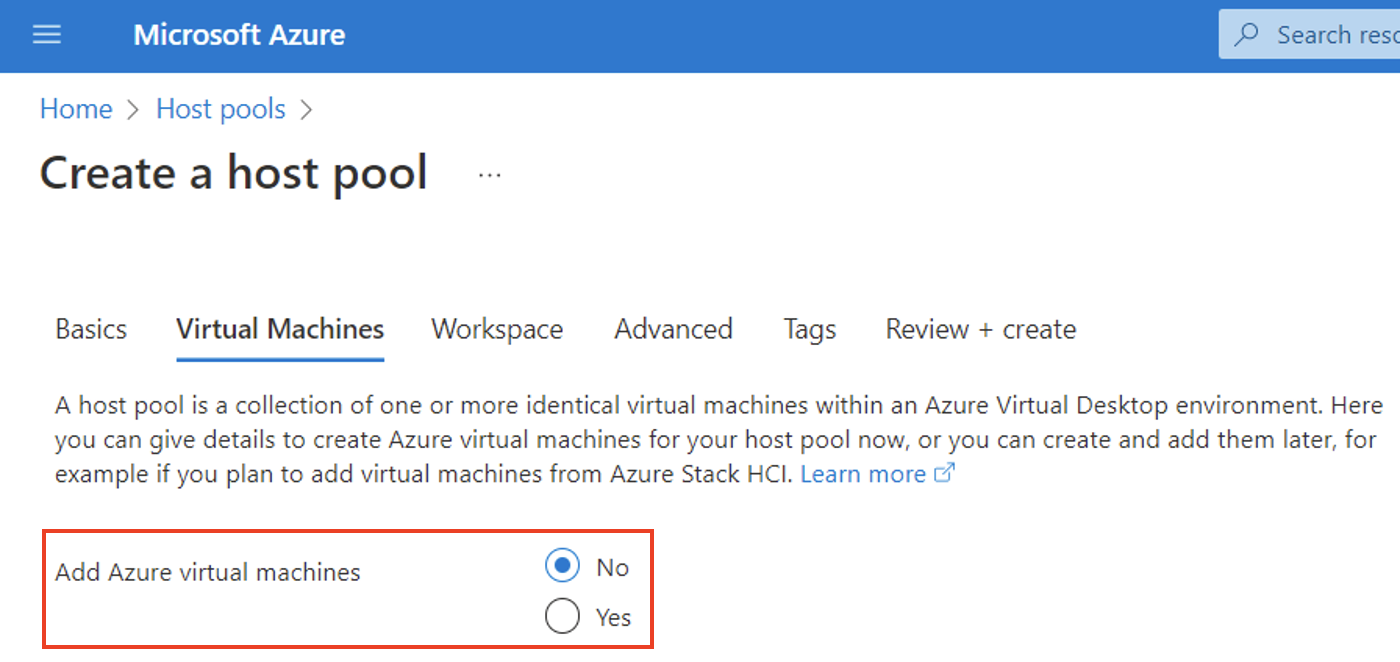

Screenshot showing to select no Azure virtual machines

At the Workspace step, select Yes to Register a desktop app group, then select from an existing group, or create a new app group.

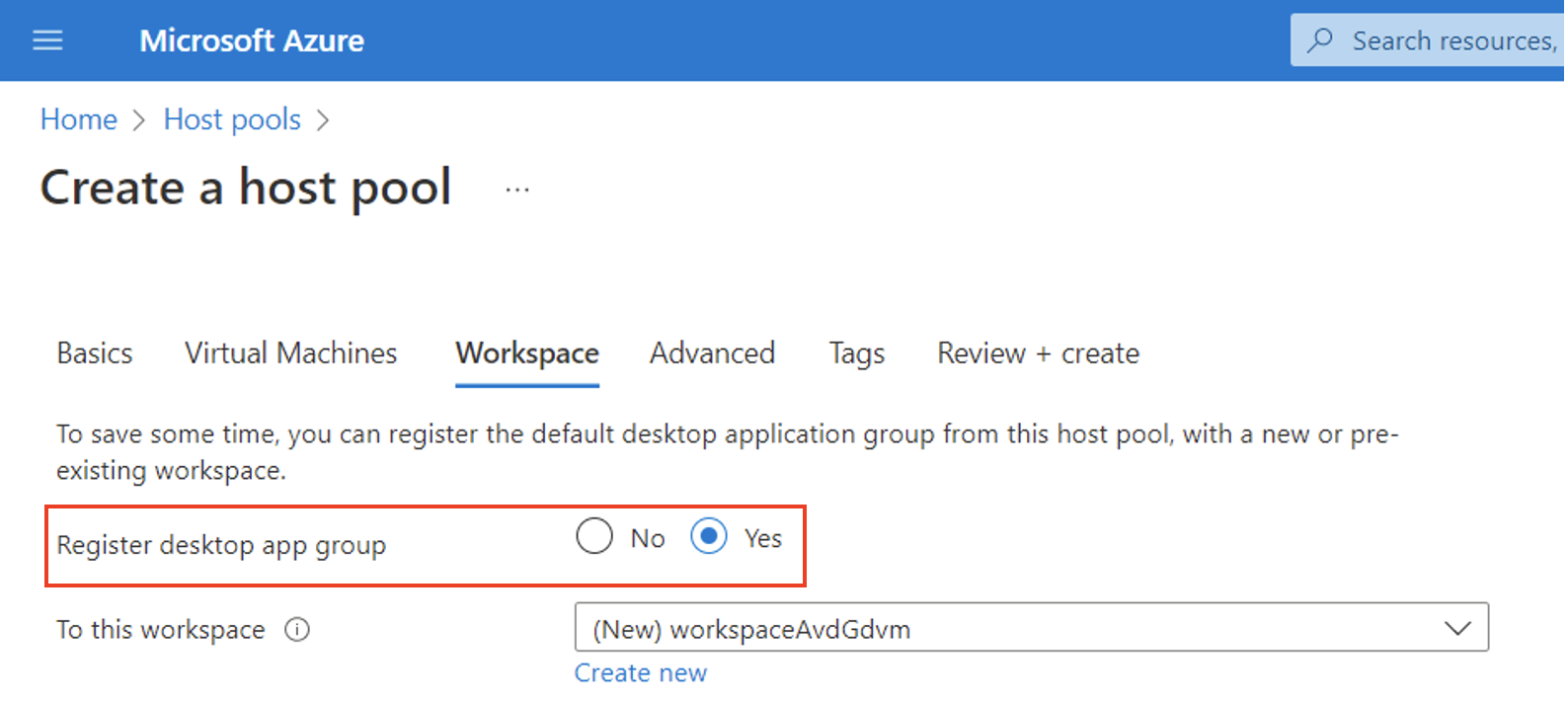

Screenshot showing to select yes to register a desktop app group

Ensure that you have a valid/active Registration key. There is no need to copy that key as it is automatically retrieved by the Game Development Virtual Machine provisioning.

Screenshot showing how to view registration key for host pool

Configuring the Game Development Virtual Machine for AVD integration

  1. When creating a new Game Development Virtual Machine, on the Remote Access Configuration tab select RDP as the Remote Access Technology.
  2. Select the Add to AVD Host Pool checkbox under Azure Virtual Desktop (AVD) integration
  3. Use the AVD Host Pool drop-down box to select the existing AVD Host Pool to add the VM to.

Screenshot showing to select existing Host Pool

  1. On the Management tab, select both System assigned managed identity and Login with Azure AD.

Screenshot showing options selected for managed identity and Azure AD

  1. After the VM is created, assign the AAD users that will be remoting into the VM (now an AVD session host) the Virtual Machine Administrator Login or Virtual Machine User Login role. This can be done via the CLI, or the portal. Note: Make sure to replace the parameters with their correct values when using the following CLI command.
az role assignment create --role 'Virtual Machine Administrator Login' --assignee 'AAD_USER_ID' --scope /subscriptions/SUBSCRIPTION_ID/resourceGroups/RESOURCE_GROUP/providers/Microsoft.Compute/virtualMachines/VM_NAME
  1. Navigate to the Overview page of the Host Pool resource. The Total machines tile should reflect the addition of the new Game Development Virtual Machine.

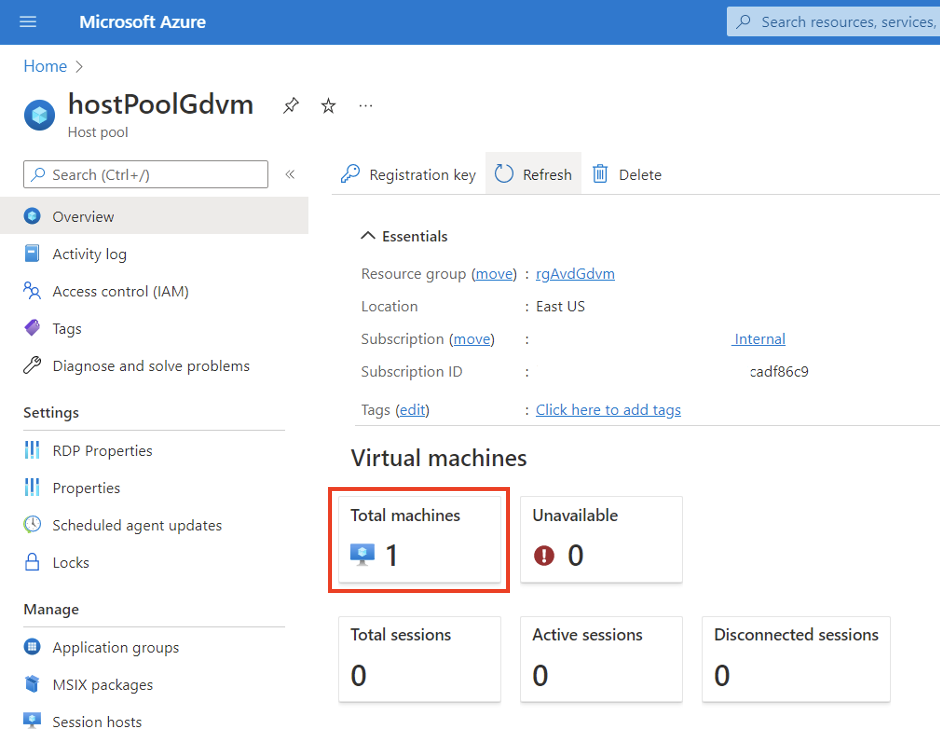

Screenshot showing one virtual machine available

  1. Navigating to Session hosts via the left-hand side command bar will list the VMs currently in the Host Pool. Note that initially the new VM may be showing as Upgrading. After a few minutes, the status should change to Available.

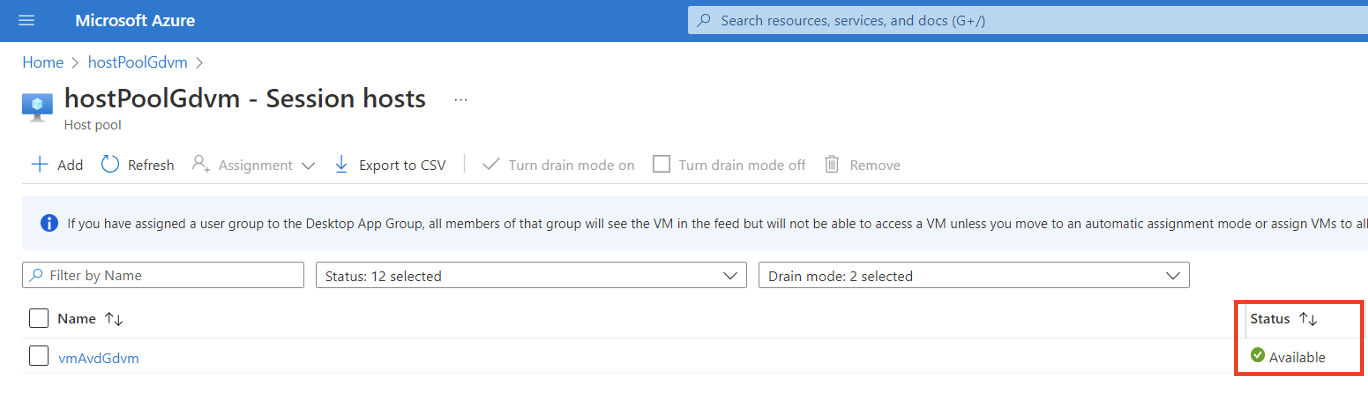

Screenshot showing host with available status

  1. Update the RDP properties of the Host Pool resource to include targetisaadjoined:i:1. This is required if the client machine used for remote access to the VM is not registered with the same Azure AD tenant as the VM. Then click on the Save button after you add the new property.

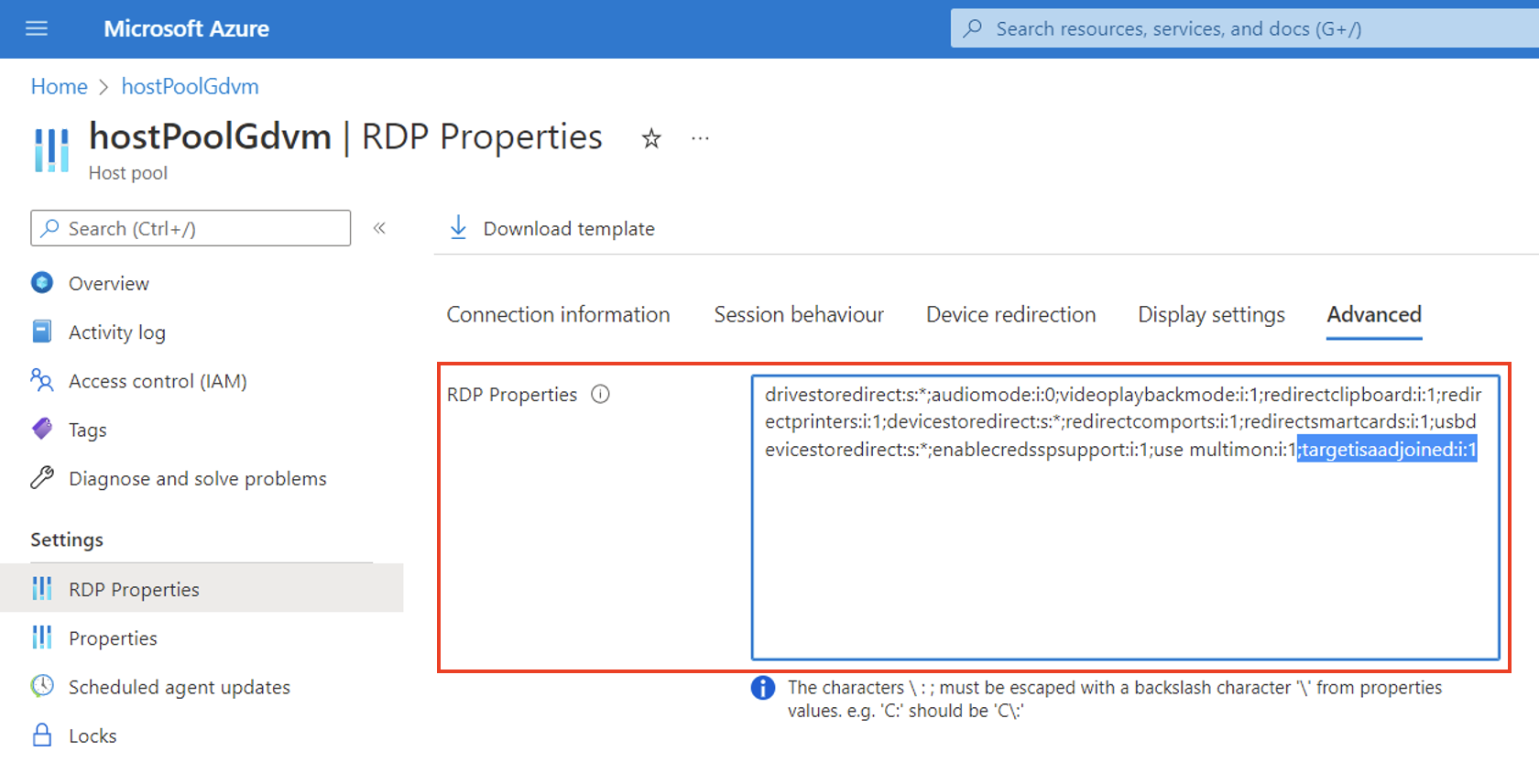

Screenshot showing the RDP properties of host pool

  1. The final step before connecting to the VM via AVD is to add the user(s) who will be accessing the VM to the Application Group associated with the Host Pool. To do that, select Application groups from the left-hand side command bar of the Host Pool resource and click on the desktop application group for the host pool.

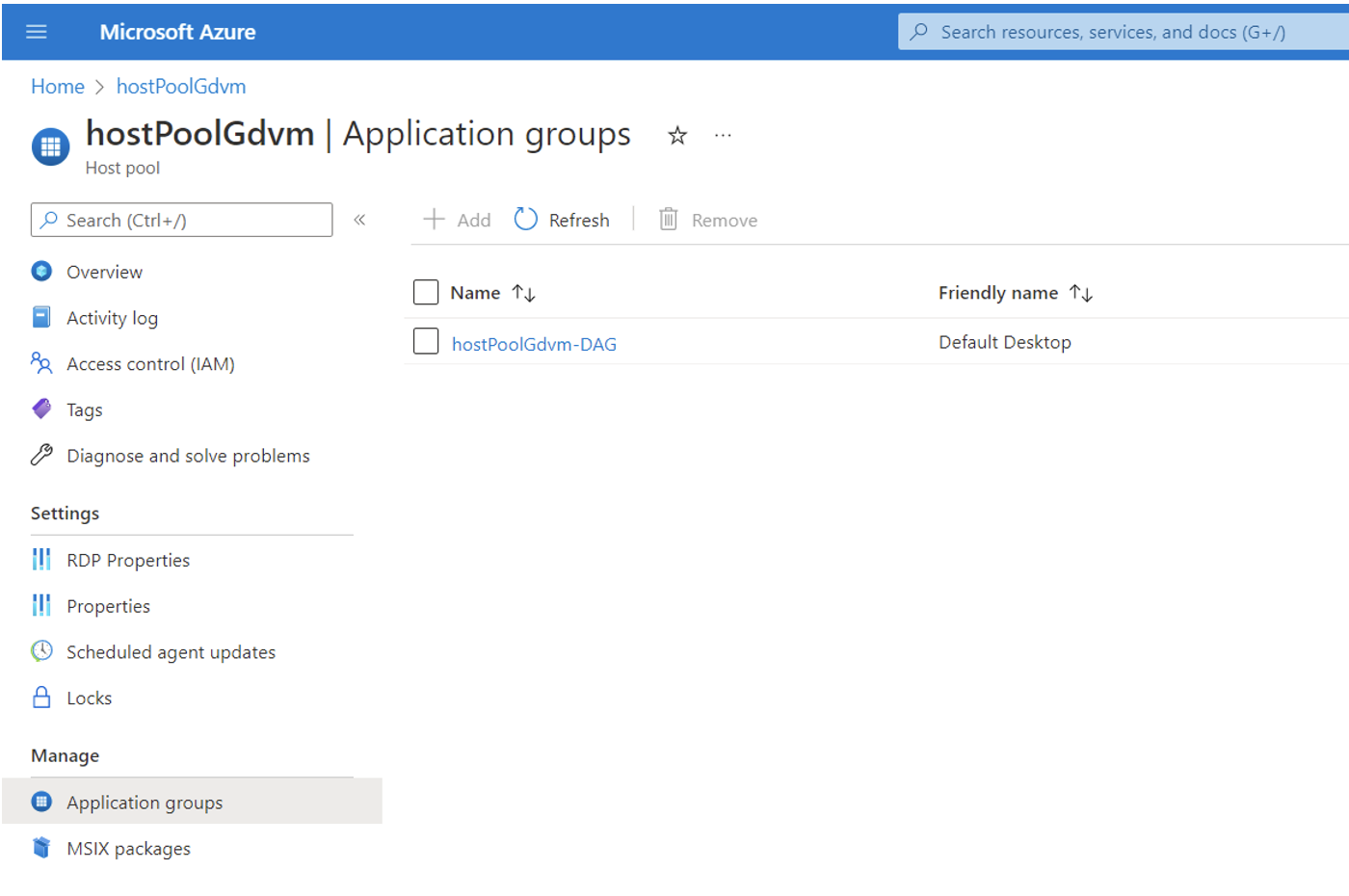

Screenshot showing desktop application groups

On the overview pane of the Application group, select Assignments (manage). Use the Add button to search for and add the users(s) to the list. Note that the users appearing in this list should be the same as the identities added to the "Virtual Machine Administrator/User Login" role for the VM.

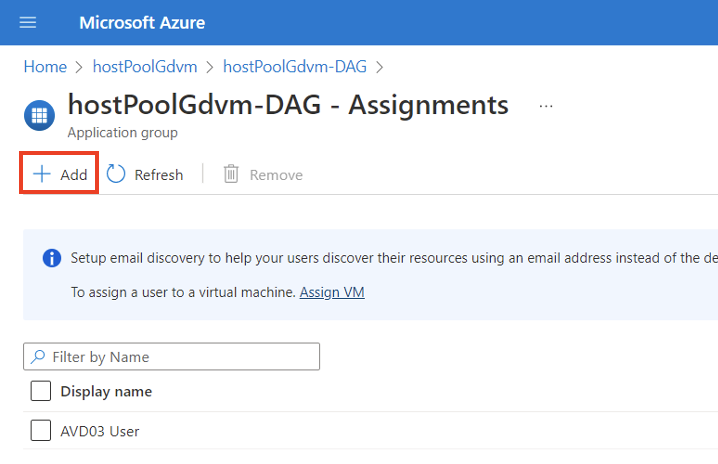

Screenshot showing how to add users to host pool

Connecting to the VM via AVD

The simplest way to connect to the VM via AVD is to use the Remote Desktop Web Client.

  1. Login to the Remote Desktop Web Client with one of the identities that should have access to the AVD session host VM (see Step 5 and Step 9 in the previous section). The Workspace associated with the Host Pool will appear, with a SessionDesktop icon underneath
  2. After clicking on the SessionDesktop icon, a prompt appears where access to local (client workstation) resources can be configured. Then click the Allow button.
  3. At the login prompt, enter the user password and click Submit.
  4. You should now be connected to the Game Development Virtual Machine AVD session host.
