Step 1: Modify the vPrev BizTalk Project using the SQL adapter

  • Artigo

Step 1 of 3

Time to complete: 10 minutes

Objective: In this step, you make the following changes to the existing vPrev BizTalk project:

  • Generate metadata for the Insert operation on the Customer table using the WCF-based SQL adapter.

  • Map the request message for performing an Insert operation using the vPrev SQL adapter to a request message for performing an Insert operation using the WCF-based SQL adapter.

  • Map the response message received using the WCF-based SQL adapter to the response message received using the vPrev SQL adapter.

Prerequisites

You must have a vPrev BizTalk project to perform an Insert operation on the Customer table in the SQL Server database.

To modify the vPrev BizTalk project

  1. Generate metadata for the Insert operation on the Customer table using the WCF-based SQL adapter. You can use the Consume Adapter Service BizTalk Project Add-in to generate metadata.

    For instructions on how to generate metadata, see Get Metadata for SQL Server Operations in Visual Studio using the SQL adapter. After the schema is generated, a file with the name similar to TableOperation.dbo.Customer.xsd is added to the BizTalk project. This file contains the schema for sending a message to perform an Insert operation on the Customer table in the SQL Server database using the WCF-based SQL adapter.

  2. Generating the metadata for the Insert operation also creates a port binding file. In the next step, this binding file will be used to create a WCF-Custom send port to send messages to the SQL Server database. The SOAP action for the operation is also set to the operation for which you generated metadata. For example, if you generate metadata for the Insert operation, the operation name in the SOAP action on the send port will be “Insert”. However, the operation name on the logical send port that you create as part of the orchestration could be different, for example, “Operation_1”. As a result, when you send messages to the SQL Server database using the send port, you get an error. To prevent this, make sure the operation name on the logical send port in your orchestration is the same as the operation name for which you generated metadata.

    So, in case of this tutorial, because you generate metadata for the Insert operation, change the name of the logical send port operation to “Insert”.

  3. For the request message, map the schema generated using vPrev SQL database adapter to the schema generated using the WCF-based SQL adapter.

    1. Add a BizTalk Mapper to the BizTalk project. Right-click the BizTalk project, point to Add, and then click New Item.

      In the Add New Item dialog box, from the left pane, select Map Files. From the right pane, select Map. Specify a name for the map, such as RequestMap.btm. Click Add.

    2. From the Source Schema pane, click Open Source Schema.

    3. In the BizTalk Type Picker dialog box, expand the project name, expand Schemas, and then select the schema for the request message for the vPrev SQL adapter. For this tutorial, select New_Migration.InsertCustomerService, and then click OK.

    4. In the Root Node for Source Schema dialog box, select Insert, and then click OK.

    5. From the Destination Schema pane, click Open Destination Schema.

    6. In the BizTalk Type Picker dialog box, expand the project name, expand Schemas, and then select the schema for the request message for the WCF-based SQL adapter. For this tutorial, select New_Migration.TableOperation.dbo.Customer, and then click OK.

    7. In the Root Node for Target Schema dialog box, select Insert, and then click OK.

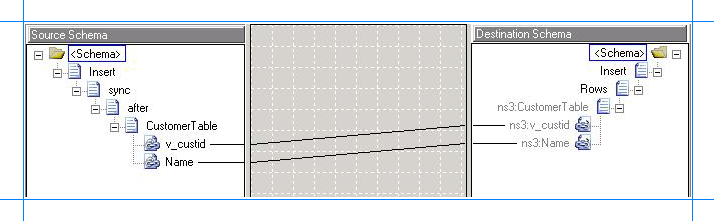

    8. Map the respective elements in both the schemas as illustrated in the following figure.

      Map the request schemas

    9. Save the map.

  4. For the response message, map the schema generated using vPrev SQL adapter to the schema generated using the WCF-based SQL adapter.

    1. Add a BizTalk Mapper to the BizTalk project. Right-click the BizTalk project, point to Add, and click New Item.

      In the Add New Item dialog box, from the left pane, select Map Files. From the right pane, select Map. Specify a name for the map, such as ResponseMap.btm, and then click Add.

    2. From the Source Schema pane, click Open Source Schema.

    3. In the BizTalk Type Picker dialog box, expand the project name, expand Schemas, and then select the schema for the response message for the WCF-based SQL adapter. For this tutorial, select New_Migration.TableOperation.dbo.Customer, and then click OK.

    4. In the Root Node for Source Schema dialog box, select InsertResponse, and then click OK.

    5. From the Destination Schema pane, click Open Destination Schema.

    6. In the BizTalk Type Picker dialog box, expand the project name, expand Schemas, and then select the schema for the response message for the vPrev SQL adapter. For this tutorial, select New_Migration.InsertCustomerService, and then click OK.

    7. In the Root Node for Target Schema dialog box, select InsertResponse, and then click OK.

    8. You will notice a few differences between the response schemas for generated by the two adapters. These differences can be explained as follows:

      • Using the WCF-based SQL adapter, if you insert a record into a table that contains a primary key (and is also an identity field) the response for the Insert operation returns the value for the identity field for the inserted row. So, the schema for the response message conforming to the WCF-based SQL adapter contains an additional InsertResult element. This element contains an array, which in turn contains the identity fields for the inserted rows.

      • Using the vPrev SQL adapter, if you insert a record into a table, the adapter only returns an empty “Success” element as part of the response message.

        So, the schemas are mapped in such a way that the response from the WCF-based SQL adapter containing the value for the identity fields is “copied” as part of the “Success” element, which is part of the response message from the vPrev SQL adapter. You can use the Mass Copy functoid to copy elements from one schema into another.

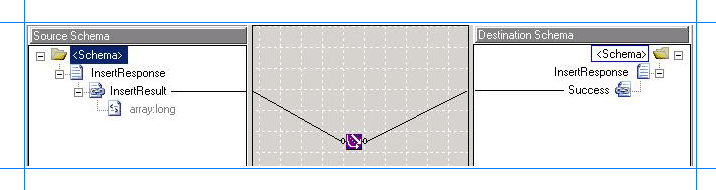

        To use the Mass Copy functoid, from the Toolbox, drag the Mass Copy functoid and drop it on the Mapper grid. Connect the InsertResult element in the source schema to the functoid. Similarly, connect the Success element in the destination schema to the functoid. The following figure illustrates how the two elements are mapped via the functoid.

        Map the response schemas

      Note

      For more information about the Mass Copy functoid, see Mass Copy Functoid.

    9. Save the map.

  5. Save and build the BizTalk solution. Right-click the solution, and then click Build Solution.

  6. Deploy the solution. Right-click the solution, and then click Deploy Solution.

Next Steps

Create a WCF-custom send port, and configure it to use the maps you created in this step, as described in Step 2: Configure the Orchestration in BizTalk Server Administration Console using the SQL adapter.
