Customizing the Touch Controls Preview

  • Artigo

This article provides an overview of the various options available for customizing the preview of touch adaptation layouts using the TAK Editor. The preview can be customized to simulate different game scenes, and to test how the touch controls will look in different contexts. This can be done by assigning a background color or image to the preview.

Background

Customizing the background with a color or image can be done in two ways: via the preview settings, or executing a command in the Command Palette.

Via Preview Settings

  1. Open a layout file for a bundle in the editor, to launch the preview.

  2. Click on "Open Settings" in the top-right corner of the preview panel:

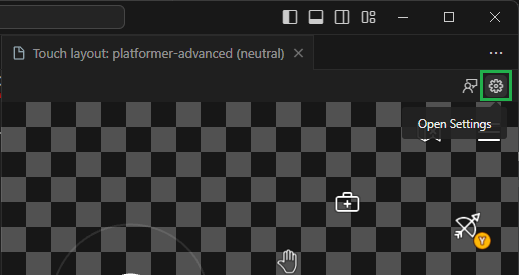

    Screenshot of the Open Settings button in the layout preview

  3. A modal will appear with options to customize the background. A color or an image can be assigned:

    1. Color: Click on the color picker to select a color. Alternatively, a color can be entered in the input field. The color can be specified in any of the formats supported by CSS (e.g., #0000ffff, rgba(0, 0, 255, 1), hsl(240, 100%, 50%), or blue).

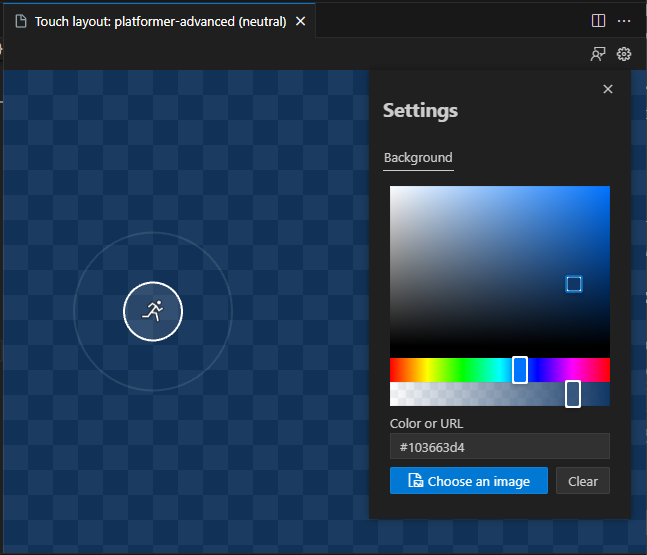

      Screenshot demonstrating the color picker in the preview settings modal

    2. Image: Click on "Choose an image" to open a file picker. Navigate to the location of the image and select it. Alternatively, the URL of an image may be entered in the input field.

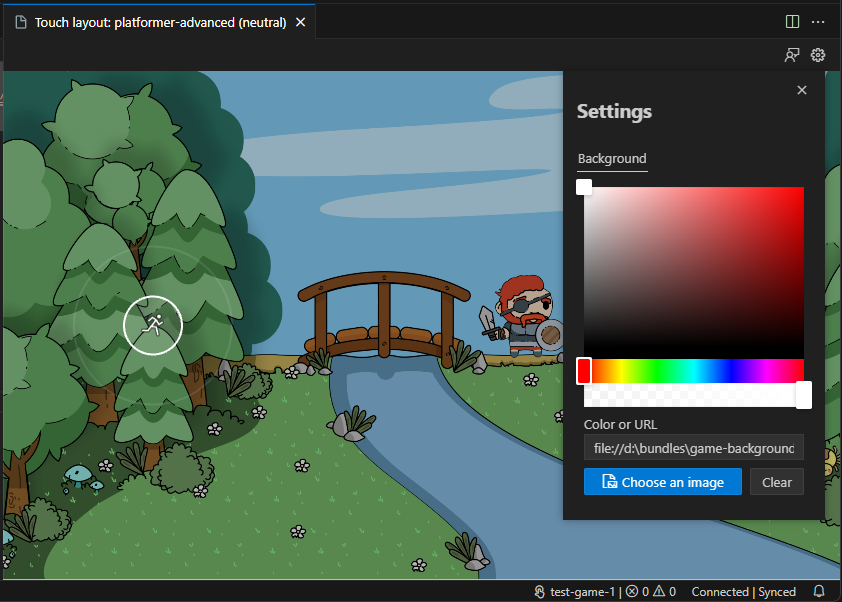

      Screenshot of an image selected in the preview settings modal

Via Command Palette

  1. Open a layout file for a bundle in the editor, to launch the preview. This command is only available when the preview is open.

  2. Launch the Command Palette (Ctrl+Shift+P on Windows or Cmd+Shift+P on macOS).

  3. Search for "Background" and select "Touch Adaptation Kit: Set preview background":

    Screenshot of the selection of the Set preview background command from the command palette

  4. Select one of the options available:

    Screenshot of the options available for setting the preview background

    1. Default: Resets the background to the default transparent checkerboard pattern.
    2. Color: Assigns a color to the background. It must be entered as text in the format of a CSS color value.
    3. Image: Assigns an image to the background. A file picker will open to select an image.
    4. URL: Assigns an image to the background using a URL. A text input will appear to enter the URL.
