Unit testing Visual C# code in a Store app

Artykuł
11/15/2016

Note

This article applies to Visual Studio 2015. If you're looking for the latest Visual Studio documentation, see Visual Studio documentation. We recommend upgrading to the latest version of Visual Studio. Download it here

This topic describes one way to create unit tests for a Visual C# class in a Windows Store app. The Rooter class demonstrates vague memories of limit theory from calculus by implementing a function that calculates an estimate of the square root of a given number. The Maths app can then use this function to show a user the fun things that can be done with math.

This topic demonstrates how to use unit testing as the first step in development. In this approach, you first write a test method that verifies a specific behavior in the system that you are testing and then you write the code that passes the test. By making changes in the order of the following procedures, you can reverse this strategy to first write the code that you want to test and then write the unit tests.

This topic also creates a single Visual Studio solution and separate projects for the unit tests and the DLL that you want to test. You can also include the unit tests directly in the DLL project, or you can create separate solutions for the unit tests and the DLL.

Note

Visual Studio Community, Enterprise. and Professional provide additional features for unit testing.

Use any third-party and open source unit test framework that has created an add-on adapter for the Microsoft Test Explorer. You can also analyze and display code coverage information for the tests.
- Run your tests after every build.
- VS Enterprise also contains Microsoft Fakes, an isolation framework for managed code that helps you to focus your tests on your own code by substituting test code for system and third-party functionality.
For more information, see Verifying Code by Using Unit Tests in the MSDN Library.

In this topic

Create the solution and the unit test project

Verify that the tests run in Test Explorer

Add the Rooter class to the Maths project

Couple the test project to the app project

Iteratively augment the tests and make them pass

Debug a failing test

Refactor the code

Create the solution and the unit test project

On the File menu, choose New, and then choose New Project.
In the New Project dialog box, expand Installed, then expand Visual C# and choose Windows Store. Then choose Blank App from the list of project templates.
Name the project Maths and make sure Create directory for solution is selected.
In Solution Explorer, choose the solution name, choose Add from the shortcut menu, and then choose New Project.
In the New Project dialog box, expand Installed, then expand Visual C# and choose Windows Store . Then choose Unit Test Library (Windows Store apps) from the list of project templates.
Open UnitTest1.cs in the Visual Studio editor.
```
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using Microsoft.VisualStudio.TestPlatform.UnitTestFramework;
using Maths;

namespace RooterTests
{
    [TestClass]
    public class UnitTest1

        [TestMethod]
        public void TestMethod1()
        {

        }
```
Note that:
1. Each test is defined by using the [TestMethod]. A test method must return void and can't have any parameters.
2. Test methods must be in a class decorated with the [TestClass] attribute.

  When the tests are run, an instance of each test class is created. The test methods are called in an unspecified order.
3. You can define special methods that are invoked before and after each module, class, or method. For more information, see Using Microsoft.VisualStudio.TestTools.UnitTesting Members in Unit Tests in the MSDN Library.

Verify that the tests run in Test Explorer

Insert some test code in TestMethod1 of the UnitTest1.cs file:
```
[TestMethod]
public void TestMethod1()
{
    Assert.AreEqual(0, 0);
}
```
Notice that the Assert class provides several static methods that you can use to verify results in test methods.
On the Test menu, choose Run and then choose Run All.

The test project builds and runs. The Test Explorer window appears, and the test is listed under Passed Tests. The Summary pane at the bottom of the window provides additional details about the selected test.

Add the Rooter class to the Maths project

In Solution Explorer, choose the Maths project name. From the shortcut menu, choose Add, and then Class.
Name the class file Rooter.cs
Add the following code to the Rooter class Rooter.cs file:
```
public Rooter()
{
}

// estimate the square root of a number
public double SquareRoot(double x)
{
    return 0.0;
}
```
The Rooter class declares a constructor and the SqareRoot estimator method.
The SqareRoot method is only a minimal implementation, just enough to test the basic structure of the testing setup.

Couple the test project to the app project

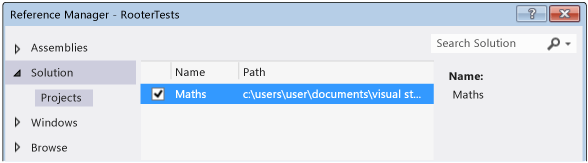

Add a reference to the Maths app to the RooterTests project.
1. In Solution Explorer, choose the RooterTests project and then choose Add Reference... on the shortcut menu.
2. On the Add Reference - RooterTests dialog box, expand Solution and choose Projects. Then select the Maths item.
Add a using statement to the UnitTest1.cs file:
1. Open UnitTest1.cs.
2. Add this code below the using Microsoft.VisualStudio.TestPlatform.UnitTestFramework; line:
```
using Maths;
```

Add a test that uses the Rooter function. Add the following code to UnitTest1.cpp:

[TestMethod]
public void BasicTest()
{
    Maths.Rooter rooter = new Rooter();
    double expected = 0.0;
    double actual = rooter.SquareRoot(expected * expected);
    double tolerance = .001;
    Assert.AreEqual(expected, actual, tolerance);
}

Build the solution.

The new test appears in Test Explorer in the Not Run Tests node.
In Test Explorer, choose Run All.

You have set up the test and the code projects, and verified that you can run tests that run functions in the code project. Now you can begin to write real tests and code.

Iteratively augment the tests and make them pass

Add a new test:
```
[TestMethod]
public void RangeTest()
{
    Rooter rooter = new Rooter();
    for (double v = 1e-6; v < 1e6; v = v * 3.2)
    {
        double expected = v;
        double actual = rooter.SquareRoot(v*v);
        double tolerance = ToleranceHelper(expected);
        Assert.AreEqual(expected, actual, tolerance);
    }
}
```
Tip

We recommend that you do not change tests that have passed. Instead, add a new test, update the code so that the test passes, and then add another test, and so on.

When your users change their requirements, disable the tests that are no longer correct. Write new tests and make them work one at a time, in the same incremental manner.
In Test Explorer, choose Run All.
The test fails.

Tip

Immediately after you have written it, verify that each test fails. This helps you avoid the easy mistake of writing a test that never fails.

Enhance the code under test so that the new test passes. Change the SqareRoot function in Rooter.cs to this:

public double SquareRoot(double x)
{
    double estimate = x;
    double diff = x;
    while (diff > estimate / 1000)
    {
        double previousEstimate = estimate;
        estimate = estimate - (estimate * estimate - x) / (2 * estimate);
        diff = Math.Abs(previousEstimate - estimate);
    }
    return estimate;
}

Build the solution and then in Test Explorer, choose Run All.

All three tests now pass.

Tip

Develop code by adding tests one at a time. Make sure that all the tests pass after each iteration.

Debug a failing test

Add another test to UnitTest1.cs:

// Verify that negative inputs throw an exception.
[TestMethod]
public void NegativeRangeTest()
{
    string message;
    Rooter rooter = new Rooter();
    for (double v = -0.1; v > -3.0; v = v - 0.5)
    {
        try
        {
            // Should raise an exception:
            double actual = rooter.SquareRoot(v);

            message = String.Format("No exception for input {0}", v);
            Assert.Fail(message);
        }
        catch (ArgumentOutOfRangeException ex)
        {
            continue; // Correct exception.
        }
        catch (Exception e)
        {
            message = String.Format("Incorrect exception for {0}", v);
            Assert.Fail(message);
        }
    }
}

In Test Explorer, choose Run All.

The test fails. Choose the test name in Test Explorer. The failed assertion is highlighted. The failure message is visible in the detail pane of Test Explorer.
To see why the test fails, step through the function:
1. Set a breakpoint at the start of the SquareRoot function.
2. On the shortcut menu of the failed test, choose Debug Selected Tests.

  When the run stops at the breakpoint, step through the code.
3. Add code to the Rooter method to catch the exception:
```
public double SquareRoot(double x)
{
    if (x < 0.0)
    {
        throw new ArgumentOutOfRangeException();
}
```
4. In Test Explorer, choose Run All to test the corrected method and make sure that you haven't introduced a regression.
All tests now pass.

Refactor the code

Simplify the central calculation in the SquareRoot function.

Change the result implementation

// old code
//result = result - (result*result - v)/(2*result);
// new code
result = (result + v/result) / 2.0;

Choose Run All to test the refactored method and make sure that you haven't introduced a regression.

Tip

A stable set of good unit tests gives confidence that you have not introduced bugs when you change the code.

Refactor the test code to eliminate duplicated code.

Note that the RangeTest method hard codes the denominator of the tolerance variable that is used in the Assert method. If you plan to add additional tests that use the same tolerance calculation, the use of a hard-coded value in multiple locations could lead to errors.

Add a private method to the Unit1Test class to calculate the tolerance value and then call that method instead.

private double ToleranceHelper(double expected)
{
    return expected / 1000;
}

...

[TestMethod]
public void RangeTest()
{
    ...
    // old code
    // double tolerance = expected/1000;
    // new code
    double tolerance = ToleranceHelper(expected);
    Assert.AreEqual(expected, actual, tolerance);
}
...

Choose Run All to test the refactored method and make sure that you haven't introduced an error.

Note

To add a helper method to a test class, do not add the [TestMethod] attribute to the method. Test Explorer does not register the method to be run.
