Self-hosted macOS agents

TFS 2018

Important

This article provides guidance for using the 3.x agent software with Azure DevOps Services. If you're using Azure DevOps Server or TFS, see Self-hosted macOS agents (Agent version 2.x).

To build and deploy Xcode apps or Xamarin.iOS projects, you need at least one macOS agent. This agent can also build and deploy Java and Android apps.

Note

This article describes how to configure a self-hosted agent. If you're using Azure DevOps Services and a Microsoft-hosted agent meets your needs, you can skip setting up a self-hosted macOS agent.

Learn about agents

If you already know what an agent is and how it works, feel free to jump right in to the following sections. But if you'd like some more background about what they do and how they work, see Azure Pipelines agents.

Check prerequisites

• Supported operating systems
  • x64
    • macOS 10.15 "Catalina"
    • macOS 11.0 "Big Sur"
    • macOS 12.0 "Monterey"
    • macOS 13.0 "Ventura"
  • ARM64
    • macOS 11.0 "Big Sur"
    • macOS 12.0 "Monterey"
    • macOS 13.0 "Ventura"
    • Note: Not all Azure Pipelines tasks have been updated to support ARM64 yet

• Git - Git 2.9.0 or higher (latest version recommended - you can easily install with Homebrew)

• .NET - The agent software runs on .NET 6, but installs its own version of .NET so there is no .NET prerequisite.
• TFVC - If you're building from a TFVC repo, see TFVC prerequisites.

Prepare permissions

If you're building from a Subversion repo, you must install the Subversion client on the machine.

You should run agent setup manually the first time. After you get a feel for how agents work, or if you want to automate setting up many agents, consider using unattended config.

Information security for self-hosted agents

The user configuring the agent needs pool admin permissions, but the user running the agent does not.

The folders controlled by the agent should be restricted to as few users as possible because they contain secrets that could be decrypted or exfiltrated.

The Azure Pipelines agent is a software product designed to execute code it downloads from external sources. It inherently could be a target for Remote Code Execution (RCE) attacks.

Therefore, it is important to consider the threat model surrounding each individual usage of Pipelines Agents to perform work, and decide what are the minimum permissions that could be granted to the user running the agent, to the machine where the agent runs, to the users who have write access to the Pipeline definition, the git repos where the yaml is stored, or the group of users who control access to the pool for new pipelines.

It is a best practice to have the identity running the agent be different from the identity with permissions to connect the agent to the pool. The user generating the credentials (and other agent-related files) is different than the user that needs to read them. Therefore, it is safer to carefully consider access granted to the agent machine itself, and the agent folders which contain sensitive files, such as logs and artifacts.

It makes sense to grant access to the agent folder only for DevOps administrators and the user identity running the agent process. Administrators may need to investigate the file system to understand build failures or get log files to be able to report Azure DevOps failures.

Decide which user you'll use

As a one-time step, you must register the agent. Someone with permission to administer the agent queue must complete these steps. The agent will not use this person's credentials in everyday operation, but they're required to complete registration. Learn more about how agents communicate.

Confirm the user has permission

Make sure the user account that you're going to use has permission to register the agent.

Is the user an Azure DevOps organization owner or TFS or Azure DevOps Server administrator? Stop here, you have permission.

Otherwise:

1. Open a browser and navigate to the Agent pools tab for your Azure Pipelines organization or Azure DevOps Server or TFS server:

   1. Navigate to your project and choose Settings (gear icon) > Agent Queues.



   2. Choose Manage pools.



2. Select the pool on the right side of the page and then click Security.

3. If the user account you're going to use is not shown, then get an administrator to add it. The administrator can be an agent pool administrator, an Azure DevOps organization owner, or a TFS or Azure DevOps Server administrator.

   If it's a deployment group agent, the administrator can be a deployment group administrator, an Azure DevOps organization owner, or a TFS or Azure DevOps Server administrator.

   You can add a user to the deployment group administrator role in the Security tab on the Deployment Groups page in Azure Pipelines.

Note

If you see a message like this: Sorry, we couldn't add the identity. Please try a different identity., you probably followed the above steps for an organization owner or TFS or Azure DevOps Server administrator. You don't need to do anything; you already have permission to administer the agent pool.

Download and configure the agent

Server URL

Azure DevOps Server: https://{your_server}/tfs

Authentication type

When you register an agent, choose from the following authentication types, and agent setup prompts you for the specific additional information required for each authentication type. For more information, see Self-hosted agent authentication options.

• Personal access token
• Alternate Connect to Azure DevOps Server or TFS using Basic authentication. When you select Alternate you'll be prompted for your credentials.

Run interactively

For guidance on whether to run the agent in interactive mode or as a service, see Agents: Interactive vs. service.

To run the agent interactively:

1. If you have been running the agent as a service, uninstall the service.

2. Run the agent.

   ./run.sh


To restart the agent, press Ctrl+C and then run run.sh to restart it.

To use your agent, run a job using the agent's pool. If you didn't choose a different pool, your agent will be in the Default pool.

Run once

For agents configured to run interactively, you can choose to have the agent accept only one job. To run in this configuration:

./run.sh --once

Agents in this mode accept only one job and then spin down gracefully (useful for running on a service like Azure Container Instances).

Run as a launchd service

We provide the ./svc.sh script for you to run and manage your agent as a launchd LaunchAgent service. This script will be generated after you configure the agent. The service has access to the UI to run your UI tests.

Note

If you prefer other approaches, you can use whatever kind of service mechanism you prefer. See Service files.

Tokens

In the section below, these tokens are replaced:

• {agent-name}

• {tfs-name}

For example, you have configured an agent (see above) with the name our-osx-agent. In the following examples, {tfs-name} will be either:

• Azure Pipelines: the name of your organization. For example if you connect to https://dev.azure.com/fabrikam, then the service name would be vsts.agent.fabrikam.our-osx-agent

• TFS: the name of your on-premises TFS AT server. For example if you connect to http://our-server:8080/tfs, then the service name would be vsts.agent.our-server.our-osx-agent

Commands

Change to the agent directory

For example, if you installed in the myagent subfolder of your home directory:

cd ~/myagent$

Install

Command:

./svc.sh install

This command creates a launchd plist that points to ./runsvc.sh. This script sets up the environment (more details below) and starts the agent's host.

Start

Command:

./svc.sh start

Output:

starting vsts.agent.{tfs-name}.{agent-name}
status vsts.agent.{tfs-name}.{agent-name}:

/Users/{your-name}/Library/LaunchAgents/vsts.agent.{tfs-name}.{agent-name}.plist

Started:
13472 0 vsts.agent.{tfs-name}.{agent-name}

The left number is the pid if the service is running. If second number is not zero, then a problem occurred.

Status

Command:

./svc.sh status

Output:

status vsts.agent.{tfs-name}.{agent-name}:

/Users/{your-name}/Library/LaunchAgents/vsts.{tfs-name}.{agent-name}.testsvc.plist

Started:
13472 0 vsts.agent.{tfs-name}.{agent-name}

The left number is the pid if the service is running. If second number is not zero, then a problem occurred.

Stop

Command:

./svc.sh stop

Output:

stopping vsts.agent.{tfs-name}.{agent-name}
status vsts.agent.{tfs-name}.{agent-name}:

/Users/{your-name}/Library/LaunchAgents/vsts.{tfs-name}.{agent-name}.testsvc.plist

Stopped

Uninstall

You should stop before you uninstall.

Command:

./svc.sh uninstall

Automatic login and lock

Normally, the agent service runs only after the user logs in. If you want the agent service to automatically start when the machine restarts, you can configure the machine to automatically login and lock on startup. See Set your Mac to automatically login during startup - Apple Support.

Note

For more information, see the Terminally Geeky: use automatic login more securely blog. The .plist file mentioned in that blog may no longer be available at the source, but a copy can be found here: Lifehacker - Make OS X load your desktop before you log in.

Update environment variables

When you configure the service, it takes a snapshot of some useful environment variables for your current logon user such as PATH, LANG, JAVA_HOME, ANT_HOME, and MYSQL_PATH. If you need to update the variables (for example, after installing some new software):

./env.sh
./svc.sh stop
./svc.sh start

The snapshot of the environment variables is stored in .env file under agent root directory, you can also change that file directly to apply environment variable changes.

Run instructions before the service starts

You can also run your own instructions and commands to run when the service starts. For example, you could set up the environment or call scripts.

1. Edit runsvc.sh.

2. Replace the following line with your instructions:

   # insert anything to setup env when running as a service


Service Files

When you install the service, some service files are put in place.

.plist service file

A .plist service file is created:

~/Library/LaunchAgents/vsts.agent.{tfs-name}.{agent-name}.plist

For example:

~/Library/LaunchAgents/vsts.agent.fabrikam.our-osx-agent.plist

./svc.sh install generates this file from this template: ./bin/vsts.agent.plist.template

.service file

./svc.sh start finds the service by reading the .service file, which contains the path to the plist service file described above.

Alternative service mechanisms

We provide the ./svc.sh script as a convenient way for you to run and manage your agent as a launchd LaunchAgent service. But you can use whatever kind of service mechanism you prefer.

You can use the template described above as to facilitate generating other kinds of service files. For example, you modify the template to generate a service that runs as a launch daemon if you don't need UI tests and don't want to configure automatic log on and lock. See Apple Developer Library: Creating Launch Daemons and Agents.

Replace an agent

To replace an agent, follow the Download and configure the agent steps again.

When you configure an agent using the same name as an agent that already exists, you're asked if you want to replace the existing agent. If you answer Y, then make sure you remove the agent (see below) that you're replacing. Otherwise, after a few minutes of conflicts, one of the agents will shut down.

Remove and reconfigure an agent

To remove the agent:

1. Stop and uninstall the service as explained in the previous section.

2. Remove the agent.

   ./config.sh remove


3. Enter your credentials.

After you've removed the agent, you can configure it again.

Unattended config

The agent can be set up from a script with no human intervention. You must pass --unattended and the answers to all questions.

./config.sh --help always lists the latest required and optional responses.

Diagnostics

If you're having trouble with your self-hosted agent, you can try running diagnostics. After configuring the agent:

./run.sh --diagnostics

This will run through a diagnostic suite that may help you troubleshoot the problem. The diagnostics feature is available starting with agent version 2.165.0.

Help on other options

To learn about other options:

./config.sh --help

The help provides information on authentication alternatives and unattended configuration.

Capabilities

Your agent's capabilities are cataloged and advertised in the pool so that only the builds and releases it can handle are assigned to it. See Build and release agent capabilities.

In many cases, after you deploy an agent, you'll need to install software or utilities. Generally you should install on your agents whatever software and tools you use on your development machine.

For example, if your build includes the npm task, then the build won't run unless there's a build agent in the pool that has npm installed.

Important

Capabilities include all environment variables and the values that are set when the agent runs. If any of these values change while the agent is running, the agent must be restarted to pick up the new values. After you install new software on an agent, you must restart the agent for the new capability to show up in the pool, so that the build can run.

If you want to exclude environment variables as capabilities, you can designate them by setting an environment variable VSO_AGENT_IGNORE with a comma-delimited list of variables to ignore.

FAQ

How do I make sure I have the latest agent version?

1. Navigate to the Agent pools tab:

   1. Navigate to your project and choose Settings (gear icon) > Agent Queues.



   2. Choose Manage pools.



2. Click the pool that contains the agent.

3. Make sure the agent is enabled.

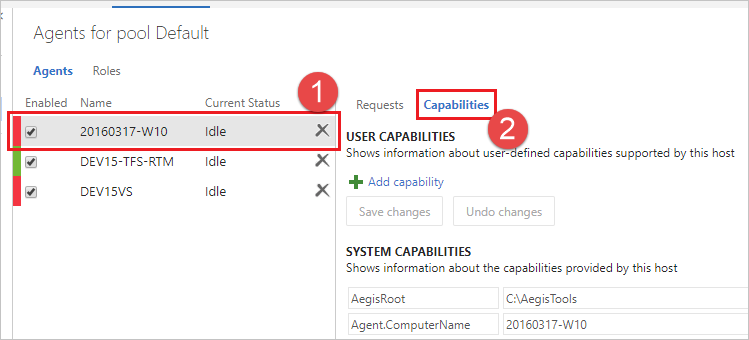

4. Navigate to the capabilities tab:

   Select the desired agent, and choose the Capabilities tab.



5. Look for the Agent.Version capability. You can check this value against the latest published agent version. See Azure Pipelines Agent and check the page for the highest version number listed.

6. Each agent automatically updates itself when it runs a task that requires a newer version of the agent. If you want to manually update some agents, right-click the pool, and select Update all agents.

Can I update my agents that are part of an Azure DevOps Server pool?

Yes. Beginning with Azure DevOps Server 2019, you can configure your server to look for the agent package files on a local disk. This configuration will override the default version that came with the server at the time of its release. This scenario also applies when the server doesn't have access to the internet.

1. From a computer with Internet access, download the latest version of the agent package files (in .zip or .tar.gz form) from the Azure Pipelines Agent GitHub Releases page.

2. Transfer the downloaded package files to each Azure DevOps Server Application Tier by using a method of your choice (such as USB drive, Network transfer, and so on). Place the agent files under the following folder:

• Windows: %ProgramData%\Microsoft\Azure DevOps\Agents
• Linux: usr/share/Microsoft/Azure DevOps/Agents
• macOS: usr/share/Microsoft/Azure DevOps/Agents

Create the Agents folder if it is not present.

3. You're all set! Your Azure DevOps Server will now use the local files whenever the agents are updated. Each agent automatically updates itself when it runs a task that requires a newer version of the agent. But if you want to manually update some agents, right-click the pool, and then choose Update all agents.

How do I make sure I have the latest agent version?

1. Navigate to the Agent pools tab:

   1. Navigate to your project and choose Settings (gear icon) > Agent Queues.



   2. Choose Manage pools.



2. Click the pool that contains the agent.

3. Make sure the agent is enabled.

4. Navigate to the capabilities tab:

   Select the desired agent, and choose the Capabilities tab.



5. Look for the Agent.Version capability. You can check this value against the latest published agent version. See Azure Pipelines Agent and check the page for the highest version number listed.

6. Each agent automatically updates itself when it runs a task that requires a newer version of the agent. If you want to manually update some agents, right-click the pool, and select Update all agents.

Can I update my agents that are part of an Azure DevOps Server pool?

Yes. Beginning with Azure DevOps Server 2019, you can configure your server to look for the agent package files on a local disk. This configuration will override the default version that came with the server at the time of its release. This scenario also applies when the server doesn't have access to the internet.

1. From a computer with Internet access, download the latest version of the agent package files (in .zip or .tar.gz form) from the Azure Pipelines Agent GitHub Releases page.

2. Transfer the downloaded package files to each Azure DevOps Server Application Tier by using a method of your choice (such as USB drive, Network transfer, and so on). Place the agent files under the following folder:

• Windows: %ProgramData%\Microsoft\Azure DevOps\Agents
• Linux: usr/share/Microsoft/Azure DevOps/Agents
• macOS: usr/share/Microsoft/Azure DevOps/Agents

Create the Agents folder if it is not present.

3. You're all set! Your Azure DevOps Server will now use the local files whenever the agents are updated. Each agent automatically updates itself when it runs a task that requires a newer version of the agent. But if you want to manually update some agents, right-click the pool, and then choose Update all agents.

Where can I learn more about how the launchd service works?

Apple Developer Library: Creating Launch Daemons and Agents

How do I run the agent with self-signed certificate?

Run the agent with self-signed certificate

How do I run the agent behind a web proxy?

Run the agent behind a web proxy

How do I restart the agent

If you are running the agent interactively, see the restart instructions in Run interactively. If you are running the agent as a service, follow the steps to Stop and then Start the agent.

I'm using TFS and the URLs in the sections above don't work for me. Where can I get help?

Web site settings and security

I use TFS on-premises and I don't see some of these features. Why not?

Some of these features are available only on Azure Pipelines and not yet available on-premises. Some features are available on-premises if you have upgraded to the latest version of TFS.

TFVC prerequisites

If you'll be using TFVC, you'll also need the Oracle Java JDK 1.6 or higher. (The Oracle JRE and OpenJDK aren't sufficient for this purpose.)

TEE plugin is used for TFVC functionality. It has an EULA, which you'll need to accept during configuration if you plan to work with TFVC.

Since the TEE plugin is no longer maintained and contains some out-of-date Java dependencies, starting from Agent 2.198.0 it's no longer included in the agent distribution. However, the TEE plugin will be downloaded during checkout task execution if you're checking out a TFVC repo. The TEE plugin will be removed after the job execution.

Note

Note: You may notice your checkout task taking a long time to start working because of this download mechanism.

If the agent is running behind a proxy or a firewall, you'll need to ensure access to the following site: https://vstsagenttools.blob.core.windows.net/. The TEE plugin will be downloaded from this address.

If you're using a self-hosted agent and facing issues with TEE downloading, you may install TEE manually:

1. Set DISABLE_TEE_PLUGIN_REMOVAL environment or pipeline variable to true. This variable prevents the agent from removing the TEE plugin after TFVC repository checkout.
2. Download TEE-CLC version 14.135.0 manually from Team Explorer Everywhere GitHub releases.
3. Extract the contents of TEE-CLC-14.135.0 folder to <agent_directory>/externals/tee.
