Create a Rule to Transform an Incoming Claim
By using the Transform an Incoming Claim rule template in Active Directory Federation Services (AD FS), you can select an incoming claim, change its claim type, and change its claim value. For example, you can use this rule template to create a rule that sends a role claim with the same claim value of an incoming group claim. You can also use this rule to send a group claim with a claim value of Purchasers when there is an incoming group claim with a value of Admins, or you can send only user principal name (UPN) claims that end with @fabrikam.
You can use the following procedure to create a claim rule with the AD FS Management snap-in.
Membership in Administrators, or equivalent, on the local computer is the minimum requirement to complete this procedure. Review details about using the appropriate accounts and group memberships at Local and Domain Default Groups.
To create a rule to transform an incoming claim on a Relying Party Trust in Windows Server 2016
In Server Manager, click Tools, and then select AD FS Management.
In the console tree, under AD FS, click Relying Party Trusts.
Right-click the selected trust, and then click Edit Claim Issuance Policy.
In the Edit Claim Issuance Policy dialog box, under Issuance Transform Rules click Add Rule to start the rule wizard.

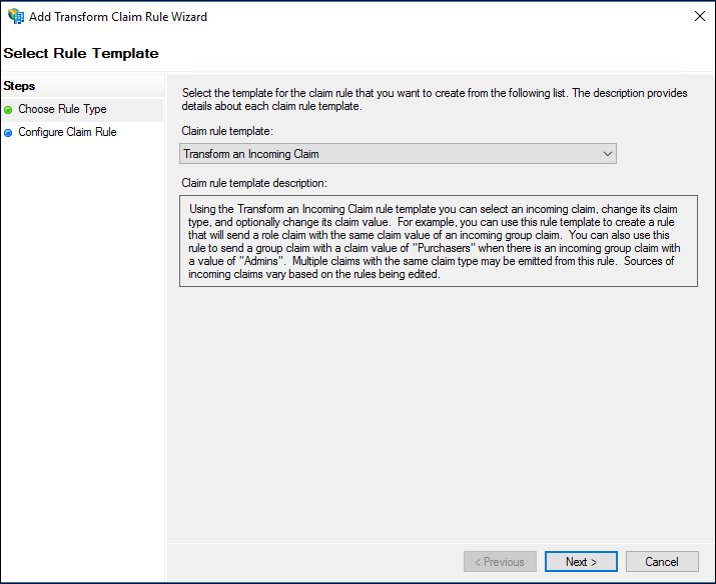

On the Select Rule Template page, under Claim rule template, select Transform an Incoming Claim from the list, and then click Next.

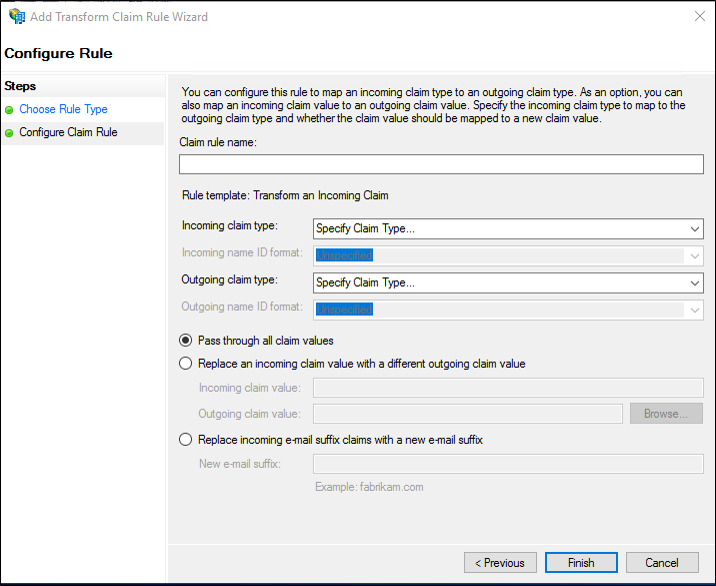

On the Configure Rule page, under Claim rule name, type the display name for this rule. In Incoming claim type, select a claim type in the list. In Outgoing claim type, select a claim type in the list, and then select one of the following options, which depends on the requirements of your organization:
Pass through all claim values
Replace an incoming claim value with a different outgoing claim value
Replace incoming e-mail suffix claims with a new e-mail suffix
Click the Finish button.
In the Edit Claim Rules dialog box, click OK to save the rule.
Note
If you are setting up the Dynamic Access Control scenario that uses AD FS-issued claims, first create a transform rule on the claims provider trust, and in Incoming claim type, type the name for the incoming claim, or, if a claim description was previously created, select it from the list. Second, in Outgoing claim type, select the claim URL that you want, and then create a transform rule on the relying party trust to issue the device claim.
For more information about Dynamic Access Control scenarios, see Dynamic Access Control Content Roadmap or Using AD DS Claims with AD FS.
To create a rule to transform an incoming claim on a Claims Provider Trust in Windows Server 2016
In Server Manager, click Tools, and then select AD FS Management.
In the console tree, under AD FS, click Claims Provider Trusts.
Right-click the selected trust, and then click Edit Claim Rules.
In the Edit Claim Rules dialog box, under Acceptance Transform Rules click Add Rule to start the rule wizard.
On the Select Rule Template page, under Claim rule template, select Transform an Incoming Claim from the list, and then click Next.
On the Configure Rule page, under Claim rule name, type the display name for this rule. In Incoming claim type, select a claim type in the list. In Outgoing claim type, select a claim type in the list, and then select one of the following options, which depends on the requirements of your organization:
Pass through all claim values
Replace an incoming claim value with a different outgoing claim value
Replace incoming e-mail suffix claims with a new e-mail suffix
Click the Finish button.
In the Edit Claim Rules dialog box, click OK to save the rule.
Note
If you are setting up the Dynamic Access Control scenario that uses AD FS-issued claims, first create a transform rule on the claims provider trust, and in Incoming claim type, type the name for the incoming claim, or, if a claim description was previously created, select it from the list. Second, in Outgoing claim type, select the claim URL that you want, and then create a transform rule on the relying party trust to issue the device claim.
For more information about Dynamic Access Control scenarios, see Dynamic Access Control Content Roadmap or Using AD DS Claims with AD FS.
To create a rule to transform an incoming claim in Windows Server 2012 R2
In Server Manager, click Tools, and then click AD FS Management.
In the console tree, under AD FS\Trust Relationships, click either Claims Provider Trusts or Relying Party Trusts, and then click a specific trust in the list where you want to create this rule.
Right-click the selected trust, and then click Edit Claim Rules.
In the Edit Claim Rules dialog box, select one the following tabs, which depends on the trust that you are editing and in which rule set you want to create this rule, and then click Add Rule to start the rule wizard that is associated with that rule set:
Acceptance Transform Rules
Issuance Transform Rules
Issuance Authorization Rules
Delegation Authorization Rules

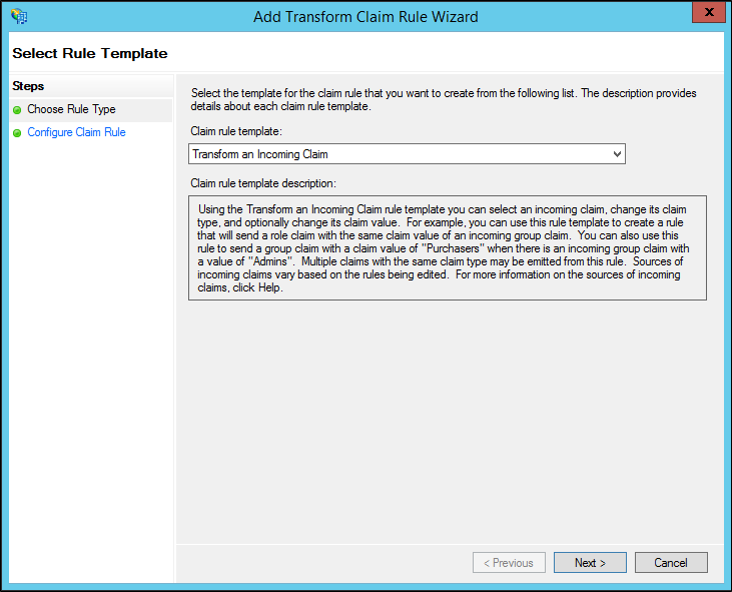

On the Select Rule Template page, under Claim rule template, select Transform an Incoming Claim from the list, and then click Next.

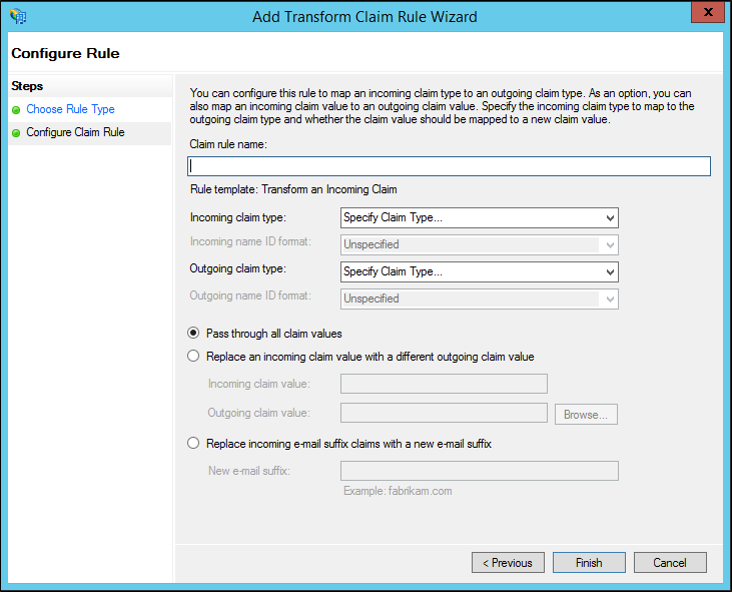

On the Configure Rule page, under Claim rule name, type the display name for this rule. In Incoming claim type, select a claim type in the list. In Outgoing claim type, select a claim type in the list, and then select one of the following options, which depends on the requirements of your organization:
Pass through all claim values
Replace an incoming claim value with a different outgoing claim value
Replace incoming e-mail suffix claims with a new e-mail suffix
Note
If you are setting up the Dynamic Access Control scenario that uses AD FS-issued claims, first create a transform rule on the claims provider trust, and in Incoming claim type, type the name for the incoming claim, or, if a claim description was previously created, select it from the list. Second, in Outgoing claim type, select the claim URL that you want, and then create a transform rule on the relying party trust to issue the device claim.
For more information about Dynamic Access Control scenarios, see Dynamic Access Control Content Roadmap or Using AD DS Claims with AD FS.
Click Finish.
In the Edit Claim Rules dialog box, click OK to save the rule.
Additional references
Checklist: Creating Claim Rules for a Relying Party Trust
Checklist: Creating Claim Rules for a Claims Provider Trust
