First-time setup for Surface Hub running Microsoft Teams Rooms on Windows

Scope

Note

This article applies to new Surface Hub 3 devices, Surface Hub 2S devices upgraded with the Surface Hub 3 Compute Cartridge and Surface Hub 2S devices software-migrated to the Teams Rooms on Windows platform.

Unboxing and hardware setup

Carefully unbox Surface Hub and attach to a stand or mount, per the instructions:

• Install and mount Surface Hub 50 inch
• Install and mount Surface Hub 85 inch

Optionally, connect any peripherals such as a keyboard or mouse.

Note

If using Autopilot, see Deploy Surface Hub with Windows Autopilot & Teams Rooms Auto-login

Prerequisites

Before you start Surface Hub running Microsoft Teams Rooms on Windows for the first time, ensure that you have the following items:

• A resource account with a supported Microsoft Teams Rooms license. We recommend use of the Teams Rooms Pro license.
• The ability to sign in with a resource account using your credentials or a one-time passcode, as configured in the Microsoft Teams Rooms Pro Management portal.
• Internet connectivity via a wired Ethernet cable (recommended).

Tip

For guidance about deploying Microsoft Teams Rooms on Windows, see: Deployment overview. For an overview of requirements to get the most out of Microsoft Teams Rooms, see: Prepare your environment.

Upon startup, Surface Hub automatically enters first-time Windows setup mode, followed by first-time setup of Microsoft Teams Rooms.

Begin first-time setup

Tip

When you run first-time setup, ensure an internet connection is maintained throughout the setup to automatically download required updates for an optimal user experience.

1. Press the power button to start the device.

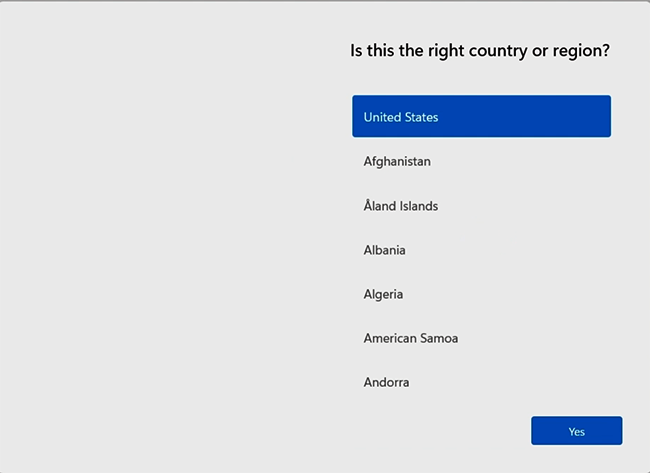

2. Select your region. Confirm the autodetected region and select Yes. If you wish to use a provisioning pack, insert the USB thumb drive into one of the USB ports.



3. Confirm keyboard layout. Select Yes.

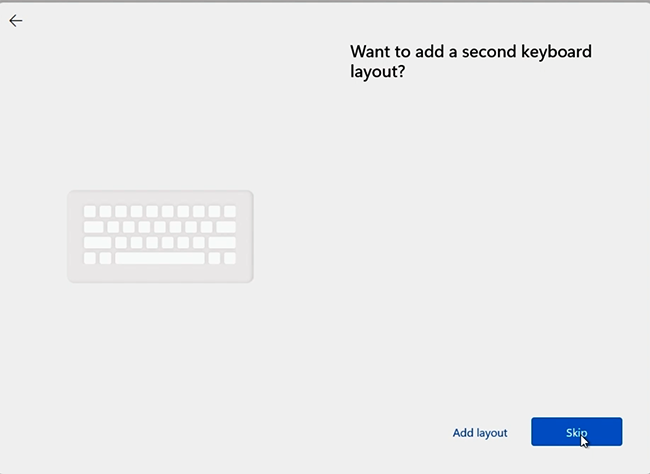

4. To add a second keyboard, select Add layout. Otherwise, select Skip.

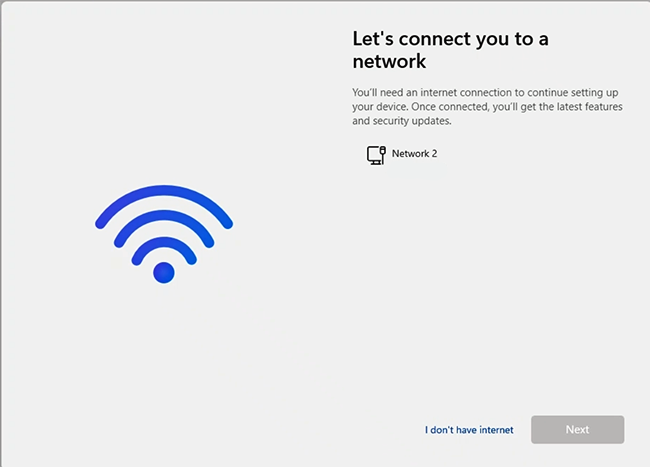

5. Connect to a network, if prompted.



   Tip

   If you have already attached an Ethernet cable with Internet access, Surface Hub automatically skips this screen. Alternatively, you can connect to a wireless network.

   Note

   You cannot connect to a wireless network in hotspots (captive portals) that redirect sign-in requests to a provider's website.

Microsoft Teams Rooms setup

Now, you're ready to begin the Microsoft Teams Rooms setup experience.

1. Agree to Microsoft Software License Terms and acknowledgment of the privacy statement at https://aka.ms/privacy. Select Accept.
2. If you received a one-time passcode, enter it and select Continue. Otherwise, select Manual setup and enter your Teams resource account and password.
3. Select Finish to complete the Microsoft Teams Rooms setup.

Use provisioning packages in Enterprise environments

Alternatively, you can automate the setup process with a provisioning package to ensure a consistent experience across multiple Surface Hubs. This optional technology allows for a streamlined setup process that can be performed without extensive IT intervention, saving time and resources in organizational and enterprise environments.

Surface Hub running Teams Rooms on Windows supports a subset of provisioning pack features available in Windows 10 Team edition (for example, you can't use a provisioning pack to install apps on Surface Hub running Teams Rooms on Windows). Specifically, provisioning packs allow you to automatically configure the following features:

• Network profile
• Certificates
• Proxy settings
• Microsoft Entra ID join (Azure AD join)

1. To begin, review the Windows 10 Team edition documentation in Create provisioning packages and save the package to a USB thumb drive.
2. Insert the USB thumb drive into one of the USB ports when you see the Region selection page.
3. When prompted, choose the provisioning package you want.
4. Follow the rest of the steps, and remove the USB drive at the first reboot that occurs in the setup process.

Platform configuration on Surface Hub running Teams Rooms on Windows

Your Surface Hub is configured with a Skype profile and an Administrator profile.

Skype profile

The Skype profile automatically logs in when you start Surface Hub. It operates in a custom kiosk mode, where the Microsoft Teams Rooms application is the only user-accessible feature for nonadmins. There's no password for this account. If prompted for a password when switching between Windows accounts, press Enter.

Administrator profile

To access the Admin account, sign in with the default password.

1. Start Surface Hub, connect a keyboard and press the Windows key five times to reach the Windows sign-in screen.

2. Select Administrator and enter the password sfb. This method keeps the Skype user/Microsoft Teams Rooms app session active, which is needed for some admin tasks.

   Tip

   It's highly recommended to change the default admin password from sfb to a secure password with letters, numbers, and symbols. To learn more, see Security best practices for Surface Hubs running Microsoft Teams Rooms on Windows

Windows admin account functionality

Once signed into the Administrator Windows account, you have access to standard Windows functionality. For example, you can join Wi-Fi networks, configure Bluetooth devices, or install and run applications.

Manage Group Policy settings in domain-joined scenarios

When integrating Teams Rooms with a domain, it's imperative to establish a separate, dedicated Organizational Unit (OU) specifically for Teams Rooms. This approach enables the application of Group Policy Object (GPO) exclusions directly to this OU, ensuring that only relevant policies affect Teams Rooms objects.

• Disable GPO inheritance. It's crucial to disable all GPO inheritance within this OU to prevent the application of unsupported or irrelevant Group Policy settings to Teams Rooms.

• Apply GPOs to OU before joining domain. Ensure that machine objects for Teams Rooms are created within this specific OU prior to domain joining. This step is essential to avoid the inadvertent application of default computer OU policies to Teams Rooms, thereby maintaining the intended configuration and security posture.

To learn more about configuring Group Policy in domain-joined scenarios, see the following resources:

• Configuring Group Policy for Microsoft Teams Rooms

• Group Policy Settings Reference

Next steps

• Although first-time setup automatically downloads required updates, run Windows Update to ensure you have the latest updates. Sign in to Surface Hub with an admin account, and open Settings > Windows Update > Check for Updates.
• Review Security best practices for Surface Hubs running Microsoft Teams Rooms on Windows. At a minimum, along with changing the default admin password, follow the instructions to add a UEFI password and implement appropriate physical security measures.
• Check you have the latest Surface Hub Pen firmware.
