How to: Create a Basic Phong Shader

  • Article

Note

This article applies to Visual Studio 2015. If you're looking for the latest Visual Studio documentation, see Visual Studio documentation. We recommend upgrading to the latest version of Visual Studio. Download it here

This document demonstrates how to use the Shader Designer and the Directed Graph Shader Language (DGSL) to create a lighting shader that implements the classic Phong lighting model.

This document demonstrates these activities:

  • Adding nodes to a shader graph

  • Disconnecting nodes

  • Connecting nodes

The Phong lighting model

The Phong lighting model extends the Lambert lighting model to include specular highlighting, which simulates the reflective properties of a surface. The specular component provides additional illumination from the same directional light sources that are used in the Lambert lighting model, but its contribution to the final color is processed differently. Specular highlighting affects every surface in the scene differently, based on the relationship between the view direction, the direction of the light sources, and the orientation of the surface. It's a product of the specular color, specular power, and orientation of the surface, and the color, intensity, and direction of the light sources. Surfaces that reflect the light source directly at the viewer receive the maximum specular contribution and surfaces that reflect the light source away from the viewer receive no contribution. Under the Phong lighting model, one or more specular components are combined to determine the color and intensity of specular highlighting for each point on the object, and then are added to the result of the Lambert lighting model to produce the final color of the pixel.

For more information about the Lambert lighting model, see How to: Create a Basic Lambert Shader.

Before you begin, make sure that the Properties window and the Toolbox are displayed.

To create a Phong shader

  1. Create a Lambert shader, as described in How to: Create a Basic Lambert Shader.

  2. Disconnect the Lambert node from the Final Color node. Choose the RGB terminal of the Lambert node, and then choose Break Links. This makes room for the node that's added in the next step.

  3. Add an Add node to the graph. In the Toolbox, under Math, select Add and move it to the design surface.

  4. Add a Specular node to the graph. In the Toolbox, under Utility, select Specular and move it to the design surface.

  5. Add the specular contribution. Move the Output terminal of the Specular node to the X terminal of the Add node, and then move the Output terminal of the Lambert node to the Y terminal of the Add node. These connections combine the total diffuse and specular color contributions for the pixel.

  6. Connect the computed color value to the final color. Move the Output terminal of the Add node to the RGB terminal of the Final Color node.

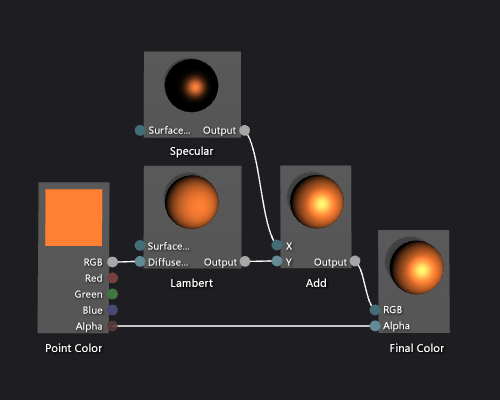

    The following illustration shows the completed shader graph and a preview of the shader applied to a teapot model.

Note

To better demonstrate the effect of the shader in this illustration, an orange color has been specified by using the MaterialDiffuse parameter of the shader, and a metallic-looking finish has been specified by using the MaterialSpecular and MaterialSpecularPower parameters. For information about material parameters, see the Previewing Shaders section in Shader Designer.

Shader graph and a preview of its effect

Certain shapes might provide better previews for some shaders. For more information about how to preview shaders in the Shader Designer, see the Previewing Shaders section in Shader Designer

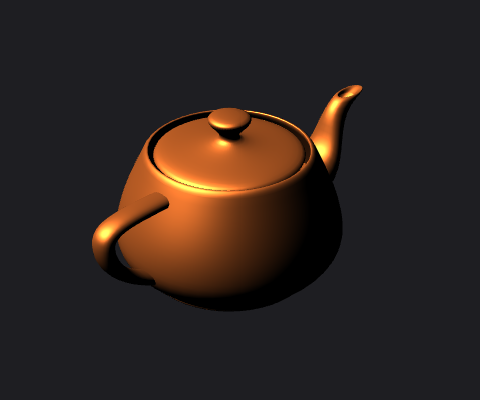

The following illustration shows the shader that's described in this document applied to a 3-D model. The MaterialSpecular property is set to (1.00, 0.50, 0.20, 0.00), and its MaterialSpecularPower property is set to 16.

Note

The MaterialSpecular property determines the apparent finish of the surface material. A high-gloss surface such as glass or plastic tends to have a specular color that is a bright shade of white. A metallic surface tends to have a specular color that is close to its diffuse color. A satin-finish surface tends to have a specular color that is a dark shade of gray.

The MaterialSpecularPower property determines how intense the specular highlights are. High specular powers simulate duller, more-localized highlights. Very low specular powers simulate intense, sweeping highlights that can oversaturate and conceal the color of the whole surface.

Phong lighting applied to a model

For more information about how to apply a shader to a 3-D model, see How to: Apply a Shader to a 3-D Model.

See Also

How to: Apply a Shader to a 3-D Model How to: Export a Shader How to: Create a Basic Lambert Shader Shader Designer Shader Designer Nodes
