Record and replay cloud-based load tests

  • Article

Azure Test Plans

Note

While Azure DevOps cloud-based load testing service is deprecated, Azure Load Testing Preview is available. Azure Load Testing Preview is a fully managed load testing service that enables you to use existing Apache JMeter scripts to generate high-scale load. To learn more, see What is Azure Load Testing Preview?. To learn more about the deprecation of Azure DevOps load testing and other, alternative services see Changes to load test functionality in Visual Studio and cloud load testing in Azure DevOps.

You can record and then replay cloud-based load tests on your web app or website directly using an HTTP Archive file and Azure DevOps.

Before you start:

  • Create an Azure DevOps subscription if you don't have one already.

  • You can use your monthly free 20,000 virtual user minutes (VUM) allowance to try it. If you want to use load testing beyond this, you can set up billing for Azure DevOps.

About HTTP Archive testing

If you have used cloud-based load testing before, you may be familiar with the ability to get performance information on your app when under load by using the Azure DevOps web portal. It's a great way to:

  • Quickly run a URL-based load test for your app; you just need to enter the app URL.
  • Easily learn about the basic load test features such as running tests from different locations around the world, viewing and analyzing results in the browser, analyzing the test errors, and more.

At the other end of the spectrum is using Visual Studio Enterprise to create and run load tests. While you can certainly create a URL-based load test using Visual Studio Enterprise, the real advantage is the ability to write tests that mimic several end-to-end user scenarios. These may include a distributed mix of tests, the ability to use data to drive your test, and even use of the rich extensible framework to create plugins necessary to suit complex testing requirements.

HTTP Archive testing also allows you to create load tests that mimic end-to-end user scenarios, but with fewer capabilities than the rich Visual Studio Enterprise load tests. However, by using HTTP Archive files you can represent user scenarios that:

  • Support multiple URLs
  • Send requests other than just a simple GET
  • Simulate a complete user scenario

If you develop or test web apps, you may already be familiar with the F12 developer tools in your browser. These enable you carry out a range of tasks from inspecting the HTML, CSS, and JavaScript, to viewing the traffic between the browser and the server. You can use this ability to view traffic between the browser and the server to create an HTTP Archive load test for your scenario.

The example shown here uses the Google Chrome browser, but you can use the browser of your choice such as Edge, Internet Explorer, or Firefox.

Create an HTTP Archive file

Follow these steps to create an HTTP Archive (.har) file using your browser.

  1. Launch the browser and press F12 to open the developer tools.

  2. Ensure that the browser traffic is being recorded. For example, if you are using Chrome, check that:

    • The recording button is "on" (the round button is red).

    • The Preserve log checkbox is set to ensure that the complete sequence of URLs for your scenario is captured. If you do not set this option, network activity recordings are discarded whenever you reload the current page or load a different page - which means that an end-to-end scenario may not be captured.

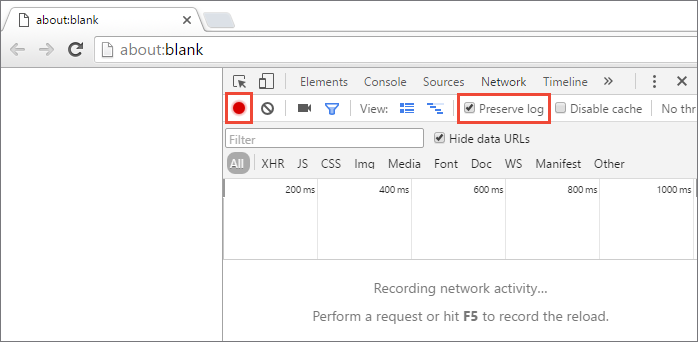

    Configuring Chrome to record HTTP traffic

  3. Exercise your user scenario. Enter the URL in the address bar and go through the sequence of actions a typical user would follow. For example, in a retail store site, the user would browse for a product, enter a product name in the search box, choose links of interest, view the product information, and (hopefully) place an order.

    As you go through these steps, you will see that all the traffic between the browser and the server is shown in the Network page of the developer tools.

  4. After you have finished recording your user scenario, save the URLs as HTTP Archive (.har) file. In Chrome, do this by opening the shortcut menu for the URL list and choosing Save as HAR with content. Enter a name for the file and save it on your computer.

    Saving the HTTP traffic as a .har file

    You can also create an HTTP Archive using tools other than a browser. For example, Fiddler is a popular tool for viewing and troubleshooting traffic. Use Fiddler to record traffic in the same way and export sessions as an HTTP Archive.

    Creating a .har file in Fiddler

Create a load test using the HTTP Archive file

Follow these steps to create a load test in the Azure DevOps web portal using an HTTP Archive (.har) file.

  1. Sign into Azure DevOps.

  2. Go to the Load Test section of Azure Test Plans (see Web portal navigation), open the + New menu and choose HTTP Archive based test.

    Selecting a HTTP archive test

  3. In the Import HTTP Archive file dialog, select the .har file that you recorded in the earlier steps and choose OK.

    Selecting the HTTP archive file

    The HTTP Archive file is uploaded and read, the URLs are extracted, and all the details (the HTTP method, headers, querystring parameters, form post parameters, and more) are displayed. You can add URLs and edit the existing URLs to provide a friendly name for each request in the center Add URL pane. This will help you easily identify each request.

    Uploading the HTTP archive file

    The right-hand section of this page shows details of the selected request URL.

    Details of the selected request URL

    Some dynamic information such as ASP.NET viewstate, event validation, and more that varies from session to session, and must be retained in order for a sequence of requests to succeed. These values are automatically identified and extracted from a request and correlated in any subsequent requests that use them.

  4. Open the Settings page to view and change any load test settings.

    Editing the test settings

  5. Enter a name for your load test, then choose Save.

    Saving the test settings

  6. Choose the Run test link to execute your load test. A progress bar shows the current status of the test run.

    Running the test

  7. As the load test runs, you see a rich set of metrics that indicate how your app is performing under load. When the test is complete, you can explore the results.

    The test results

    For more information about the results and reports, see URL-based load testing with Azure DevOps.

Troubleshooting

As you run a load test, requests are sent to your application in the sequence you specified. Ideally, you want a clean run with all requests succeeding. However, requests may fail because of issues in your app or in your test. The load test results view offers two sections to help you identify these errors: Diagnostics and Logs.

The Diagnostics section provides insights into any test errors and important status messages from the load test service that occurred during the load test run. For failing requests, you can see the error type, the specific error subtype, the number of times the failure occurred, and more.

Viewing diagnostics information

This page also lists the requests that were tested, and the test you executed.

The list of request URLs dn tests

The Logs section gives you access to logs from all of the load-generating agents. If requests in your test are failing, these logs will help you figure out what went wrong. The test logs are available in HTTP Archive (.har) format, the same format as you used to record the user scenario and create the test. You can download these logs and view them in a HAR viewer such as Fiddler, HAR Analyzer, or any other viewer that you prefer. You can then inspect the details of each request and its response in order to troubleshoot any failures in your test.

This screenshot shows how you can import the log into Fiddler.

Importing the HTTP archive into Fiddler

Export the test to Visual Studio

Sometimes, one or more requests will fail every time they are executed. If you have eliminated the obvious causes such as correctness of the URL, the target URL not being reachable, or any application issues, requests may be failing because the application uses dynamic parameters (such as session ID, cookies, values set in hidden fields such as ASP.NET VIEWSTATE, and others) in these requests. When you create a test using an HTTP Archive, the following cases are handled automatically when the test is executed:

  • Dynamic parameter values set in cookies.
  • Dynamic parameter values set in hidden fields, such as ASP.NET VIEWSTATE and EVENTVALIDATION.

However, dynamic parameters may also appear elsewhere in requests such as query strings or form post collections. At present, the load test mechanism does not support these types of dynamic parameters. If you find that this is the cause of your test failures, you can export and run the test in Visual Studio.

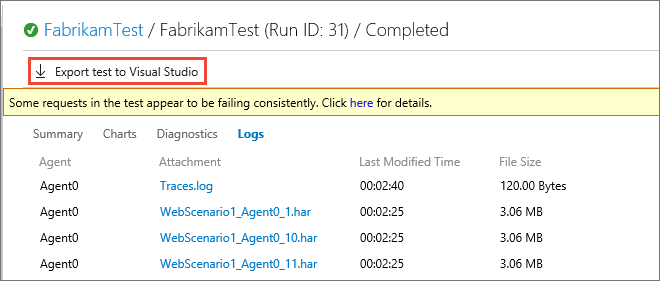

Exporting the test to Visual Studio

This export mechanism downloads a Visual Studio load test project containing the required web performance test and load test for your application. See how to fix dynamic parameters using Visual Studio. Sean Lumley's blog post has a detailed example of how dynamic parameters can be identified by inspecting the test and test results.
