Compare files in Visual Studio

You can visually compare two files in Visual Studio to examine the differences between them. You can view the files side-by-side or see the differences inline. The comparison view also appears when you choose to view the changes to a file in a commit or pull request when you use version control.

Compare two files (IDE)

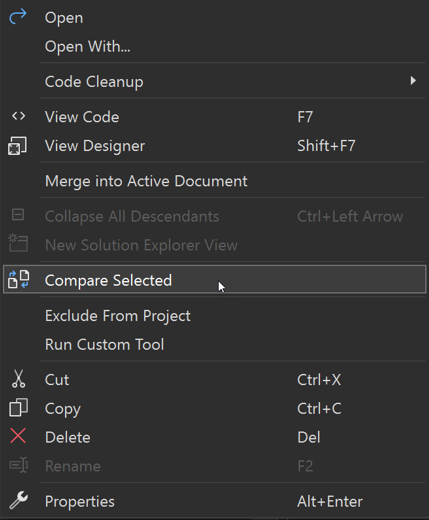

In Solution Explorer, select two files (use Ctrl-click to select), you can right-click and choose Compare Selected to open the diff view with just those two files.

Screenshot of Compare Selected context menu item.

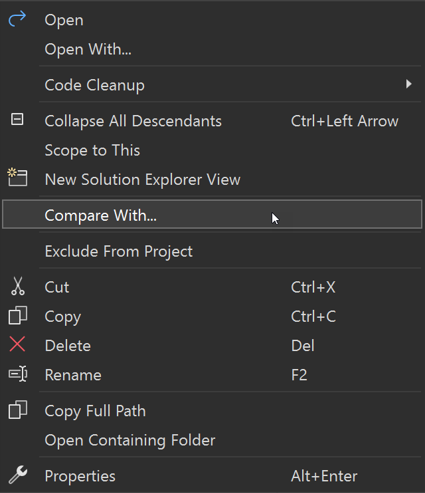

Or, right-click on one of the files you want to compare and choose Compare With.... The Open File dialog appears. Choose the second file, and then choose Open. The second file doesn't have to be in the solution.

Screenshot of Compare With on the context menu.

The file you right-clicked on appears on the right and is editable. The other file is shown in a read-only view. That means that from the perspective of the diff view, the file you right-clicked is the new version and the other file is considered the old version.

Compare two files (command-line)

From the Developer Command Prompt, use the /Diff (-diff) option. See -Diff.

devenv /Diff SourceFile TargetFile [SourceDisplayName [TargetDisplayName]]

Visual Studio opens with the two files shown side-by-side, but a project is not opened. The TargetFile is considered the newer version, and is editable.

Understand differences

The minus (-) sign on the left side indicates lines removed. The (+) sign on the right side indicates lines added. Boxes in red and green highlight the specific text that changed in a line. For changed text, red shows the old version, and green shows the new version.

Use the arrows at the top left to move between changed sections.

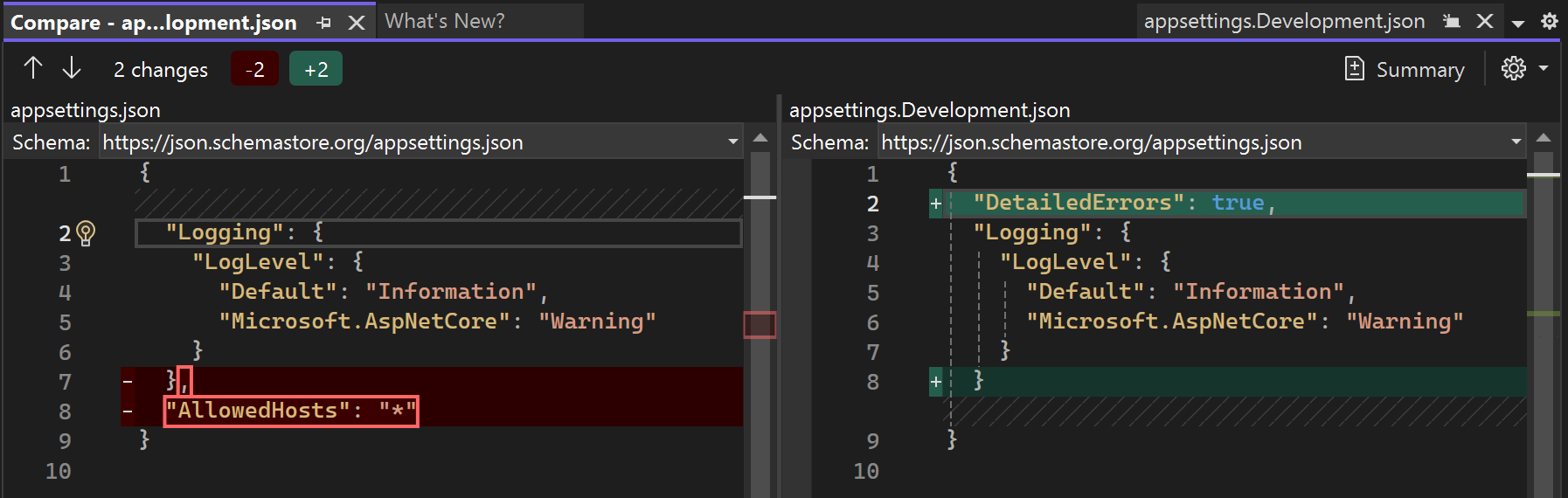

Side-by-side view shows the differences in a split screen, as shown in the following image.

Screenshot showing comparing two files in side-by-side view.

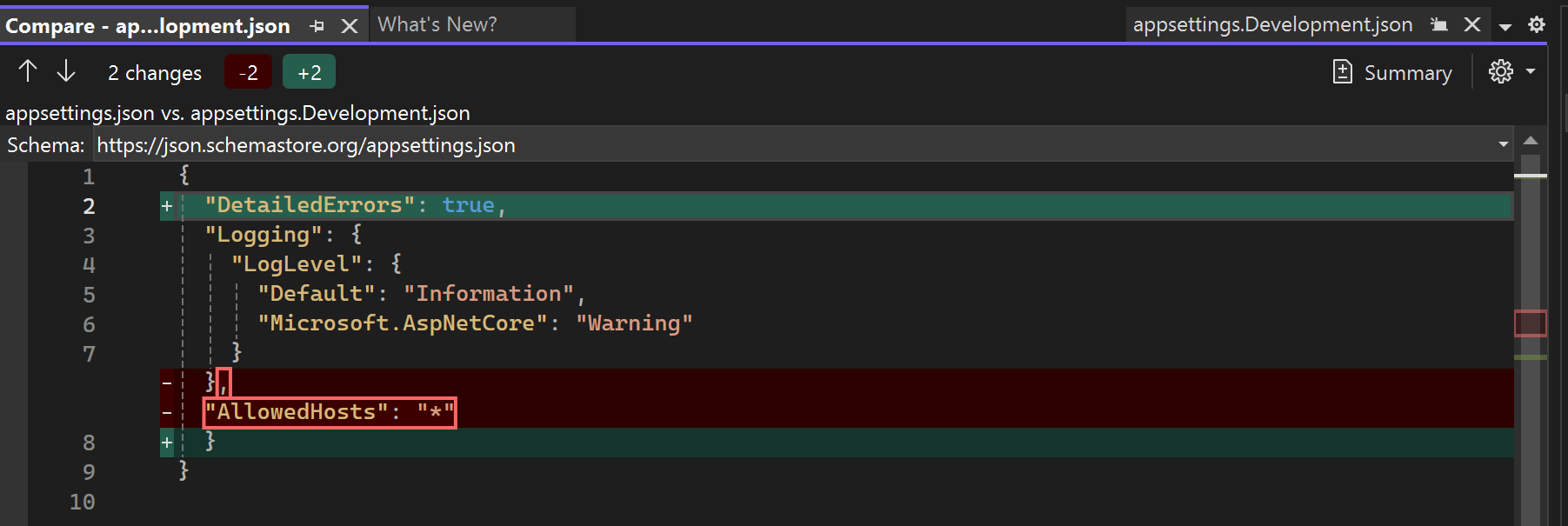

Inline view shows the differences in a single window, as shown in the following image.

Screenshot showing the differences in an inline view.

Display settings in diff view

The Summary option is a toggle that you control by pressing the button. The other settings are available when you click on the gear icon.

Setting Keyboard shortcut Description
Summary Ctrl+\, Ctrl+5 If enabled, only the parts of the two files that differ appear in the view. If not enabled, the entire file is shown.
Inline mode Ctrl+\, Ctrl+1 Show diffs in a single file view.
Side by side mode Ctrl+\, Ctrl+2 Show the two files separately.
Left file only Ctrl+\, Ctrl+3 Show the left file, the one you chose in the Open File dialog.
Right file only Ctrl+\, Ctrl+4 Show the right file, the one you right-clicked on.
Ignore Trim Whitespace Ctrl+\, Ctrl+Space Do not show spaces at the end of a line as a difference.
Synchronize Views Ctrl+\, Ctrl+Down Arrow Lock the scroll bars together, so that you are always looking at the same part of both files.
