Quickstart: Docker in Visual Studio

With Visual Studio, you can easily build, debug, and run containerized .NET, ASP.NET, and ASP.NET Core apps and publish them to Azure Container Registry, Docker Hub, Azure App Service, or your own Container Registry. In this article, you publish an ASP.NET Core app to Azure Container Registry.

Prerequisites

• Docker Desktop
• Visual Studio 2022 with the Web Development, Azure Tools workload, and/or .NET desktop development workload installed
• To publish to Azure Container Registry, an Azure subscription. Sign up for a free trial.

Installation and setup

For Docker installation, first review the information at Docker Desktop for Windows: What to know before you install. Next, install Docker Desktop.

Add a project to a Docker container

1. Before you create the Visual Studio project, make sure Docker Desktop is running the type of containers (Windows or Linux) that you intend to use in your Visual Studio project.

   To change the container type used by Docker Desktop, right-click the Docker icon (whale) in the Taskbar and choose either Switch to Linux containers or Switch to Windows containers.

   Warning

   If you switch the container type after you create the Visual Studio project, the Docker image files might fail to load.

2. Create a new project using the ASP.NET Core Web App template or if you want to use the .NET Framework instead of .NET Core, choose ASP.NET Web Application (.NET Framework).

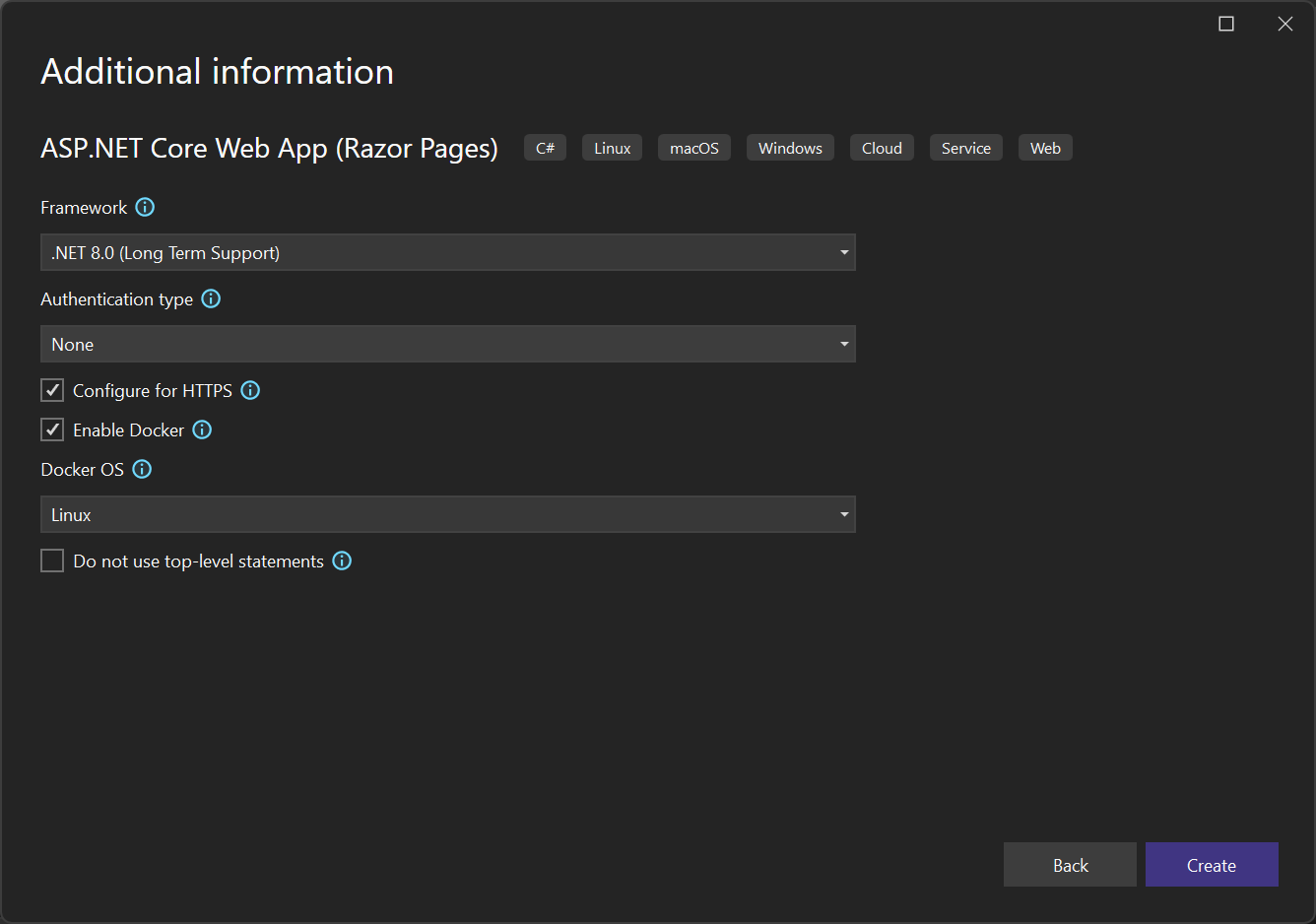

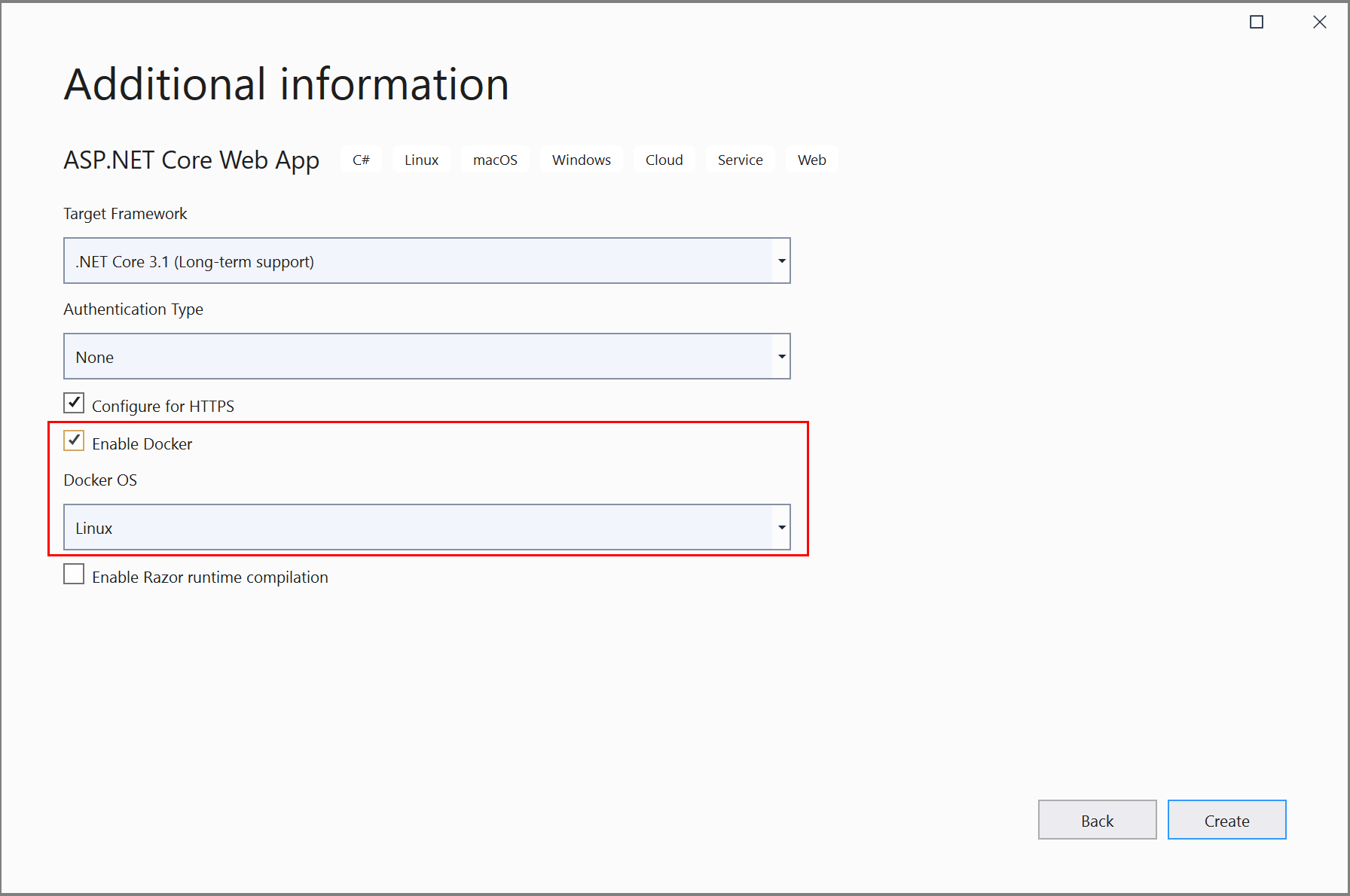

3. On the Create new web application screen, make sure the Enable Docker Support checkbox is selected.



   The screenshot shows the latest release with .NET 8.0. If you're using .NET Framework, the dialog looks a bit different.

4. Select the type of container you want (Windows or Linux) and select Create.

Dockerfile overview

Visual Studio creates a Dockerfile in your project, which provides the recipe for how to create a final Docker image. For more information, see the Dockerfile reference for details about the commands used in the Dockerfile.

#See https://aka.ms/customizecontainer to learn how to customize your debug container and how Visual Studio uses this Dockerfile to build your images for faster debugging.

# This stage is used when running from VS in fast mode (Default for Debug configuration)
FROM mcr.microsoft.com/dotnet/aspnet:8.0-nanoserver-1809 AS base
WORKDIR /app
EXPOSE 8080
EXPOSE 8081

# This stage is used to build the service project
FROM mcr.microsoft.com/dotnet/sdk:8.0-nanoserver-1809 AS build
ARG BUILD_CONFIGURATION=Release
WORKDIR /src
COPY ["MyWepApp/MyWebApp.csproj", "MyWebApp/"]
RUN dotnet restore "./MyWebApp/./MyWebApp.csproj"
COPY . .
WORKDIR "/src/MyWebApp"
RUN dotnet build "./MyWebApp.csproj" -c %BUILD_CONFIGURATION% -o /app/build

# This stage is used to publish the service project to be copied to the final stage
FROM build AS publish
ARG BUILD_CONFIGURATION=Release
RUN dotnet publish "./MyWebApp.csproj" -c %BUILD_CONFIGURATION% -o /app/publish /p:UseAppHost=false

# This stage is used in production or when running from VS in regular mode (Default when not using the Debug configuration)
FROM base AS final
WORKDIR /app
COPY --from=publish /app/publish .
ENTRYPOINT ["dotnet", "MyWebApp.dll"]

The preceding Dockerfile is based on the Microsoft Container Registry (MCR) .NET 8 image and includes instructions for modifying the base image by building the project named MyWebApp and adding it to the container. If you're using the .NET Framework, the base image is different.

When the new project dialog's Configure for HTTPS checkbox is checked, the Dockerfile exposes two ports. One port is used for HTTP traffic; the other port is used for HTTPS. If the checkbox isn't checked, a single port (80) is exposed for HTTP traffic.

With Visual Studio 2022 version 17.7 or later, you can target .NET 8. In that case, you have the benefit of being able to run your app more securely, as a normal user, rather than with elevated permissions. The default Dockerfile generated by Visual Studio for .NET 8 projects is configured to run as a normal user. To enable this behavior on an existing project, add the line USER app to the Dockerfile in the base image. Also, because port 80 is restricted for normal users, expose ports 8080 and 8081 instead of 80 and 443. Port 8080 is used for HTTP traffic, and port 8081 is used for HTTPS. To run as a normal user, the container must use a .NET 8 base image, and the app must run as a .NET 8 app. When configured correctly, your Dockerfile should contain code as in the following example:

FROM mcr.microsoft.com/dotnet/aspnet:8.0-preview AS base
USER app
WORKDIR /app
EXPOSE 8080
EXPOSE 8081

Debug

Select Docker from the debug dropdown list in the toolbar, and start debugging the app. You might see a message with a prompt about trusting a certificate; choose to trust the certificate to continue.

The Container Tools option in the Output window shows what actions are taking place. The first time, it might take a while to download the base image, but it's faster on subsequent runs.

After the build completes, the browser opens and displays your app's home page. In the browser address bar, you can see the localhost URL and port number for debugging.

Note

If you need to change ports for debugging, you can do that in the launchSettings.json file. See Container Launch Settings.

Containers window

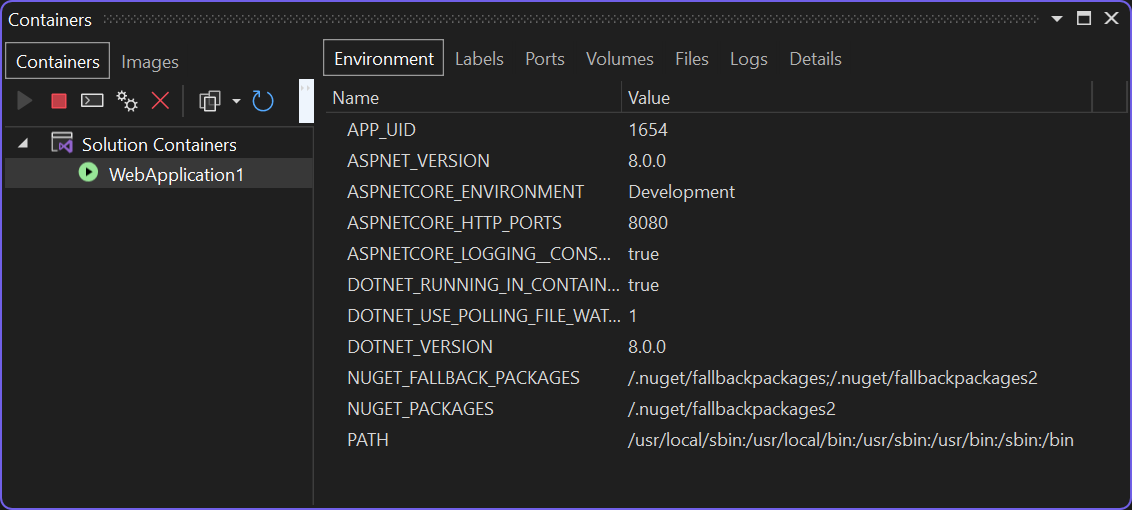

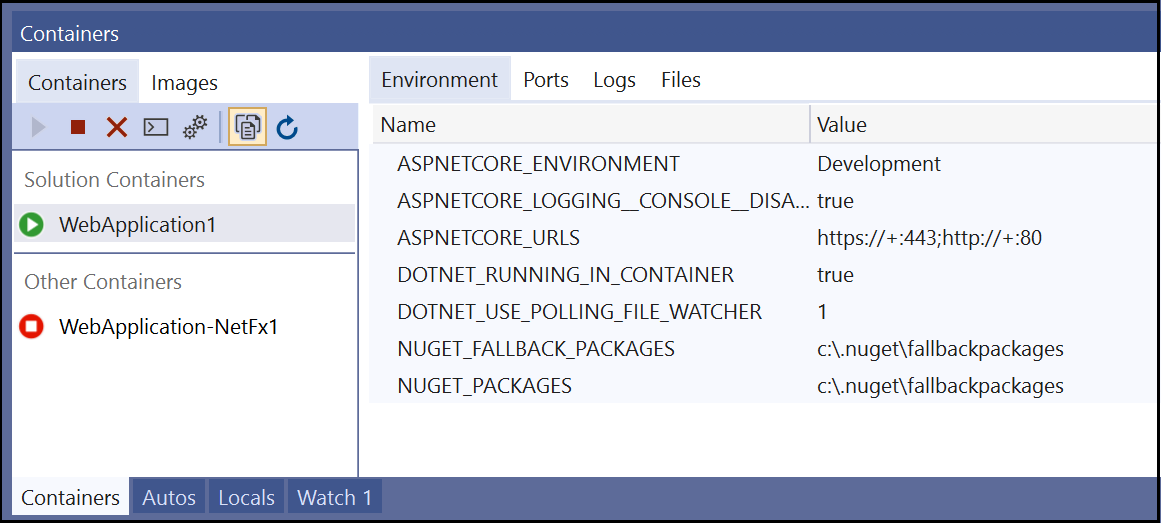

You can use the Containers window to view running containers on your machine and other images you have available.

Open the Containers window by using the search box in the IDE (press Ctrl+Q to use it), type in container, and choose the Containers window from the list.

You can mount the Containers window in a convenient place, such as below the editor, by moving it around and following the window placement guides.

In the window, find your container and step through each tab to view the environment variables, port mappings, logs, and the filesystem.

For more information, see Use the Containers window.

Publish Docker images

Once the develop and debug cycle of the app is completed, you can create a production image of the app.

1. Change the configuration dropdown list to Release and build the app.

2. Right-click your project in Solution Explorer and choose Publish.

3. On the Publish dialog, select the Docker Container Registry tab.

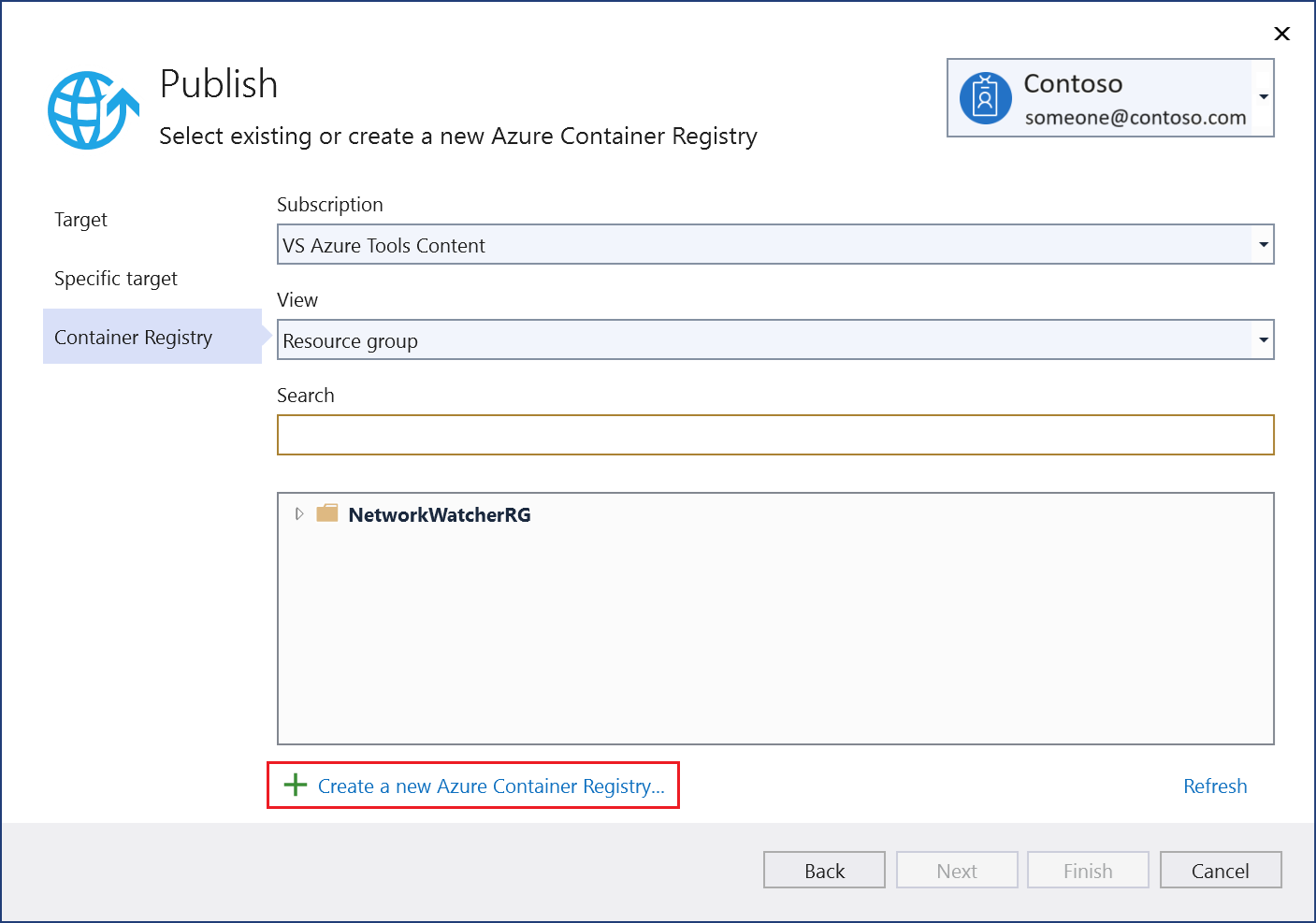

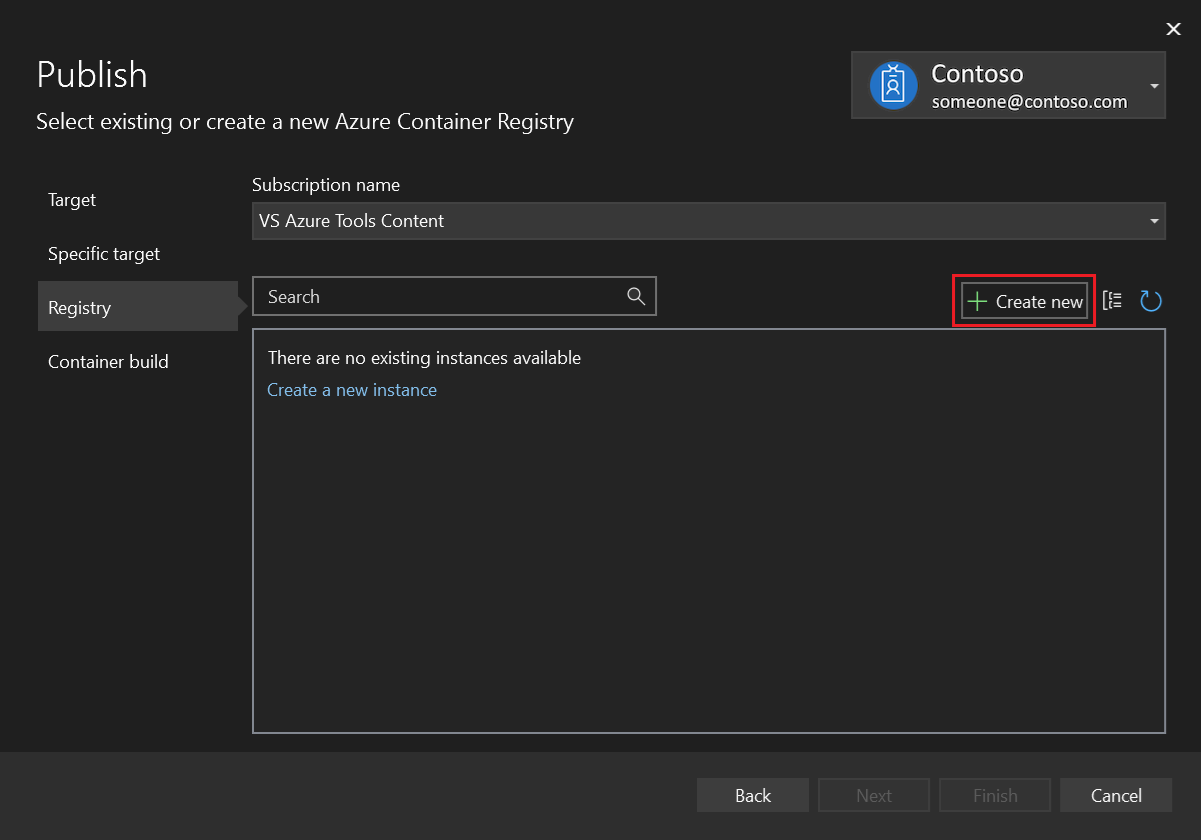

4. Choose Create New Azure Container Registry.

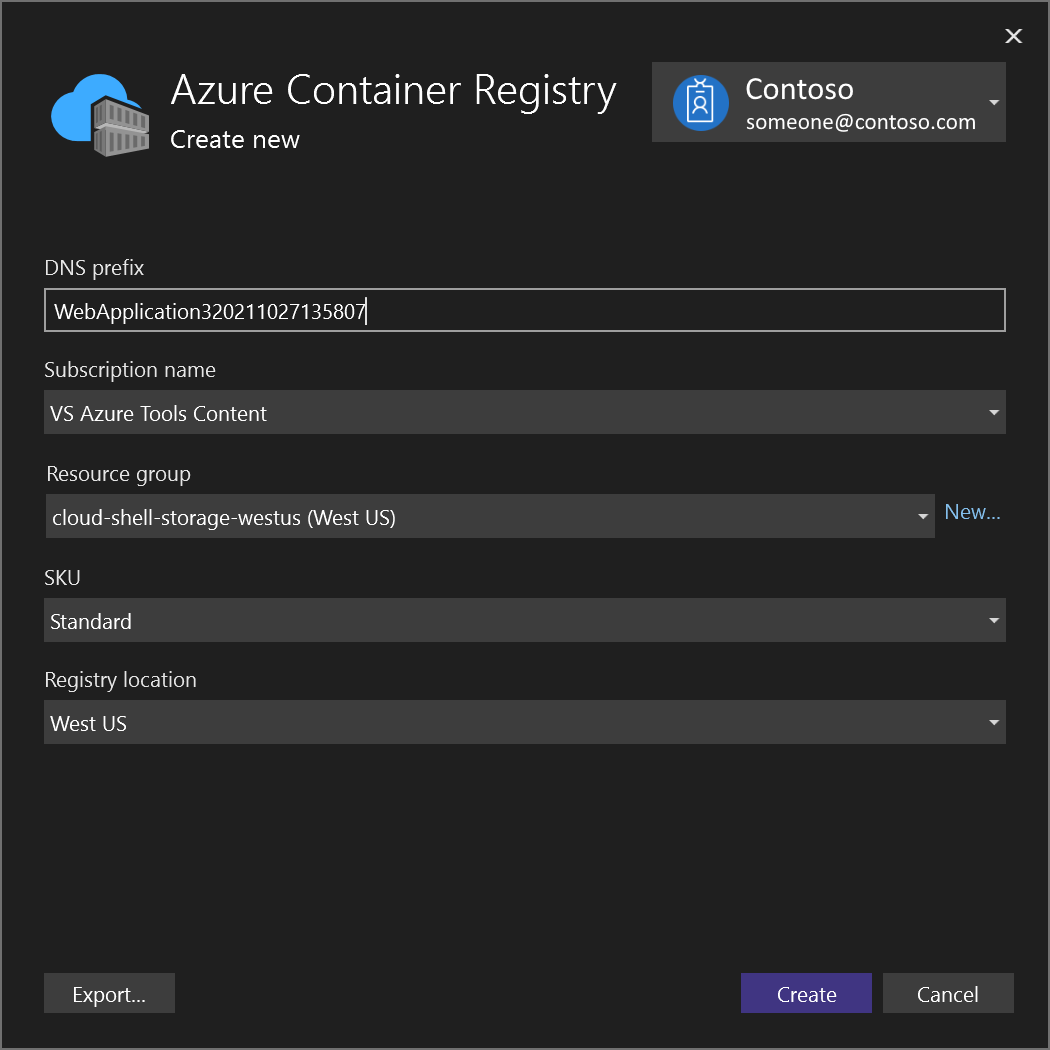

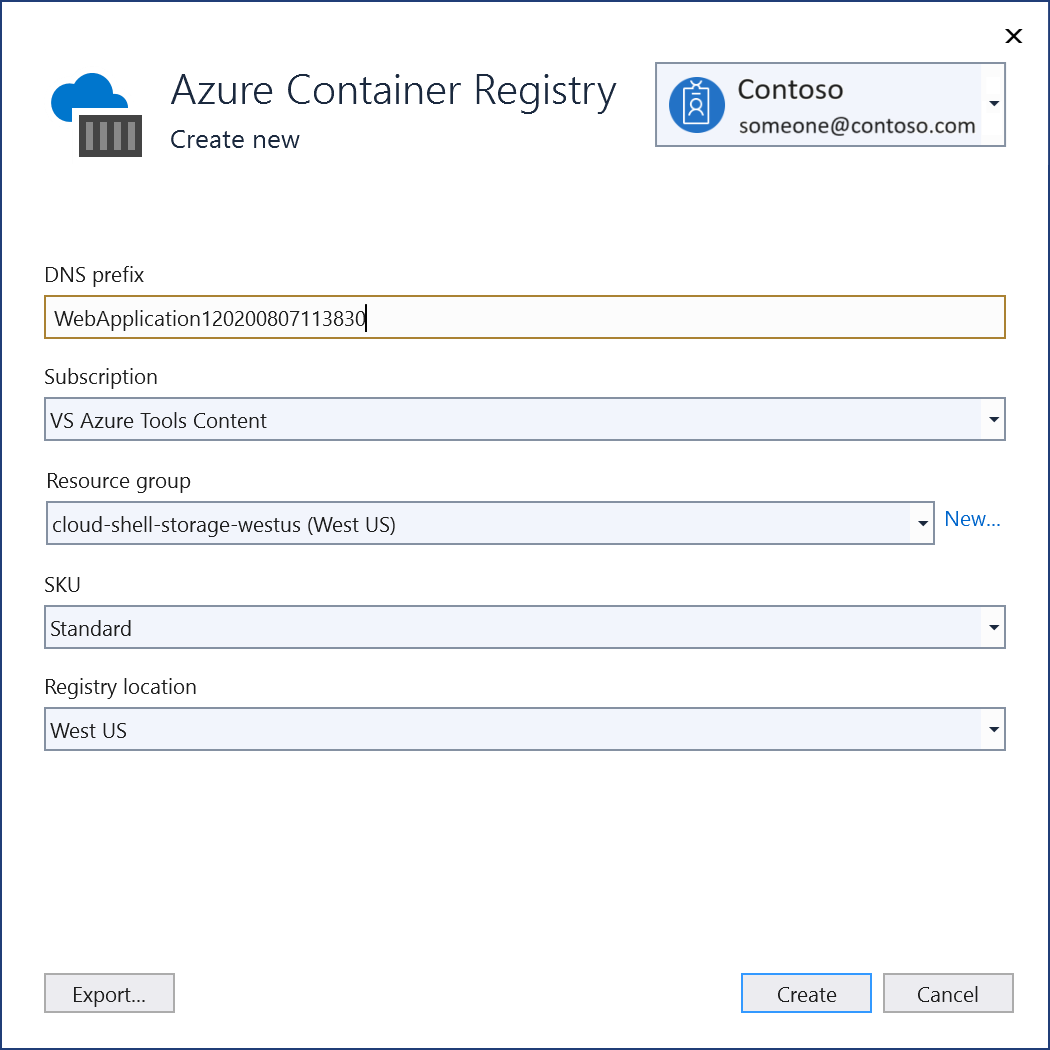

5. Fill in your desired values in the Create a new Azure Container Registry.

   Setting	Suggested value	Description
   DNS Prefix	Globally unique name	Name that uniquely identifies your container registry.
   Subscription	Choose your subscription	The Azure subscription to use.
   Resource Group	myResourceGroup	Name of the resource group in which to create your container registry. Choose New to create a new resource group.
   SKU	Standard	Service tier of the container registry
   Registry Location	A location close to you	Choose a Location in a region near you or near other services that can use your container registry.

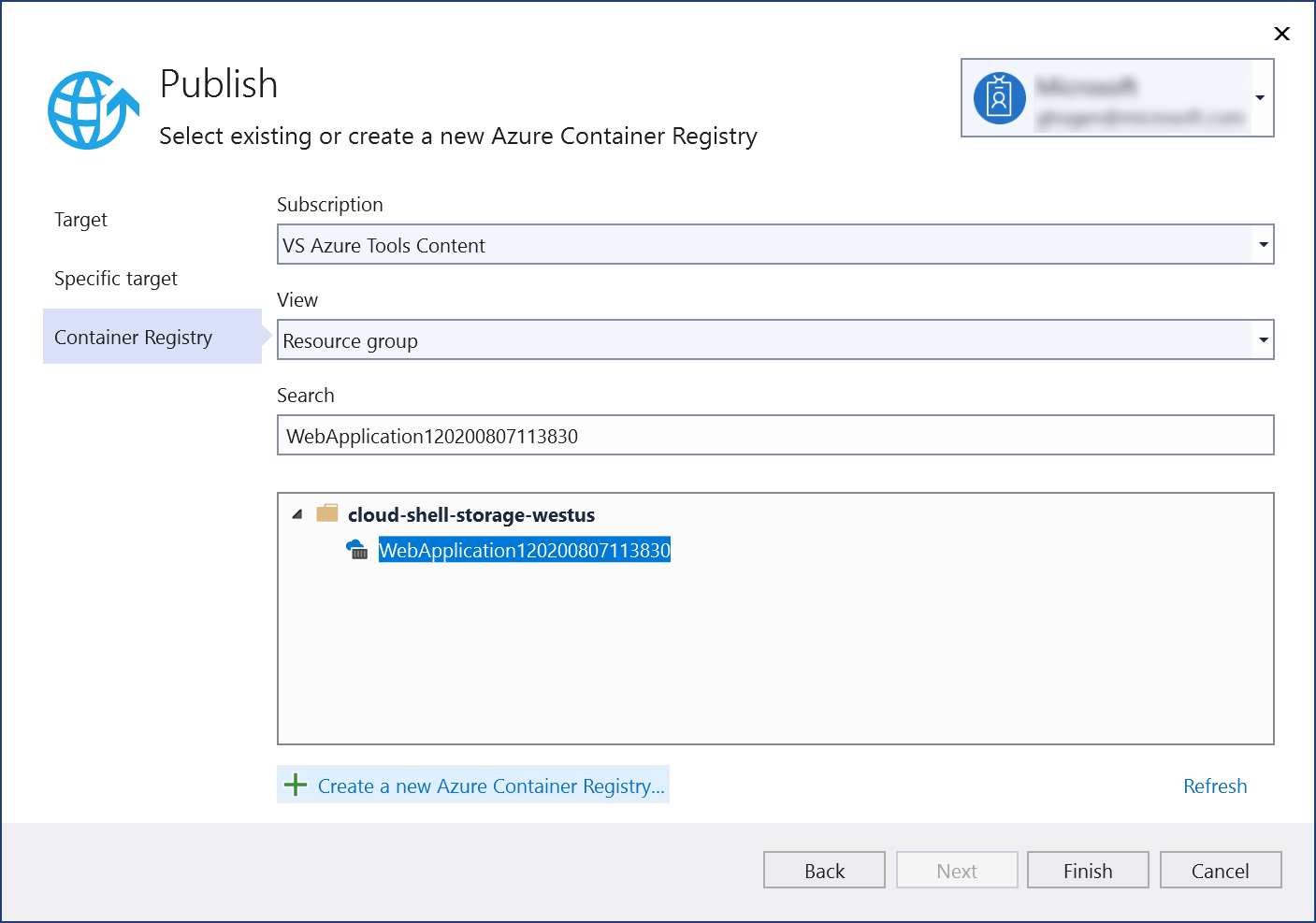

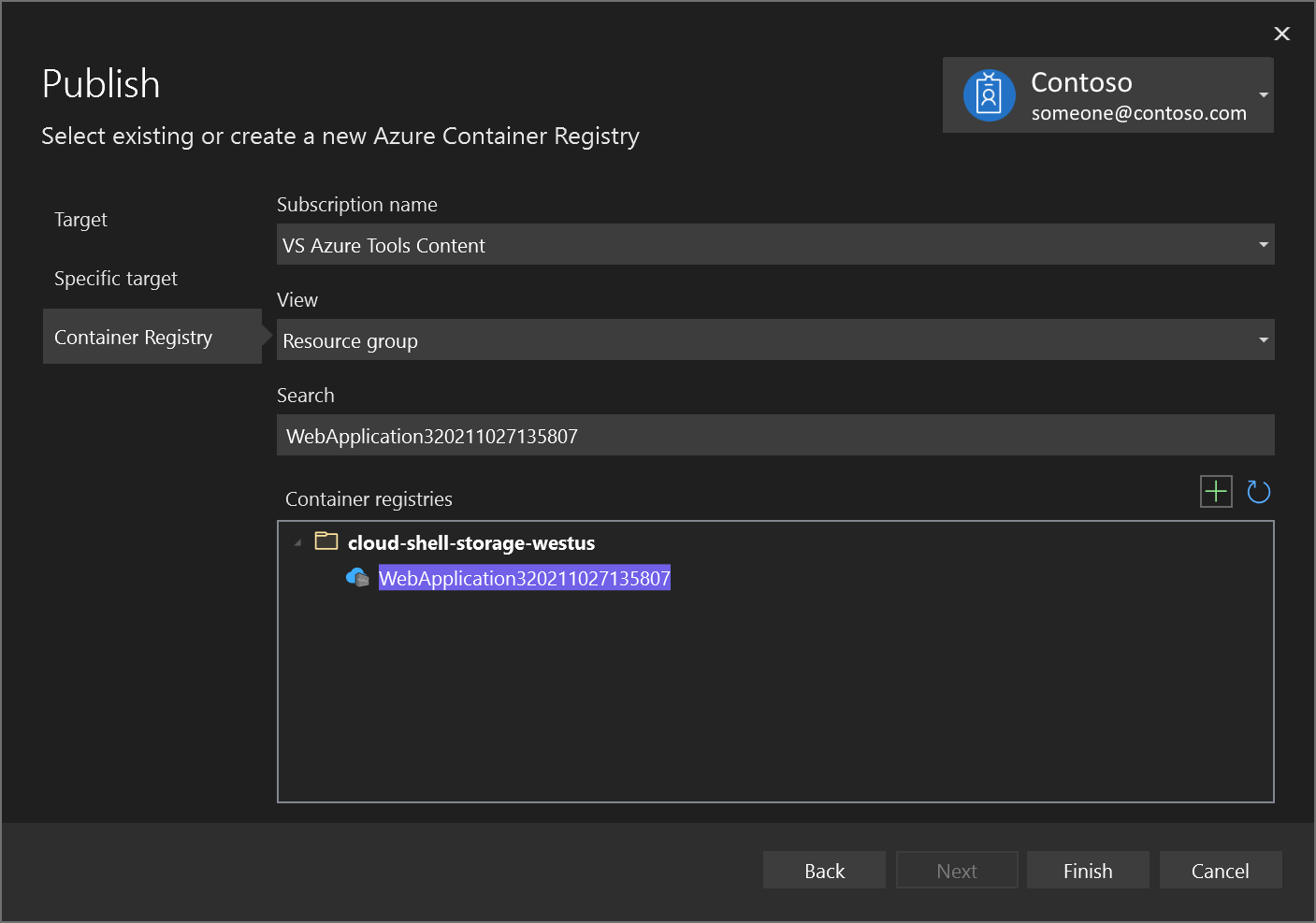

6. Select Create. The Publish dialog now shows the created registry.

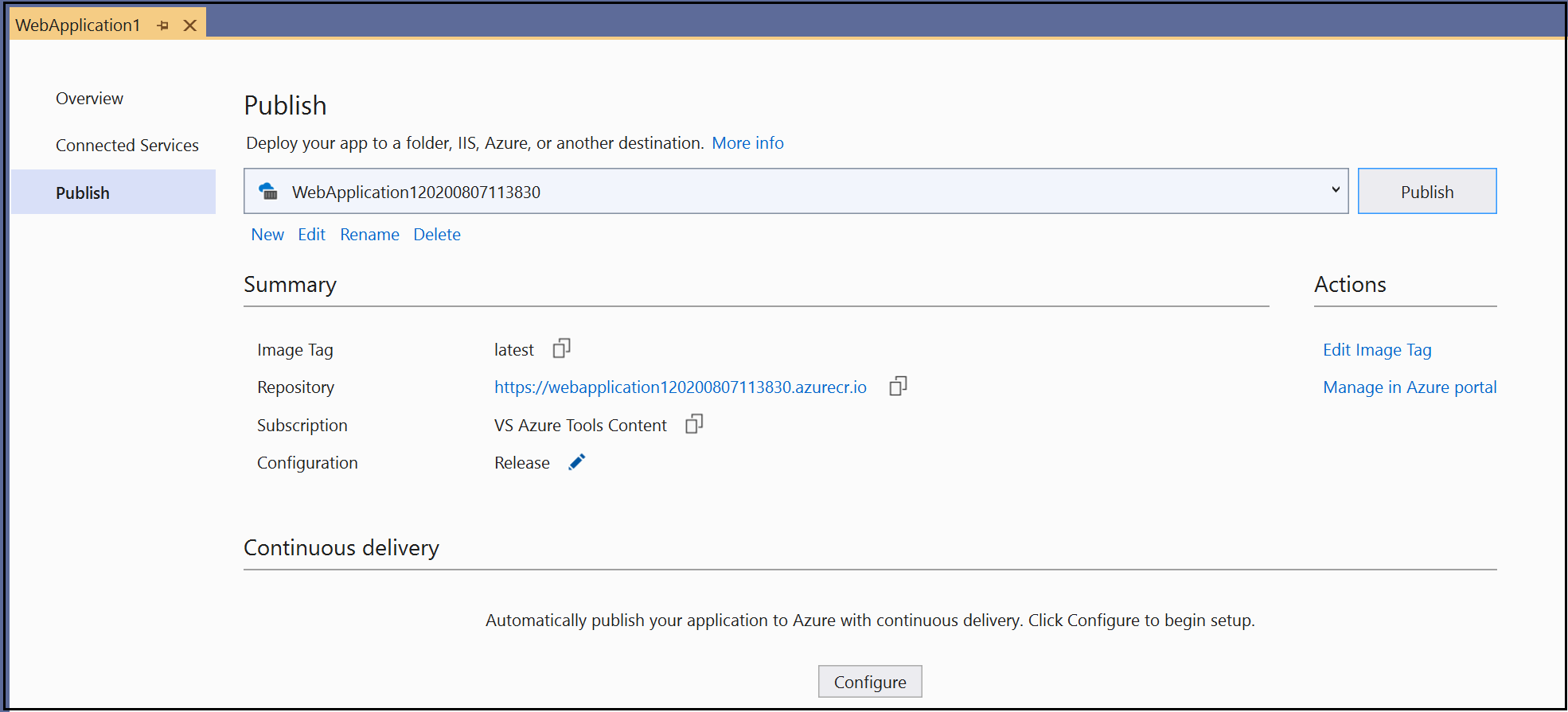

7. Choose Finish to complete the process of publishing your container image to the newly created registry in Azure.



Next steps

You can now pull the container from the registry to any host capable of running Docker images, for example Azure Container Instances.
