Enrolling a Fingerprint

  • Artikkeli

Enrolling a Fingerprint Overview

It is only possible for an Android application to leverage fingerprint authentication if the device has already been configured with fingerprint authentication. This guide will discuss how to enroll a fingerprint on an Android device or Emulator. Emulators do not have the actual hardware to perform a fingerprint scan, but it is possible to simulate a fingerprint scan with the help of the Android Debug Bridge (described below). This guide will discuss how to enable screen lock on an Android device and enroll a fingerprint for authentication.

Requirements

To enroll a fingerprint, you must have an Android device or an emulator running API level 23 (Android 6.0).

The use of the Android Debug Bridge (ADB) requires familiarity with the command prompt, and the adb executable must be in the PATH of your Bash, PowerShell, or Command Prompt environment.

Configuring a Screen Lock and Enrolling a Fingerprint

To setup a screen lock, perform the following steps:

  1. Go to Settings > Security, and select Screen lock:

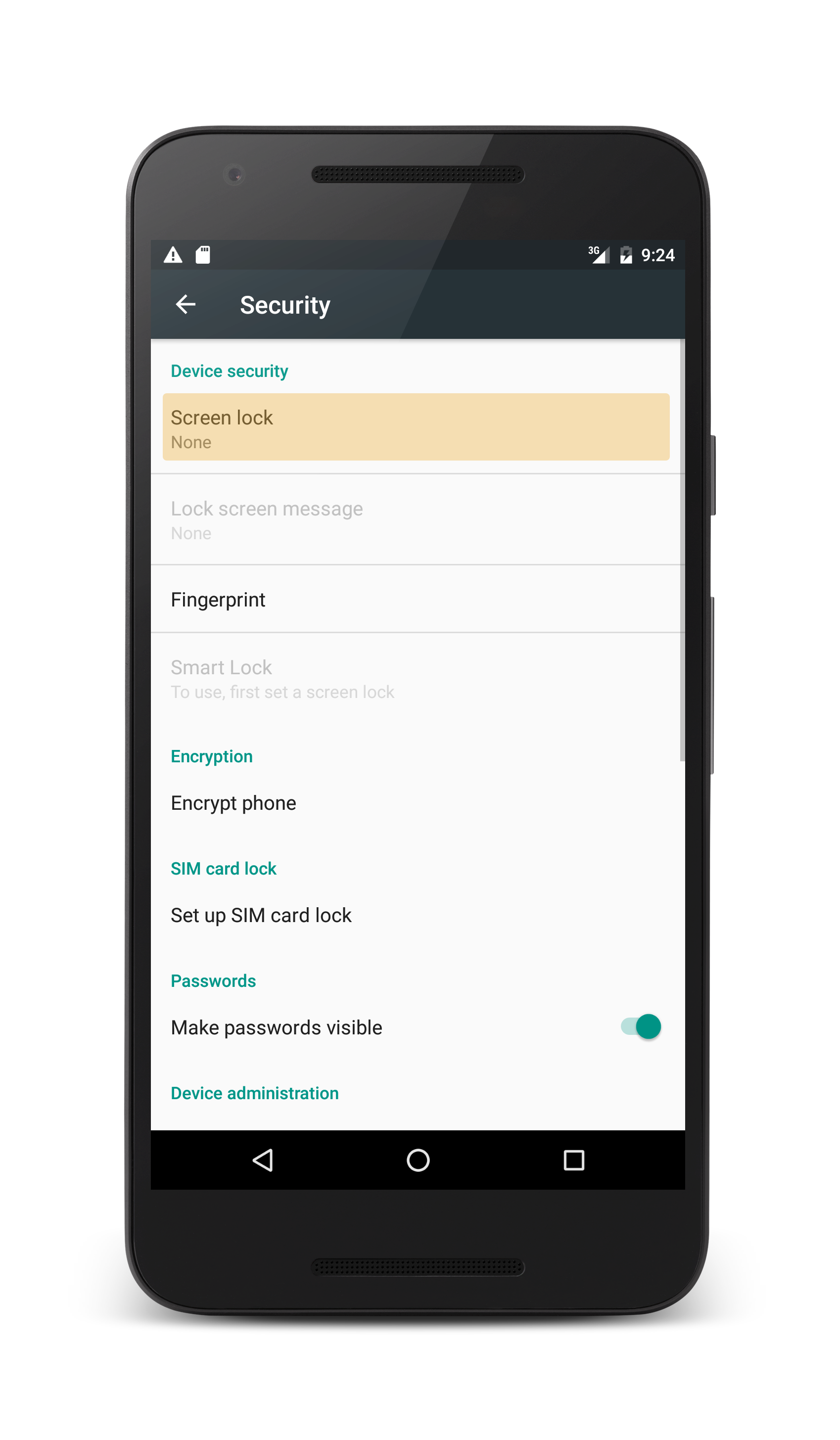

    Location of Screen lock selection on the Security screen

  2. The next screen that appears will allow you select and configure one of the screen lock security methods:

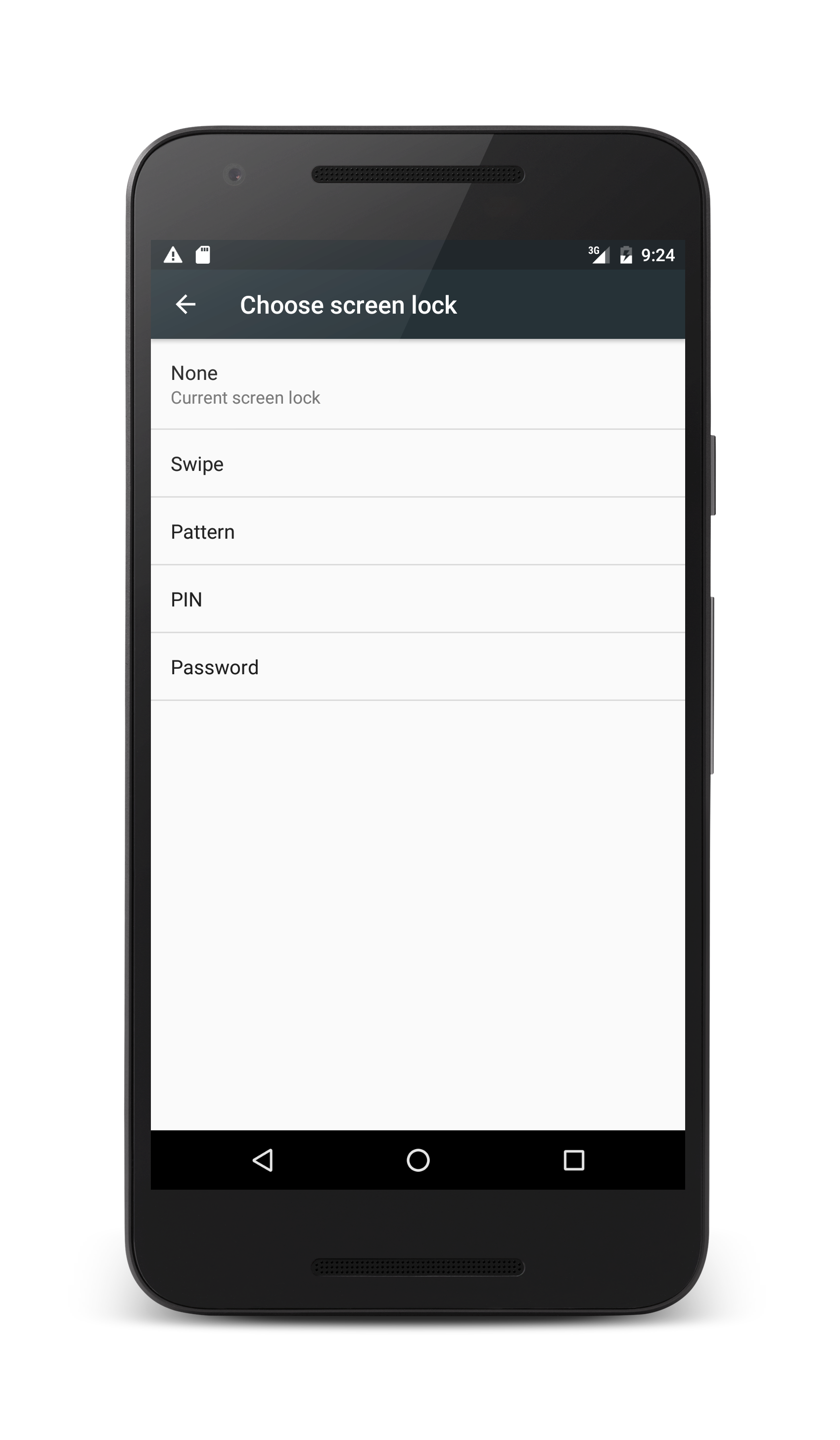

    Select Swipe, Pattern, PIN, or Password

    Select and complete one of the available screen lock methods.

  3. Once the screenlock is configured, return to the Settings > Security page and select Fingerprint:

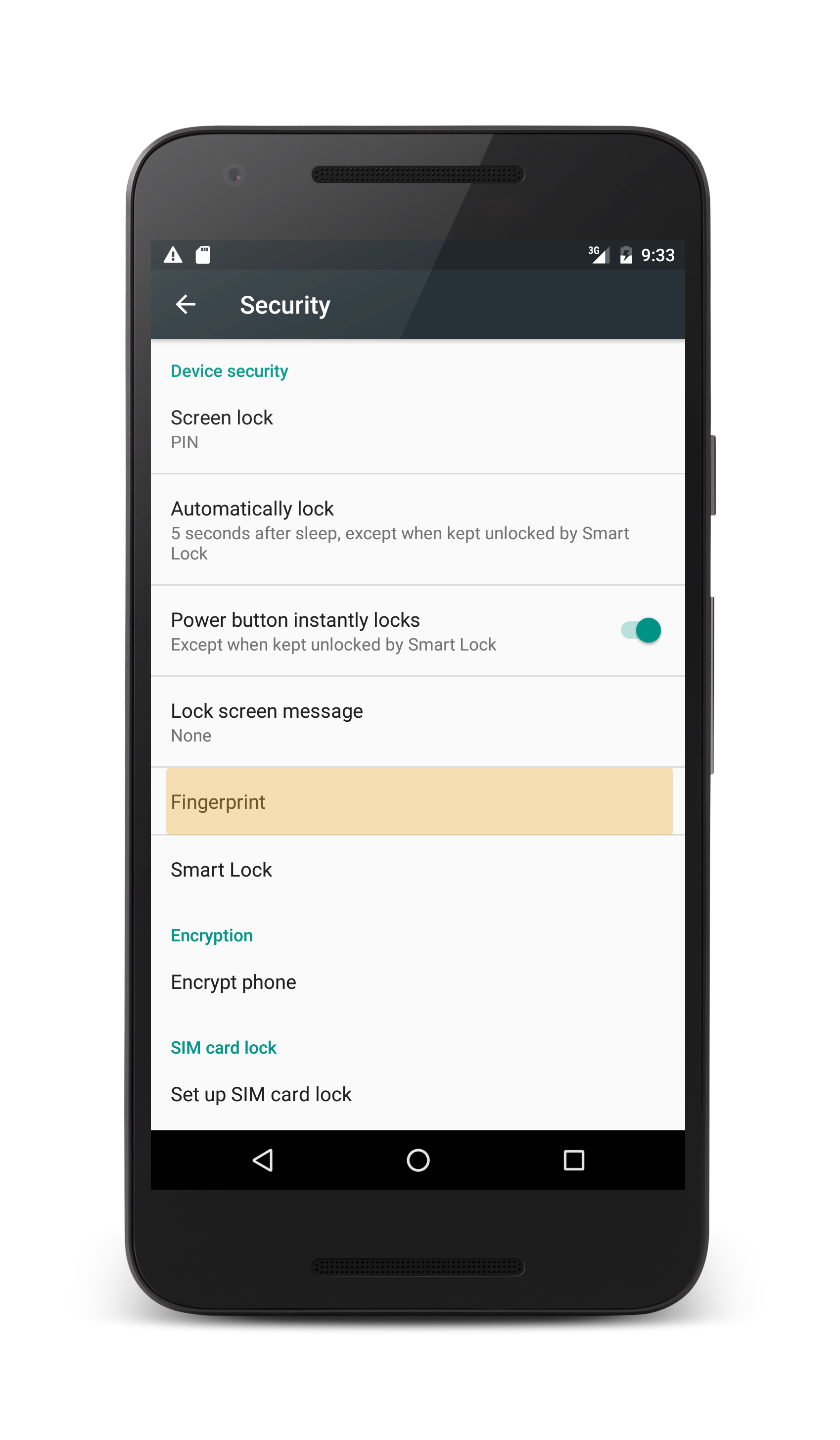

    Location of the Fingerprint selection on the Security screen

  4. From there, follow the sequence to add a fingerprint to the device:

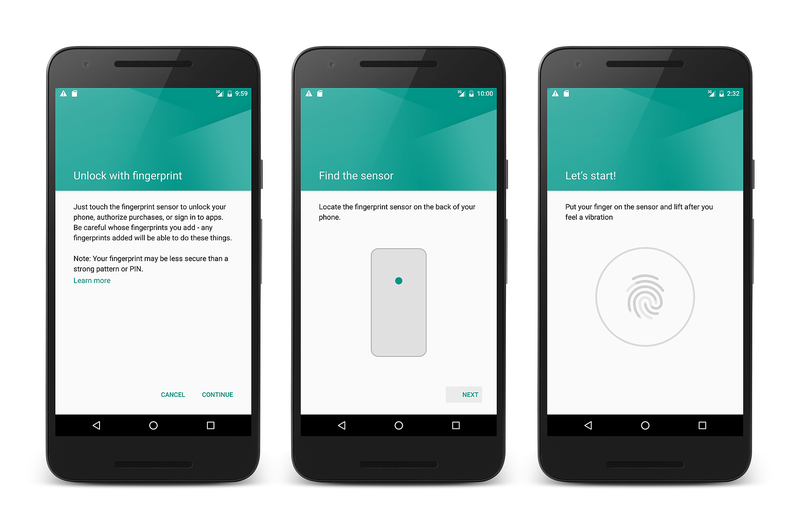

    Sequence of screenshots for adding a fingerprint to the device

  5. In the final screen you are prompted to place your finger on the fingerprint scanner:

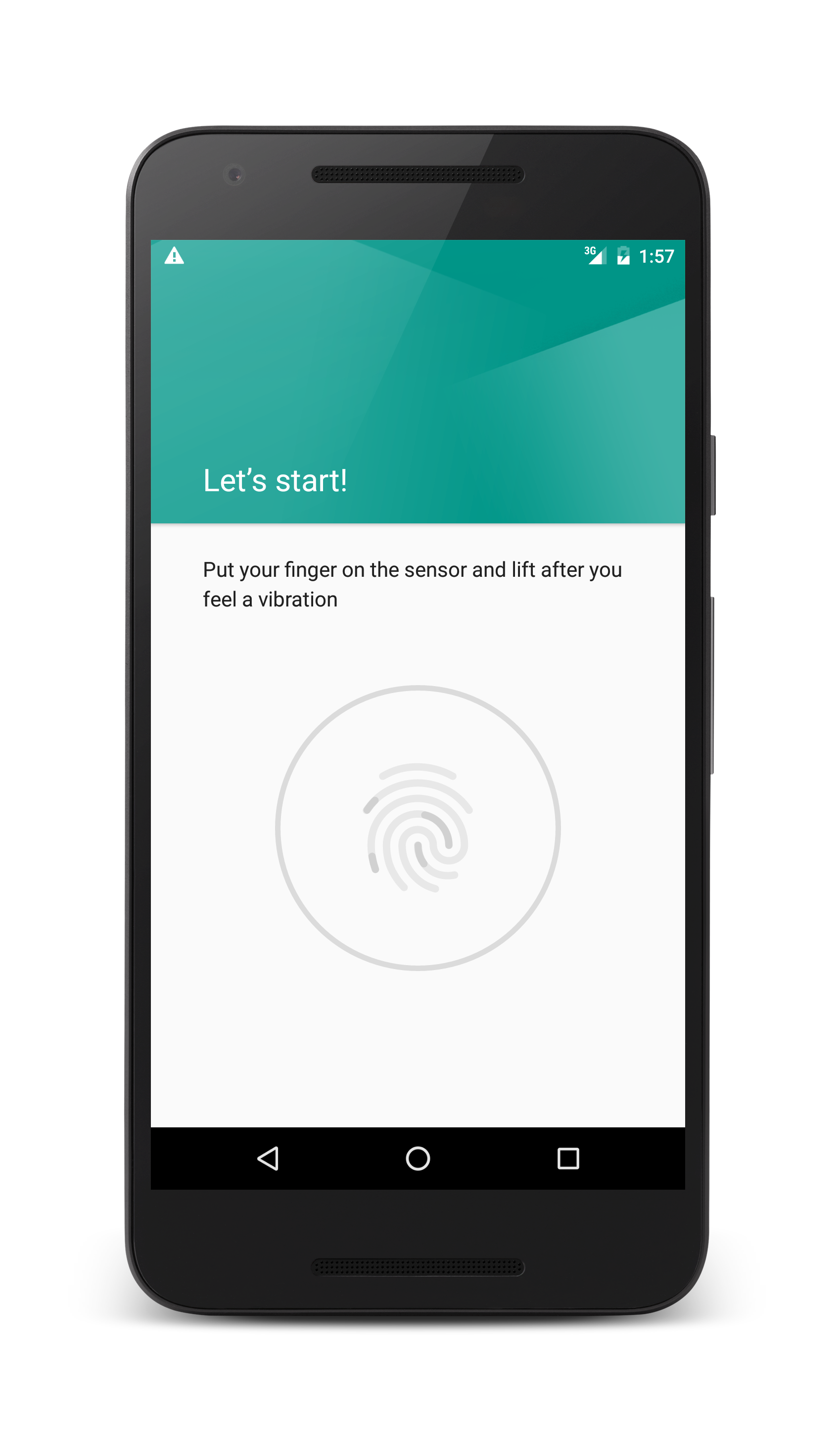

    Screen that prompts you to put your finger on the sensor

    If you are using an Android device, complete the process by touching a finger to the scanner.

Simulating a Fingerprint Scan on the Emulator

On an Android emulator, it is possible to simulate a fingerprint scan by using the Android Debug Bridge. On OS X start a Terminal session while on Windows start a command prompt or a Powershell session and run adb:

$ adb -e emu finger touch 1

The value of 1 is the finger_id for the finger that was "scanned". It is a unique integer that you assign for each virtual fingerprint. In the future when the app is running you can run this same ADB command each time the emulator prompts you for a fingerprint, you can run the adb command and pass it the finger_id to simulate the fingerprint scan.

After the fingerprint scan is complete, Android will notify you that the fingerprint has been added:

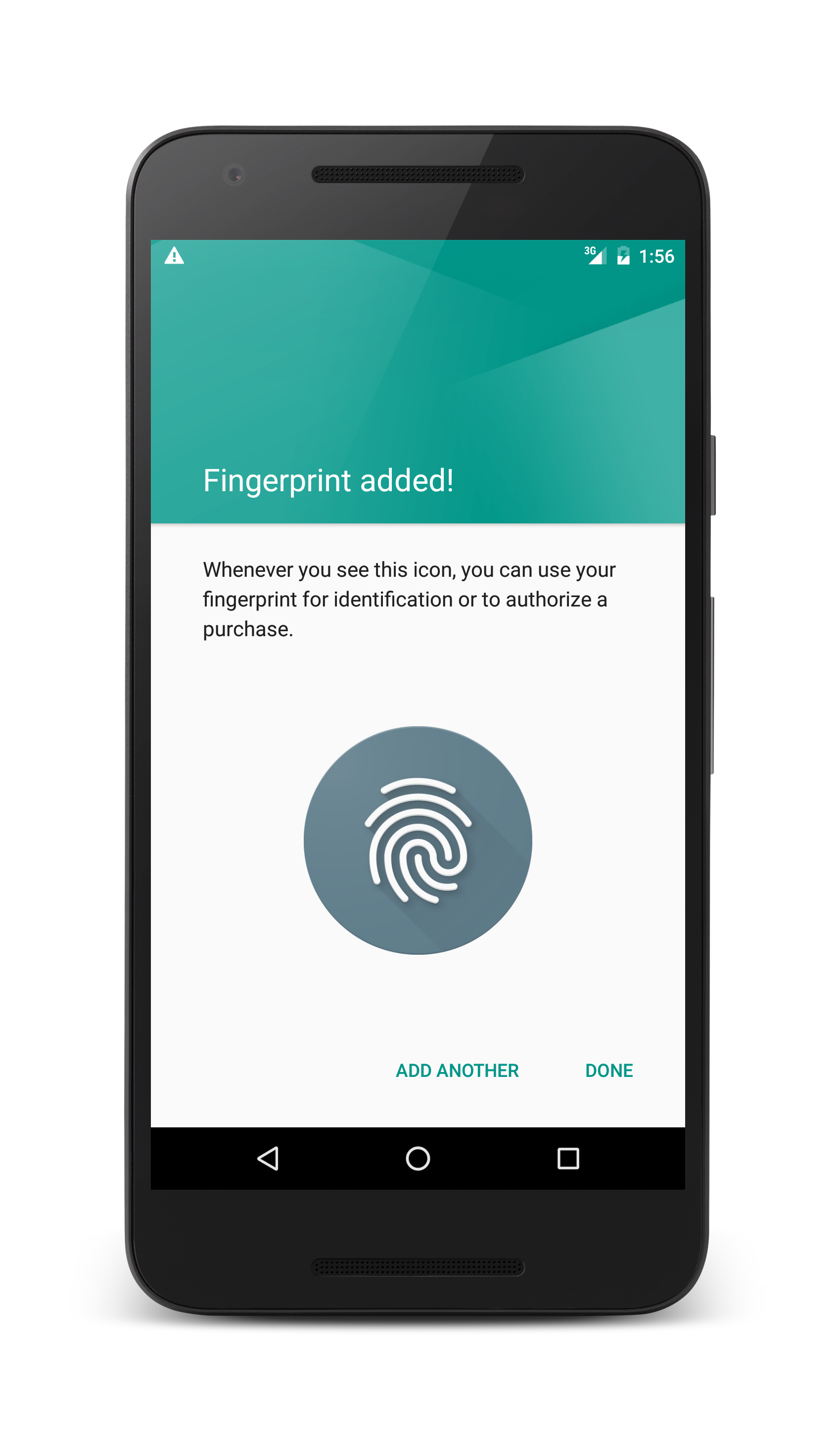

Screen displaying Fingerprint added!

Summary

This guide covered how to setup a screen lock and enroll a fingerprint on an Android device or in an Android emulator.
