Opening source files in Visual Studio Code

  • Artikkeli

The Open source files in Visual Studio Code experiment allows you to use Microsoft Edge DevTools, but then edit your files in Visual Studio Code instead of in the code editor of the DevTools Sources tool.

When you use this experiment, if you use Visual Studio Code and you use DevTools to change your CSS rules, you no longer have to use the code editor in the Sources tool of DevTools. You can simply use the code editor in Visual Studio Code. When you turn on this experiment, local files will get a different treatment.

Setting up editing local files in Visual Studio Code

First, select DevTools > Settings > Experiments > Open source files in Visual Studio Code, and then re-start DevTools.

With this experiment enabled, suppose that in Microsoft Edge, you go to a local server (such as http://localhost or http://127.0.0.1), or open a local file.

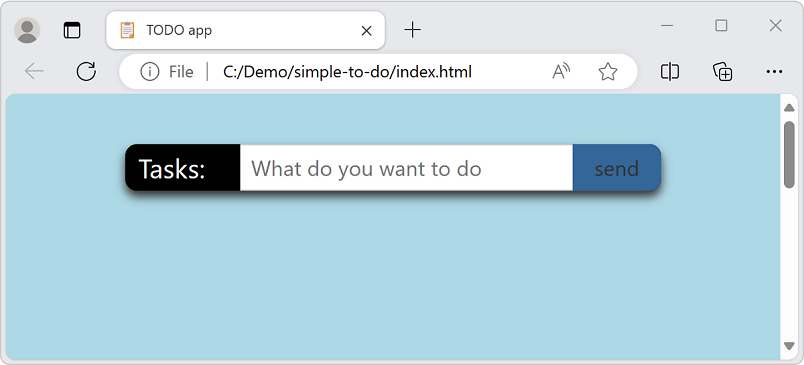

Microsoft Edge with a local file open

When you open DevTools, you are prompted to identify your root folder. You can opt out by selecting Close (x) or selecting the Don't show again button. You can get more information by selecting the Learn more link.

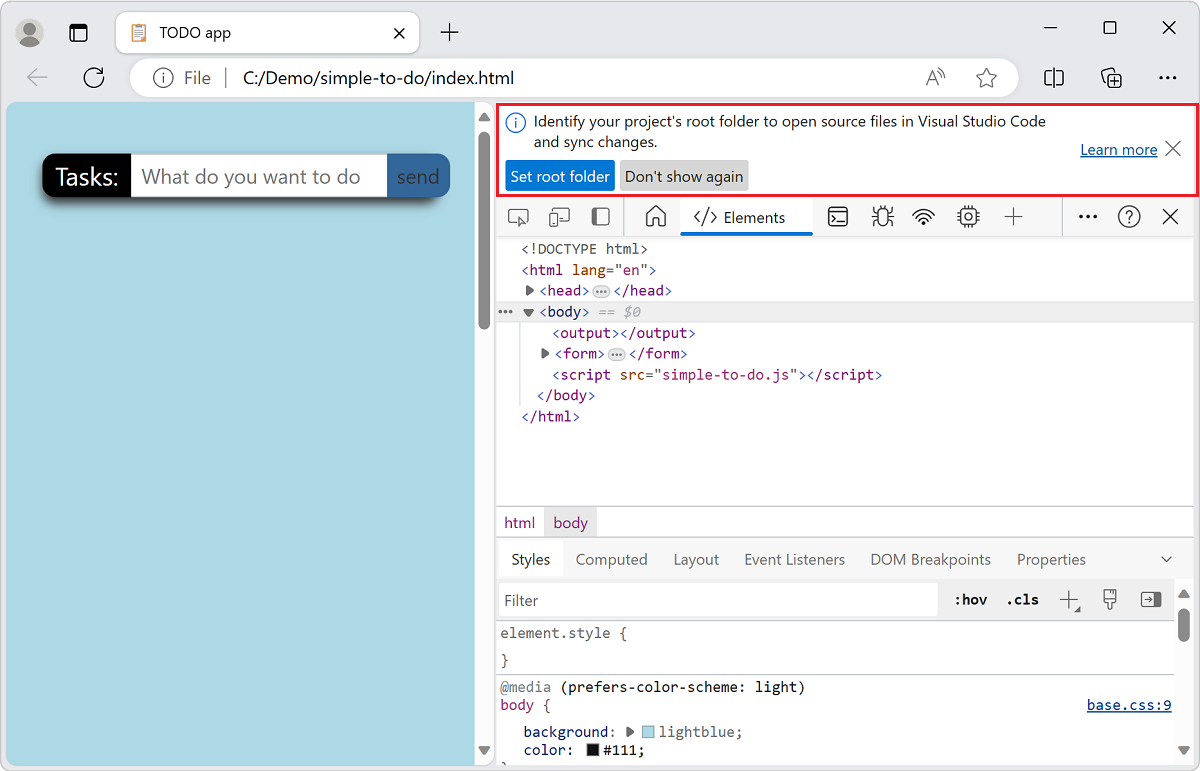

Developer Tools showing an information bar asking you to identify your root folder

If you select the Set root folder button, the operating system prompts you to navigate to the folder and select it.

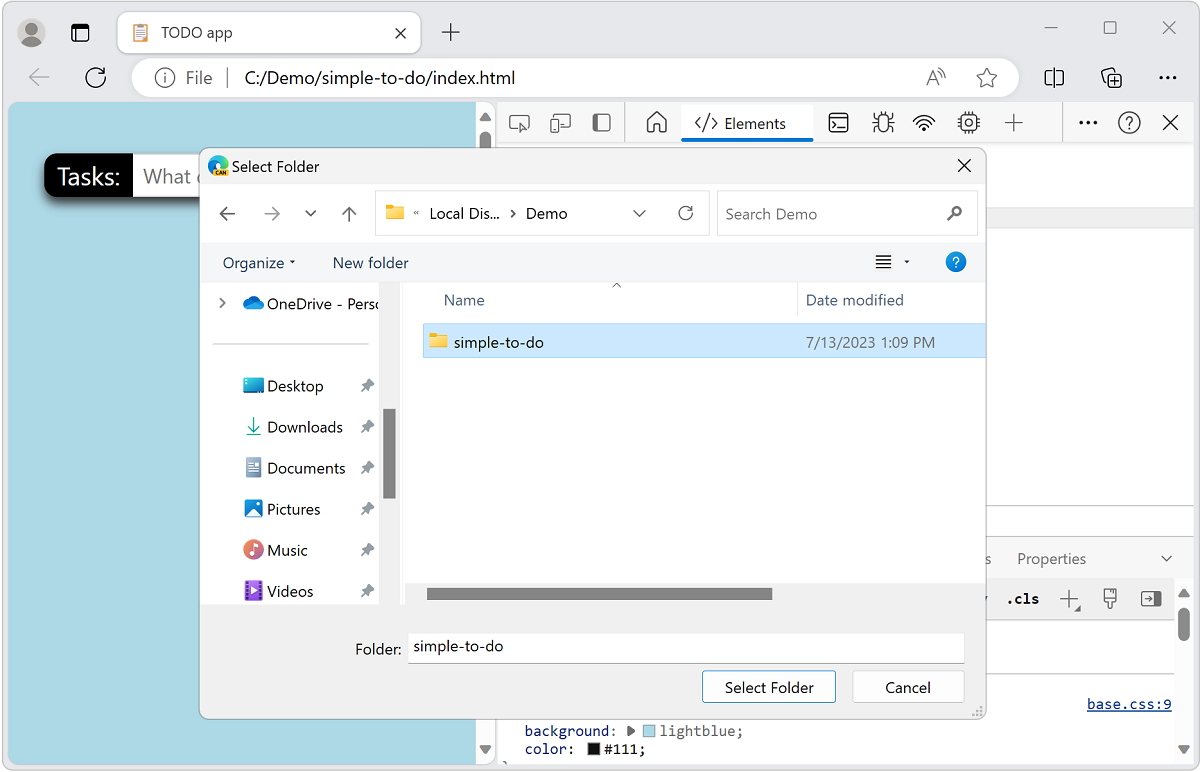

Picking the location of the root folder using the file manager of your operating system

After you select a root folder, you need to grant DevTools full access to the folder. Above the toolbar, a prompt with Allow or Deny buttons asks you whether to grant permission to DevTools to access the folder.

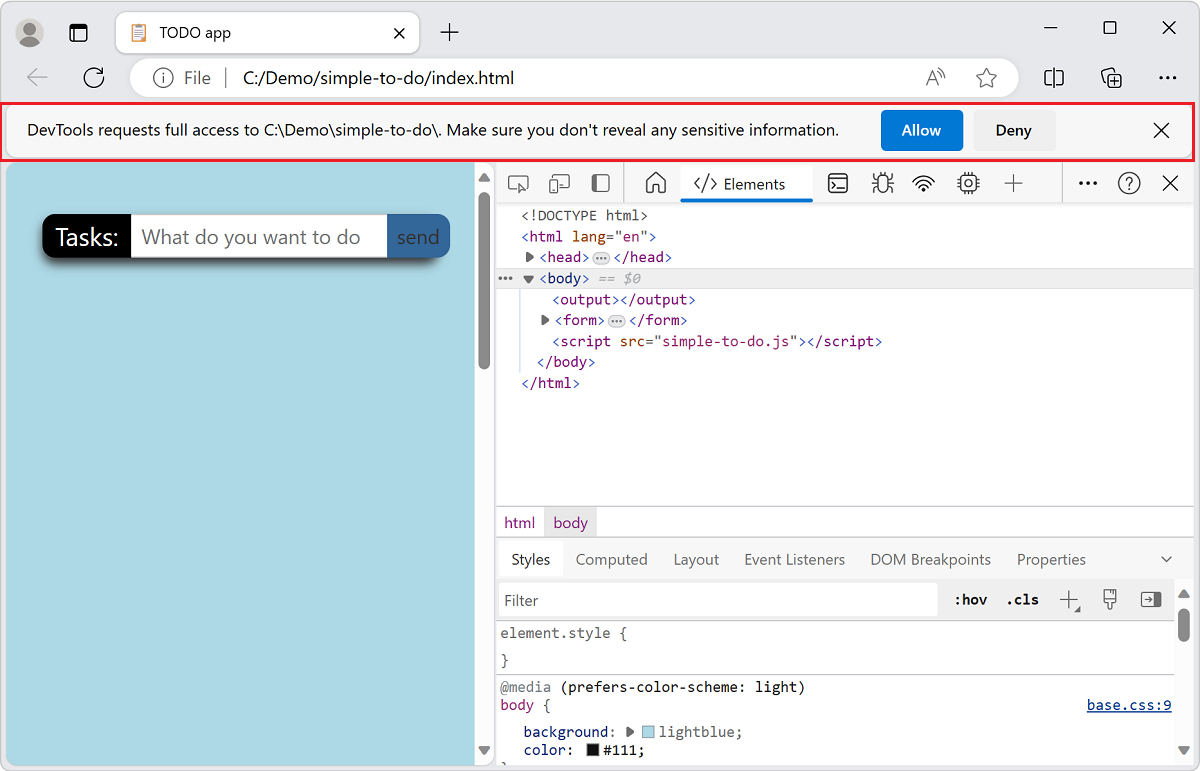

DevTools asking to get access to the folder

After you grant permission, the folder you select is added as a Workspace in DevTools, in the Filesystem tab of the Sources tool. This means that any file you edit in DevTools now opens in Microsoft Visual Studio Code instead of in the Sources tool. As an indicator, we show a linked icon next to the file name. In this example, we'll select the base.css link in the Styles tool.

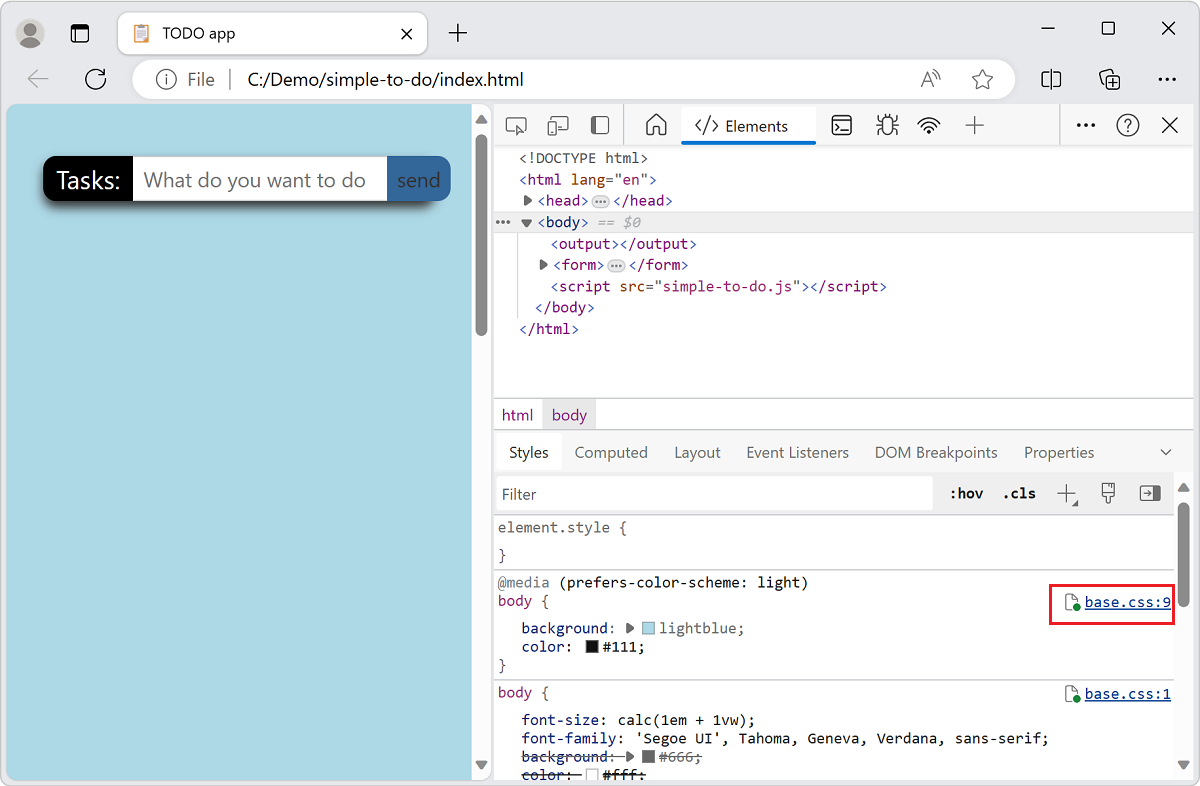

Selecting a file link in the Styles tool opens the file in Visual Studio Code

DevTools opens an instance of Visual Studio Code and shows all the files in the root folder. DevTools also opens the file you've selected, scrolled to the correct line of the CSS selector.

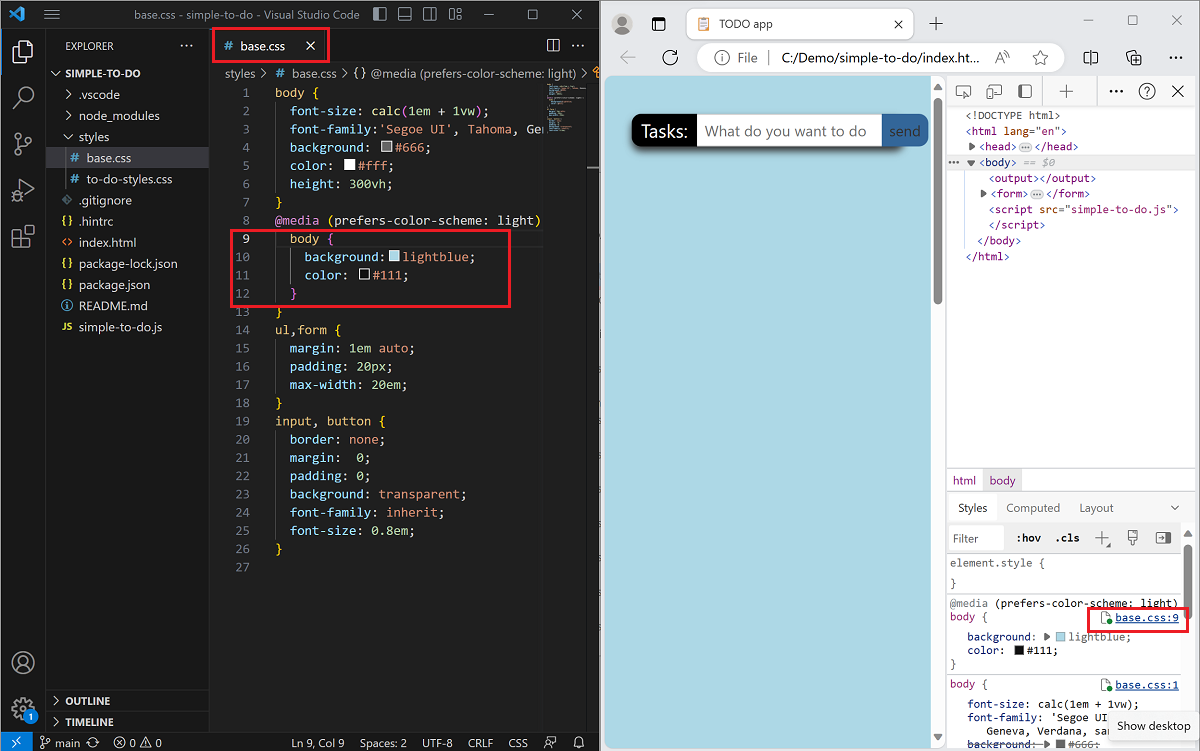

Visual Studio Code open with the root folder files and the selected file open

Any changes that you make to the file in DevTools will now be synced to Visual Studio Code. For example, if you change the background to be green for the styles of the body, the same CSS rule will automatically be added to the base.css file in the code editor of Visual Studio Code.

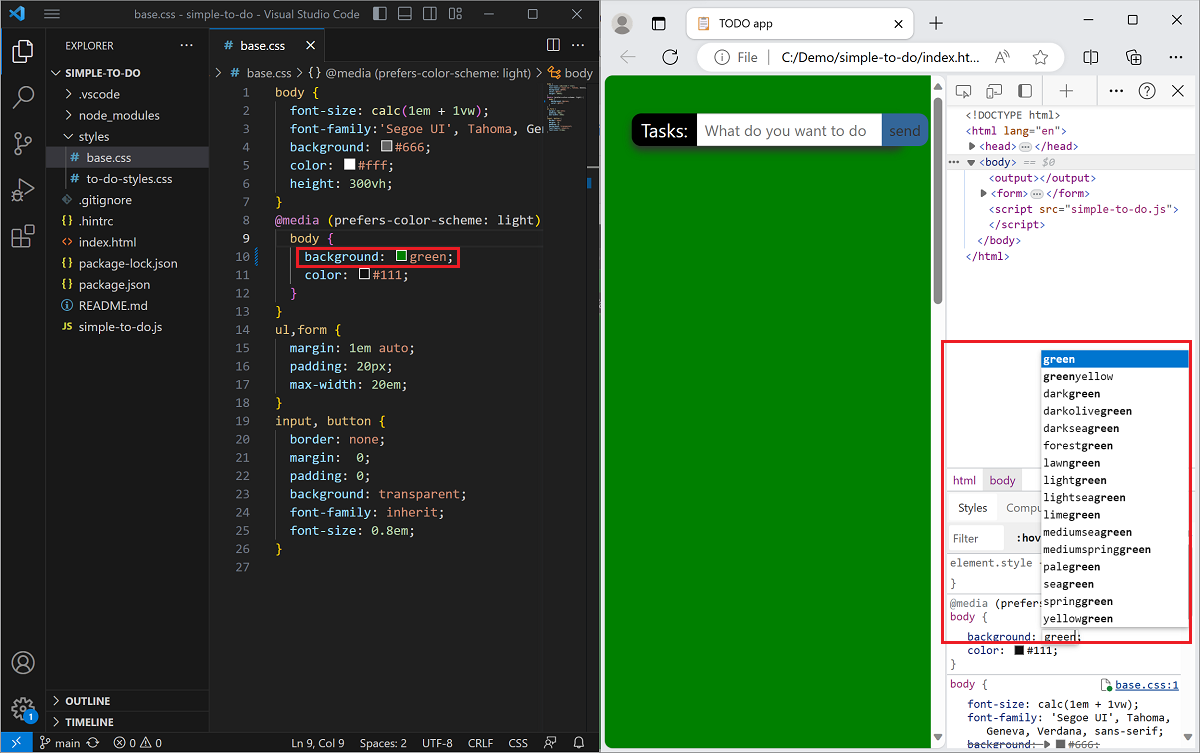

Changes to the code in the Styles tool now are reflected in the source code in Visual Studio Code

Changing the workspace settings

To change the behavior of the Open source files in Visual Studio Code experiment, go to the DevTools Settings page by clicking Settings (the gear icon) or pressing Shift+?, and then select the Workspace page:

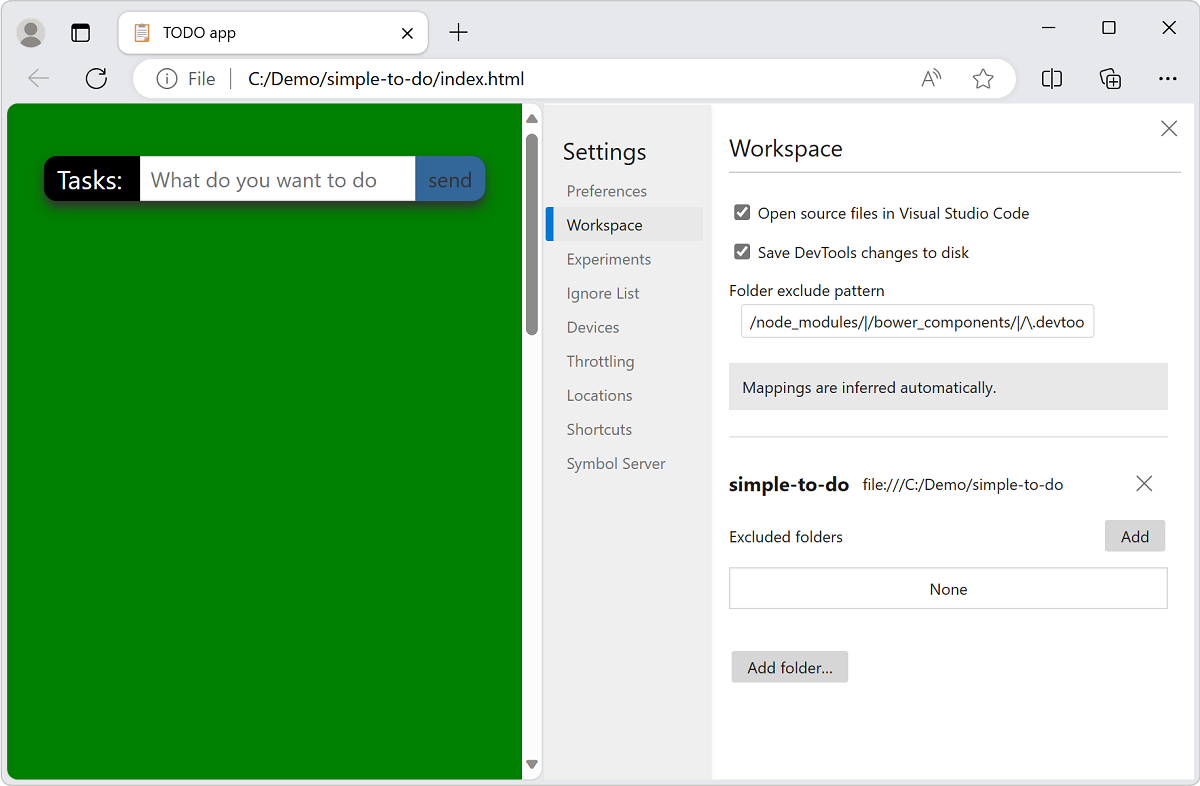

The settings pane of the workspace showing several options

The Settings > Workspace page lists your workspaces, along with the following configuration options:

UI control Description
Open source files in Visual Studio Code checkbox Sets whether to open source files in Visual Studio Code.
Save DevTools changes to disk checkbox Automatically saves DevTools changes to disk.
Folder exclude pattern text box Automatically excludes folders from a workspace folder.
Add button next to Excluded folders Excludes a folder from a specific workspace.
Add folder button Adds an additional workspace.
