Analyze the lack of indication of keyboard focus

  • Artikkeli

Keyboard users need to know where they are on a webpage. When a keyboard user tabs to a link or a button, the link or button should have a visual indication that it has focus. This visual indication is usually an outline around the focused element.

In the accessibility-testing demo webpage, the sidebar navigation menu with blue links doesn't visually indicate which link has focus, when using a keyboard. To find out why the lack of visual keyboard focus indication is confusing, try to tab to the blue links on the demo page. The blue Cats button has focus, as evidenced by the target link information that's displayed in the bottom left corner of the browser window, but there's no visual indication that focus is on that button:

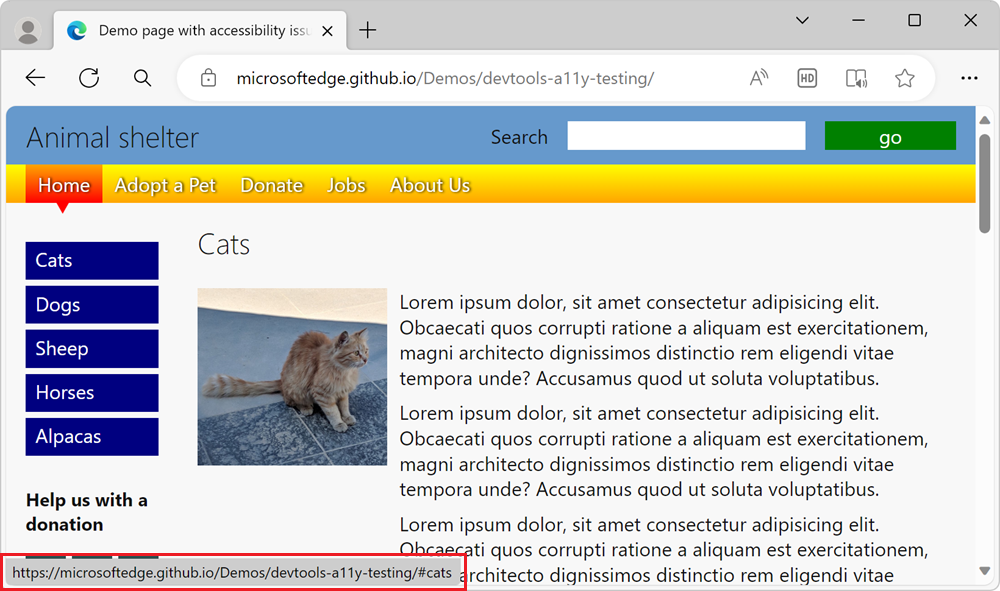

The demo webpage, with the Cats links focused, but no visual indication of the focus

Analyze the lack of focus indication by using the Sources tool

To see what CSS styles are applied to a link, such as a linked button, use the Sources tool:

  1. Open the accessibility-testing demo webpage in a new window or tab.

  2. Right-click anywhere in the webpage, and then select Inspect. Or, press F12. DevTools opens next to the webpage.

  3. Click the Inspect (Inspect icon) button in the top-left corner of DevTools so that the button is highlighted (blue).

  4. Hover over the blue Cats button in the page's sidebar navigation menu. The Inspect overlay appears, and indicates that the a element is Keyboard-focusable:

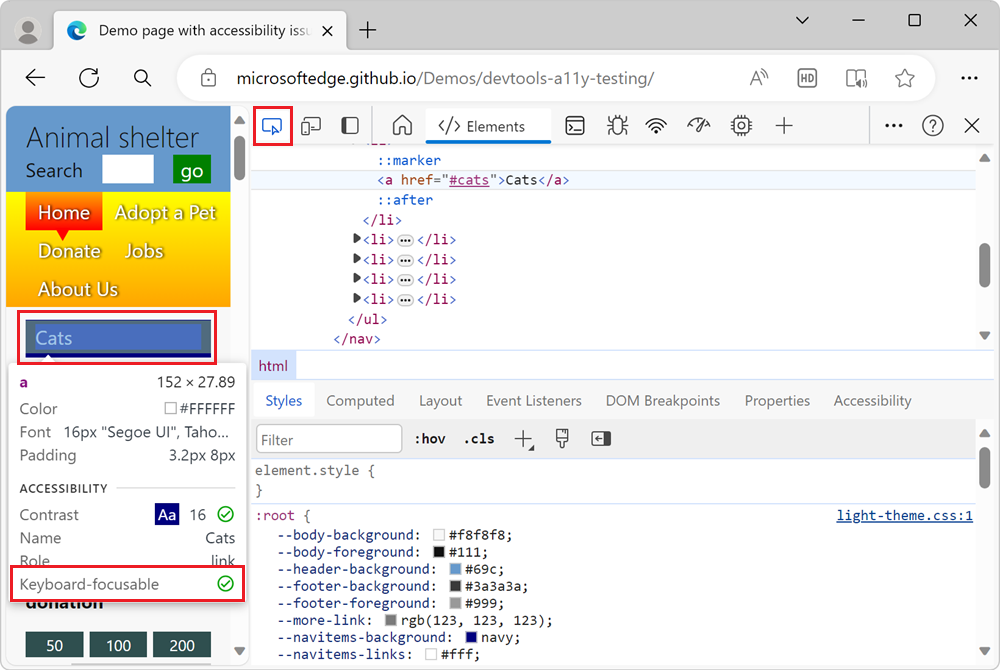

    The Inspect tool overlay on the link element

    But the Inspect overlay doesn't show that the element lacks a visual indication when the link has focus.

  5. In the rendered webpage, click the Cats button.

    The Inspect tool turns off, and the Elements tool opens, highlighting the a node in the DOM tree. The CSS rule #sidebar nav li a appears in the Styles tab, along with a link to a line number in styles.css:

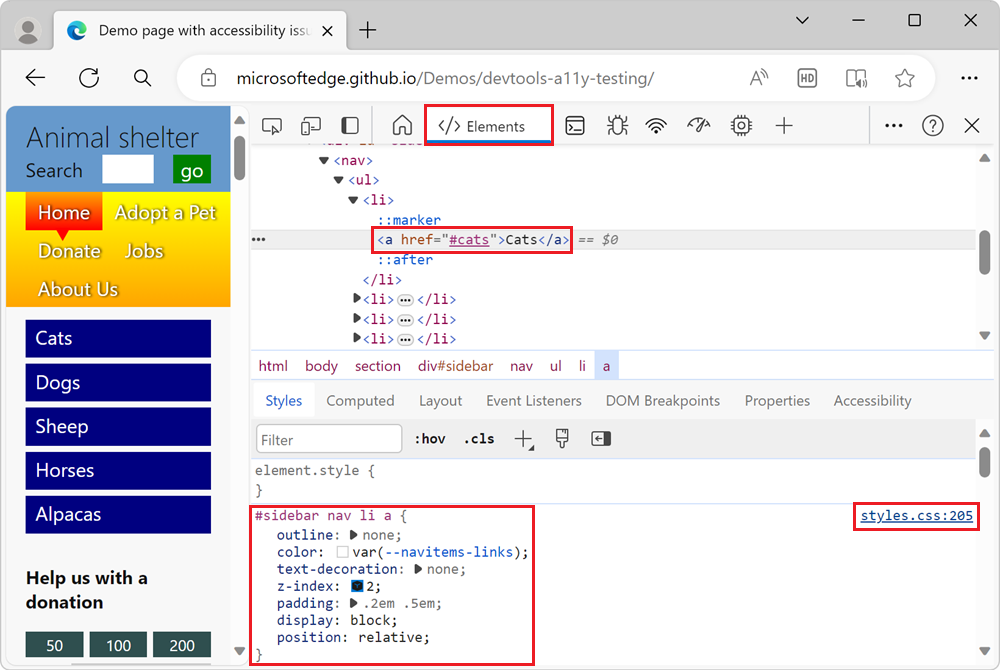

    The Elements tool, with the 'a' node highlighted

  6. Click the styles.css link. The CSS file opens within the Sources tool:

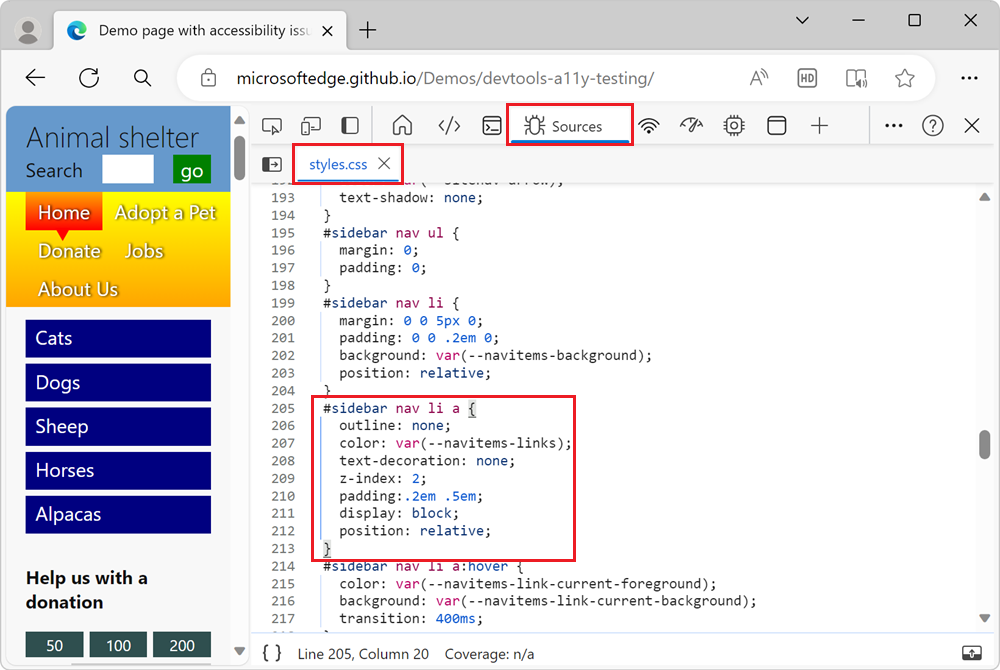

    The styles applied to the link in the Sources tool

    Notice that the #sidebar nav li a CSS rule has a CSS property setting of outline: none, which removes the outline that browsers automatically add when you focus links using a keyboard.

    The CSS file contains a CSS rule that uses the :hover pseudo-class, which is used to indicate which menu item you're on when you use a mouse: #sidebar nav li a:hover. However, the CSS file doesn't contain a CSS rule that uses the :focus pseudo-class, such as #sidebar nav li a:focus. This means that there is no CSS styles used to visually indicate which menu item you're on when you use a keyboard.

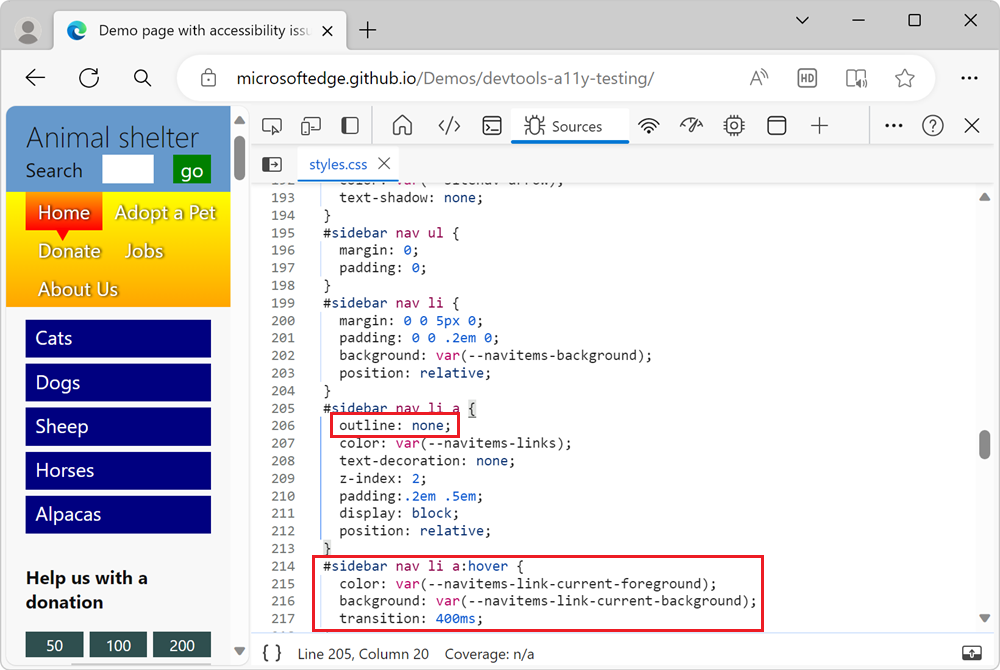

    The outline:none property and the :hover styles

Simulate the focus state by using the Styles pane

Instead of focusing the link by using a keyboard, you can simulate the focus state by using the Styles pane:

  1. Open the accessibility-testing demo webpage in a new window or tab.

  2. Right-click anywhere in the webpage, and then select Inspect.

  3. Click the Inspect (Inspect icon) button in the top-left corner of DevTools, and then click the Cats link in the rendered webpage. The <a href="#cats">Cats</a> node is highlighted in the Elements tool.

  4. In the Styles pane, click the Toggle element state (:hov) button. The Force element state section appears.

  5. Select the :focus checkbox. The focus state is applied to the link, but the link doesn't have a visual indication of focus:

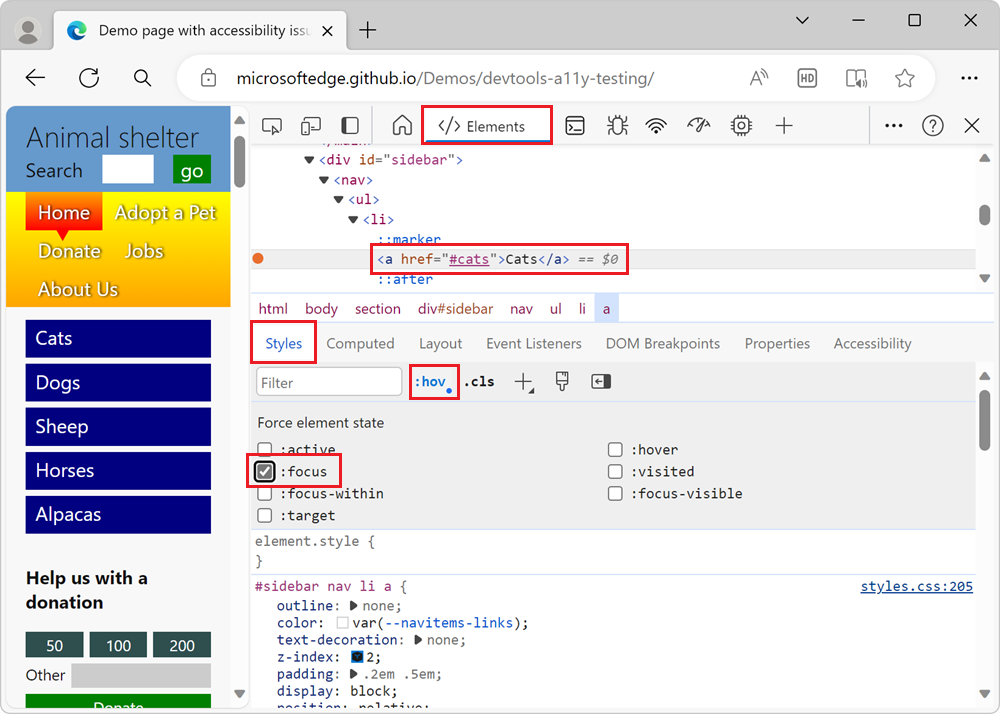

    The Cats link with the focus state applied
