Tutorial: Microsoft Entra single sign-on (SSO) integration with Teamgo

  • Artikkeli

In this tutorial, you'll learn how to integrate Teamgo with Microsoft Entra ID. When you integrate Teamgo with Microsoft Entra ID, you can:

  • Control in Microsoft Entra ID who has access to Teamgo.
  • Enable your users to be automatically signed-in to Teamgo with their Microsoft Entra accounts.
  • Manage your accounts in one central location.

Prerequisites

To get started, you need the following items:

  • A Microsoft Entra subscription. If you don't have a subscription, you can get a free account.
  • Teamgo single sign-on (SSO) enabled subscription.

Scenario description

In this tutorial, you configure and test Microsoft Entra SSO in a test environment.

  • Teamgo supports SP and IDP initiated SSO.
  • Teamgo supports Just In Time user provisioning.
  • Teamgo supports Automated user provisioning.

To configure the integration of Teamgo into Microsoft Entra ID, you need to add Teamgo from the gallery to your list of managed SaaS apps.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.
  2. Browse to Identity > Applications > Enterprise applications > New application.
  3. In the Add from the gallery section, type Teamgo in the search box.
  4. Select Teamgo from results panel and then add the app. Wait a few seconds while the app is added to your tenant.

Alternatively, you can also use the Enterprise App Configuration Wizard. In this wizard, you can add an application to your tenant, add users/groups to the app, assign roles, as well as walk through the SSO configuration as well. Learn more about Microsoft 365 wizards.

Configure and test Microsoft Entra SSO for Teamgo

Configure and test Microsoft Entra SSO with Teamgo using a test user called B.Simon. For SSO to work, you need to establish a link relationship between a Microsoft Entra user and the related user in Teamgo.

To configure and test Microsoft Entra SSO with Teamgo, perform the following steps:

  1. Configure Microsoft Entra SSO - to enable your users to use this feature.
    1. Create a Microsoft Entra test user - to test Microsoft Entra single sign-on with B.Simon.
    2. Assign the Microsoft Entra test user - to enable B.Simon to use Microsoft Entra single sign-on.
  2. Configure Teamgo SSO - to configure the single sign-on settings on application side.
    1. Create Teamgo test user - to have a counterpart of B.Simon in Teamgo that is linked to the Microsoft Entra representation of user.
  3. Test SSO - to verify whether the configuration works.

Configure Microsoft Entra SSO

Follow these steps to enable Microsoft Entra SSO.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.

  2. Browse to Identity > Applications > Enterprise applications > Teamgo > Single sign-on.

  3. On the Select a single sign-on method page, select SAML.

  4. On the Set up single sign-on with SAML page, click the pencil icon for Basic SAML Configuration to edit the settings.

    Edit Basic SAML Configuration

  5. On the Basic SAML Configuration section, if you wish to configure the application in IDP initiated mode, enter the values for the following fields:

    a. In the Identifier text box, type one of the following URLs:

    Identifier
    https://my.teamgo.co
    https://my.teamgo.co/integration/saml/serviceProviderEntityId

    b. In the Reply URL text box, type a URL using one of the following patterns:

    Reply URL
    https://my.teamgo.co
    https://my.teamgo.co/integration/saml?acs&domain=<DOMAIN NAME>

  6. Click Set additional URLs and perform the following step if you wish to configure the application in SP initiated mode:

    In the Sign-on URL text box, type the URL: https://my.teamgo.co/integration/saml

    Note

    The value is not real. Update the value with the actual Reply URL. Contact Teamgo Client support team to get the value. You can also refer to the patterns shown in the Basic SAML Configuration section.

  7. Teamgo application expects the SAML assertions in a specific format, which requires you to add custom attribute mappings to your SAML token attributes configuration. The following screenshot shows the list of default attributes.


  8. In addition to above, Teamgo application expects few more attributes to be passed back in SAML response which are shown below. These attributes are also pre populated but you can review them as per your requirements.

    Name Source Attribute
    displayname user.displayname

  9. On the Set up single sign-on with SAML page, in the SAML Signing Certificate section, find Certificate (Base64) and select Download to download the certificate and save it on your computer.

    The Certificate download link

  10. On the Set up Teamgo section, copy the appropriate URL(s) based on your requirement.

    Copy configuration URLs

Create a Microsoft Entra test user

In this section, you'll create a test user called B.Simon.

  1. Sign in to the Microsoft Entra admin center as at least a User Administrator.
  2. Browse to Identity > Users > All users.
  3. Select New user > Create new user, at the top of the screen.
  4. In the User properties, follow these steps:
    1. In the Display name field, enter B.Simon.
    2. In the User principal name field, enter the username@companydomain.extension. For example, B.Simon@contoso.com.
    3. Select the Show password check box, and then write down the value that's displayed in the Password box.
    4. Select Review + create.
  5. Select Create.

Assign the Microsoft Entra test user

In this section, you'll enable B.Simon to use single sign-on by granting access to Teamgo.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.
  2. Browse to Identity > Applications > Enterprise applications > Teamgo.
  3. In the app's overview page, select Users and groups.
  4. Select Add user/group, then select Users and groups in the Add Assignment dialog.
    1. In the Users and groups dialog, select B.Simon from the Users list, then click the Select button at the bottom of the screen.
    2. If you are expecting a role to be assigned to the users, you can select it from the Select a role dropdown. If no role has been set up for this app, you see "Default Access" role selected.
    3. In the Add Assignment dialog, click the Assign button.

Configure Teamgo SSO

  1. Log in to your Teamgo website as an administrator.

  2. Click Kiosks button and go to the Settings -> Integrations in the left navigation.

  3. In the Integrations, go to the Single sign-on tab and click Configure.

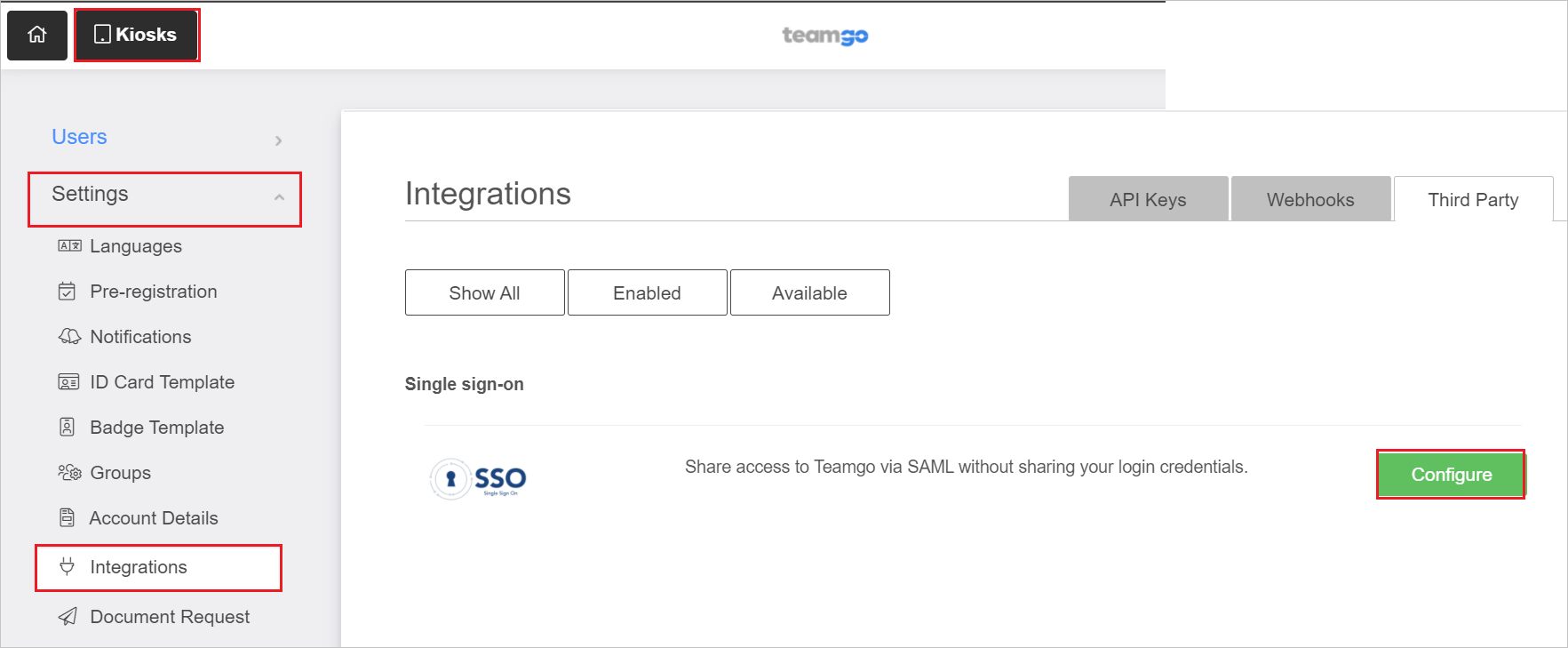

    Teamgo Integrations

  4. Perform the following steps in the below SAML page.

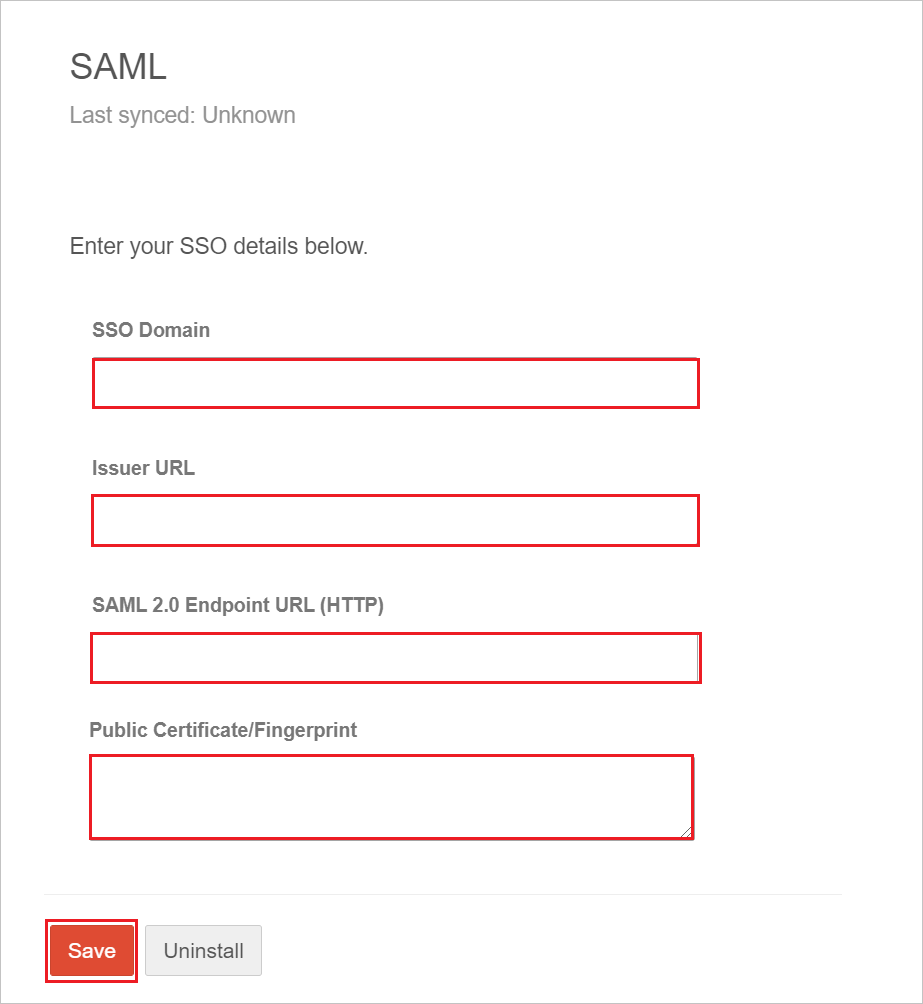

    Teamgo configuration

    a. In the SSO Domain textbox, give the domain value.

    b. In the Issuer URL textbox, paste the Identifier value which you copied previously.

    c. In the SAML 2.0 Endpoint URL (HTTP) textbox, paste the Login URL value which you copied previously.

    d. Open the downloaded Certificate (Base64) into Notepad and paste the content into the Public Certificate/Fingerprint textbox.

    e. Click Save.

Create Teamgo test user

In this section, a user called B.Simon is created in Teamgo. Teamgo supports just-in-time provisioning, which is enabled by default. There is no action item for you in this section. If a user doesn't already exist in Teamgo, a new one is created when you attempt to access Teamgo.

Test SSO

In this section, you test your Microsoft Entra single sign-on configuration with following options.

SP initiated:

  • Click on Test this application, this will redirect to Teamgo Sign on URL where you can initiate the login flow.

  • Go to Teamgo Sign-on URL directly and initiate the login flow from there.

IDP initiated:

  • Click on Test this application, and you should be automatically signed in to the Teamgo for which you set up the SSO

You can also use Microsoft My Apps to test the application in any mode. When you click the Teamgo tile in the My Apps, if configured in SP mode you would be redirected to the application sign on page for initiating the login flow and if configured in IDP mode, you should be automatically signed in to the Teamgo for which you set up the SSO. For more information about the My Apps, see Introduction to the My Apps.

Next steps

Once you configure Teamgo you can enforce session control, which protects exfiltration and infiltration of your organization’s sensitive data in real time. Session control extends from Conditional Access. Learn how to enforce session control with Microsoft Defender for Cloud Apps.
