Tutorial: Microsoft Entra single sign-on (SSO) integration with OfficeSpace Software

  • Artikkeli

In this tutorial, you'll learn how to integrate OfficeSpace Software with Microsoft Entra ID. When you integrate OfficeSpace Software with Microsoft Entra ID, you can:

  • Control in Microsoft Entra ID who has access to OfficeSpace Software.
  • Enable your users to be automatically signed-in to OfficeSpace Software with their Microsoft Entra accounts.
  • Manage your accounts in one central location.

Prerequisites

To get started, you need the following items:

  • A Microsoft Entra subscription. If you don't have a subscription, you can get a free account.
  • OfficeSpace Software single sign-on (SSO) enabled subscription.

Scenario description

In this tutorial, you configure and test Microsoft Entra SSO in a test environment.

To configure the integration of OfficeSpace Software into Microsoft Entra ID, you need to add OfficeSpace Software from the gallery to your list of managed SaaS apps.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.
  2. Browse to Identity > Applications > Enterprise applications > New application.
  3. In the Add from the gallery section, type OfficeSpace Software in the search box.
  4. Select OfficeSpace Software from results panel and then add the app. Wait a few seconds while the app is added to your tenant.

Alternatively, you can also use the Enterprise App Configuration Wizard. In this wizard, you can add an application to your tenant, add users/groups to the app, assign roles, as well as walk through the SSO configuration as well. Learn more about Microsoft 365 wizards.

Configure and test Microsoft Entra SSO for OfficeSpace Software

Configure and test Microsoft Entra SSO with OfficeSpace Software using a test user called B.Simon. For SSO to work, you need to establish a link relationship between a Microsoft Entra user and the related user in OfficeSpace Software.

To configure and test Microsoft Entra SSO with OfficeSpace Software, perform the following steps:

  1. Configure Microsoft Entra SSO - to enable your users to use this feature.
    1. Create a Microsoft Entra test user - to test Microsoft Entra single sign-on with B.Simon.
    2. Assign the Microsoft Entra test user - to enable B.Simon to use Microsoft Entra single sign-on.
  2. Configure OfficeSpace Software SSO - to configure the single sign-on settings on application side.
    1. Create OfficeSpace Software test user - to have a counterpart of B.Simon in OfficeSpace Software that is linked to the Microsoft Entra representation of user.
  3. Test SSO - to verify whether the configuration works.

Configure Microsoft Entra SSO

Follow these steps to enable Microsoft Entra SSO.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.

  2. Browse to Identity > Applications > Enterprise applications > OfficeSpace Software > Single sign-on.

  3. On the Select a single sign-on method page, select SAML.

  4. On the Set up single sign-on with SAML page, click the pencil icon for Basic SAML Configuration to edit the settings.

    Edit Basic SAML Configuration

  5. On the Basic SAML Configuration section, perform the following steps:

    a. In the Sign on URL text box, type a URL using the following pattern: https://<company name>.officespacesoftware.com/users/sign_in/saml

    b. In the Identifier (Entity ID) text box, type a URL using the following pattern: <company name>.officespacesoftware.com

    Note

    These values are not real. Update these values with the actual Sign on URL and Identifier. Contact OfficeSpace Software Client support team to get these values. You can also refer to the patterns shown in the Basic SAML Configuration section.

  6. OfficeSpace Software application expects the SAML assertions in a specific format, which requires you to add custom attribute mappings to your SAML token attributes configuration. The following screenshot shows the list of default attributes, whereas nameidentifier is mapped with user.userprincipalname. OfficeSpace Software application expects nameidentifier to be mapped with user.mail, so you need to edit the attribute mapping by clicking on Edit icon and change the attribute mapping.


  7. In addition to above, OfficeSpace Software application expects few more attributes to be passed back in SAML response which are shown below. These attributes are also pre populated but you can review them as per your requirement.

    Name Source Attribute
    email user.mail
    name user.displayname
    first_name user.givenname
    last_name user.surname

  8. In the SAML Signing Certificate section, click Edit button to open SAML Signing Certificate dialog.

    Edit SAML Signing Certificate

  9. In the SAML Signing Certificate section, copy the Thumbprint Value and save it on your computer.

    Copy Thumbprint value

  10. On the Set up OfficeSpace Software section, copy the appropriate URL(s) based on your requirement.

    Copy configuration URLs

Create a Microsoft Entra test user

In this section, you'll create a test user called B.Simon.

  1. Sign in to the Microsoft Entra admin center as at least a User Administrator.
  2. Browse to Identity > Users > All users.
  3. Select New user > Create new user, at the top of the screen.
  4. In the User properties, follow these steps:
    1. In the Display name field, enter B.Simon.
    2. In the User principal name field, enter the username@companydomain.extension. For example, B.Simon@contoso.com.
    3. Select the Show password check box, and then write down the value that's displayed in the Password box.
    4. Select Review + create.
  5. Select Create.

Assign the Microsoft Entra test user

In this section, you'll enable B.Simon to use single sign-on by granting access to OfficeSpace Software.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.
  2. Browse to Identity > Applications > Enterprise applications > OfficeSpace Software.
  3. In the app's overview page, select Users and groups.
  4. Select Add user/group, then select Users and groups in the Add Assignment dialog.
    1. In the Users and groups dialog, select B.Simon from the Users list, then click the Select button at the bottom of the screen.
    2. If you are expecting a role to be assigned to the users, you can select it from the Select a role dropdown. If no role has been set up for this app, you see "Default Access" role selected.
    3. In the Add Assignment dialog, click the Assign button.

Configure OfficeSpace Software SSO

  1. In a different web browser window, sign in to your OfficeSpace Software tenant as an administrator.

  2. Go to Settings and click Connectors.

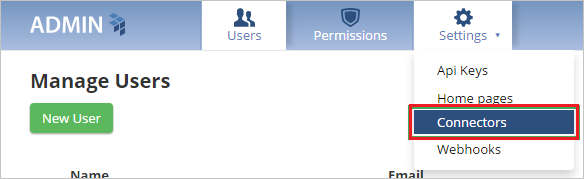

    Screenshot that shows the "Settings" drop-down with "Connectors" selected.

  3. Click SAML Authentication.

    Screenshot that shows the "Authentication" section with the "S A M L Authentication" action selected.

  4. In the SAML Authentication section, perform the following steps:

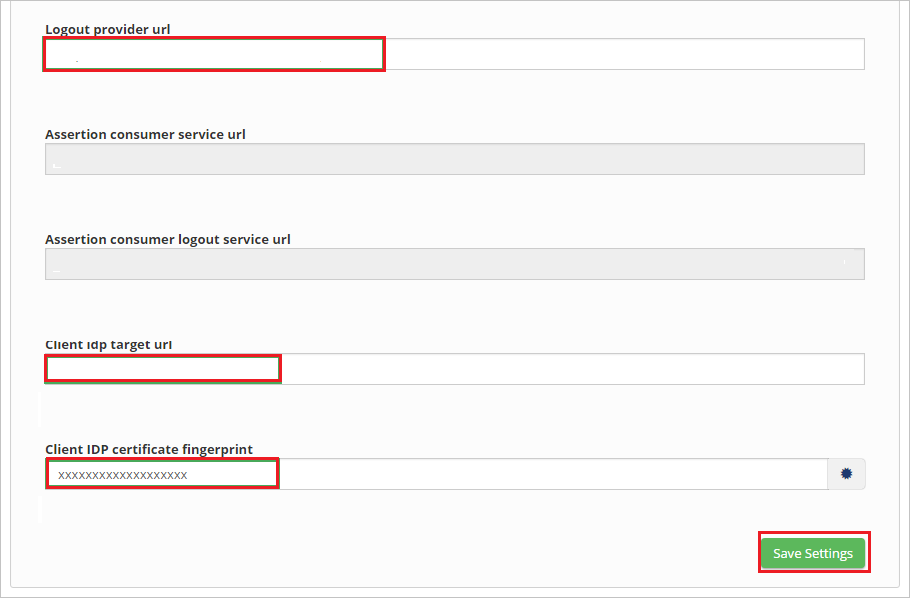

    Configure Single Sign-On On App Side

    a. In the Logout provider url textbox, paste the value of Logout URL..

    b. In the Client idp target url textbox, paste the value of Login URL..

    c. Paste the Thumbprint value., into the Client IDP certificate fingerprint textbox.

    d. Click Save Settings.

Create OfficeSpace Software test user

In this section, a user called B.Simon is created in OfficeSpace Software. OfficeSpace Software supports just-in-time user provisioning, which is enabled by default. There is no action item for you in this section. If a user doesn't already exist in OfficeSpace Software, a new one is created after authentication.

Note

If you need to create a user manually, you need to Contact OfficeSpace Software support team.

Test SSO

In this section, you test your Microsoft Entra single sign-on configuration with following options.

  • Click on Test this application, this will redirect to OfficeSpace Software Sign-on URL where you can initiate the login flow.

  • Go to OfficeSpace Software Sign-on URL directly and initiate the login flow from there.

  • You can use Microsoft My Apps. When you click the OfficeSpace Software tile in the My Apps, this will redirect to OfficeSpace Software Sign-on URL. For more information about the My Apps, see Introduction to the My Apps.

Next steps

Once you configure OfficeSpace Software you can enforce session control, which protects exfiltration and infiltration of your organization’s sensitive data in real time. Session control extends from Conditional Access. Learn how to enforce session control with Microsoft Defender for Cloud Apps.
