Tutorial: Microsoft Entra SSO integration with AlexisHR

  • Artikkeli

In this tutorial, you'll learn how to integrate AlexisHR with Microsoft Entra ID. When you integrate AlexisHR with Microsoft Entra ID, you can:

  • Control in Microsoft Entra ID who has access to AlexisHR.
  • Enable your users to be automatically signed-in to AlexisHR with their Microsoft Entra accounts.
  • Manage your accounts in one central location.

Prerequisites

To get started, you need the following items:

  • A Microsoft Entra subscription. If you don't have a subscription, you can get a free account.
  • AlexisHR single sign-on (SSO) enabled subscription.

Scenario description

In this tutorial, you configure and test Microsoft Entra SSO in a test environment.

  • AlexisHR supports IDP initiated SSO.

To configure the integration of AlexisHR into Microsoft Entra ID, you need to add AlexisHR from the gallery to your list of managed SaaS apps.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.
  2. Browse to Identity > Applications > Enterprise applications > New application.
  3. In the Add from the gallery section, type AlexisHR in the search box.
  4. Select AlexisHR from results panel and then add the app. Wait a few seconds while the app is added to your tenant.

Alternatively, you can also use the Enterprise App Configuration Wizard. In this wizard, you can add an application to your tenant, add users/groups to the app, assign roles, as well as walk through the SSO configuration as well. Learn more about Microsoft 365 wizards.

Configure and test Microsoft Entra SSO for AlexisHR

Configure and test Microsoft Entra SSO with AlexisHR using a test user called B.Simon. For SSO to work, you need to establish a link relationship between a Microsoft Entra user and the related user in AlexisHR.

To configure and test Microsoft Entra SSO with AlexisHR, perform the following steps:

  1. Configure Microsoft Entra SSO - to enable your users to use this feature.
    1. Create a Microsoft Entra test user - to test Microsoft Entra single sign-on with B.Simon.
    2. Assign the Microsoft Entra test user - to enable B.Simon to use Microsoft Entra single sign-on.
  2. Configure AlexisHR SSO - to configure the single sign-on settings on application side.
    1. Create AlexisHR test user - to have a counterpart of B.Simon in AlexisHR that is linked to the Microsoft Entra representation of user.
  3. Test SSO - to verify whether the configuration works.

Configure Microsoft Entra SSO

Follow these steps to enable Microsoft Entra SSO.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.

  2. Browse to Identity > Applications > Enterprise applications > AlexisHR > Single sign-on.

  3. On the Select a single sign-on method page, select SAML.

  4. On the Set up single sign-on with SAML page, click the pencil icon for Basic SAML Configuration to edit the settings.

    Edit Basic SAML Configuration

  5. On the Basic SAML Configuration section, perform the following steps:

    a. In the Identifier text box, type a value using the following pattern: urn:auth0:alexishr:<YOUR_CONNECTION_NAME>

    b. In the Reply URL text box, type a URL using the following pattern: https://auth.alexishr.com/login/callback?connection=<YOUR_CONNECTION_NAME>

    Note

    These values are not real. Update these values with the actual Identifier and Reply URL. Contact AlexisHR Client support team to get these values. You can also refer to the patterns shown in the Basic SAML Configuration section.

  6. AlexisHR application expects the SAML assertions in a specific format, which requires you to add custom attribute mappings to your SAML token attributes configuration. The following screenshot shows the list of default attributes.


  7. In addition to above, AlexisHR application expects few more attributes to be passed back in SAML response which are shown below. These attributes are also pre-populated but you can review them as per your requirements.

    Name Source Attribute
    email user.mail

  8. On the Set up single sign-on with SAML page, in the SAML Signing Certificate section, find Certificate (Base64) and select Download to download the certificate and save it on your computer.

    The Certificate download link

  9. On the Set up AlexisHR section, copy the appropriate URL(s) based on your requirement.

    Copy configuration URLs

Create a Microsoft Entra test user

In this section, you'll create a test user called B.Simon.

  1. Sign in to the Microsoft Entra admin center as at least a User Administrator.
  2. Browse to Identity > Users > All users.
  3. Select New user > Create new user, at the top of the screen.
  4. In the User properties, follow these steps:
    1. In the Display name field, enter B.Simon.
    2. In the User principal name field, enter the username@companydomain.extension. For example, B.Simon@contoso.com.
    3. Select the Show password check box, and then write down the value that's displayed in the Password box.
    4. Select Review + create.
  5. Select Create.

Assign the Microsoft Entra test user

In this section, you'll enable B.Simon to use single sign-on by granting access to AlexisHR.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.
  2. Browse to Identity > Applications > Enterprise applications > AlexisHR.
  3. In the app's overview page, select Users and groups.
  4. Select Add user/group, then select Users and groups in the Add Assignment dialog.
    1. In the Users and groups dialog, select B.Simon from the Users list, then click the Select button at the bottom of the screen.
    2. If you are expecting a role to be assigned to the users, you can select it from the Select a role dropdown. If no role has been set up for this app, you see "Default Access" role selected.
    3. In the Add Assignment dialog, click the Assign button.

Configure AlexisHR SSO

  1. Log in to your AlexisHR company site as an administrator.

  2. Go to Settings > SAML Single sign-on and click New identity provider.

  3. In the New identity provider section, perform the following steps:

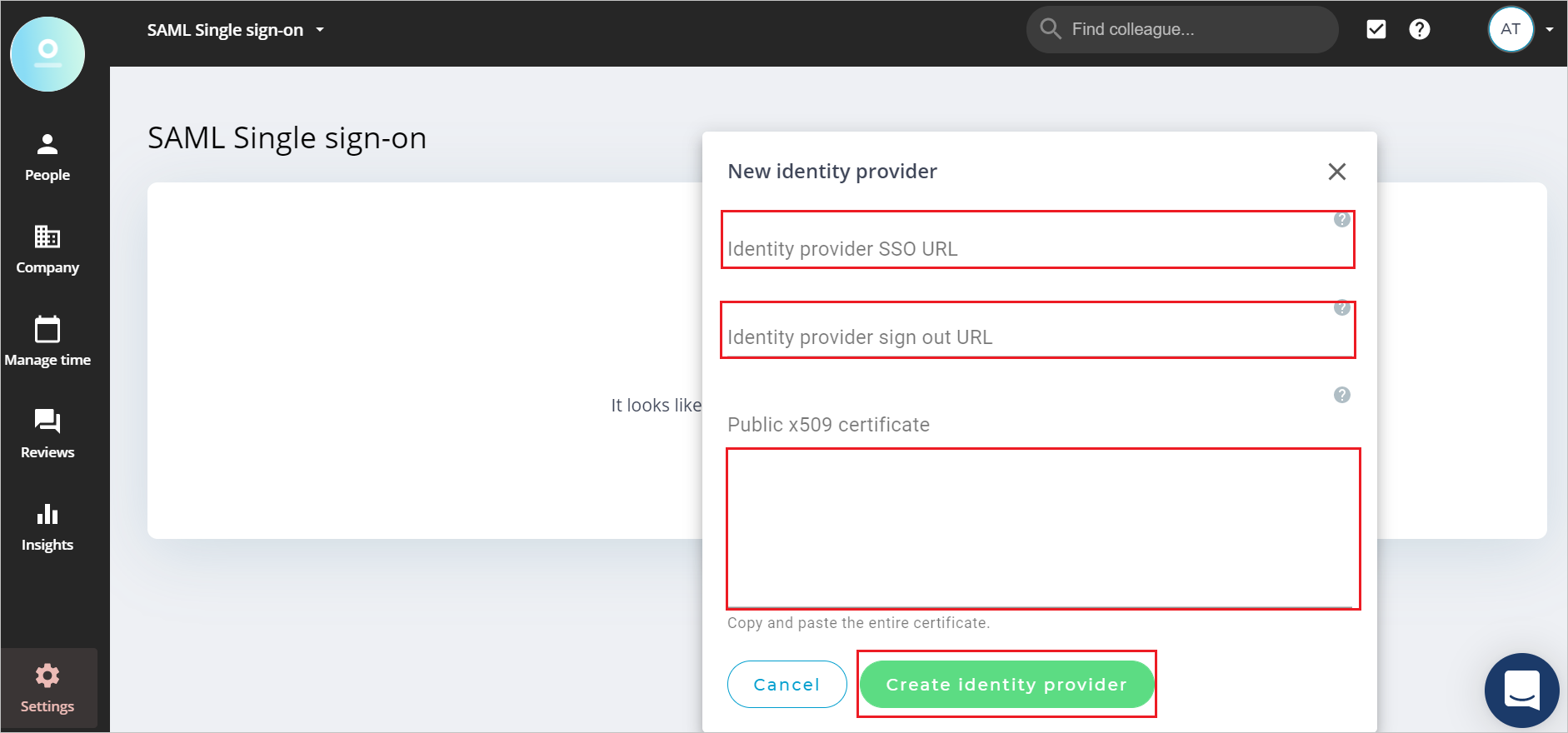

    Screenshot shows the Account Settings.

    1. In the Identity provider SSO URL textbox, paste the Login URL value which you copied previously.

    2. In the Identity provider sign out URL textbox, paste the Logout URL value which you copied previously.

    3. Open the downloaded Certificate (Base64) into Notepad and paste the content into the Public x509 certificate textbox.

    4. Click Create identity provider.

  4. After creating identity provider, you will receive the following information.

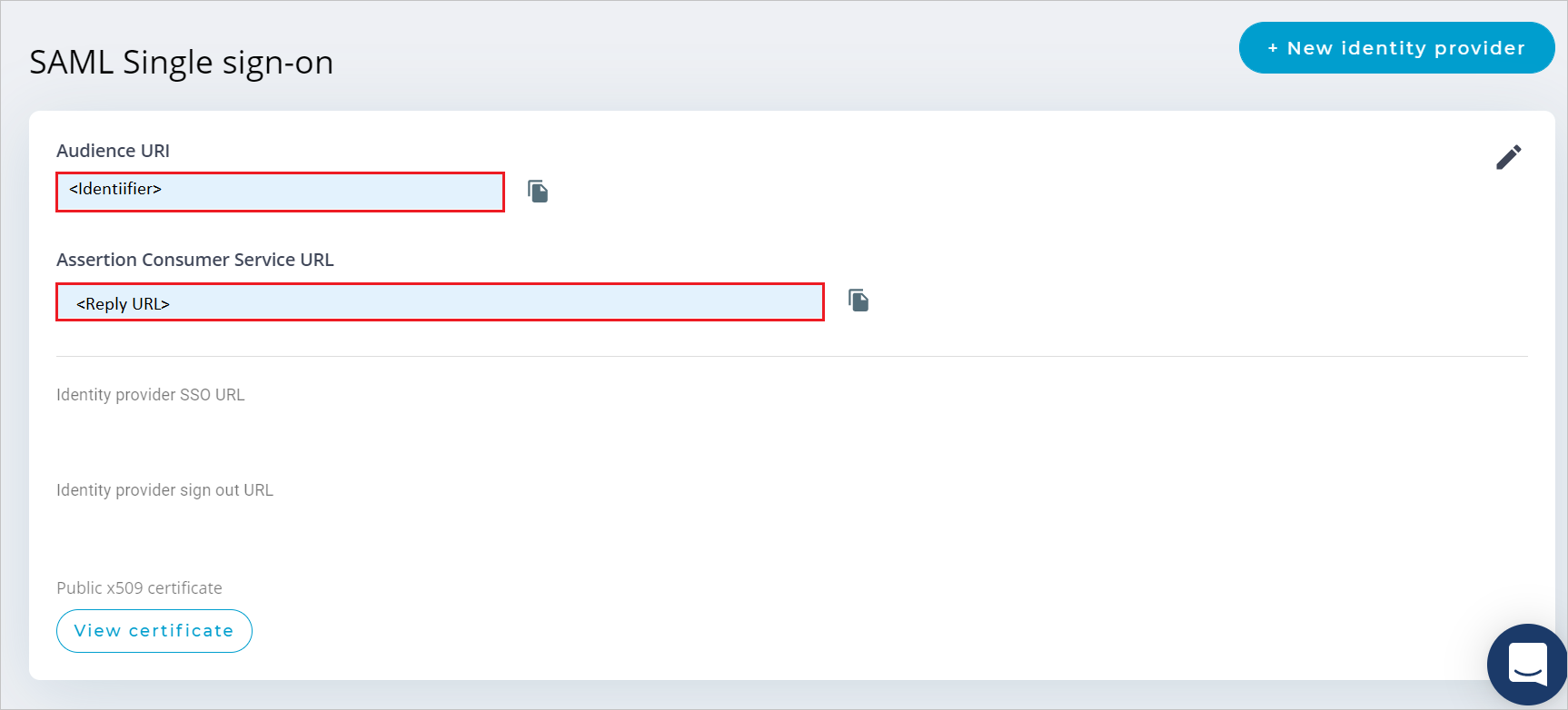

    Screenshot shows the SSO Settings.

    1. Copy Audience URI value, paste this value into the Identifier text box in the Basic SAML Configuration section.

    2. Copy Assertion Consumer Service URL value, paste this value into the Reply URL text box in the Basic SAML Configuration section.

Create AlexisHR test user

In this section, you create a user called Britta Simon in AlexisHR. Work with AlexisHR support team to add the users in the AlexisHR platform. Users must be created and activated before you use single sign-on.

Test SSO

In this section, you test your Microsoft Entra single sign-on configuration with following options.

  • Click on Test this application, and you should be automatically signed in to the AlexisHR for which you set up the SSO.

  • You can use Microsoft My Apps. When you click the AlexisHR tile in the My Apps, you should be automatically signed in to the AlexisHR for which you set up the SSO. For more information, see Microsoft Entra My Apps.

Next steps

Once you configure AlexisHR you can enforce session control, which protects exfiltration and infiltration of your organization’s sensitive data in real time. Session control extends from Conditional Access. Learn how to enforce session control with Microsoft Defender for Cloud Apps.
