Connect to Oracle E-Business Suite in Visual Studio using Add Adapter Service Reference Plug-in

To connect to Oracle E-Business Suite using the Oracle E-Business adapter in a .NET programming solution, you must use the Add Adapter Service Reference Visual Studio Plug-in. This topic provides instructions on how to use the Add Adapter Service Reference Plug-in.

Connecting to Oracle E-Business Suite Using the Add Adapter Service Reference Plug-in

Perform the following steps to connect to Oracle E-Business Suite using the Add Adapter Service Reference Plug-in.

To connect to Oracle E-Business Suite

  1. To connect using the Add Adapter Service Reference Plug-in in a programming solution:

    1. Create a project using Visual Studio.

    2. Right-click the project in Solution Explorer, and then click Add Adapter Service Reference. The Add Adapter Service Reference Plug-in opens.

  2. From the Select a binding drop-down list, select oracleEBSBinding and click Configure.

  3. In the Configure Adapter dialog box, click the Security tab, and from the Client credential type drop-down list box, select Username and specify the user name and password to connect to the Oracle E-Business Suite.

    Use this To do this
    To connect using Oracle database credentials Specify the ClientCredentialType binding property to Database and specify database credentials for User name and Password text boxes.
    To connect using Oracle E-Business Suite credentials Specify the ClientCredentialType binding property to EBusiness and specify Oracle E-Business Suite credentials for User name and Password text boxes. In this case, you must also specify Oracle database credentials for OracleUserName and OraclePassword binding properties.
    To connect using Windows Authentication if ClientCredentialType is set to “Database” Specify a “/” for the User name text box and leave the Password text box blank.
    To connect using Windows Authentication if ClientCredentialType is set to “EBusiness” Specify Oracle E-Business Suite credentials for User name and Password text boxes. You must also specify a “/” for the OracleUserName binding property and leave the OraclePassword binding property blank.
  4. Click the URI Properties tab, and specify values for the connection parameters. For more information about the connection URI for the Oracle E-Business adapter, see Create the Oracle E-Business Suite connection URI.

    Note

    If the connection parameters contain any reserved characters, you must specify them as-is in the URI Properties tab, that is, without using any escape characters. However, if you specify the URI directly in the Configure a URI field and the connection parameters contain reserved characters, you must specify the connection parameters using proper escape characters.

  5. Click the Binding Properties tab, and then specify values for the binding properties, if any, required by the operations you want to target. For more information about binding properties, see Read about the BizTalk Adapter for Oracle E-Business Suite binding properties.

  6. Click OK.

  7. Click Connect. After the connection is established, the connection status is shown as Connected.

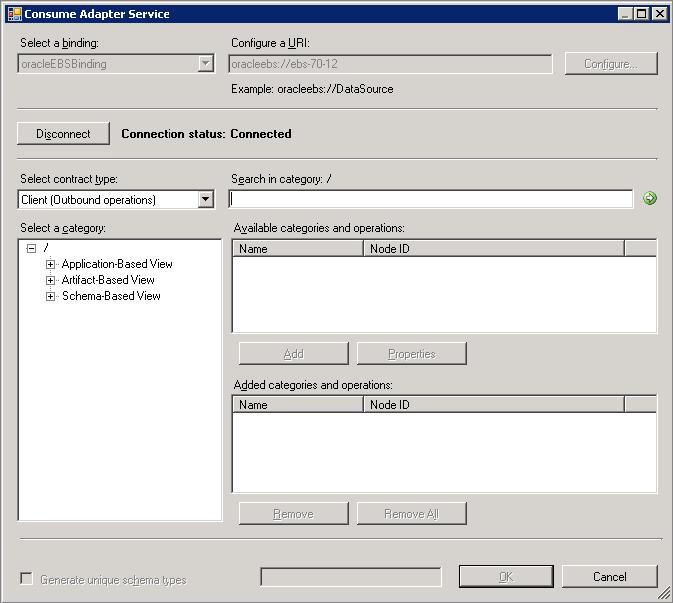

    The following figure shows the Consume Adapter Service Add-in immediately after the connection is established. The graphical user interface is the same for the Add Adapter Service Reference Plug-in.

    Consume Adapter Service dialog box

    The Add Adapter Service Reference Plug-in displays different nodes containing various operations that can be performed on the Oracle E-Business Suite and the Oracle database. For more information on how the metadata is categorized under the various nodes, see Connect to Oracle E-Business Suite in Visual Studio using Add Adapter Metadata Wizard.
