Organize training runs with MLflow experiments

Experiments are units of organization for your model training runs. There are two types of experiments: workspace and notebook.

• You can create a workspace experiment from the Databricks Mosaic AI UI or the MLflow API. Workspace experiments are not associated with any notebook, and any notebook can log a run to these experiments by using the experiment ID or the experiment name.
• A notebook experiment is associated with a specific notebook. Azure Databricks automatically creates a notebook experiment if there is no active experiment when you start a run using mlflow.start_run().

To see all of the experiments in a workspace that you have access to, select Machine Learning > Experiments in the sidebar.

Create workspace experiment

This section describes how to create a workspace experiment using the Azure Databricks UI. You can create a workspace experiment directly from the workspace or from the Experiments page.

You can also use the MLflow API, or the Databricks Terraform provider with databricks_mlflow_experiment.

For instructions on logging runs to workspace experiments, see Log runs to an experiment.

Create experiment from the workspace

1. Click Workspace in the sidebar.

2. Navigate to the folder in which you want to create the experiment.

3. Right-click on the folder and select Create > MLflow experiment.

4. In the Create MLflow Experiment dialog, enter a name for the experiment and an optional artifact location. If you do not specify an artifact location, artifacts are stored in MLflow-managed artifact storage: dbfs:/databricks/mlflow-tracking/<experiment-id>.

   Azure Databricks supports Unity Catalog volumes, Azure Blob storage, and Azure Data Lake storage artifact locations.

   In MLflow 2.15.0 and above, you can store artifacts in a Unity Catalog volume. When you create an MLflow experiment, specify a volumes path of the form dbfs:/Volumes/catalog_name/schema_name/volume_name/user/specified/path as your MLflow experiment artifact location, as shown in the following code:

   EXP_NAME = "/Users/first.last@databricks.com/my_experiment_name"
   CATALOG = "my_catalog"
   SCHEMA = "my_schema"
   VOLUME = "my_volume"
   ARTIFACT_PATH = f"dbfs:/Volumes/{CATALOG}/{SCHEMA}/{VOLUME}"

   mlflow.set_tracking_uri("databricks")
   mlflow.set_registry_uri("databricks-uc")

   if mlflow.get_experiment_by_name(EXP_NAME) is None:
       mlflow.create_experiment(name=EXP_NAME, artifact_location=ARTIFACT_PATH)
   mlflow.set_experiment(EXP_NAME)


   To store artifacts in Azure Blob storage, specify a URI of the form wasbs://<container>@<storage-account>.blob.core.windows.net/<path>. Artifacts stored in Azure Blob storage do not appear in the MLflow UI; you must download them using a blob storage client.

   Note

   When you store an artifact in a location other than DBFS, the artifact does not appear in the MLflow UI. Models stored in locations other than DBFS cannot be registered in Model Registry.

5. Click Create. The experiment details page for the new experiment appears.

6. To log runs to this experiment, call mlflow.set_experiment() with the experiment path. To display the experiment path, click the information icon to the right of the experiment name. See Log runs to an experiment for details and an example notebook.

Create experiment from the Experiments page

To create a foundation model fine-tuning, AutoML, or custom experiment, click Experiments or select New > Experiment in the left sidebar.

At the top of the page, select one of the following options to configure an experiment:

• Foundation Model Fine-tuning. The Foundation Model Fine-tuning dialog appears. For details, see Create a training run using the Foundation Model Fine-tuning UI.
• Forecasting. The Configure Forecasting experiment dialog appears. For details, see Configure the AutoML experiment.
• Classification. The Configure Classification experiment dialog appears. For details, see Set up classification experiment with the UI.
• Regression. The Configure Classification experiment dialog appears. For details, see Set up regression experiment with the UI.
• Custom. The Create MLflow Experiment dialog appears. For details, see Step 4 in Create experiment from the workspace.

Create notebook experiment

When you use the mlflow.start_run() command in a notebook, the run logs metrics and parameters to the active experiment. If no experiment is active, Azure Databricks creates a notebook experiment. A notebook experiment shares the same name and ID as its corresponding notebook. The notebook ID is the numerical identifier at the end of a Notebook URL and ID.

Alternatively, you can pass an Azure Databricks workspace path to an existing notebook in mlflow.set_experiment() to create a notebook experiment for it.

For instructions on logging runs to notebook experiments, see Log runs to an experiment.

Note

If you delete a notebook experiment using the API (for example, MlflowClient.tracking.delete_experiment() in Python), the notebook itself is moved into the Trash folder.

View experiments

Each experiment that you have access to appears on the experiments page. From this page, you can view any experiment. Click on an experiment name to display the experiment details page.

Additional ways to access the experiment details page:

• You can access the experiment details page for a workspace experiment from the workspace menu.
• You can access the experiment details page for a notebook experiment from the notebook.

To search for experiments, type text in the Filter experiments field and press Enter or click the magnifying glass icon. The experiment list changes to show only those experiments that contain the search text in the Name, Created by, Location, or Description column.

Click the name of any experiment in the table to display its experiment details page:

The experiment details page lists all runs associated with the experiment. From the table, you can open the run page for any run associated with the experiment by clicking its Run Name. The Source column gives you access to the notebook version that created the run. You can also search and filter runs by metrics or parameter settings.

View workspace experiment

1. Click Workspace in the sidebar.
2. Go to the folder containing the experiment.
3. Click the experiment name.

View notebook experiment

In the notebook’s right sidebar, click the Experiment icon .

The Experiment Runs sidebar appears and shows a summary of each run associated with the notebook experiment, including run parameters and metrics. At the top of the sidebar is the name of the experiment that the notebook most recently logged runs to (either a notebook experiment or a workspace experiment).

From the sidebar, you can navigate to the experiment details page or directly to a run.

• To view the experiment, click at the far right, next to Experiment Runs.
• To display a run, click the name of the run.

Manage experiments

You can rename, delete, or manage permissions for an experiment you own from the experiments page, the experiment details page, or the workspace menu.

Note

You cannot directly rename, delete, or manage permissions on an MLflow experiment that was created by a notebook in a Databricks Git folder. You must perform these actions at the Git folder level.

Rename experiment

You can rename an experiment that you own from the Experiments page or from the experiment details page for that experiment.

• On the Experiments page, click the kebab menu in the rightmost column and then click Rename.

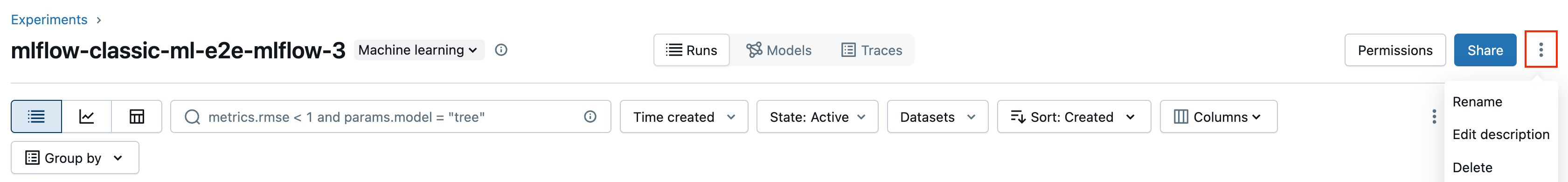

• On the experiment details page, click the kebab menu next to Permissions and then click Rename.

You can rename a workspace experiment from the workspace. Right-click the experiment name and then click Rename.

Get experiment ID and path to experiment

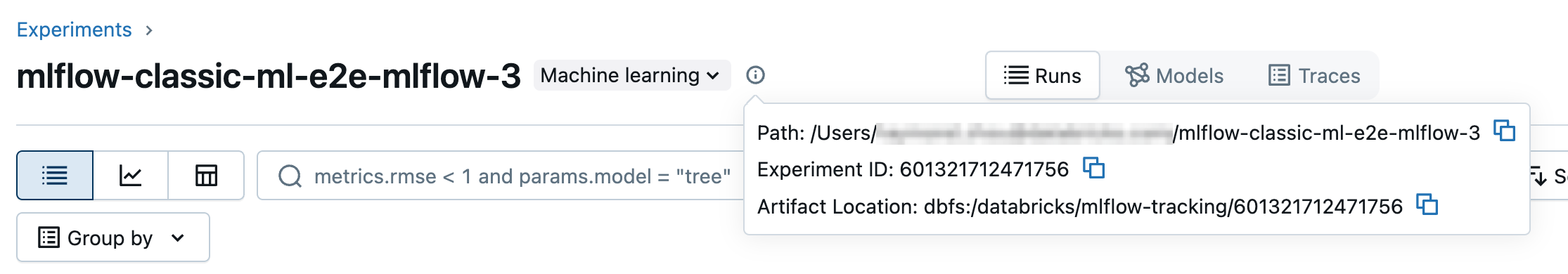

On the experiment details page, you can get the path to a notebook experiment by clicking the information icon to the right of the experiment name. A pop-up note appears that shows the path to the experiment, the experiment ID, and the artifact location. You can use the experiment ID in the MLflow command set_experiment to set the active MLflow experiment.

From a notebook, you can copy the full path of the experiment by clicking in the notebook’s experiment sidebar.

Delete notebook experiment

Notebook experiments are part of the notebook and cannot be deleted separately. When you delete a notebook, the associated notebook experiment is deleted. When you delete a notebook experiment using the UI, the notebook is also deleted.

To delete notebook experiments using the API, use the Workspace API to ensure both the notebook and experiment are deleted from the workspace.

Delete a workspace or notebook experiment

You can delete an experiment that you own from the experiments page or from the experiment details page.

Important

When you delete a notebook experiment, the notebook is also deleted.

• On the Experiments page, click the kebab menu in the rightmost column and then click Delete.

• On the experiment details page, click the kebab menu next to Permissions and then click Delete.

You can delete a workspace experiment from the workspace. Right-click the experiment name and then click Move to Trash.

Change permissions for an experiment

To change permissions for an experiment from the experiment details page, click Permissions.

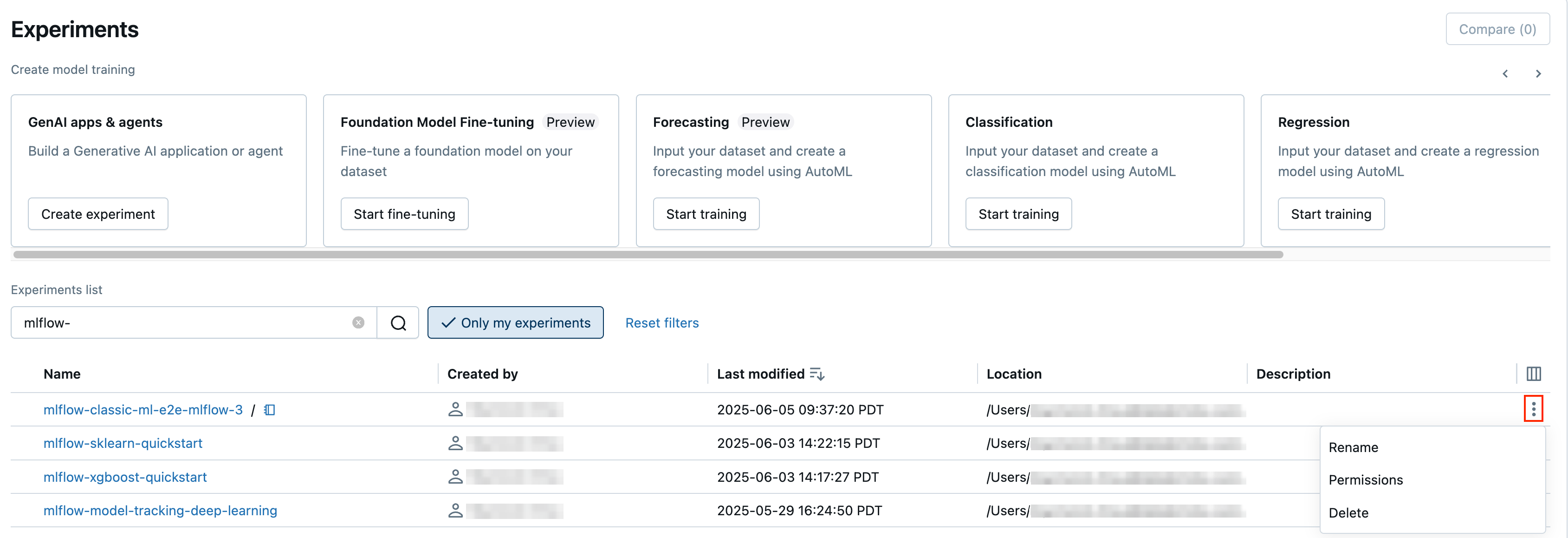

You can change permissions for an experiment that you own from the Experiments page. Click the kebab menu in the rightmost column and then click Permissions.

For information on experiment permission levels, see MLflow experiment ACLs.

Copy experiments between workspaces

To migrate MLflow experiments between workspaces, you can use the community-driven open source project MLflow Export-Import.

With these tools, you can:

• Share and collaborate with other data scientists in the same or another tracking server. For example, you can clone an experiment from another user into your workspace.
• Copy MLflow experiments and runs from your local tracking server to your Databricks workspace.
• Back up mission critical experiments and models to another Databricks workspace.
