Quickstart: Create a Linux server VM by using the Azure Stack Hub portal

  • Artikkeli

You can create an Ubuntu Server 16.04 LTS virtual machine (VM) by using the Azure Stack Hub portal. In this article, you create and use a virtual machine. This article also shows you how to:

  • Connect to the VM with a remote client.
  • Install an NGINX web server.
  • Clean up your resources.

Note

The images in this article are updated to match changes that were introduced in Azure Stack Hub version 1808. Version 1808 adds support for using managed disks in addition to unmanaged disks. If you're using an earlier version, images for some tasks, such as disk selection, differ from what's displayed in your UI.

Prerequisites

  • A Linux image in the Azure Stack Hub Marketplace

    The Azure Stack Hub Marketplace, by default, doesn't have a Linux image. Have the Azure Stack Hub operator provide the Ubuntu Server 16.04 LTS image you need. The operator can use the instructions in Download Marketplace items from Azure to Azure Stack Hub.

  • Access to an SSH client

    If you're using the Azure Stack Development Kit (ASDK), you might not have access to a Secure Shell (SSH) client. If you need a client, several packages include an SSH client. For example, PuTTY includes an SSH client and SSH Key Generator (puttygen.exe). For more information about available packages, see How to use an SSH public key.

  • This quickstart uses PuTTY to generate the SSH keys and to connect to the Linux server VM. Download and install PuTTY.

Create an SSH key pair

To finish all the steps in this article, you need an SSH key pair. If you already have an SSH key pair, you can skip this step.

To create an SSH key pair:

  1. Go to the PuTTY installation folder (the default location is C:\Program Files\PuTTY) and run:

    puttygen.exe

  2. In the PuTTY Key Generator window, set Type of key to generate to RSA, and set Number of bits in a generated key to 2048.

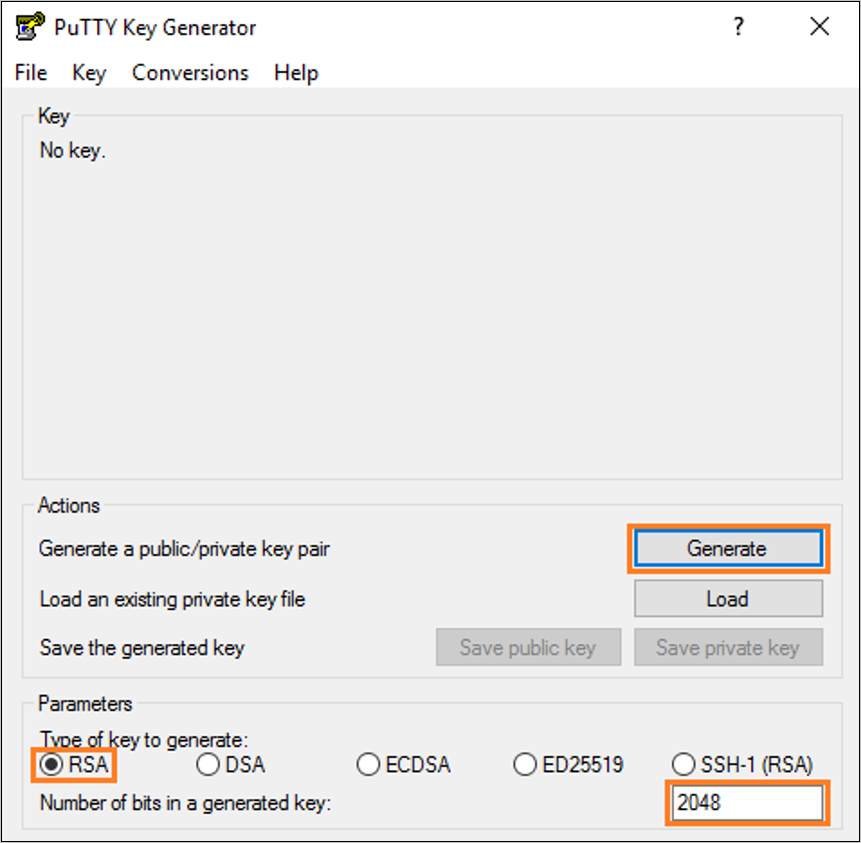

    PuTTY Key Generator configuration

  3. Select Generate.

  4. To generate a key, in the Key box, move the pointer randomly.

  5. When the key generation has finished, select Save public key, and then select Save private key to save your keys to files.

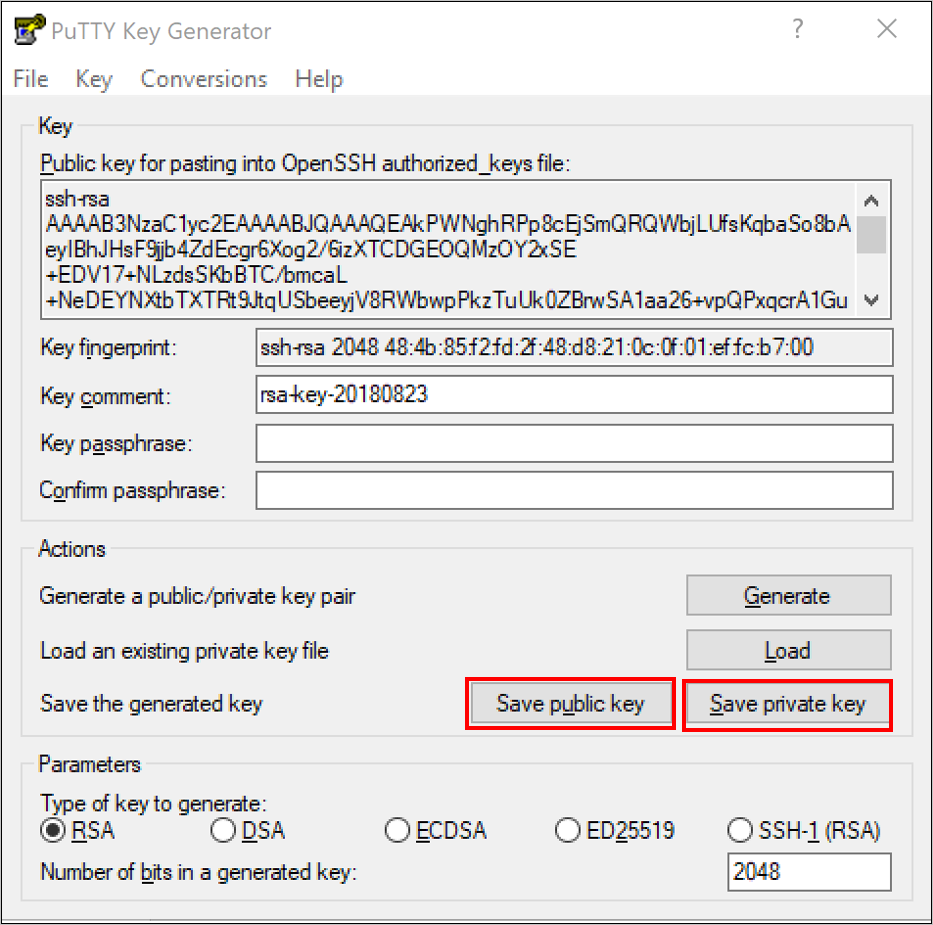

    PuTTY Key Generator results

Sign in to the Azure Stack Hub portal

The address of the Azure Stack Hub portal depends on which Azure Stack Hub product you're connecting to:

  • For the ASDK, go to https://portal.local.azurestack.external.

  • For an Azure Stack Hub integrated system, go to the URL that your Azure Stack Hub operator provided.

Create the VM

  1. Select Create a resource > Compute. Search for Ubuntu Server 16.04 LTS. Select the name.

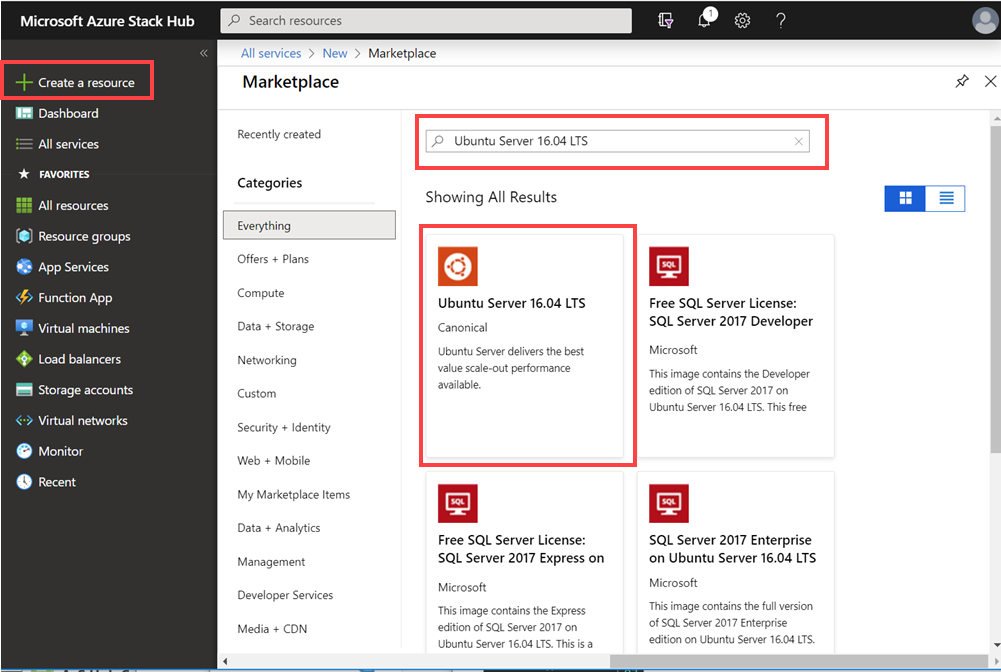

    Create Linux Server

  2. Select Create.

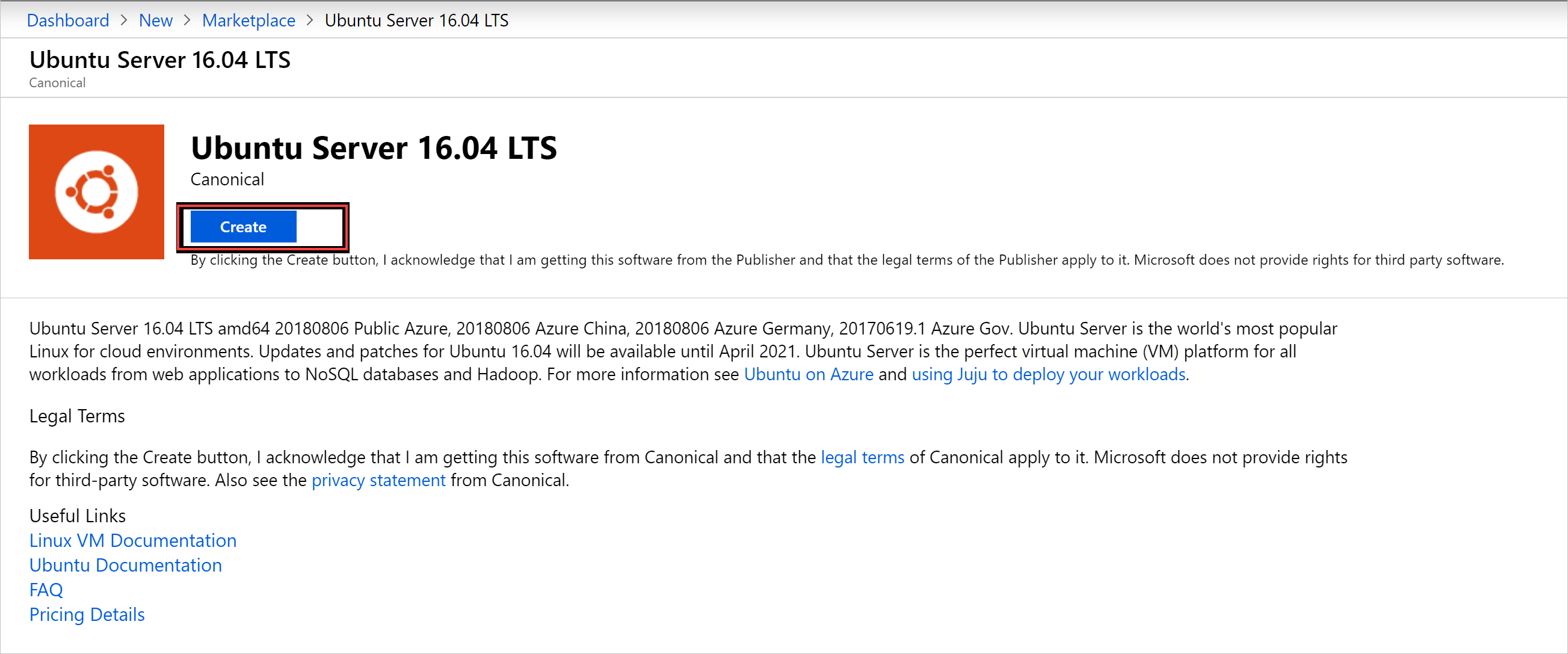

    Create Linux Server - Create

  3. Enter the VM information. Select SSH public key for Authentication type, and paste the SSH public key that you saved, and then select OK.

    Note

    Make sure that you remove any leading or trailing white space for the key.

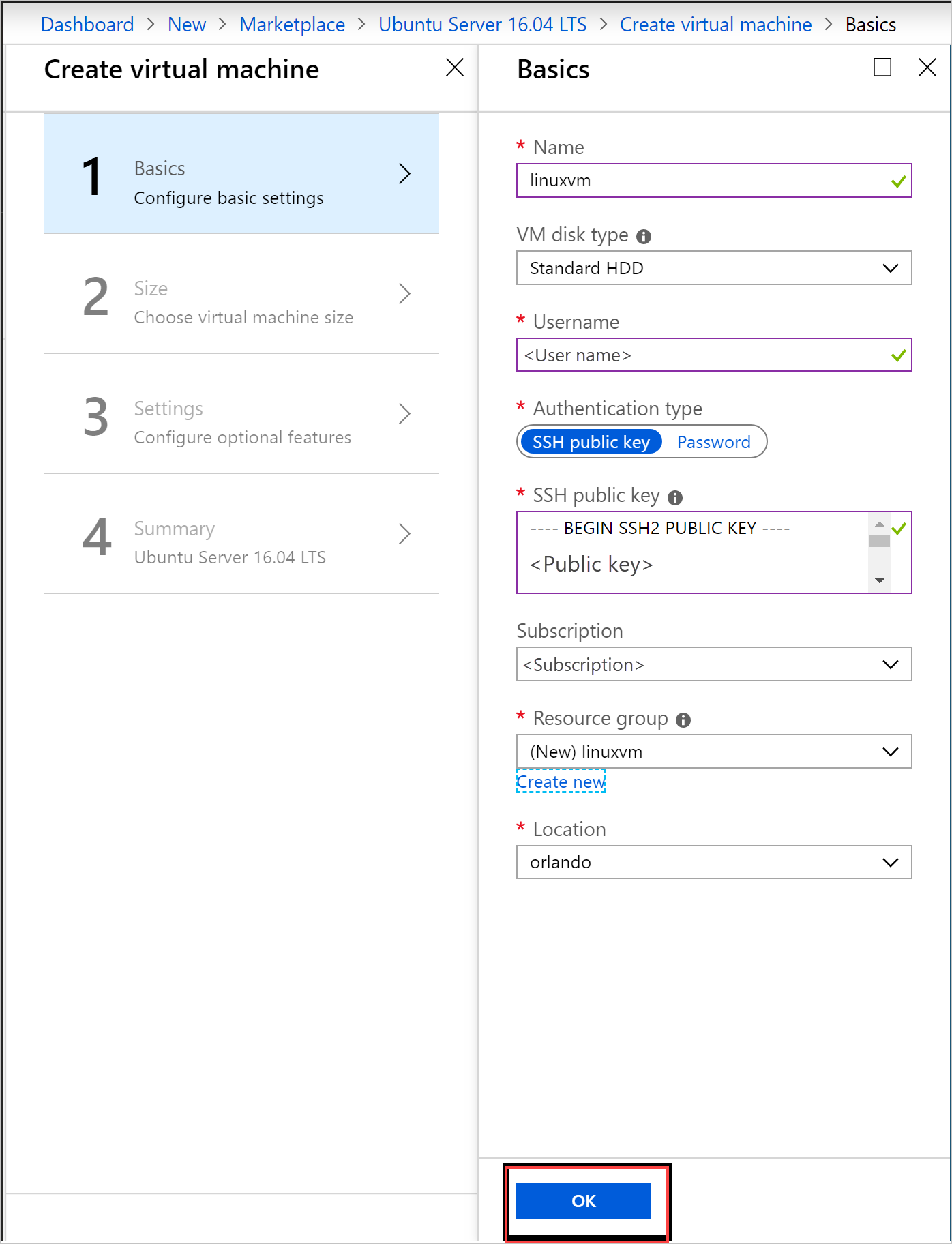

    Authentication

  4. Select D1_v2 for the VM size.

Note

If you are creating a GPU enabled VM, select GPU VM NC_v3 or NC4as_T4_v3 for the VM size.

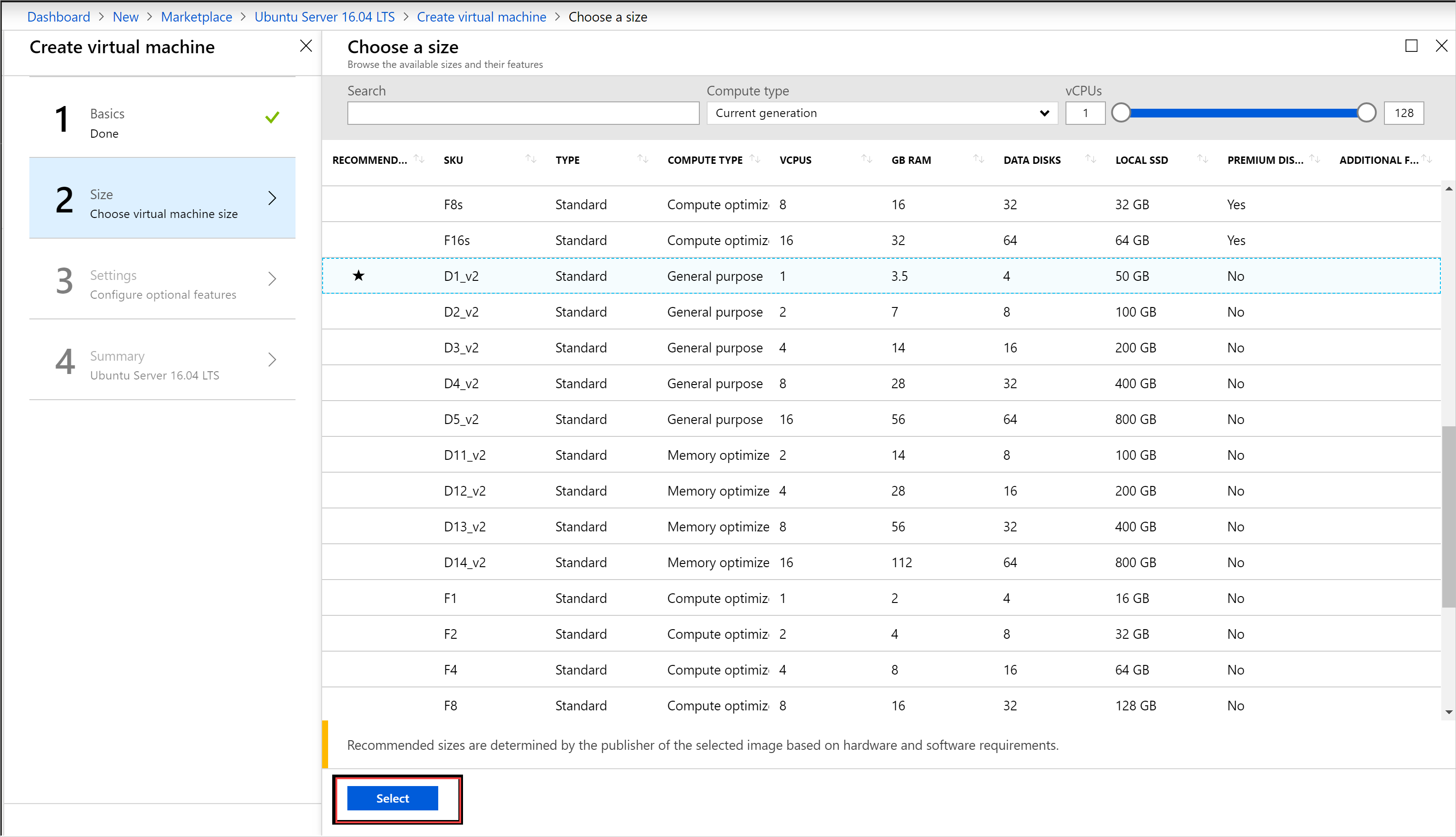

Create Linux Server - Size

  1. Enter your changes to the defaults on the Settings blade, Use Managed disks. If you need to allow SSH access, select SSH (22) to open the port. When your configurations are ready, select OK.

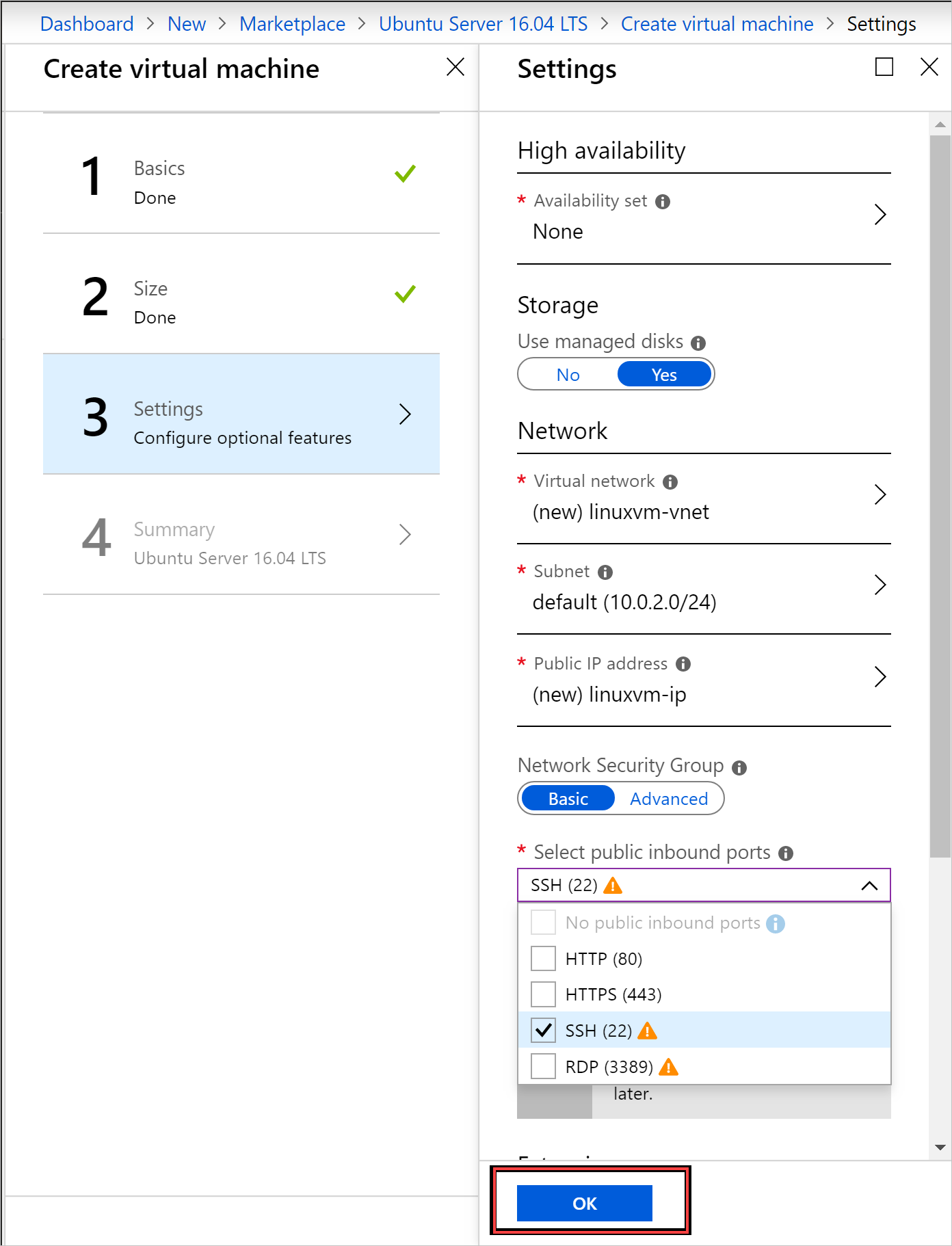

    Create Linux Server - Settings

  2. Select OK in the Summary to start the VM deployment. Select Virtual Machines to see your new VM, search for the VM name, and then select the VM in the search results.

Create Linux Server - Summary

Connect to the VM

  1. Select Connect on the VM page. You can find the SSH connection string that you need to connect to the VM.

  2. On the PuTTY Configuration page, in the Category pane, scroll down to and expand SSH, and then select Auth.

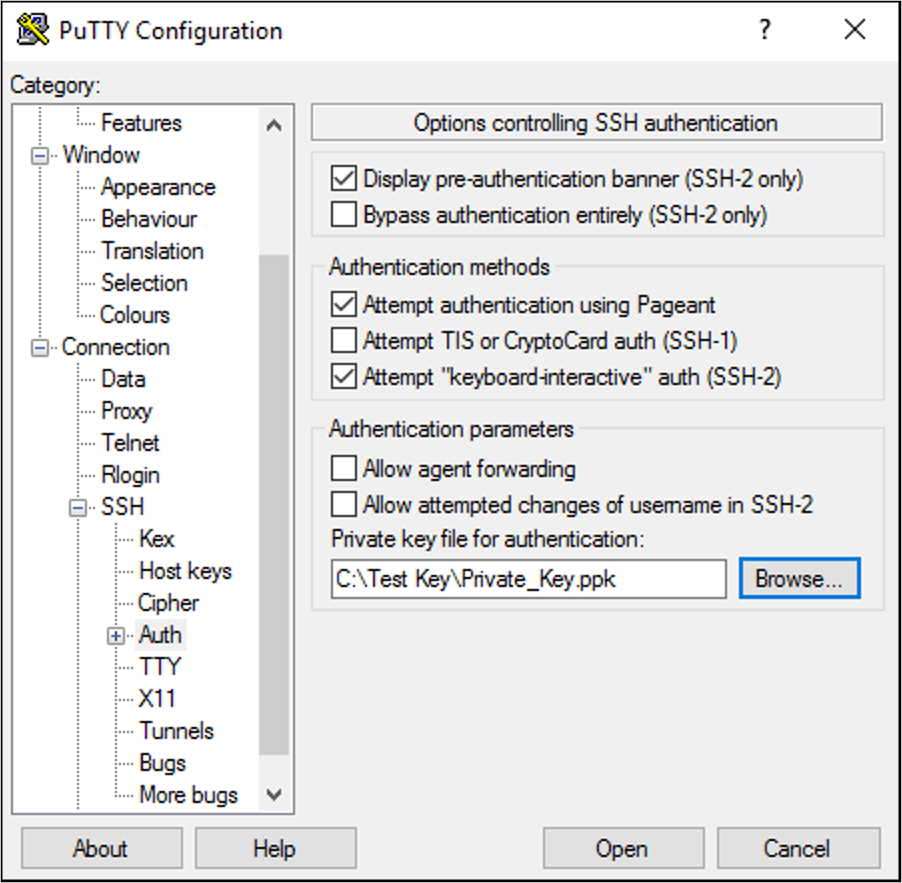

    Connect VM

  3. Select Browse, and then select the private key file that you saved.

  4. In the Category pane, scroll up to and select Session.

  5. In the Host Name (or IP address) box, paste the connection string that's shown in the Azure Stack Hub portal. In this example, the string is asadmin@192.168.102.34.

  6. Select Open to open a session for the VM.

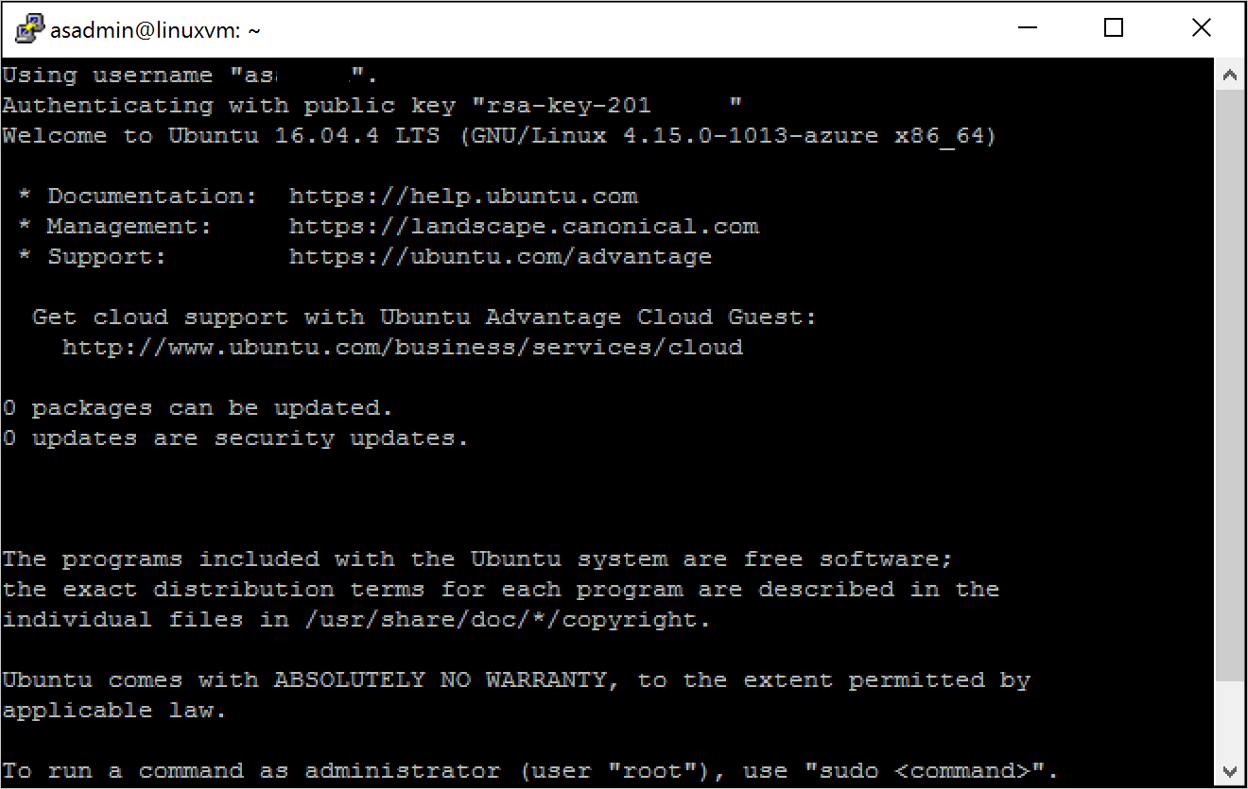

    Linux session

Install the NGINX web server

To update package sources and install the latest NGINX package on the VM, enter the following bash commands:

#!/bin/bash

# update package source
sudo apt-get -y update

# install NGINX
sudo apt-get -y install nginx

When you finish installing NGINX, close the SSH session and open the VM Overview page in the Azure Stack Hub portal.

Open port 80 for web traffic

A network security group (NSG) secures inbound and outbound traffic. When a VM is created in the Azure Stack Hub portal, an inbound rule is created on port 22 for SSH connections. Because this VM hosts a web server, an NSG rule needs to be created to allow web traffic on port 80.

  1. On the VM Overview page, select the name of the Resource group.

  2. Select the network security group for the VM. You can identify the NSG by using the Type column.

  3. In the left pane, under Settings, select Inbound security rules.

  4. Select Add.

  5. In the Name box, type http.

  6. Make sure that Port range is set to 80 and Action is set to Allow.

  7. Select OK.

View the Welcome to nginx page

With NGINX installed and port 80 open on your VM, you can access the web server by using the VM's public IP address. (The public IP address is shown on the VM's Overview page.)

Open a web browser, and go to http://<public IP address>.

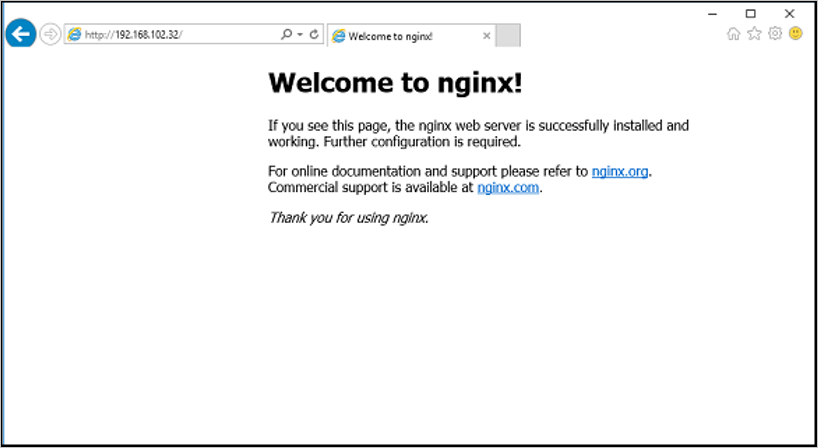

The NGINX web server Welcome page

Clean up resources

Clean up the resources that you don't need any longer. To delete the VM and its resources, select the resource group on the VM page, and then select Delete.

Next steps

In this quickstart, you deployed a basic Linux server VM with a web server. To learn more about Azure Stack Hub VMs, continue to Considerations for VMs in Azure Stack Hub.
