Inserting a New Record from the GridView's Footer (VB)

  • Artikkeli

by Scott Mitchell

Download PDF

While the GridView control does not provide built-in support for inserting a new record of data, this tutorial shows how to augment the GridView to include an inserting interface.

Introduction

As discussed in the An Overview of Inserting, Updating, and Deleting Data tutorial, the GridView, DetailsView, and FormView Web controls each include built-in data modification capabilities. When used with declarative data source controls, these three Web controls can be quickly and easily configured to modify data - and in scenarios without needing to write a single line of code. Unfortunately, only the DetailsView and FormView controls provide built-in inserting, editing, and deleting capabilities. The GridView only offers editing and deleting support. However, with a little elbow grease, we can augment the GridView to include an inserting interface.

In adding inserting capabilities to the GridView, we are responsible for deciding on how new records will be added, creating the inserting interface, and writing the code to insert the new record. In this tutorial we will look at adding the inserting interface to the GridView s footer row (see Figure 1). The footer cell for each column includes the appropriate data collection user interface element (a TextBox for the product s name, a DropDownList for the supplier, and so on). We also need a column for an Add button that, when clicked, will cause a postback and insert a new record into the Products table using the values supplied in the footer row.

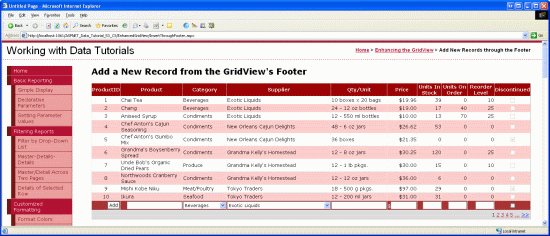

The Footer Row Provides an Interface for Adding New Products

Figure 1: The Footer Row Provides an Interface for Adding New Products (Click to view full-size image)

Step 1: Displaying Product Information in a GridView

Before we concern ourselves with creating the inserting interface in the GridView s footer, let s first focus on adding a GridView to the page that lists the products in the database. Start by opening the InsertThroughFooter.aspx page in the EnhancedGridView folder and drag a GridView from the Toolbox onto the Designer, setting the GridView s ID property to Products. Next, use the GridView s smart tag to bind it to a new ObjectDataSource named ProductsDataSource.

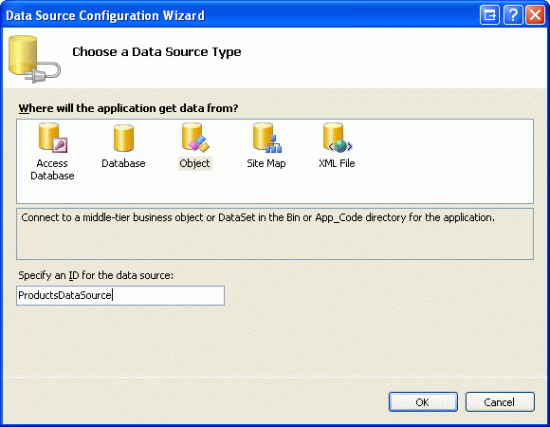

Create a New ObjectDataSource Named ProductsDataSource

Figure 2: Create a New ObjectDataSource Named ProductsDataSource (Click to view full-size image)

Configure the ObjectDataSource to use the ProductsBLL class s GetProducts() method to retrieve product information. For this tutorial, let s focus strictly on adding inserting capabilities and not worry about editing and deleting. Therefore, make sure that the drop-down list in the INSERT tab is set to AddProduct() and that the drop-down lists in the UPDATE and DELETE tabs are set to (None) .

Map the AddProduct Method to the ObjectDataSource s Insert() Method

Figure 3: Map the AddProduct Method to the ObjectDataSource s Insert() Method (Click to view full-size image)

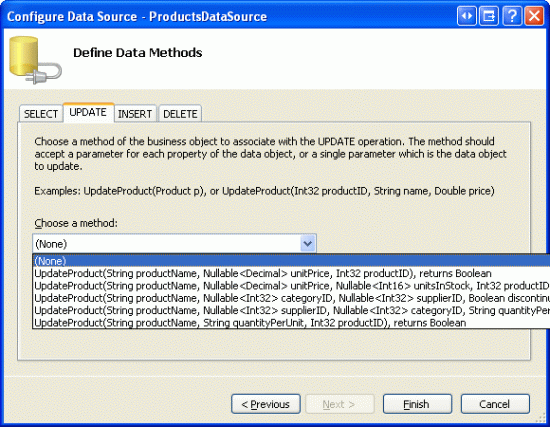

Set the UPDATE and DELETE Tabs Drop-Down Lists to (None)

Figure 4: Set the UPDATE and DELETE Tabs Drop-Down Lists to (None) (Click to view full-size image)

After completing the ObjectDataSource s Configure Data Source wizard, Visual Studio will automatically add fields to the GridView for each of the corresponding data fields. For now, leave all of the fields added by Visual Studio. Later in this tutorial we'll come back and remove some of the fields whose values don t need to be specified when adding a new record.

Since there are close to 80 products in the database, a user will have to scroll all the way down to the bottom of the web page in order to add a new record. Therefore, let s enable paging to make the inserting interface more visible and accessible. To turn on paging, simply check the Enable Paging checkbox from the GridView s smart tag.

At this point, the GridView and ObjectDataSource s declarative markup should look similar to the following:

<asp:GridView ID="Products" runat="server" AutoGenerateColumns="False"
    DataKeyNames="ProductID" DataSourceID="ProductsDataSource"
    AllowPaging="True" EnableViewState="False">
    <Columns>
        <asp:BoundField DataField="ProductID" HeaderText="ProductID"
            InsertVisible="False" ReadOnly="True"
            SortExpression="ProductID" />
        <asp:BoundField DataField="ProductName" HeaderText="ProductName"
            SortExpression="ProductName" />
        <asp:BoundField DataField="SupplierID" HeaderText="SupplierID"
            SortExpression="SupplierID" />
        <asp:BoundField DataField="CategoryID" HeaderText="CategoryID"
            SortExpression="CategoryID" />
        <asp:BoundField DataField="QuantityPerUnit" HeaderText="QuantityPerUnit"
            SortExpression="QuantityPerUnit" />
        <asp:BoundField DataField="UnitPrice" HeaderText="UnitPrice"
            SortExpression="UnitPrice" />
        <asp:BoundField DataField="UnitsInStock" HeaderText="UnitsInStock"
            SortExpression="UnitsInStock" />
        <asp:BoundField DataField="UnitsOnOrder" HeaderText="UnitsOnOrder"
            SortExpression="UnitsOnOrder" />
        <asp:BoundField DataField="ReorderLevel" HeaderText="ReorderLevel"
            SortExpression="ReorderLevel" />
        <asp:CheckBoxField DataField="Discontinued" HeaderText="Discontinued"
            SortExpression="Discontinued" />
        <asp:BoundField DataField="CategoryName" HeaderText="CategoryName"
            ReadOnly="True" SortExpression="CategoryName" />
        <asp:BoundField DataField="SupplierName" HeaderText="SupplierName"
            ReadOnly="True" SortExpression="SupplierName" />
    </Columns>
</asp:GridView>
<asp:ObjectDataSource ID="ProductsDataSource" runat="server"
    InsertMethod="AddProduct" OldValuesParameterFormatString="original_{0}"
    SelectMethod="GetProducts" TypeName="ProductsBLL">
    <InsertParameters>
        <asp:Parameter Name="productName" Type="String" />
        <asp:Parameter Name="supplierID" Type="Int32" />
        <asp:Parameter Name="categoryID" Type="Int32" />
        <asp:Parameter Name="quantityPerUnit" Type="String" />
        <asp:Parameter Name="unitPrice" Type="Decimal" />
        <asp:Parameter Name="unitsInStock" Type="Int16" />
        <asp:Parameter Name="unitsOnOrder" Type="Int16" />
        <asp:Parameter Name="reorderLevel" Type="Int16" />
        <asp:Parameter Name="discontinued" Type="Boolean" />
    </InsertParameters>
</asp:ObjectDataSource>

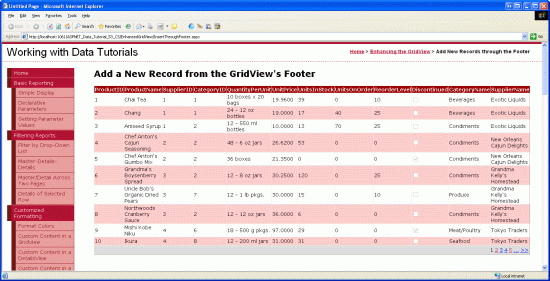

All Product Data Fields are Displayed in a Paged GridView

Figure 5: All Product Data Fields are Displayed in a Paged GridView (Click to view full-size image)

Along with its header and data rows, the GridView includes a footer row. The header and footer rows are displayed depending on the values of the GridView s ShowHeader and ShowFooter properties. To show the footer row, simply set the ShowFooter property to True. As Figure 6 illustrates, setting the ShowFooter property to True adds a footer row to the grid.

To Display the Footer Row, Set ShowFooter to True

Figure 6: To Display the Footer Row, Set ShowFooter to True (Click to view full-size image)

Note that the footer row has a dark red background color. This is due to the DataWebControls Theme we created and applied to all pages back in the Displaying Data With the ObjectDataSource tutorial. Specifically, the GridView.skin file configures the FooterStyle property such that is uses the FooterStyle CSS class. The FooterStyle class is defined in Styles.css as follows:

.FooterStyle
{
    background-color: #a33;
    color: White;
    text-align: right;
}

Note

We ve explored using the GridView s footer row in previous tutorials. If needed, refer back to the Displaying Summary Information in the GridView's Footer tutorial for a refresher.

After setting the ShowFooter property to True, take a moment to view the output in a browser. Currently the footer row doesn t contain any text or Web controls. In Step 3 we'll modify the footer for each GridView field so that it includes the appropriate inserting interface.

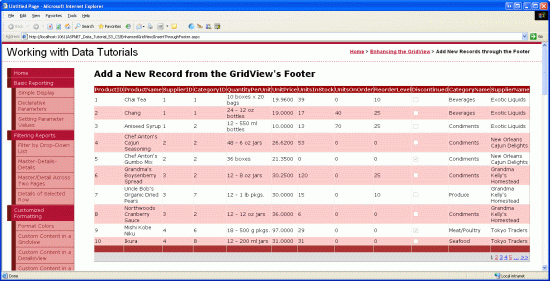

The Empty Footer Row is Displayed Above the Paging Interface Controls

Figure 7: The Empty Footer Row is Displayed Above the Paging Interface Controls (Click to view full-size image)

Back in the Using TemplateFields in the GridView Control tutorial we saw how to greatly customize the display of a particular GridView column using TemplateFields (as opposed to BoundFields or CheckBoxFields); in Customizing the Data Modification Interface we looked at using TemplateFields to customize the editing interface in a GridView. Recall that a TemplateField is composed of a number of templates that defines the mix of markup, Web controls, and databinding syntax used for certain types of rows. The ItemTemplate, for example, specifies the template used for read-only rows, while the EditItemTemplate defines the template for the editable row.

Along with the ItemTemplate and EditItemTemplate, the TemplateField also includes a FooterTemplate that specifies the content for the footer row. Therefore, we can add the Web controls needed for each field s inserting interface into the FooterTemplate. To start, convert all of the fields in the GridView to TemplateFields. This can be done by clicking the Edit Columns link in the GridView s smart tag, selecting each field in the lower left corner, and clicking the Convert this field into a TemplateField link.

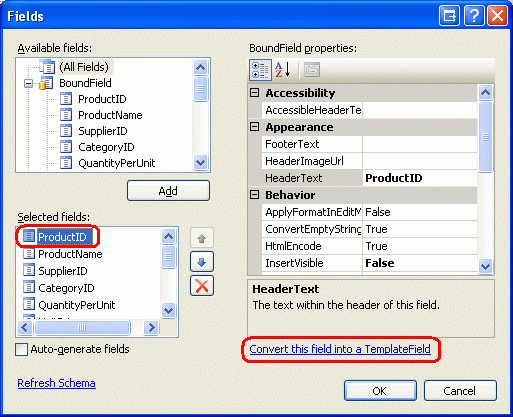

Convert Each Field Into a TemplateField

Figure 8: Convert Each Field Into a TemplateField

Clicking the Convert this field into a TemplateField turns the current field type into an equivalent TemplateField. For example, each BoundField is replaced by a TemplateField with an ItemTemplate that contains a Label that displays the corresponding data field and an EditItemTemplate that displays the data field in a TextBox. The ProductName BoundField has been converted into the following TemplateField markup:

<asp:TemplateField HeaderText="ProductName" SortExpression="ProductName">
    <EditItemTemplate>
        <asp:TextBox ID="TextBox1" runat="server"
            Text='<%# Bind("ProductName") %>'></asp:TextBox>
    </EditItemTemplate>
    <ItemTemplate>
        <asp:Label ID="Label2" runat="server"
            Text='<%# Bind("ProductName") %>'></asp:Label>
    </ItemTemplate>
</asp:TemplateField>

Likewise, the Discontinued CheckBoxField has been converted into a TemplateField whose ItemTemplate and EditItemTemplate contain a CheckBox Web control (with the ItemTemplate s CheckBox disabled). The read-only ProductID BoundField has been converted into a TemplateField with a Label control in both the ItemTemplate and EditItemTemplate. In short, converting an existing GridView field into a TemplateField is a quick and easy way to switch to the more customizable TemplateField without losing any of the existing field s functionality.

Since the GridView we re working with doesn t support editing, feel free to remove the EditItemTemplate from each TemplateField, leaving just the ItemTemplate. After doing this, your GridView s declarative markup should look like the following:

<asp:GridView ID="Products" runat="server" AutoGenerateColumns="False"
    DataKeyNames="ProductID" DataSourceID="ProductsDataSource"
    AllowPaging="True" EnableViewState="False" ShowFooter="True">
    <Columns>
        <asp:TemplateField HeaderText="ProductID" InsertVisible="False"
            SortExpression="ProductID">
            <ItemTemplate>
                <asp:Label ID="Label1" runat="server"
                    Text='<%# Bind("ProductID") %>'></asp:Label>
            </ItemTemplate>
        </asp:TemplateField>
        <asp:TemplateField HeaderText="ProductName" SortExpression="ProductName">
            <ItemTemplate>
                <asp:Label ID="Label2" runat="server"
                    Text='<%# Bind("ProductName") %>'></asp:Label>
            </ItemTemplate>
        </asp:TemplateField>
        <asp:TemplateField HeaderText="SupplierID" SortExpression="SupplierID">
            <ItemTemplate>
                <asp:Label ID="Label3" runat="server"
                    Text='<%# Bind("SupplierID") %>'></asp:Label>
            </ItemTemplate>
        </asp:TemplateField>
        <asp:TemplateField HeaderText="CategoryID" SortExpression="CategoryID">
            <ItemTemplate>
                <asp:Label ID="Label4" runat="server"
                    Text='<%# Bind("CategoryID") %>'></asp:Label>
            </ItemTemplate>
        </asp:TemplateField>
        <asp:TemplateField HeaderText="QuantityPerUnit"
            SortExpression="QuantityPerUnit">
            <ItemTemplate>
                <asp:Label ID="Label5" runat="server"
                    Text='<%# Bind("QuantityPerUnit") %>'></asp:Label>
            </ItemTemplate>
        </asp:TemplateField>
        <asp:TemplateField HeaderText="UnitPrice" SortExpression="UnitPrice">
            <ItemTemplate>
                <asp:Label ID="Label6" runat="server"
                    Text='<%# Bind("UnitPrice") %>'></asp:Label>
            </ItemTemplate>
        </asp:TemplateField>
        <asp:TemplateField HeaderText="UnitsInStock"
            SortExpression="UnitsInStock">
            <ItemTemplate>
                <asp:Label ID="Label7" runat="server"
                    Text='<%# Bind("UnitsInStock") %>'></asp:Label>
            </ItemTemplate>
        </asp:TemplateField>
        <asp:TemplateField HeaderText="UnitsOnOrder"
            SortExpression="UnitsOnOrder">
            <ItemTemplate>
                <asp:Label ID="Label8" runat="server"
                    Text='<%# Bind("UnitsOnOrder") %>'></asp:Label>
            </ItemTemplate>
        </asp:TemplateField>
        <asp:TemplateField HeaderText="ReorderLevel"
            SortExpression="ReorderLevel">
            <ItemTemplate>
                <asp:Label ID="Label9" runat="server"
                    Text='<%# Bind("ReorderLevel") %>'></asp:Label>
            </ItemTemplate>
        </asp:TemplateField>
        <asp:TemplateField HeaderText="Discontinued"
            SortExpression="Discontinued">
            <ItemTemplate>
                <asp:CheckBox ID="CheckBox1" runat="server"
                    Checked='<%# Bind("Discontinued") %>' Enabled="false" />
            </ItemTemplate>
        </asp:TemplateField>
        <asp:TemplateField HeaderText="CategoryName"
            SortExpression="CategoryName">
            <ItemTemplate>
                <asp:Label ID="Label10" runat="server"
                    Text='<%# Bind("CategoryName") %>'></asp:Label>
            </ItemTemplate>
        </asp:TemplateField>
        <asp:TemplateField HeaderText="SupplierName"
            SortExpression="SupplierName">
            <ItemTemplate>
                <asp:Label ID="Label11" runat="server"
                    Text='<%# Bind("SupplierName") %>'></asp:Label>
            </ItemTemplate>
        </asp:TemplateField>
    </Columns>
</asp:GridView>

Now that each GridView field has been converted into a TemplateField, we can enter the appropriate inserting interface into each field s FooterTemplate. Some of the fields will not have an inserting interface (ProductID, for instance); others will vary in the Web controls used to collect the new product s information.

To create the editing interface, choose the Edit Templates link from the GridView s smart tag. Then, from the drop-down list, select the appropriate field s FooterTemplate and drag the appropriate control from the Toolbox onto the Designer.

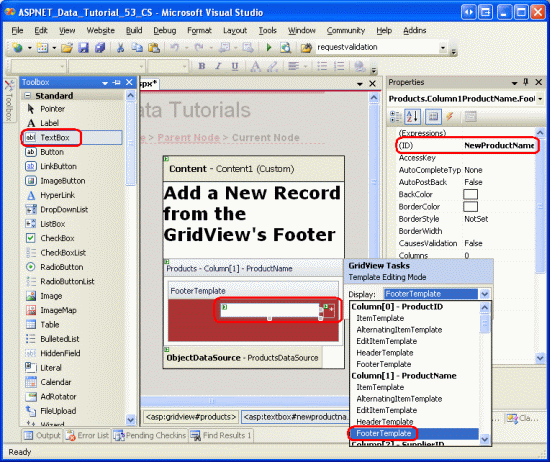

Add the Appropriate Inserting Interface to Each Field s FooterTemplate

Figure 9: Add the Appropriate Inserting Interface to Each Field s FooterTemplate (Click to view full-size image)

The following bulleted list enumerates the GridView fields, specifying the inserting interface to add:

  • ProductID none.
  • ProductName add a TextBox and set its ID to NewProductName. Add a RequiredFieldValidator control as well to ensure that the user enters a value for the new product s name.
  • SupplierID none.
  • CategoryID none.
  • QuantityPerUnit add a TextBox, setting its ID to NewQuantityPerUnit.
  • UnitPrice add a TextBox named NewUnitPrice and a CompareValidator that ensures the value entered is a currency value greater than or equal to zero.
  • UnitsInStock use a TextBox whose ID is set to NewUnitsInStock. Include a CompareValidator that ensures that the value entered is an integer value greater than or equal to zero.
  • UnitsOnOrder use a TextBox whose ID is set to NewUnitsOnOrder. Include a CompareValidator that ensures that the value entered is an integer value greater than or equal to zero.
  • ReorderLevel use a TextBox whose ID is set to NewReorderLevel. Include a CompareValidator that ensures that the value entered is an integer value greater than or equal to zero.
  • Discontinued add a CheckBox, setting its ID to NewDiscontinued.
  • CategoryName add a DropDownList and set its ID to NewCategoryID. Bind it to a new ObjectDataSource named CategoriesDataSource and configure it to use the CategoriesBLL class s GetCategories() method. Have the DropDownList s ListItem s display the CategoryName data field, using the CategoryID data field as their values.
  • SupplierName add a DropDownList and set its ID to NewSupplierID. Bind it to a new ObjectDataSource named SuppliersDataSource and configure it to use the SuppliersBLL class s GetSuppliers() method. Have the DropDownList s ListItem s display the CompanyName data field, using the SupplierID data field as their values.

For each of the validation controls, clear out the ForeColor property so that the FooterStyle CSS class s white foreground color will be used in place of the default red. Also use the ErrorMessage property for a detailed description, but set the Text property to an asterisk. To prevent the validation control s text from causing the inserting interface to wrap to two lines, set the FooterStyle s Wrap property to false for each of the FooterTemplate s that use a validation control. Finally, add a ValidationSummary control beneath the GridView and set its ShowMessageBox property to True and its ShowSummary property to False.

When adding a new product, we need to provide the CategoryID and SupplierID. This information is captured through the DropDownLists in the footer cells for the CategoryName and SupplierName fields. I chose to use these fields as opposed to the CategoryID and SupplierID TemplateFields because in the grid s data rows the user is likely more interested in seeing the category and supplier names rather than their ID values. Since the CategoryID and SupplierID values are now being captured in the CategoryName and SupplierName field s inserting interfaces, we can remove the CategoryID and SupplierID TemplateFields from the GridView.

Similarly, the ProductID is not used when adding a new product, so the ProductID TemplateField can be removed as well. However, let s leave the ProductID field in the grid. In addition to the TextBoxes, DropDownLists, CheckBoxes, and validation controls that make up the inserting interface, we'll also need an Add button that, when clicked, performs the logic to add the new product to the database. In Step 4 we'll include an Add button in the inserting interface in the ProductID TemplateField s FooterTemplate.

Feel free to improve the appearance of the various GridView fields. For example, you might want to format the UnitPrice values as a currency, right-align the UnitsInStock, UnitsOnOrder, and ReorderLevel fields, and update the HeaderText values for the TemplateFields.

After creating the slew of inserting interfaces in the FooterTemplate s, removing the SupplierID, and CategoryID TemplateFields, and improving the aesthetics of the grid through formatting and aligning the TemplateFields, your GridView s declarative markup should look similar to the following:

<asp:GridView ID="Products" runat="server" AutoGenerateColumns="False"
    DataKeyNames="ProductID" DataSourceID="ProductsDataSource"
    AllowPaging="True" EnableViewState="False" ShowFooter="True">
    <Columns>
        <asp:TemplateField HeaderText="ProductID" InsertVisible="False"
            SortExpression="ProductID">
            <ItemTemplate>
                <asp:Label ID="Label1" runat="server"
                    Text='<%# Bind("ProductID") %>'></asp:Label>
            </ItemTemplate>
            <ItemStyle HorizontalAlign="Center" />
        </asp:TemplateField>
        <asp:TemplateField HeaderText="Product" SortExpression="ProductName">
            <ItemTemplate>
                <asp:Label ID="Label2" runat="server"
                    Text='<%# Bind("ProductName") %>'></asp:Label>
            </ItemTemplate>
            <FooterTemplate>
                <asp:TextBox ID="NewProductName" runat="server"></asp:TextBox>
                <asp:RequiredFieldValidator ID="RequiredFieldValidator1"
                    runat="server" ControlToValidate="NewProductName"
                    Display="Dynamic"  ForeColor="
                    ErrorMessage="You must enter a name for the new product.">
                    * </asp:RequiredFieldValidator>
            </FooterTemplate>
            <FooterStyle Wrap="False" />
        </asp:TemplateField>
        <asp:TemplateField HeaderText="Category" SortExpression="CategoryName">
            <ItemTemplate>
                <asp:Label ID="Label10" runat="server"
                    Text='<%# Bind("CategoryName") %>'></asp:Label>
            </ItemTemplate>
            <FooterTemplate>
                <asp:DropDownList ID="NewCategoryID" runat="server"
                    DataSourceID="CategoriesDataSource"
                    DataTextField="CategoryName" DataValueField="CategoryID">
                </asp:DropDownList>
                <asp:ObjectDataSource ID="CategoriesDataSource" runat="server"
                    OldValuesParameterFormatString="original_{0}"
                    SelectMethod="GetCategories" TypeName="CategoriesBLL">
                </asp:ObjectDataSource>
            </FooterTemplate>
        </asp:TemplateField>
        <asp:TemplateField HeaderText="Supplier" SortExpression="SupplierName">
            <ItemTemplate>
                <asp:Label ID="Label11" runat="server"
                    Text='<%# Bind("SupplierName") %>'></asp:Label>
            </ItemTemplate>
            <FooterTemplate>
                <asp:DropDownList ID="NewSupplierID" runat="server"
                    DataSourceID="SuppliersDataSource"
                    DataTextField="CompanyName" DataValueField="SupplierID">
                </asp:DropDownList><asp:ObjectDataSource ID="SuppliersDataSource"
                    runat="server" OldValuesParameterFormatString="original_{0}"
                    SelectMethod="GetSuppliers" TypeName="SuppliersBLL">
                </asp:ObjectDataSource>
            </FooterTemplate>
        </asp:TemplateField>
        <asp:TemplateField HeaderText="Qty/Unit" SortExpression="QuantityPerUnit">
            <ItemTemplate>
                <asp:Label ID="Label5" runat="server"
                    Text='<%# Bind("QuantityPerUnit") %>'></asp:Label>
            </ItemTemplate>
            <FooterTemplate>
                <asp:TextBox ID="NewQuantityPerUnit" runat="server"></asp:TextBox>
            </FooterTemplate>
        </asp:TemplateField>
        <asp:TemplateField HeaderText="Price" SortExpression="UnitPrice">
            <ItemTemplate>
                <asp:Label ID="Label6" runat="server"
                    Text='<%# Bind("UnitPrice", "{0:c}") %>'></asp:Label>
            </ItemTemplate>
            <FooterTemplate>
                $<asp:TextBox ID="NewUnitPrice" runat="server" Columns="8" />
                <asp:CompareValidator ID="CompareValidator1" runat="server"
                    ControlToValidate="NewUnitPrice"
                    ErrorMessage="You must enter a valid currency value greater than
                        or equal to 0.00. Do not include the currency symbol."
                    ForeColor="" Operator="GreaterThanEqual" Type="Currency"
                    ValueToCompare="0" Display="Dynamic">
                    * </asp:CompareValidator>
            </FooterTemplate>
            <ItemStyle HorizontalAlign="Right" />
            <FooterStyle Wrap="False" />
        </asp:TemplateField>
        <asp:TemplateField HeaderText="Units In Stock"
            SortExpression="Units In Stock">
            <ItemTemplate>
                <asp:Label ID="Label7" runat="server"
                    Text='<%# Bind("UnitsInStock") %>'></asp:Label>
            </ItemTemplate>
            <FooterTemplate>
                <asp:TextBox ID="NewUnitsInStock" runat="server" Columns="5" />
                <asp:CompareValidator ID="CompareValidator2" runat="server"
                    ControlToValidate="NewUnitsInStock" Display="Dynamic"
                    ErrorMessage="You must enter a valid numeric value for units
                        in stock that's greater than or equal to zero."
                    ForeColor="" Operator="GreaterThanEqual" Type="Integer"
                        ValueToCompare="0">*</asp:CompareValidator>
            </FooterTemplate>
            <ItemStyle HorizontalAlign="Right" />
            <FooterStyle Wrap="False" />
        </asp:TemplateField>
        <asp:TemplateField HeaderText="Units On Order" SortExpression="UnitsOnOrder">
            <ItemTemplate>
                <asp:Label ID="Label8" runat="server"
                    Text='<%# Bind("UnitsOnOrder") %>'></asp:Label>
            </ItemTemplate>
            <FooterTemplate>
                <asp:TextBox ID="NewUnitsOnOrder" runat="server" Columns="5" />
                <asp:CompareValidator ID="CompareValidator3" runat="server"
                    ControlToValidate="NewUnitsOnOrder" Display="Dynamic"
                    ErrorMessage="You must enter a valid numeric value for units on
                        order that's greater than or equal to zero."
                    ForeColor="" Operator="GreaterThanEqual" Type="Integer"
                    ValueToCompare="0">*</asp:CompareValidator>
            </FooterTemplate>
            <ItemStyle HorizontalAlign="Right" />
            <FooterStyle Wrap="False" />
        </asp:TemplateField>
        <asp:TemplateField HeaderText="Reorder Level" SortExpression="ReorderLevel">
            <ItemTemplate>
                <asp:Label ID="Label9" runat="server"
                    Text='<%# Bind("ReorderLevel") %>'></asp:Label>
            </ItemTemplate>
            <FooterTemplate>
                <asp:TextBox ID="NewReorderLevel" runat="server" Columns="5" />
                <asp:CompareValidator ID="CompareValidator4" runat="server"
                    ControlToValidate="NewReorderLevel" Display="Dynamic"
                    ErrorMessage="You must enter a valid numeric value for reorder
                        level that's greater than or equal to zero."
                    ForeColor="" Operator="GreaterThanEqual" Type="Integer"
                    ValueToCompare="0">*</asp:CompareValidator>
            </FooterTemplate>
            <ItemStyle HorizontalAlign="Right" />
            <FooterStyle Wrap="False" />
        </asp:TemplateField>
        <asp:TemplateField HeaderText="Discontinued" SortExpression="Discontinued">
            <ItemTemplate>
                <asp:CheckBox ID="CheckBox1" runat="server"
                    Checked='<%# Bind("Discontinued") %>' Enabled="false" />
            </ItemTemplate>
            <FooterTemplate>
                <asp:CheckBox ID="NewDiscontinued" runat="server" />
            </FooterTemplate>
            <ItemStyle HorizontalAlign="Center" />
            <FooterStyle HorizontalAlign="Center" />
        </asp:TemplateField>
    </Columns>
</asp:GridView>

When viewed through a browser, the GridView s footer row now includes the completed inserting interface (see Figure 10). At this point, the inserting interface doesn t include a means for the user to indicate that she s entered the data for the new product and wants to insert a new record into the database. Also, we ve yet to address how the data entered into the footer will translate into a new record in the Products database. In Step 4 we'll look at how to include an Add button to the inserting interface and how to execute code on postback when it s clicked. Step 5 shows how to insert a new record using the data from the footer.

The GridView Footer Provides an Interface for Adding a New Record

Figure 10: The GridView Footer Provides an Interface for Adding a New Record (Click to view full-size image)

Step 4: Including an Add Button in the Inserting Interface

We need to include an Add button somewhere in the inserting interface since the footer row s inserting interface currently lacks the means for the user to indicate that they have completed entering the new product s information. This could be placed in one of the existing FooterTemplate s or we could add a new column to the grid for this purpose. For this tutorial, let s place the Add button in the ProductID TemplateField s FooterTemplate.

From the Designer, click on the Edit Templates link in the GridView s smart tag and then choose the ProductID field s FooterTemplate from the drop-down list. Add a Button Web control (or a LinkButton or ImageButton, if you prefer) to the template, setting its ID to AddProduct, its CommandName to Insert, and its Text property to Add as shown in Figure 11.

Place the Add Button in the ProductID TemplateField s FooterTemplate

Figure 11: Place the Add Button in the ProductID TemplateField s FooterTemplate (Click to view full-size image)

Once you ve included the Add button, test out the page in a browser. Note that when clicking the Add button with invalid data in the inserting interface, the postback is short circuited and the ValidationSummary control indicates the invalid data (see Figure 12). With appropriate data entered, clicking the Add button causes a postback. No record is added to the database, however. We will need to write a bit of code to actually perform the insert.

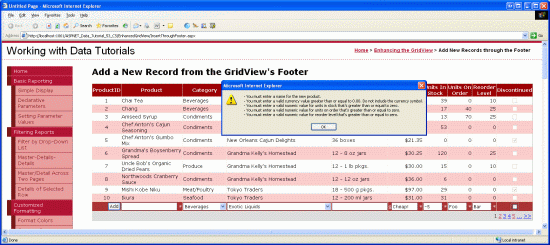

The Add Button s Postback is Short Circuited if There is Invalid Data in the Inserting Interface

Figure 12: The Add Button s Postback is Short Circuited if There is Invalid Data in the Inserting Interface (Click to view full-size image)

Note

The validation controls in the inserting interface were not assigned to a validation group. This works fine so long as the inserting interface is the only set of validation controls on the page. If, however, there are other validation controls on the page (such as validation controls in the grid s editing interface), the validation controls in the inserting interface and Add button s ValidationGroup properties should be assigned the same value so as to associate these controls with a particular validation group. See Dissecting the Validation Controls in ASP.NET 2.0 for more information on partitioning the validation controls and buttons on a page into validation groups.

Step 5: Inserting a New Record Into theProductsTable

When utilizing the built-in editing features of the GridView, the GridView automatically handles all of the work necessary for performing the update. In particular, when the Update button is clicked it copies the values entered from the editing interface to the parameters in the ObjectDataSource s UpdateParameters collection and kicks off the update by invoking the ObjectDataSource s Update() method. Since the GridView does not provide such built-in functionality for inserting, we must implement code that calls the ObjectDataSource s Insert() method and copies the values from the inserting interface to the ObjectDataSource s InsertParameters collection.

This insert logic should be executed after the Add button has been clicked. As discussed in the Adding and Responding to Buttons in a GridView tutorial, anytime a Button, LinkButton, or ImageButton in a GridView is clicked, the GridView s RowCommand event fires on postback. This event fires whether the Button, LinkButton, or ImageButton was added explicitly such as the Add button in the footer row or if it was automatically added by the GridView (such as the LinkButtons at the top of each column when Enable Sorting is selected, or the LinkButtons in the paging interface when Enable Paging is selected).

Therefore, to respond to the user clicking the Add button, we need to create an event handler for the GridView s RowCommand event. Since this event fires whenever any Button, LinkButton, or ImageButton in the GridView is clicked, it s vital that we only proceed with the inserting logic if the CommandName property passed into the event handler maps to the CommandName value of the Add button ( Insert ). Moreover, we should also only proceed if the validation controls report valid data. To accommodate this, create an event handler for the RowCommand event with the following code:

Protected Sub Products_RowCommand(sender As Object, e As GridViewCommandEventArgs) _
    Handles Products.RowCommand

    ' Insert data if the CommandName == "Insert"
    ' and the validation controls indicate valid data...
    If e.CommandName = "Insert" AndAlso Page.IsValid Then
        ' TODO: Insert new record...
    End If
End Sub

Note

You may be wondering why the event handler bothers checking the Page.IsValid property. After all, won't the postback be suppressed if invalid data is provided in the inserting interface? This assumption is correct as long as the user has not disabled JavaScript or has taken steps to circumvent the client-side validation logic. In short, one should never rely strictly on client-side validation; a server-side check for validity should always be performed before working with the data.

In Step 1 we created the ProductsDataSource ObjectDataSource such that its Insert() method is mapped to the ProductsBLL class s AddProduct method. To insert the new record into the Products table, we can simply invoke the ObjectDataSource s Insert() method:

Protected Sub Products_RowCommand(sender As Object, e As GridViewCommandEventArgs) _
    Handles Products.RowCommand

    ' Insert data if the CommandName == "Insert"
    ' and the validation controls indicate valid data...
    If e.CommandName = "Insert" AndAlso Page.IsValid Then
        ' Insert new record
        ProductsDataSource.Insert()
    End If
End Sub

Now that the Insert() method has been invoked, all that remains is to copy the values from the inserting interface to the parameters passed to the ProductsBLL class s AddProduct method. As we saw back in the Examining the Events Associated with Inserting, Updating, and Deleting tutorial, this can be accomplished through the ObjectDataSource s Inserting event. In the Inserting event we need to programmatically reference the controls from the Products GridView s footer row and assign their values to the e.InputParameters collection. If the user omits a value such as leaving the ReorderLevel TextBox blank we need to specify that the value inserted into the database should be NULL. Since the AddProducts method accepts nullable types for the nullable database fields, simply use a nullable type and set its value to Nothing in the case where user input is omitted.

Protected Sub ProductsDataSource_Inserting _
    (sender As Object, e As .ObjectDataSourceMethodEventArgs) _
    Handles ProductsDataSource.Inserting

    ' Programmatically reference Web controls in the inserting interface...
    Dim NewProductName As TextBox = _
        Products.FooterRow.FindControl("NewProductName")
    Dim NewCategoryID As DropDownList = _
        Products.FooterRow.FindControl("NewCategoryID")
    Dim NewSupplierID As DropDownList = _
        Products.FooterRow.FindControl("NewSupplierID")
    Dim NewQuantityPerUnit As TextBox = _
        Products.FooterRow.FindControl("NewQuantityPerUnit")
    Dim NewUnitPrice As TextBox = _
        Products.FooterRow.FindControl("NewUnitPrice")
    Dim NewUnitsInStock As TextBox = _
        Products.FooterRow.FindControl("NewUnitsInStock")
    Dim NewUnitsOnOrder As TextBox = _
        Products.FooterRow.FindControl("NewUnitsOnOrder")
    Dim NewReorderLevel As TextBox = _
        Products.FooterRow.FindControl("NewReorderLevel")
    Dim NewDiscontinued As CheckBox = _
        Products.FooterRow.FindControl("NewDiscontinued")
    ' Set the ObjectDataSource's InsertParameters values...
    e.InputParameters("productName") = NewProductName.Text
    e.InputParameters("supplierID") = _
        Convert.ToInt32(NewSupplierID.SelectedValue)
    e.InputParameters("categoryID") = _
        Convert.ToInt32(NewCategoryID.SelectedValue)
    Dim quantityPerUnit As String = Nothing
    If Not String.IsNullOrEmpty(NewQuantityPerUnit.Text) Then
        quantityPerUnit = NewQuantityPerUnit.Text
    End If
    e.InputParameters("quantityPerUnit") = quantityPerUnit
    Dim unitPrice As Nullable(Of Decimal) = Nothing
    If Not String.IsNullOrEmpty(NewUnitPrice.Text) Then
        unitPrice = Convert.ToDecimal(NewUnitPrice.Text)
    End If
    e.InputParameters("unitPrice") = unitPrice
    Dim unitsInStock As Nullable(Of Short) = Nothing
    If Not String.IsNullOrEmpty(NewUnitsInStock.Text) Then
        unitsInStock = Convert.ToInt16(NewUnitsInStock.Text)
    End If
    e.InputParameters("unitsInStock") = unitsInStock
    Dim unitsOnOrder As Nullable(Of Short) = Nothing
    If Not String.IsNullOrEmpty(NewUnitsOnOrder.Text) Then
        unitsOnOrder = Convert.ToInt16(NewUnitsOnOrder.Text)
    End If
    e.InputParameters("unitsOnOrder") = unitsOnOrder
    Dim reorderLevel As Nullable(Of Short) = Nothing
    If Not String.IsNullOrEmpty(NewReorderLevel.Text) Then
        reorderLevel = Convert.ToInt16(NewReorderLevel.Text)
    End If
    e.InputParameters("reorderLevel") = reorderLevel
    e.InputParameters("discontinued") = NewDiscontinued.Checked
End Sub

With the Inserting event handler completed, new records can be added to the Products database table via the GridView s footer row. Go ahead and try adding several new products.

Enhancing and Customizing the Add Operation

Currently, clicking the Add button adds a new record to the database table but does not provide any sort of visual feedback that the record has successfully been added. Ideally, a Label Web control or client-side alert box would inform the user that their insert has completed with success. I leave this as an exercise for the reader.

The GridView used in this tutorial does not apply any sort order to the listed products, nor does it allow the end user to sort the data. Consequently, the records are ordered as they are in the database by their primary key field. Since each new record has a ProductID value greater than the last one, every time a new product is added it is tacked on to the end of the grid. Therefore, you may want to automatically send the user to the last page of the GridView after adding a new record. This can be accomplished by adding the following line of code after the call to ProductsDataSource.Insert() in the RowCommand event handler to indicate that the user needs to be sent to the last page after binding the data to the GridView:

' Indicate that the user needs to be sent to the last page
SendUserToLastPage = True

SendUserToLastPage is a page-level Boolean variable that is initially assigned a value of False. In the GridView s DataBound event handler, if SendUserToLastPage is false, the PageIndex property is updated to send the user to the last page.

Protected Sub Products_DataBound(sender As Object, e As EventArgs) _
    Handles Products.DataBound

    ' Send user to last page of data, if needed
    If SendUserToLastPage Then
        Products.PageIndex = Products.PageCount - 1
    End If
End Sub

The reason the PageIndex property is set in the DataBound event handler (as opposed to the RowCommand event handler) is because when the RowCommand event handler fires we ve yet to add the new record to the Products database table. Therefore, in the RowCommand event handler the last page index (PageCount - 1) represents the last page index before the new product has been added. For the majority of products being added, the last page index is the same after adding the new product. But when the added product results in a new last page index, if we incorrectly update the PageIndex in the RowCommand event handler then we'll be taken to the second to last page (the last page index prior to adding the new product) as opposed to the new last page index. Since the DataBound event handler fires after the new product has been added and the data rebound to the grid, by setting the PageIndex property there we know we re getting the correct last page index.

Finally, the GridView used in this tutorial is quite wide due to the number of fields that must be collected for adding a new product. Due to this width, a DetailsView s vertical layout might be preferred. The GridView s overall width could be reduced by collecting fewer inputs. Perhaps we don t need to collect the UnitsOnOrder, UnitsInStock, and ReorderLevel fields when adding a new product, in which case these fields could be removed from the GridView.

To adjust the data collected, we can use one of two approaches:

  • Continue to use the AddProduct method that expects values for the UnitsOnOrder, UnitsInStock, and ReorderLevel fields. In the Inserting event handler, provide hard-coded, default values to use for these inputs that have been removed from the inserting interface.
  • Create a new overload of the AddProduct method in the ProductsBLL class that does not accept inputs for the UnitsOnOrder, UnitsInStock, and ReorderLevel fields. Then, in the ASP.NET page, configure the ObjectDataSource to use this new overload.

Either option will work equally as well. In past tutorials we used the latter option, creating multiple overloads for the ProductsBLL class s UpdateProduct method.

Summary

The GridView lacks the built-in inserting capabilities found in the DetailsView and FormView, but with a bit of effort an inserting interface can be added to the footer row. To display the footer row in a GridView simply set its ShowFooter property to True. The footer row content can be customized for each field by converting the field to a TemplateField and adding the inserting interface to the FooterTemplate. As we saw in this tutorial, the FooterTemplate can contain Buttons, TextBoxes, DropDownLists, CheckBoxes, data source controls for populating data-driven Web controls (such as DropDownLists), and validation controls. Along with controls for collecting the user s input, an Add Button, LinkButton, or ImageButton is needed.

When the Add button is clicked, the ObjectDataSource s Insert() method is invoked to start the inserting workflow. The ObjectDataSource will then call the configured insert method (the ProductsBLL class s AddProduct method, in this tutorial). We must copy the values from the GridView s inserting interface to the ObjectDataSource s InsertParameters collection prior to the insert method being invoked. This can be accomplished by programmatically referencing the inserting interface Web controls in the ObjectDataSource s Inserting event handler.

This tutorial completes our look at techniques for enhancing the GridView s appearance. The next set of tutorials will examine how to work with binary data such as images, PDFs, Word documents, and so on and the data Web controls.

Happy Programming!

About the Author

Scott Mitchell, author of seven ASP/ASP.NET books and founder of 4GuysFromRolla.com, has been working with Microsoft Web technologies since 1998. Scott works as an independent consultant, trainer, and writer. His latest book is Sams Teach Yourself ASP.NET 2.0 in 24 Hours. He can be reached at mitchell@4GuysFromRolla.com. or via his blog, which can be found at http://ScottOnWriting.NET.

Special Thanks To

This tutorial series was reviewed by many helpful reviewers. Lead reviewer for this tutorial was Bernadette Leigh. Interested in reviewing my upcoming MSDN articles? If so, drop me a line at mitchell@4GuysFromRolla.com.

Previous
