Exchange admin center in Exchange Server

The Exchange admin center (EAC) is the web-based management console in Exchange Server that's optimized for on-premises, online, and hybrid Exchange deployments. The EAC was introduced in Exchange Server 2013, and replaces the Exchange Management Console (EMC) and the Exchange Control Panel (ECP), which were the two management interfaces in Exchange Server 2010.

Looking for the Exchange Online version of this article? See Exchange admin center in Exchange Online.

Looking for the standalone Exchange Online Protection (EOP) version of this article? See Exchange admin center in EOP.

Accessing the EAC

The URL of the EAC is controlled by the Internet Information Services (IIS) virtual directory named ECP in the Client Access (frontend) services on the Mailbox server. Yes, the virtual directory is named ECP, not EAC.

• Internal URL: By default, this value contains the fully qualified domain name (FQDN) of the Exchange server in the format https://<ServerFQDN>/ecp. For example, https://mailbox01.contoso.com/ecp. To access the EAC in a web browser on the Exchange server itself, you can use the value https://localhost/ecp.

• External URL: By default, this value is unconfigured. Before you can connect to the EAC from the Internet, you need to configure the following settings:

  • The external URL value on the ECP virtual directory. For more information, see Step 4: Configure external URLs in Configure mail flow and client access on Exchange servers.

  • A corresponding record in your public DNS.

  • A TLS certificate that contains or matches the host name entry. Likely, this certificate is a subject alternative name (SAN) certificate or a wildcard certificate, because most of the client services are all available under the same website on the Exchange server. For more information, see Certificate requirements for Exchange services.

    After you configure the settings, a common external URL value for the EAC would resemble https://mail.contoso.com/ecp.

    Note: External users who connect to Outlook on the web (formerly known as Outlook Web App) also need access to the EAC to access their own Options page. You can disable external administrator access to the EAC while still allowing users to access their Options page in Outlook on the web. For more information, see Turn off access to the Exchange admin center.

The easiest way to find the internal and external URL values for the EAC (without using Servers > Virtual directories in the EAC itself) is by using the Get-EcpVirtualDirectory cmdlet in the Exchange Management Shell. To learn how to open the Exchange Management Shell in your on-premises Exchange organization, see Open the Exchange Management Shell.

These examples show you how to find the internal and external URL values for the EAC virtual directories in your organization:

• To find the values on all Exchange servers in your organization, run the following command:

  Get-EcpVirtualDirectory | Format-List Server,Name,*Url


• To find the values on the server named Mailbox01, run the following command:

  Get-EcpVirtualDirectory | Format-List Name,*Url


• To find the value for the virtual directory named ecp (Default Web Site) on the server named Mailbox01, run the following command.

  Get-EcpVirtualDirectory -Identity "Mailbox01\ecp (Default Web Site)" | Format-List *Url


For more information, see Get-EcpVirtualDirectory.

In Exchange 2016, if you're in a coexistence environment with Exchange 2010, the location of your mailbox controls the default behavior for opening the EAC or ECP:

• If your mailbox is located on the Exchange 2010 Mailbox server, you get the Exchange 2010 ECP by default. You can access the EAC by adding the Exchange version to the URL (which is 15 for both Exchange 2013 and Exchange 2016). For example, to access the EAC through the Client Access (frontend) services on the Mailbox server named Mailbox01, use the following URL: https://Mailbox01/ecp/?ExchClientVer=15.

• If your mailbox is located on an Exchange 2016 Mailbox server, and you want to access the ECP on the Exchange 2010 Client Access server named CAS01, use the following URL: https://CAS01/ecp/?ExchClientVer=14.

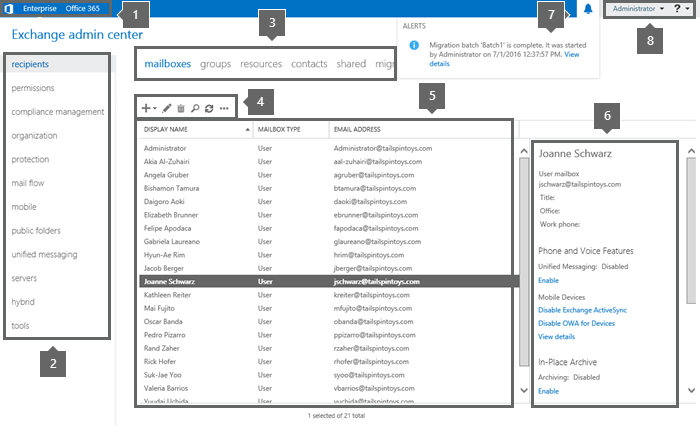

Common user interface elements in the EAC

The section describes the user interface elements that are common across the EAC.

1: Cross-premises navigation

The cross-premises navigation allows you to easily switch between your Exchange Online and on-premises Exchange deployments. If you don't have an Exchange Online organization, the Office 365 link takes you to a page that compares plans and pricing for Microsoft 365 and Office 365 services.

2: Feature pane

The feature pane is the first level of navigation for most tasks that you perform in the EAC, and is organized by the following feature areas:

• Recipients: Manage mailboxes, groups, resource mailboxes (room and equipment mailboxes), contacts, shared mailboxes, and mailbox migrations and moves. For more information, see the following articles:

  • Create user mailboxes in Exchange Server and Manage user mailboxes

  • Manage distribution groups and Manage dynamic distribution groups

  • Create and manage room mailboxes

  • Manage mail contacts and Manage mail users

  • Create shared mailboxes in the Exchange admin center

• Permissions: Manage role-based access control (RBAC) administrator roles, user roles, and Outlook on the web policies. For more information, see the following articles.

  • Manage role groups , Manage role group members, and Manage role assignment policies.

  • View or configure Outlook on the web mailbox policy properties

• Compliance management: This is where you manage In-Place eDiscovery, In-Place Hold, auditing (mailbox audit logging and administrator audit logging), data loss prevention (DLP), retention policies, retention tags, and journal rules. For more information, see the following articles:

  • In-Place eDiscovery in Exchange Server and In-Place Hold and Litigation Hold in Exchange Server

  • Mailbox audit logging in Exchange Server and Administrator audit logging in Exchange Server

  • Data loss prevention in Exchange Server

  • Retention policies and Retention tags.

  • Journaling in Exchange Server

• Organization: Manage federated sharing, Outlook Apps, and address lists. For more information, see the following articles:

  • Sharing

  • Install or remove add-ins for Outlook for your Exchange 2013 organization

  • Address lists in Exchange Server

• Protection: Manage antimalware protection for your organization. For more information, see Antimalware protection in Exchange Server.

• Mail flow: Manage mail flow rules (also known as transport rules), delivery reports, accepted domains, remote domains, email address policies, Receive connectors, and Send connectors. For more information, see the following articles:

  • Mail flow rules in Exchange Server

  • Track messages with delivery reports

  • Address lists in Exchange Server

  • Accepted domains in Exchange Server

  • Remote Domains

  • Email address policies in Exchange Server

  • Receive connectors

  • Send connectors

• Mobile: Manage the mobile devices that you allow to connect to your organization. You can manage mobile device access and mobile device mailbox policies. For more information, see the following articles:

  • Mobile devices

  • Mobile device mailbox policies

• Public folders: Manage public folders and public folder mailboxes. For more information, see Public folders.

• Unified Messaging: Manage UM dial plans and UM IP gateways. (UM isn't available in Exchange 2019.) For more information, see the following articles:

  • UM Dial Plans

  • UM IP Gateways

• Servers: View and manage server-specific settings, databases, database availability groups (DAGs), virtual directories, and certificates. For more information, see the following articles:

  • POP3 and IMAP4 in Exchange Server

  • Configure the Startup Mode on a Client Access Server and Configure the Startup Mode on a Mailbox Server

  • Message retry, resubmit, and expiration intervals

  • Configure message tracking , Configure connectivity logging in Exchange Server, and Protocol logging

  • Manage Outlook Anywhere

  • Manage mailbox database copies

  • Manage database availability groups

  • Virtual Directory Management

  • Certificate procedures in Exchange Server

• Hybrid: Set up and configure a Hybrid organization.

3: Tabs

The Setup tab allows you to run the Hybrid Configuration Wizard or modify the settings of your existing hybrid deployment.

4: Toolbar

When you select most tabs, you see a toolbar. The toolbar has icons that perform specific actions. The following table describes the most common icons and their actions. To see the action that's associated with an icon (the icon's title), simply hover over the icon.

Icon	Name	Action
	Add, New	Create a new object. Some of these icons have an associated down arrow you can select to show additional objects you can create. For example, in Recipients > Mailboxes, clicking the down arrow displays User mailbox and Linked mailbox as additional options.
	Edit	Edit an object.
	Delete	Delete an object. Some delete icons have a down arrow you can select to show additional options.
	Search	Open a search box so you can enter text for an object that you want to find you want to find in a long list of objects.
	Refresh	Refresh the list view.
	More options	View more actions you can perform for that tab's objects. For example, in Recipients > Mailboxes clicking this icon shows the following options: Disable, Add/Remove columns, Export data to a CSV file, Connect a mailbox, and Advanced search.
	Up arrow and down arrow	Move an object up or down in the list, when the order is important. For example, in Mail flow > Email address policies select the up arrow to move the policy higher in the list, which increases the priority of the policy by specifying which policy is applied first. You can also use these arrows to navigate the public folder hierarchy and to move rules up or down in the list view.
	Copy	Copy an object so you can make changes to it without changing the original object. For example, in Permissions > Admin roles, select a role from the list view, and then select this icon to create a new role group based on an existing one.
	Remove	Remove an item from a list. For example, in the Public Folder Permissions dialog box, you can remove users from the list of users allowed to access the public folder by selecting the user and clicking this icon.

5: List view

Tabs that contain many objects display those objects in a list view. The viewable limit in the EAC list view is approximately 20,000 objects. Paging is included so you can skip to the results that you want to see. In the Recipients list view, you can also configure page size and export the data to a CSV file.

6: Details pane

When you select an object from the list view, more information about that object is displayed in the details pane. For some object types, the details pane includes quick management tasks. For example, if you navigate to Recipients > Mailboxes and select a mailbox from the list view, the details pane (among other options) displays an option to enable or disable the archive for that mailbox.

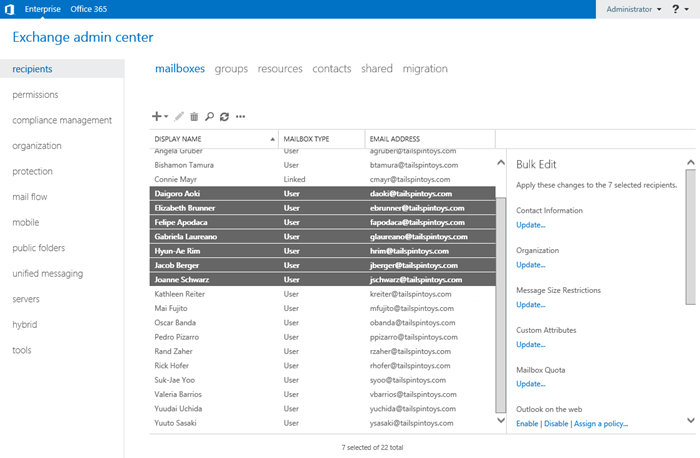

Some object types also allow bulk editing of multiple objects in the details pane. You can select multiple objects in the list view by selecting an object and doing one of the following steps:

• Holding the Shift key, and selecting an object farther down in the list.

  or

• Holding down the CTRL key as you select each object.

If bulk edit is available for the object types that you selected, you see the available options in the details pane. For example, at Recipients > Mailboxes, when you select multiple mailboxes of the same type, the title of the details pane changes to Bulk Edit, and you can update contact and organization information, custom attributes, mailbox quotas, Outlook on the web settings, and more.

7: Notifications

The EAC includes a notification viewer that displays information about the following items:

• Expiring and expired certificates.

• The status of mailbox moves and migrations (also known as Mailbox Replication Service tasks or MRS tasks). You can also use the notification viewer to opt in to receive email notifications about these tasks.

• Exporting mailbox content to .pst files.

To show or hide the notification viewer, select the icon ().

Notifications are alerts that are sent to the arbitration mailbox named FederatedEmail.4c1f4d8b-8179-4148-93bf-00a95fa1e042. The EAC checks this mailbox for alerts every 30 seconds. Notifications remain in the arbitration mailbox until they're removed by the component that sent them, or until they expire (removed by the Managed Folder Assistant after 30 days).

You can also use the Get-Notification cmdlet in the Exchange Management Shell to view more details about notifications, and the Set-Notification cmdlet to request notification emails for future alerts.

8: Me tile and Help

The Me tile allows you to sign out of the EAC and sign in as a different user by clicking on the drop-down menu that's next to your account name.

Select the help icon () to view the help content for the tab that you're currently on. If you select on the drop-down menu that's next to the help icon, you can perform the following actions:

• Disable Help bubble: The Help bubble displays contextual help for fields when you create or edit objects in the EAC. From here, you can globally turn off or turn on the Help bubble for all fields in the EAC.

• Performance console: The Performance console displays many counters that relate to the performance of the EAC.

• Copyright and Privacy: Select these links to read the copyright and privacy information for Exchange Server.

Supported browsers

The levels of support for operating system and browser combinations that you can use to access the EAC are described in the following tables.

Notes:

• The levels of support for the EAC are:

  • Supported: All functionality and features are supported and fully tested.

  • Unsupported: The browser and operating system combination isn't supported, or is untested. For more information about supported versions of Internet Explorer on Windows, see Internet Explorer Support Announcement.

  • n/a: The browser and operating system combination isn't possible. For example, an older browser on a newer operating system, or vice-versa.

• Operating system and browser combinations that aren't listed are unsupported, including iOS and Android.

• Third-party plug-ins might cause issues with the EAC for supported browsers.

Client operating systems:

Web browser	Windows 7	Windows 8.1	Windows 10	macOS X	Linux
Internet Explorer 9	Unsupported	n/a	n/a	n/a	n/a
Internet Explorer 10	Unsupported	n/a	n/a	n/a	n/a
Internet Explorer 11	Supported	Supported	Supported	n/a	n/a
Microsoft Edge	n/a	n/a	Supported	n/a	n/a
Mozilla Firefox latest version or one previous	Supported	Supported	Supported	Supported	Supported
Apple Safari 6 or later versions	n/a	n/a	n/a	Supported	n/a
Google Chrome latest version or one previous	Supported	Supported	Supported	Supported	Supported

Windows Server operating systems:

Web browser	Windows Server 2008 R2	Windows Server 2012	Windows Server 2012 R2	Windows Server 2016
Internet Explorer 9	Unsupported	n/a	n/a	n/a
Internet Explorer 10	Unsupported	Supported	n/a	n/a
Internet Explorer 11	Supported	n/a	Supported	Supported
