Run an image factory from Azure DevOps

  • Artikkeli

This article covers all the preparations needed to run the image factory from Azure DevOps (formerly Visual Studio Team Services).

Note

Any orchestration engine will work! Azure DevOps is not mandatory. The image factory is run using Azure PowerShell scripts, so it could be run manually, by using Windows Task Scheduler, other CI/CD systems, and so on.

Create a lab for the image factory

The first step in setting up the image factory is to create a lab in Azure DevTest Labs. This lab is the image factory lab where we create the virtual machines and save custom images. This lab is considered as part of the overall image factory process. Once you create a lab, make sure to save the name since you’ll need it later.

Scripts and templates

The next step in adopting the image factory for your team is to understand what’s available. The image factory scripts and templates are available publicly in the DevTest Labs GitHub Repo. Here is an outline of the pieces:

  • Image Factory. It's the root folder.
    • Configuration. The inputs to the image factory
      • GoldenImages. This folder contains JSON files that represent the definitions of custom images.
      • Labs.json. File where teams sign up to receive specific custom images.
  • Scripts. The engine for the image factory.

The articles in this section provide more details about these scripts and templates.

Create an Azure DevOps team project

Azure DevOps let you store the source code, run the Azure PowerShell in one place. You can schedule recurring runs to keep images up to date. There are good facilities for logging the results to diagnose any issues. Using Azure DevOps isn’t a requirement however, you can use any harness/engine that can connect to Azure and can run Azure PowerShell.

If you have an existing DevOps account or project you would like to use instead, skip this step.

To get started, create a free account in Azure DevOps. Visit https://www.visualstudio.com/ and select Get started for free right under Azure DevOps (formerly VSTS). You’ll need to choose a unique account name and make sure to choose to manage code using Git. Once you create the account, save the URL to your team project. Here is a sample URL: https://<accountname>.visualstudio.com/MyFirstProject.

Check in the image factory to Git

All the PowerShell, templates and configuration for the image factory are located in the public DevTest Labs GitHub repo. The fastest way to get the code into your new team project is to import a repository. Importing pulls in the whole DevTest Labs repository (so you’ll get extra docs, and samples).

  1. Visit the Azure DevOps project that you created in the previous step (URL looks like https://<accountname>.visualstudio.com/MyFirstProject).

  2. Select Import a Repository.

  3. Enter the clone URL for the DevTest Labs Repo: https://github.com/Azure/azure-devtestlab.

  4. Select Import.

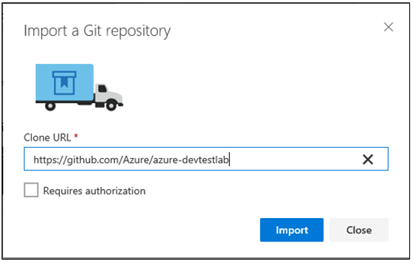

    Screenshot that shows Import Git repo.

If you decide to only check in exactly what’s needed (the image factory files), follow the steps here to clone the Git repo and push only the files located in the scripts/ImageFactory directory.

Create a build and connect to Azure

At this point, you have the source files stored in a Git repo in Azure DevOps. Now, you need to set up a pipeline to run the Azure PowerShell. There are lots of options to do these steps. In this article, you use build definition for simplicity, but it works with DevOps Build, DevOps Release (single or multiple environments), other execution engines like Windows Task Scheduler or any other harness that can execute Azure PowerShell.

Note

One important point to keep in mind that some of the PowerShell files take a long time to run when there are a lot (10+) custom images to create. Free hosted DevOps Build/Release agents have a timeout of 30 min, so you can’t use the free hosted agent once you start building many images. This timeout challenge applies to whatever harness you decide to use, it’s good to verify up front that you can extend the typical timeouts for long running Azure PowerShell scripts. In the case of Azure DevOps, you can either use paid hosted Agents or use your own build agent.

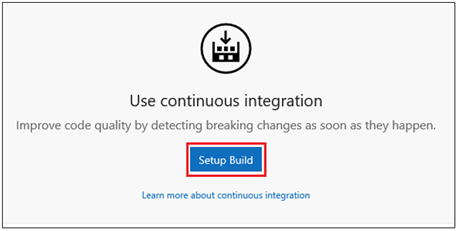

  1. To start, select Set up Build on the homepage of your DevOps Project:

    Screenshot that shows Set up Build button.

  2. Specify a name for the build (for example: Build and Deliver Images to DevTest Labs).

  3. Select an empty build definition, and select Apply to create your build.

  4. At this stage, you can choose Hosted for the build agent.

  5. Save the build definition.

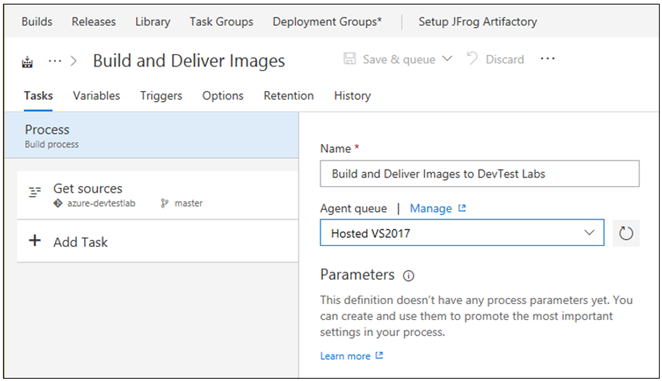

    Screenshot that shows Build definition.

Configure the build variables

To simplify the command-line parameters, encapsulate the key values that drive the image factory to a set of build variables. Select the Variables tab and you’ll see a list of several default variables. Here’s the list of variables to enter in to Azure DevOps:

Variable Name Value Notes
ConfigurationLocation /Scripts/ImageFactory/Configuration This location is the full path in the repository to the Configuration folder. If you imported the whole repo above, the value to the left is correct. Otherwise update to point to the Configuration location.
DevTestLabName MyImageFactory The name of the lab in Azure DevTest Labs used as the factory to produce images. If you don’t have one, create one. Make sure that the Lab is in the same subscription that the service endpoint has access to.
ImageRetention 1 The number of images you want to save of each type. Set default value to 1.
MachinePassword ******* The built-in admin account password for the virtual machines. This account is transient, so make sure that it’s secure. Select the little lock icon on the right to ensure it’s a secure string.
MachineUserName ImageFactoryUser The built-in admin account username for the virtual machines. This account is transient.
StandardTimeoutMinutes 30 The timeout we should wait for regular Azure operations.
SubscriptionId 0000000000-0000-0000-0000-0000000000000 The ID of the subscription where the lab exists and that the service endpoint has access to.
VMSize Standard_A3 The size of the virtual machine to use for the Create step. The VMs created are transient. The size must be the one that's enabled for the lab. Confirm that there's enough subscription cores quota.

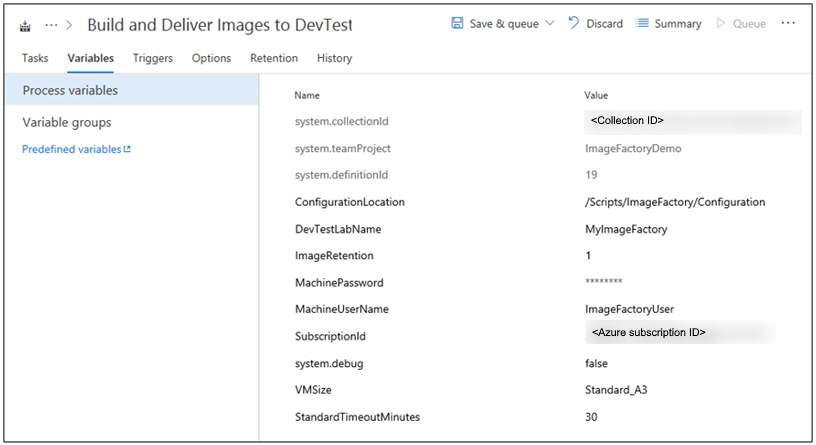

Screenshot that shows Build variables.

Connect to Azure

The next step is to set up a service principal. A service principal is an identity in Microsoft Entra ID that enables the DevOps build agent to operate in Azure on the user’s behalf. To set it up, start with adding you first Azure PowerShell Build Step.

  1. Select Add Task.
  2. Search for Azure PowerShell.
  3. Once you find it, select Add to add the task to the build. When you select Add, you see the task appear on the left side as added.

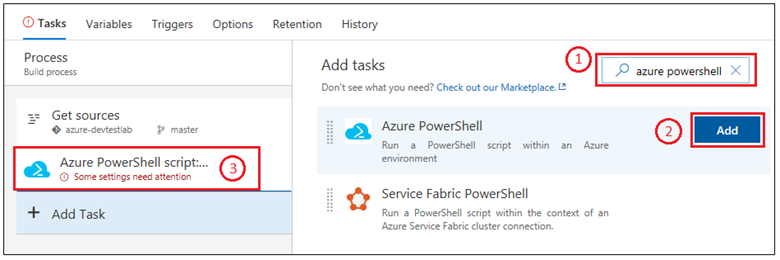

Screenshot that shows Set up PowerShell step.

The fastest way to set up a service principal is to let Azure DevOps do it for you.

  1. Select the task you just added.
  2. For Azure Connection Type, choose Azure Resource Manager.
  3. Select the Manage link to set up the service principal.

For more information, see this blog post. When you select the Manage link, you’ll land in the right place in DevOps (second screenshot in the blog post) to set up the connection to Azure. Make sure to choose Azure Resource Manager Service Endpoint when setting up the connection.

Complete the build task

If you select the build task, you’ll see all the details on the right pane that should be filled in.

  1. First, name the build task: Create Virtual Machines.

  2. Choose the service principal you created by choosing Azure Resource Manager

  3. Choose the service endpoint.

  4. For Script Path, select … (ellipsis) on the right.

  5. Navigate to MakeGoldenImageVMs.ps1 script.

  6. Script Parameters should look like this: -ConfigurationLocation $(System.DefaultWorkingDirectory)$(ConfigurationLocation) -DevTestLabName $(DevTestLabName) -vmSize $(VMSize) -machineUserName $(MachineUserName) -machinePassword (ConvertTo-SecureString -string '$(MachinePassword)' -AsPlainText -Force) -StandardTimeoutMinutes $(StandardTimeoutMinutes)

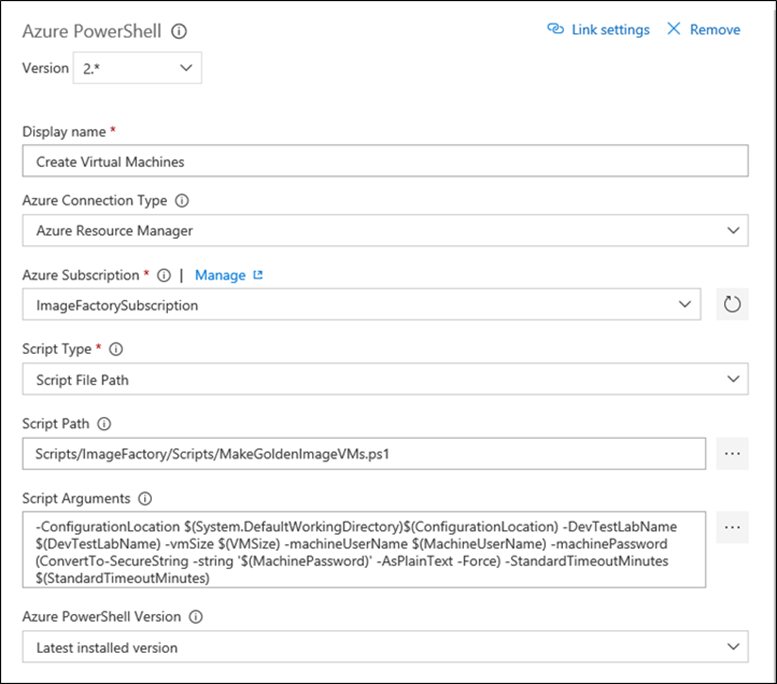

    Screenshot that shows Complete the build definition.

Queue the build

Let’s verify that you have everything set up correctly by queuing up a new build. While the build is running, switch to the Azure portal and select on All Virtual Machines in your image factory lab to confirm that everything is working correctly. You should see three virtual machines get created in the lab.

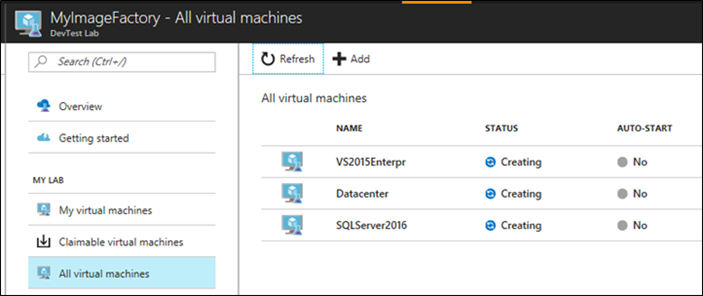

VMs in the lab

Next steps

The first step in setting up the image factory based on Azure DevTest Labs is complete. In the next article in the series, you get those VMs generalized and saved to custom images. Then, you have them distributed to all your other labs. See the next article in the series: Save custom images and distribute to multiple labs.
