Create and work with workspaces
TFS 2018
Visual Studio 2019 | Visual Studio 2022
Your workspace is your local copy of the team's codebase. This is where you develop and test your code in isolation until you're ready to check in your work. In most cases the only workspace you need is created automatically for you and you don't have to edit it.
In some cases, you might want to modify your workspace or create multiple workspaces to isolate and switch among the changes you're making in different branches.
Add, edit, or remove a workspace
In Visual Studio, after you connect to your project or press Ctrl+0, C, you can manage your workspaces.

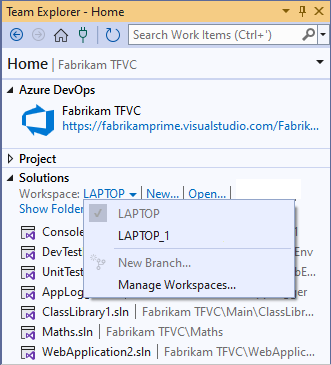

From the Home page in Team Explorer or Ctrl+0, H, select the arrow next to Workspace, and select Manage workspaces.
Or, from Source Control Explorer, select the arrow next to Workspace, and select Workspaces.
In the Manage Workspaces dialog box, select Show remote workspaces if you want to view all the workspaces you own, including those on other computers.

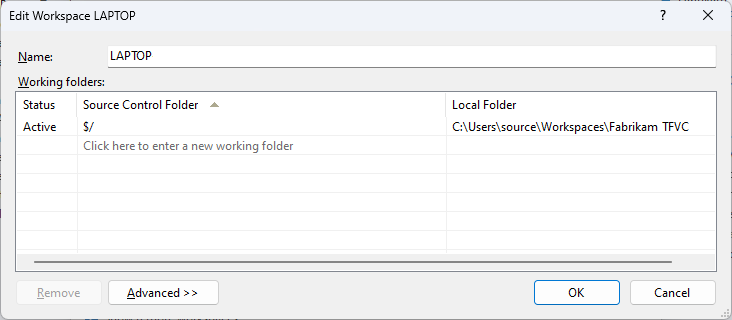

Select Add or Edit to modify working folders in a new or existing workspace.
If you want to remove a workspace, before you do so, open the Pending Changes page in Team Explorer, or press Ctrl+0, P, to make sure there are no pending changes. If you have pending changes, you can either check them in or shelve them.
Switch workspaces
When you switch from one workspace to another, to avoid confusion, make sure to switch to the same workspace in both Team Explorer and Source Control Explorer.
- Connect to the project, or press Ctrl+0, C.
- From the Home page in Team Explorer or Ctrl+0, H, select the arrow next to Workspace and then select the workspace you want to use.
- In Source Control Explorer, select the arrow next to Workspace, and choose the workspace you want to work in.
Work from the command prompt
You can create and manage your workspaces from the command prompt. You can also perform some tasks that aren't possible in Visual Studio. For example, you can delete another user's workspace if you have sufficient permissions. See Workspace Command, Workspaces Command, and Workfold Command.
Q & A
Q: Why would I need to change the working folders? How should I do it?
A: In general, you should map your entire project to a single local folder under
c:\Users\<YourName>\Source\Workspaces\<ProjectName>.
Some tips on effective folder names:
- Keep all folder, subfolder, and filenames short to simplify your work and avoid potential long-path issues that can occur with some types of code projects.
- Avoid whitespace if you want to make command-line operations a little easier to perform.
If your team has a large and complex codebase or if you want your workspace to contain only the files you need to improve performance, you can optimize your workspace.
Q: Can I reuse and share folder mappings?
A: Yes. If you want to reuse or share folder mappings with other team members, you can copy the folder mappings. Simply open the shortcut menu in the Working folders list and choose Copy. To reuse the folder mappings, paste them into another version control workspace or a build definition workspace. To share the folder mappings with your teammates, paste them into a text file and then share the file.
Q: What does "Cloaked" mean?
A: Choose Cloaked to exclude that folder from your workspace. For details and examples, see Optimize your workspace.
Q: How do I add a folder non-recursively?
A: See Optimize your workspace.
Q: How do I choose advanced workspace options?
A: When you select Advanced in the Edit Workspace dialog box, more options appear.
Owner: Only the owner of a workspace can use it.
Tip
Instead of changing the owner of your workspace when someone else needs to continue your work, you can suspend (or shelve) your work and then share the shelveset with them.
Computer: This field identifies the dev machine where the workspace exists, and it's read-only. You can't move a workspace from one computer to another. However, if the name of your dev machine has changed and you want that change to appear in this field, run tf workspaces /updatecomputername.
Location: Local is the best choice in most cases. See Decide between using a local or a server workspace.
File Time:
Choose Checkin if you want the date and time stamp of each file to generally match the stamp of the changeset of the version in your workspace. A few issues and exceptions are:
- When you modify the local file, the date and time stamp will match the date and time when you modified the file.
- The setting only applies to folders if there's a pending add or delete operation to a file contained by the folder.
- You might not be able to build your code project incrementally. Instead, you'll have to rebuild.
Choose Current if you want the date and time stamp to match the date and time when you last modified the local file. For example, a team member checked in the latest change to the file on Monday. On Tuesday, you perform a get operation to update your copy of the file. The date and time stamp is set to Tuesday.
Permissions: For a workspace you're using on a dev machine for a single developer, select Private workspace. Choose Public workspace if you want to use a single computer for a team to collaborate on an effort such as resolving a large number of conflicts. If you want any team member to be able to use a workspace but not check in their work, choose Public workspace (limited). This option reserves check-in permission for the owner.
Q: Can I use the same workspace in multiple instances of Visual Studio?
A: Although Visual Studio doesn't block you from running multiple instances against the same workspace, this usage isn't supported. Also, working this way is more likely to cause problems if you're using a local workspace.
Q: How do I add code, get code, develop my app, and check in?
A: Add files to the server, download files from the server, develop your app, and check in.
