Configure Azure cloud service roles with Visual Studio

Applies to: Visual Studio Visual Studio for Mac

Note

This article applies to Visual Studio 2017. If you're looking for the latest Visual Studio documentation, see Visual Studio documentation. We recommend upgrading to the latest version of Visual Studio. Download it here

An Azure cloud service can have one or more worker or web roles. For each role, you need to define how that role is set up and also configure how that role runs.

The information for your cloud service is stored in the following files:

• ServiceDefinition.csdef - The service definition file defines the run-time settings for your cloud service including what roles are required, endpoints, and virtual machine size. None of the data stored in ServiceDefinition.csdef can be changed when your role is running.
• ServiceConfiguration.cscfg - The service configuration file configures how many instances of a role are run and the values of the settings defined for a role. The data stored in ServiceConfiguration.cscfg can be changed while your role is running.

To store different values for the settings that control how a role runs, you can define multiple service configurations. You can use a different service configuration for each deployment environment. For example, you can set your storage account connection string to use the local Azure Storage Emulator in a local service configuration and create another service configuration to use Azure storage in the cloud.

When you create an Azure cloud service in Visual Studio, two service configurations are automatically created and added to your Azure project:

• ServiceConfiguration.Cloud.cscfg
• ServiceConfiguration.Local.cscfg

Configure an Azure cloud service

You can configure an Azure cloud service from Solution Explorer in Visual Studio, as shown in the following steps:

1. Create or open an Azure cloud service project in Visual Studio.

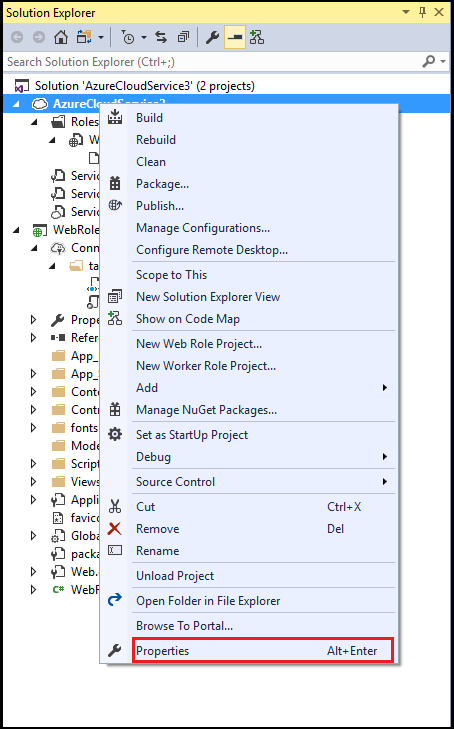

2. In Solution Explorer, right-click the project, and, from the context menu, select Properties.

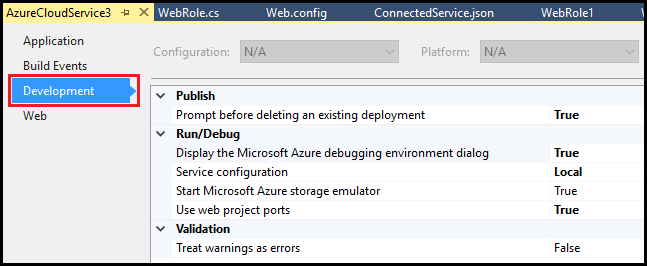

3. In the project's properties page, select the Development tab.

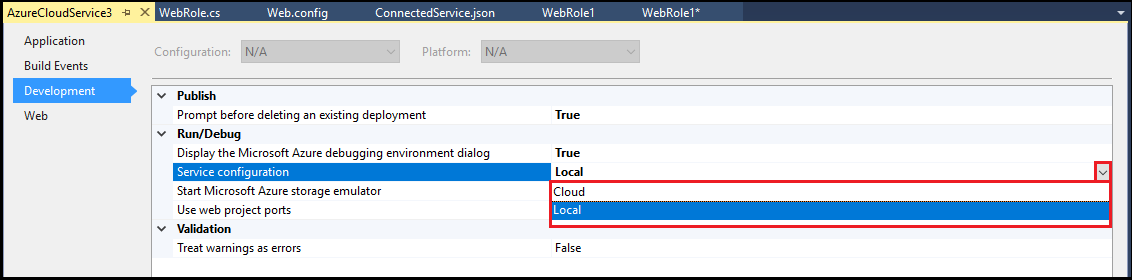

4. In the Service Configuration list, select the name of the service configuration that you want to edit. (If you want to make changes to all the service configurations for this role, select All Configurations.)

   Important

   If you choose a specific service configuration, some properties are disabled because they can only be set for all configurations. To edit these properties, you must select All Configurations.



Change the number of role instances

To improve the performance of your cloud service, you can change the number of instances of a role that are running, based on the number of users or the load expected for a particular role. A separate virtual machine is created for each instance of a role when the cloud service runs in Azure. This affects the billing for the deployment of this cloud service. For more information about billing, see Understand your bill for Microsoft Azure.

1. Create or open an Azure cloud service project in Visual Studio.

2. In Solution Explorer, expand the project node. Under the Roles node, right-click the role you want to update, and, from the context menu, select Properties.

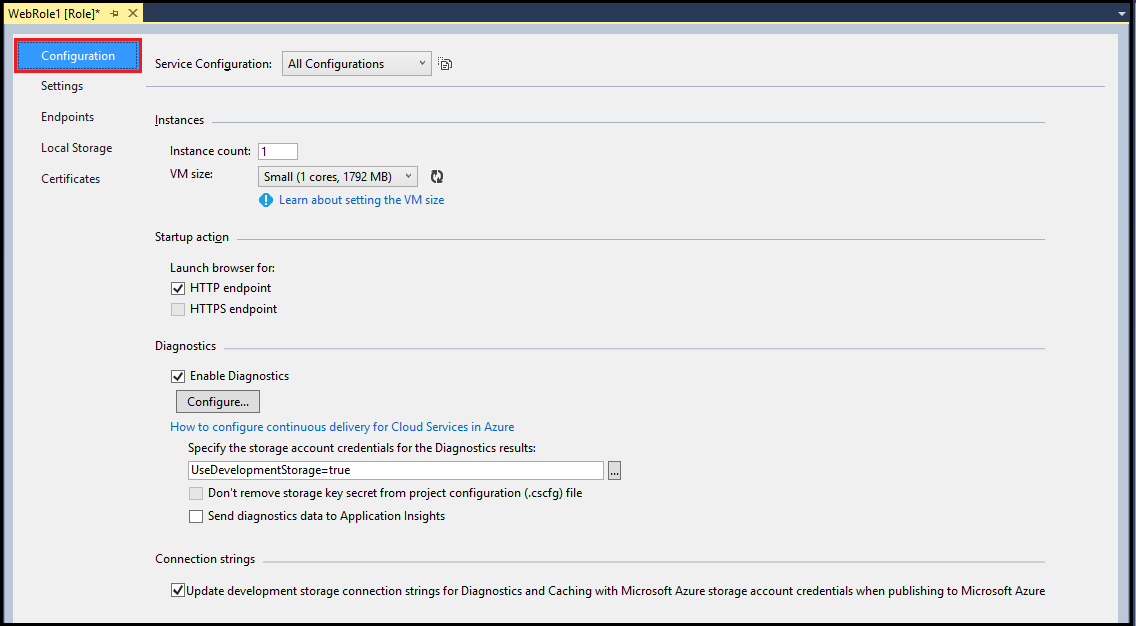

3. Select the Configuration tab.

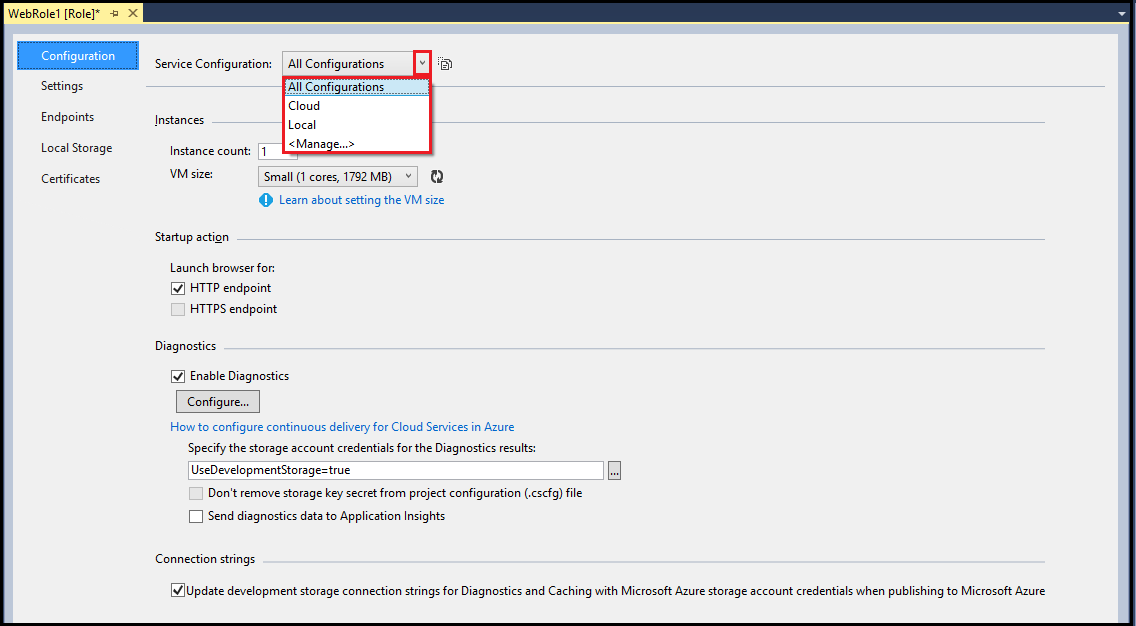

4. In the Service Configuration list, select the service configuration that you want to update.

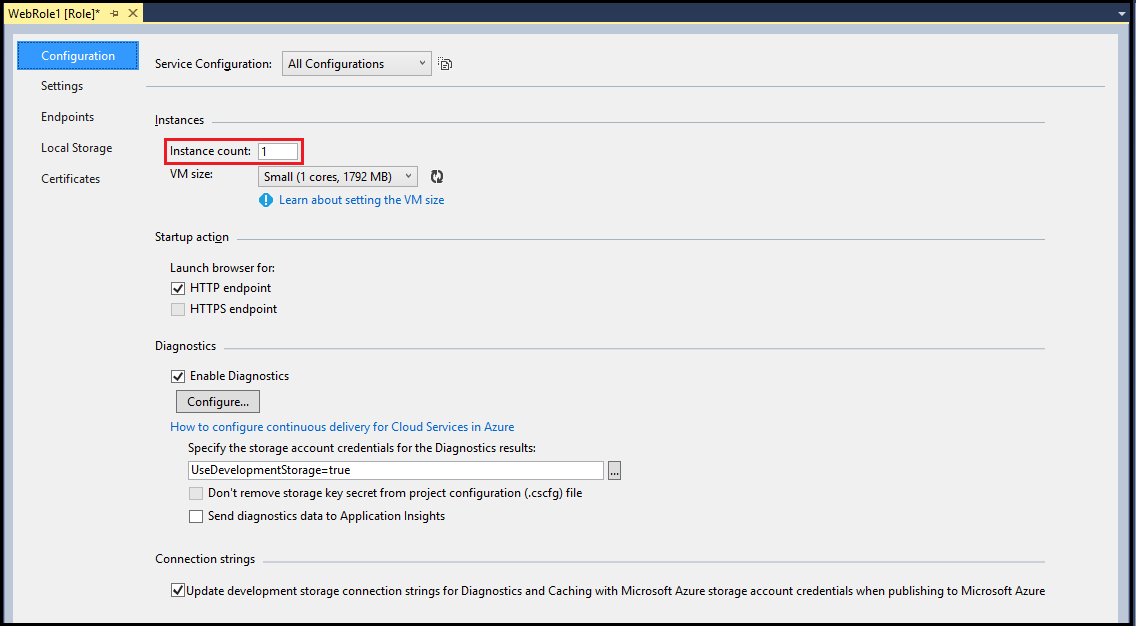

5. In the Instance count text box, enter the number of instances that you want to start for this role. Each instance runs on a separate virtual machine when you publish the cloud service to Azure.



6. From the Visual Studio, toolbar, select Save.

Manage connection strings for storage accounts

You can add, remove, or modify connection strings for your service configurations. For example, you might want a local connection string for a local service configuration that has a value of UseDevelopmentStorage=true. You might also want to configure a cloud service configuration that uses a storage account in Azure.

Warning

When you enter the Azure storage account key information for a storage account connection string, this information is stored locally in the service configuration file. However, this information is currently not stored as encrypted text.

By using a different value for each service configuration, you do not have to use different connection strings in your cloud service or modify your code when you publish your cloud service to Azure. You can use the same name for the connection string in your code and the value is different, based on the service configuration that you select when you build your cloud service or when you publish it.

1. Create or open an Azure cloud service project in Visual Studio.

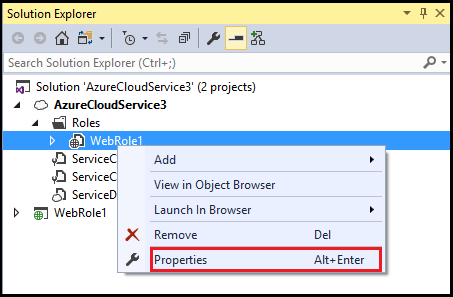

2. In Solution Explorer, expand the project node. Under the Roles node, right-click the role you want to update, and, from the context menu, select Properties.

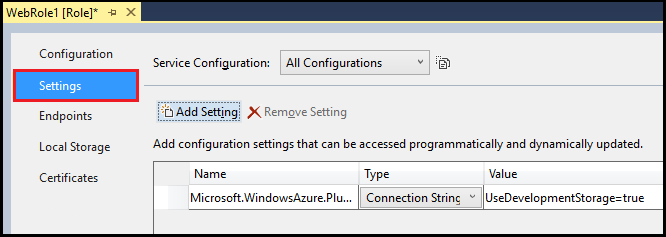

3. Select the Settings tab.

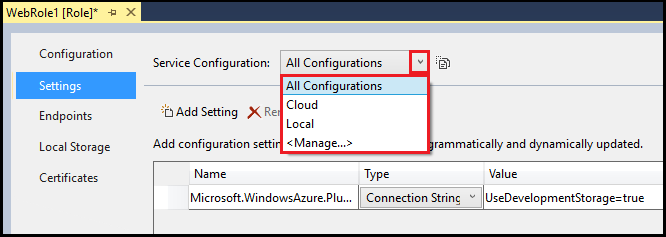

4. In the Service Configuration list, select the service configuration that you want to update.

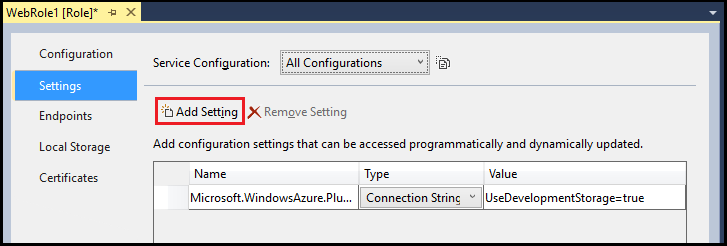

5. To add a connection string, select Add Setting.

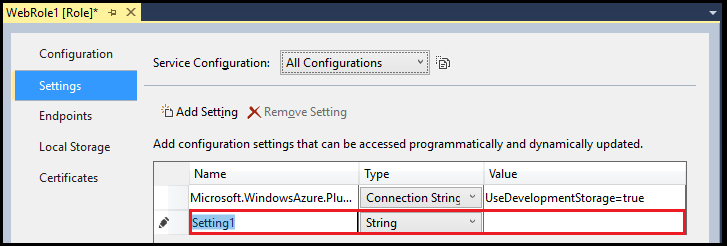

6. Once the new setting has been added to the list, update the row in the list with the necessary information.



   • Name - Enter the name that you want to use for the connection string.
   • Type - Select Connection String from the drop-down list.
   • Value - You can either enter the connection string directly into the Value cell, or select the ellipsis (...) to work in the Create Storage Connection String dialog.

7. In the Create Storage Connection String dialog, select an option for Connect using. Then follow the instructions for the option you select:

   • Microsoft Azure Storage Emulator - If you select this option, the remaining settings on the dialog are disabled as they apply only to Azure. Select OK.
   • Your subscription - If you select this option, use the dropdown list to either select and sign into a Microsoft account, or add a Microsoft account. Select an Azure subscription and storage account. Select OK.
   • Manually entered credentials - Enter the storage account name, and either the primary or second key. Select an option for Connection (HTTPS is recommended for most scenarios.) Select OK.

8. To delete a connection string, select the connection string, and then select Remove Setting.

9. From the Visual Studio, toolbar, select Save.

Programmatically access a connection string

The following steps show how to programmatically access a connection string using C#.

1. Add the following using directives to a C# file where you are going to use the setting:

   using Microsoft.WindowsAzure;
   using Microsoft.WindowsAzure.Storage;
   using Microsoft.WindowsAzure.ServiceRuntime;


2. The following code illustrates an example of how to access a connection string. Replace the <ConnectionStringName> placeholder with the appropriate value.

   // Setup the connection to Azure Storage
   var storageAccount = CloudStorageAccount.Parse(RoleEnvironment.GetConfigurationSettingValue("<ConnectionStringName>"));


Add custom settings to use in your Azure cloud service

Custom settings in the service configuration file let you add a name and value for a string for a specific service configuration. You might choose to use this setting to configure a feature in your cloud service by reading the value of the setting and using this value to control the logic in your code. You can change these service configuration values without having to rebuild your service package or when your cloud service is running. Your code can check for notifications of when a setting changes. See RoleEnvironment.Changing Event.

You can add, remove, or modify custom settings for your service configurations. You might want different values for these strings for different service configurations.

By using a different value for each service configuration, you do not have to use different strings in your cloud service or modify your code when you publish your cloud service to Azure. You can use the same name for the string in your code and the value is different, based on the service configuration that you select when you build your cloud service or when you publish it.

1. Create or open an Azure cloud service project in Visual Studio.

2. In Solution Explorer, expand the project node. Under the Roles node, right-click the role you want to update, and, from the context menu, select Properties.



3. Select the Settings tab.



4. In the Service Configuration list, select the service configuration that you want to update.



5. To add a custom setting, select Add Setting.



6. Once the new setting has been added to the list, update the row in the list with the necessary information.



   • Name - Enter the name of the setting.
   • Type - Select String from the drop-down list.
   • Value - Enter the value of the setting. You can either enter the value directly into the Value cell, or select the ellipsis (...) to enter the value in the Edit String dialog.

7. To delete a custom setting, select the setting, and then select Remove Setting.

8. From the Visual Studio, toolbar, select Save.

Programmatically access a custom setting's value

The following steps show how to programmatically access a custom setting using C#.

1. Add the following using directives to a C# file where you are going to use the setting:

   using Microsoft.WindowsAzure;
   using Microsoft.WindowsAzure.Storage;
   using Microsoft.WindowsAzure.ServiceRuntime;


2. The following code illustrates an example of how to access a custom setting. Replace the <SettingName> placeholder with the appropriate value.

   var settingValue = RoleEnvironment.GetConfigurationSettingValue("<SettingName>");


Manage local storage for each role instance

You can add local file system storage for each instance of a role. The data stored in that storage is not accessible by other instances of the role for which the data is stored, or by other roles.

1. Create or open an Azure cloud service project in Visual Studio.

2. In Solution Explorer, expand the project node. Under the Roles node, right-click the role you want to update, and, from the context menu, select Properties.

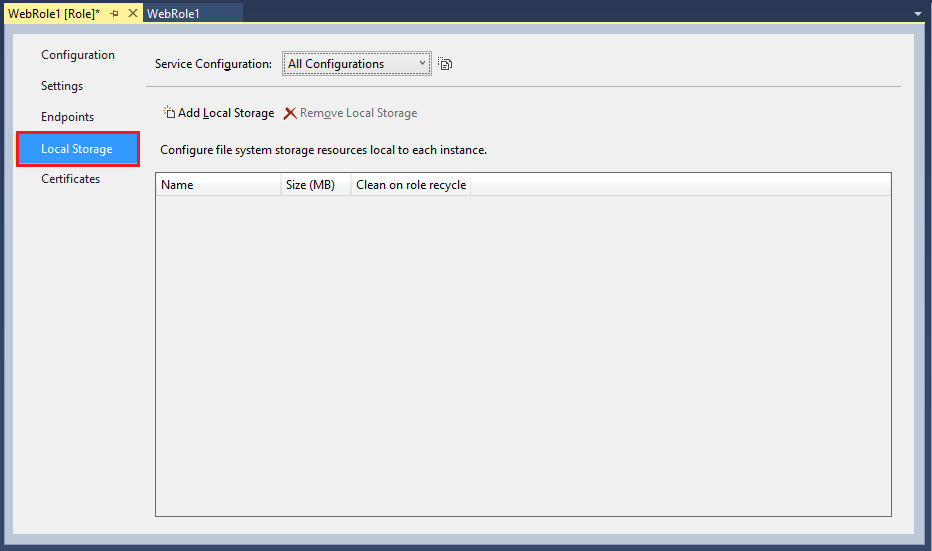

3. Select the Local Storage tab.

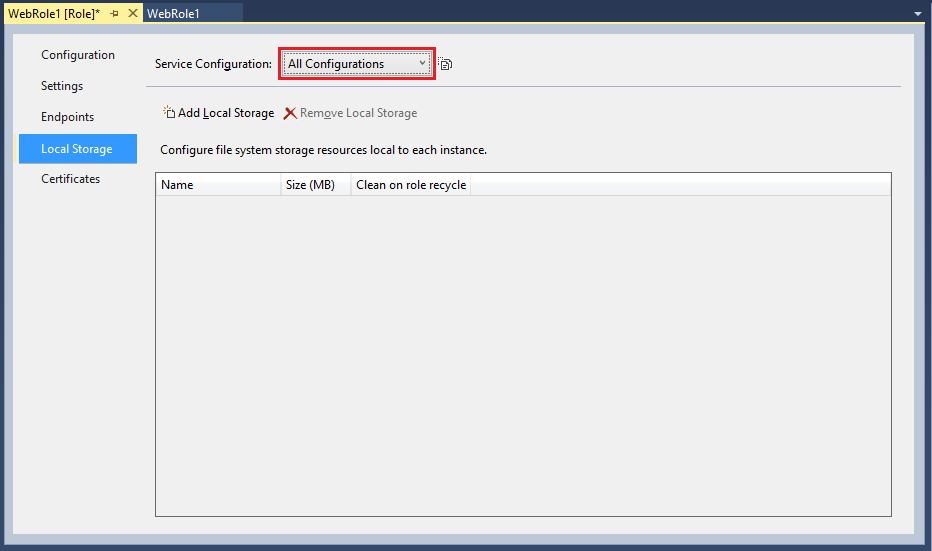

4. In the Service Configuration list, ensure that All Configurations is selected as the local storage settings apply to all service configurations. Any other value results in all the input fields on the page being disabled.

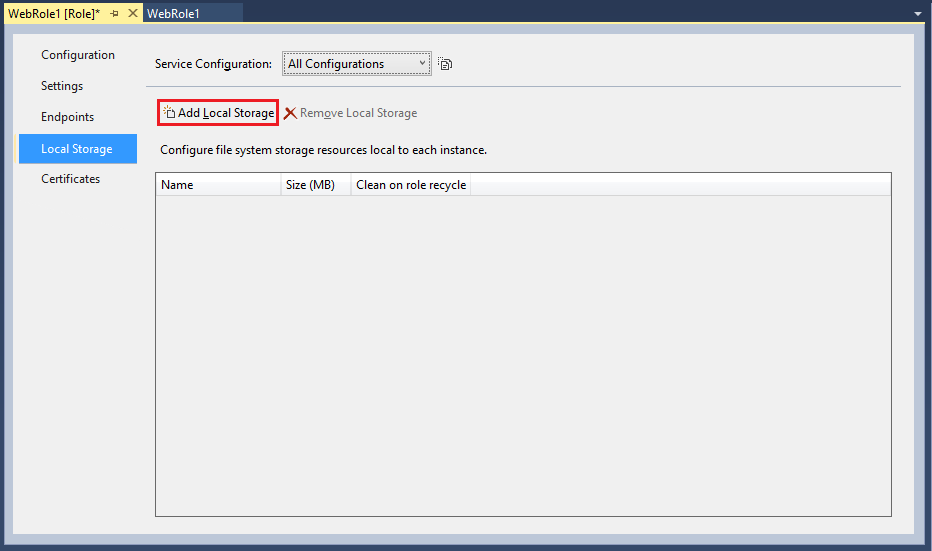

5. To add a local storage entry, select Add Local Storage.

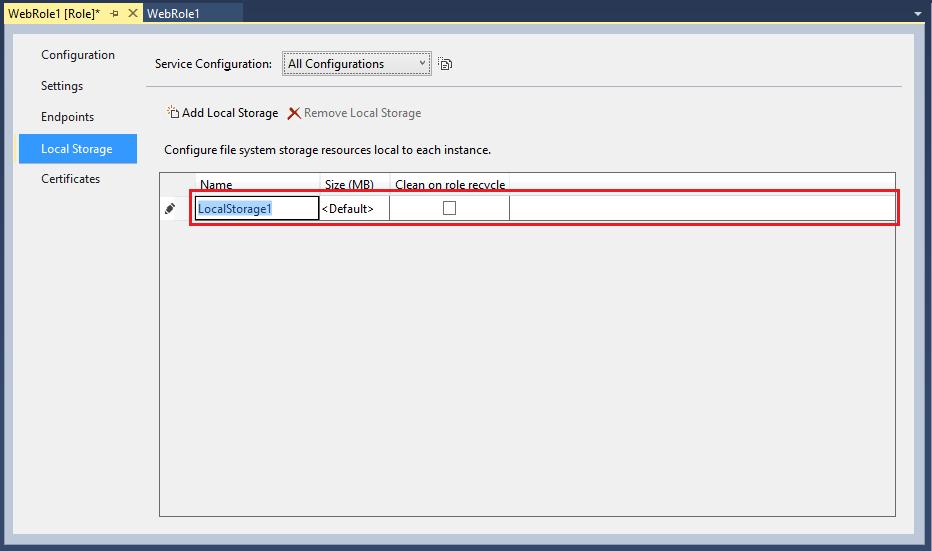

6. Once the new local storage entry has been added to the list, update the row in the list with the necessary information.



   • Name - Enter the name that you want to use for the new local storage.
   • Size (MB) - Enter the size in MB that you need for the new local storage.
   • Clean on role recycle - Select this option to remove the data in the new local storage when the virtual machine for the role is recycled.

7. To delete a local storage entry, select the entry, and then select Remove Local Storage.

8. From the Visual Studio, toolbar, select Save.

Programmatically accessing local storage

This section illustrates how to programmatically access local storage using C# by writing a test text file MyLocalStorageTest.txt.

Write a text file to local storage

The following code shows an example of how to write a text file to local storage. Replace the <LocalStorageName> placeholder with the appropriate value.

// Retrieve an object that points to the local storage resource
LocalResource localResource = RoleEnvironment.GetLocalResource("<LocalStorageName>");

//Define the file name and path
string[] paths = { localResource.RootPath, "MyLocalStorageTest.txt" };
String filePath = Path.Combine(paths);

using (FileStream writeStream = File.Create(filePath))
{
    Byte[] textToWrite = new UTF8Encoding(true).GetBytes("Testing Web role storage");
    writeStream.Write(textToWrite, 0, textToWrite.Length);
}

Find a file written to local storage

To view the file created by the code in the previous section, follow these steps:

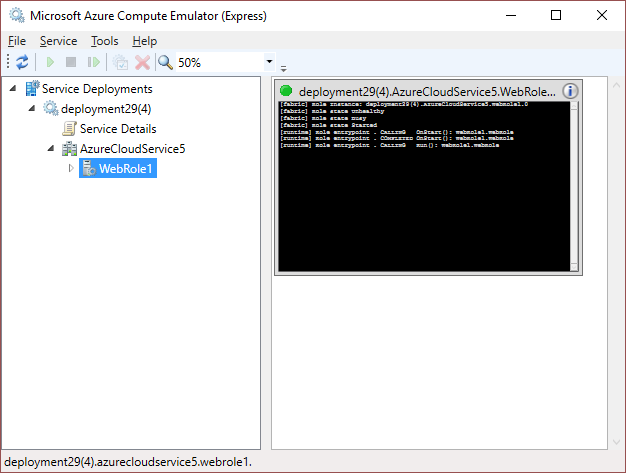

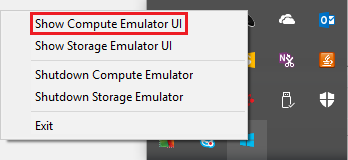

1. In the Windows notification area, right-click the Azure icon, and, from the context menu, select Show Compute Emulator UI.



2. Select the web role.

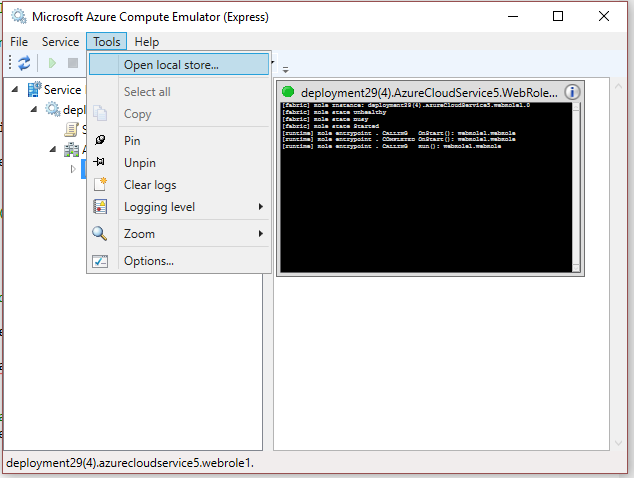

3. On the Microsoft Azure Compute Emulator menu, select Tools > Open local store.



4. When the Windows Explorer window opens, enter `MyLocalStorageTest.txt`` into the Search text box, and select Enter to start the search.

Next steps

Learn more about Azure projects in Visual Studio by reading Configuring an Azure Project. Learn more about the cloud service schema by reading Schema Reference.
