Style the production floor execution interface

The article explains how to configure form controls so that the default production floor execution styles are applied to them.

Forms and dialogs

Styles can be applied to a form or dialog only if the following requirements are met:

• If the form should resemble the existing report progress form, the name of your form or dialog must start with JmgProductionFloorExecutionCustomInputDialog.
• The form or dialog can contain a detail form part. To apply styles to it, the name of the detail form part must start with JmgProductionFloorExecutionCustomDetailsDialog.
• If the form or dialog should have a simple view, then the name of the simple view must start with JmgProductionFloorExecutionCustomDialog. Examples of forms that have a simple view include the start form and the indirect activity form.
• All the controls in the dialog must be configured as described in this article.

Important

The features mentioned in the first two bullet points of this list require Supply Chain Management version 10.0.19 or later.

Styles can be applied to the OK button in a dialog only if the following requirements are met:

• The button is contained in a form group.
• The group name starts with OkButtonGroup.

Styles can be applied to the Cancel button in a dialog box only if the following requirements are met:

• The button is contained in a form group.
• The group name starts with CancelButtonGroup.

Header

The following illustration shows a typical form or dialog header.

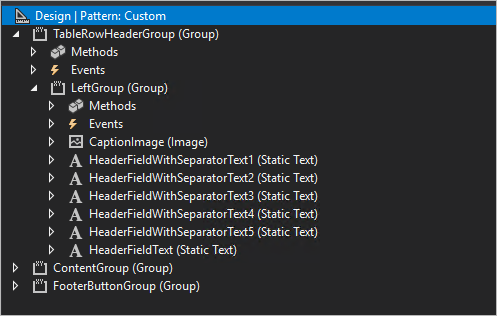

In Visual Studio, headers are created by using a structure such as the one that is shown in the following illustration.

To add text to your header, use code such as the following example.

private void setCaption()
{
    HeaderFieldWithSeparatorText1.text("Report Progress");
    HeaderFieldWithSeparatorText2.text(ProdId);

    …

    HeaderFieldText.text(OprNum);
}

When you write your header code, apply the following rules:

• The name of main group must be TableRowHeaderGroup.
• Each block of text (separated by bullets) must start with HeaderFieldWithSeparatorText.
• The last text name must start with HeaderFieldText.
• CaptionImage can be skipped.

Progress indicator

You can include a progress indicator, which is shown to the right of the header. The following illustration shows a progress indicator.

To show the progress indicator, the text field must be named ShowProgress.

Grid

Styles are automatically applied. No specific configuration is required.

The grid should have a TabularView style, and the run() method on the custom form must be overwritten, because a new grid isn't yet supported. Add the following code.

public void run()
{
    super();
    // To opt out a page from the new grid
    this.forceLegacyGrid();
}

To refresh data in a main view, you might want to use something like this.parmParentForm().updateLayout(); in a click method of your action. (For an example, look at the JmgProductionFloorExecutionReportFeedbackAction class.) Just make sure that parmDataSource is set in the init method of your new form (formCaller.parmDataSource(this.dataSource(1));). For an example, look at the JmgProductionFloorExecutionMainGrid form.

Card view

Styles can be applied to card view controls only if the following requirements are met:

• Each card view is contained in a form group.
• The group name starts with CardGroup (for example, CardGroupJobsView).

The following illustration shows a card view that has no controls inside it.

The following illustrations show card views that have controls inside them.

Business card

Styles can be applied to business card controls only if the following requirements are met:

• Each business card is contained in a form group.
• The group name starts with BusinessCardGroup (for example, BusinessCardGroupJobsList).

Set the following properties on the business card:

• Style: list
• Extended style: cardList
• Multi Select: No
• Show Col Labels: No

Radio button

Styles can be applied to radio buttons only if the following requirements are met:

• Each radio button is contained in a form group.
• The group name starts with RadioTextBelow or RadioTextRight, depending on where you want the text to appear.

Set the following properties on the radio button:

• Toggle button: Check
• Toggle value: On if the radio button should be selected; otherwise, Off

The following illustration shows an example where the text appears below the radio buttons.

The following illustration shows an example where the text appears to the right of the radio buttons.

Radio buttons in Internet Explorer

Radio button styles aren't supported in Internet Explorer. The following illustration shows what radio buttons look like in Internet Explorer.

Buttons

Styles can be applied to buttons only if the following requirements are met:

• Each group of buttons is contained in a form group. All the buttons in the group will have the same style.
• There are no requirements about the name of the group.

Set the following properties on the buttons:

• Button Display: TextWithImageLeft
• Normal Image: This property can't be blank. For example, use CoffeeScript.
• Text: This property can't be blank. For example, use Start Break.
• Width: Auto or SizeToContent
• Height: Auto or SizeToContent

Primary button

Styles can be applied to a primary button only if the following requirements are met:

• The button is contained in a form group.
• The group name starts with DefaultButtonGroup or PrimaryButtonGroup (for example, DefaultButtonGroup10).

Secondary button

Styles can be applied to a secondary button only if the following requirements are met:

• The button is contained in a form group.
• The group is named Right panel, or the group name starts with SecondaryButtonGroup.

Third-group button

Styles can be applied to a third-group button only if the following requirements are met:

• The button is contained in a form group.
• The group is named Left panel, or the group name starts with ThirdButtonGroup.

Fourth-group button

Styles can be applied to a fourth-group button only if the following requirements are met:

• The button is contained in a form group.
• The group name starts with FourthButtonGroup.

Set the following properties on the button:

• Button Display: TextOnly
• Normal Image: This property must be blank.
• Text: This property can't be blank. For example, use View or Edit.
• Width: Auto
• Height: Auto

Flat button

Styles can be applied to a flat button only if the following requirements are met:

• The button is contained in a form group.
• The group name starts with FlatButtonGroup.

Set the following properties on the button:

• Button Display: ImageOnly
• Normal Image: This property can't be blank. For example, use CoffeeScript.
• Text: This property must be blank.
• Width: Auto or SizeToContent
• Height: Auto or SizeToContent

Continue button

Styles can be applied to a continue button only if the following requirements are met:

• The button is contained in a form group.
• The group name starts with ContinueButtonGroup.

Set the following properties on the button:

• Button Display: ImageOnly
• Normal Image: Forward
• Text: This property must be blank.
• Width: Auto or SizeToContent
• Height: Auto or SizeToContent

Combo box

A combo box is a combination of three controls: an input control, a button that clears the input control, and a button that runs a search.

Styles can be applied to a combo box only if the following requirements are met:

• The combo box is contained in a form group.

• The group name starts with Combobox.

• Inside the group, the first control is an AxFormStringControl control. This control shows the current value, and it's where the user enters the required value.

• The second control is a CommonButton control, and its name starts with ClearButton. This button must contain code that uses the enable property to show or hide the button. For example, to show or hide the Clear button while the user is typing information in the input control, you can use the following code.

  public void textChange()
  {
      super();
      ClearButtonSerial.enabled(this.text()? true : false);
  }


  You should have one method where the data is set in the input control. Enable the Clear button in that method. Here is an example.

  public void setSerialId(str _serialId)
  {
      JmgTmpJobBundleProdFeedback.InventSerial = _serialId;
      ClearButtonSerial.enabled(_serialId? true : false);

      if (_serialId)
      {
          this.addSerialNumber();
      }
  }


  Use the following code for the clicked method of the Clear button.

  public void clicked()
  {
      element.setSerialId('');
      InventSerialId.setFocus(); // set focus back to the input box
  }


  Set the value of the input control, AxFormStringControl, when the form is initialized by using the init method. If the value isn't blank, enable the Clear button. If the value is blank, disable the Clear button.

• The third control is a CommonButton control, and its name starts with SearchButton.

The following illustration shows two combo box controls. The combo box on the left has an empty text box, and the Clear button is disabled. The combo box on the right has text in the text box, and the Clear button is enabled.

Quick filter

The quick filter control adds a search field to the page. You can apply styles to a quick filter provided the following requirements are met:

• The quick filter is contained in a form group.
• The group name starts with SearchInputGroup.
• Inside the group, the first control is a QuickFilter control. (This control is where the user enters the search string.)
• The second control is a FormStaticTextControl that is named NumberOfResults. (This control is optional. If it's included, it shows the number of found items.)
• The third control is a CommonButton control, and its name starts with ClearButton.

The following illustration shows two quick filter controls. The quick filter on the left has an empty quick filter, and the number of results isn't visible. The quick filter on the right contains a search string and shows the number of results.

Center-align elements on a tab

To align elements in the center of a tab, the group name must start with TabContentGroup, and the group must have the following properties:

• Width Mode: SizeToAvailable
• Height Mode: SizeToAvailable

Align a grid, detail part, and quick filter

To arrange a customized grid, detail part, and quick filter so that they resemble the standard design, keep the following points in mind when you put them all together:

• If the grid has a quick filter, both the grid and the quick filter should be inside the group that has a name that starts with GridGroup.
• To apply styles to a detail part, the group name must start with DetailInformationGroup,

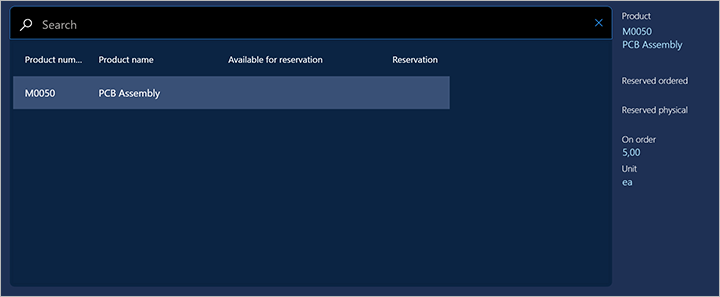

The following illustration shows a typical grid that includes a quick filter and a detail part on the right.

In Visual Studio, a grid, detail part, and quick filter can be created by using a structure such as the one that is shown in the following illustration.
