Inicio rápido: Implementación de una topología de red con Azure Virtual Network Manager mediante una plantilla de Azure Resource Manager: plantilla de ARM

Introducción a Azure Virtual Network Manager mediante Azure Resource Manager para administrar la conectividad de todas las redes virtuales.

En este inicio rápido, se usa una plantilla de Azure Resource Manager para implementar Azure Virtual Network Manager con diferentes tipos de topología de conectividad y pertenencia a grupos de red. Use parámetros de implementación para especificar el tipo de configuración que se va a implementar.

Una plantilla de Azure Resource Manager es un archivo de notación de objetos JavaScript (JSON) que define tanto la infraestructura como la configuración de un proyecto. La plantilla usa sintaxis declarativa. Se describe la implementación deseada sin escribir la secuencia de comandos de programación para crear la implementación.

Si su entorno cumple los requisitos previos y está familiarizado con el uso de plantillas de Resource Manager, seleccione el botón Implementar en Azure. La plantilla se abre en Azure Portal.

Implementación en Azure

Requisitos previos

  • Una cuenta de Azure con una suscripción activa. Cree una cuenta gratuita.
  • Para admitir la implementación de Azure Policy para la pertenencia dinámica a grupos, la plantilla está diseñada para implementarse en el ámbito de la suscripción. Sin embargo, no es un requisito para Azure Virtual Network Manager si se usa la pertenencia a grupos estáticos.

Revisión de la plantilla

La plantilla usada en este inicio rápido forma parte de las plantillas de inicio rápido de Azure.

{
  "$schema": "https://schema.management.azure.com/schemas/2018-05-01/subscriptionDeploymentTemplate.json#",
  "contentVersion": "1.0.0.0",
  "metadata": {
    "_generator": {
      "name": "bicep",
      "version": "0.20.4.51522",
      "templateHash": "12432507404458851067"
    }
  },
  "parameters": {
    "resourceGroupName": {
      "type": "string",
      "defaultValue": "rg-avnm-sample",
      "metadata": {
        "description": "The resource group name where the AVNM and VNET resources will be created"
      }
    },
    "location": {
      "type": "string",
      "minLength": 6,
      "metadata": {
        "description": "The location of this regional hub. All resources, including spoke resources, will be deployed to this region."
      }
    },
    "connectivityTopology": {
      "type": "string",
      "defaultValue": "meshWithHubAndSpoke",
      "allowedValues": [
        "mesh",
        "hubAndSpoke",
        "meshWithHubAndSpoke"
      ],
      "metadata": {
        "description": "Defines how spokes will connect to each other and how spokes will connect the hub. Valid values: \"mesh\", \"hubAndSpoke\", \"meshWithHubAndSpoke\"; default value: \"meshWithHubAndSpoke\""
      }
    },
    "networkGroupMembershipType": {
      "type": "string",
      "defaultValue": "static",
      "allowedValues": [
        "static",
        "dynamic"
      ],
      "metadata": {
        "description": "Connectivity group membership type. Valid values: \"static\", \"dynamic\"; default: \"static\""
      }
    }
  },
  "resources": [
    {
      "type": "Microsoft.Resources/resourceGroups",
      "apiVersion": "2022-09-01",
      "name": "[parameters('resourceGroupName')]",
      "location": "[parameters('location')]"
    },
    {
      "type": "Microsoft.Resources/deployments",
      "apiVersion": "2022-09-01",
      "name": "vnet-hub",
      "resourceGroup": "[parameters('resourceGroupName')]",
      "properties": {
        "expressionEvaluationOptions": {
          "scope": "inner"
        },
        "mode": "Incremental",
        "parameters": {
          "location": {
            "value": "[parameters('location')]"
          },
          "connectivityTopology": {
            "value": "[parameters('connectivityTopology')]"
          }
        },
        "template": {
          "$schema": "https://schema.management.azure.com/schemas/2019-04-01/deploymentTemplate.json#",
          "contentVersion": "1.0.0.0",
          "metadata": {
            "_generator": {
              "name": "bicep",
              "version": "0.20.4.51522",
              "templateHash": "13874595206391254196"
            }
          },
          "parameters": {
            "location": {
              "type": "string"
            },
            "connectivityTopology": {
              "type": "string"
            }
          },
          "resources": [
            {
              "type": "Microsoft.Network/virtualNetworks",
              "apiVersion": "2022-01-01",
              "name": "[format('vnet-{0}-hub', parameters('location'))]",
              "location": "[parameters('location')]",
              "tags": "[if(equals(parameters('connectivityTopology'), 'mesh'), createObject('_avnm_quickstart_deployment', 'hub'), createObject())]",
              "properties": {
                "addressSpace": {
                  "addressPrefixes": [
                    "10.0.0.0/22"
                  ]
                },
                "subnets": [
                  {
                    "name": "AzureBastionSubnet",
                    "properties": {
                      "addressPrefix": "10.0.1.0/26"
                    }
                  },
                  {
                    "name": "GatewaySubnet",
                    "properties": {
                      "addressPrefix": "10.0.2.0/27"
                    }
                  },
                  {
                    "name": "AzureFirewallSubnet",
                    "properties": {
                      "addressPrefix": "10.0.3.0/26"
                    }
                  },
                  {
                    "name": "AzureFirewallManagementSubnet",
                    "properties": {
                      "addressPrefix": "10.0.3.64/26"
                    }
                  },
                  {
                    "name": "default",
                    "properties": {
                      "addressPrefix": "10.0.3.128/25"
                    }
                  }
                ]
              },
              "metadata": {
                "description": "The regional hub network."
              }
            }
          ],
          "outputs": {
            "hubVnetId": {
              "type": "string",
              "value": "[resourceId('Microsoft.Network/virtualNetworks', format('vnet-{0}-hub', parameters('location')))]"
            }
          }
        }
      },
      "dependsOn": [
        "[subscriptionResourceId('Microsoft.Resources/resourceGroups', parameters('resourceGroupName'))]"
      ]
    },
    {
      "type": "Microsoft.Resources/deployments",
      "apiVersion": "2022-09-01",
      "name": "vnet-spokeA",
      "resourceGroup": "[parameters('resourceGroupName')]",
      "properties": {
        "expressionEvaluationOptions": {
          "scope": "inner"
        },
        "mode": "Incremental",
        "parameters": {
          "location": {
            "value": "[parameters('location')]"
          },
          "spokeName": {
            "value": "spokeA"
          },
          "spokeVnetPrefix": {
            "value": "10.100.0.0/22"
          }
        },
        "template": {
          "$schema": "https://schema.management.azure.com/schemas/2019-04-01/deploymentTemplate.json#",
          "contentVersion": "1.0.0.0",
          "metadata": {
            "_generator": {
              "name": "bicep",
              "version": "0.20.4.51522",
              "templateHash": "8383771840688895095"
            }
          },
          "parameters": {
            "location": {
              "type": "string"
            },
            "spokeName": {
              "type": "string"
            },
            "spokeVnetPrefix": {
              "type": "string"
            }
          },
          "variables": {
            "taggedVNETs": [
              "spokeA",
              "spokeB",
              "spokeC"
            ]
          },
          "resources": [
            {
              "type": "Microsoft.Network/virtualNetworks",
              "apiVersion": "2022-01-01",
              "name": "[format('vnet-{0}-{1}', parameters('location'), toLower(parameters('spokeName')))]",
              "location": "[parameters('location')]",
              "tags": "[if(contains(variables('taggedVNETs'), parameters('spokeName')), createObject('_avnm_quickstart_deployment', 'spoke'), createObject())]",
              "properties": {
                "addressSpace": {
                  "addressPrefixes": [
                    "[parameters('spokeVnetPrefix')]"
                  ]
                },
                "subnets": [
                  {
                    "name": "default",
                    "properties": {
                      "addressPrefix": "[replace(parameters('spokeVnetPrefix'), '.0.0/22', '.1.0/24')]"
                    }
                  }
                ]
              }
            }
          ],
          "outputs": {
            "vnetId": {
              "type": "string",
              "value": "[resourceId('Microsoft.Network/virtualNetworks', format('vnet-{0}-{1}', parameters('location'), toLower(parameters('spokeName'))))]"
            }
          }
        }
      },
      "dependsOn": [
        "[subscriptionResourceId('Microsoft.Resources/resourceGroups', parameters('resourceGroupName'))]"
      ]
    },
    {
      "type": "Microsoft.Resources/deployments",
      "apiVersion": "2022-09-01",
      "name": "vnet-spokeB",
      "resourceGroup": "[parameters('resourceGroupName')]",
      "properties": {
        "expressionEvaluationOptions": {
          "scope": "inner"
        },
        "mode": "Incremental",
        "parameters": {
          "location": {
            "value": "[parameters('location')]"
          },
          "spokeName": {
            "value": "spokeB"
          },
          "spokeVnetPrefix": {
            "value": "10.101.0.0/22"
          }
        },
        "template": {
          "$schema": "https://schema.management.azure.com/schemas/2019-04-01/deploymentTemplate.json#",
          "contentVersion": "1.0.0.0",
          "metadata": {
            "_generator": {
              "name": "bicep",
              "version": "0.20.4.51522",
              "templateHash": "8383771840688895095"
            }
          },
          "parameters": {
            "location": {
              "type": "string"
            },
            "spokeName": {
              "type": "string"
            },
            "spokeVnetPrefix": {
              "type": "string"
            }
          },
          "variables": {
            "taggedVNETs": [
              "spokeA",
              "spokeB",
              "spokeC"
            ]
          },
          "resources": [
            {
              "type": "Microsoft.Network/virtualNetworks",
              "apiVersion": "2022-01-01",
              "name": "[format('vnet-{0}-{1}', parameters('location'), toLower(parameters('spokeName')))]",
              "location": "[parameters('location')]",
              "tags": "[if(contains(variables('taggedVNETs'), parameters('spokeName')), createObject('_avnm_quickstart_deployment', 'spoke'), createObject())]",
              "properties": {
                "addressSpace": {
                  "addressPrefixes": [
                    "[parameters('spokeVnetPrefix')]"
                  ]
                },
                "subnets": [
                  {
                    "name": "default",
                    "properties": {
                      "addressPrefix": "[replace(parameters('spokeVnetPrefix'), '.0.0/22', '.1.0/24')]"
                    }
                  }
                ]
              }
            }
          ],
          "outputs": {
            "vnetId": {
              "type": "string",
              "value": "[resourceId('Microsoft.Network/virtualNetworks', format('vnet-{0}-{1}', parameters('location'), toLower(parameters('spokeName'))))]"
            }
          }
        }
      },
      "dependsOn": [
        "[subscriptionResourceId('Microsoft.Resources/resourceGroups', parameters('resourceGroupName'))]"
      ]
    },
    {
      "type": "Microsoft.Resources/deployments",
      "apiVersion": "2022-09-01",
      "name": "vnet-spokeC",
      "resourceGroup": "[parameters('resourceGroupName')]",
      "properties": {
        "expressionEvaluationOptions": {
          "scope": "inner"
        },
        "mode": "Incremental",
        "parameters": {
          "location": {
            "value": "[parameters('location')]"
          },
          "spokeName": {
            "value": "spokeC"
          },
          "spokeVnetPrefix": {
            "value": "10.102.0.0/22"
          }
        },
        "template": {
          "$schema": "https://schema.management.azure.com/schemas/2019-04-01/deploymentTemplate.json#",
          "contentVersion": "1.0.0.0",
          "metadata": {
            "_generator": {
              "name": "bicep",
              "version": "0.20.4.51522",
              "templateHash": "8383771840688895095"
            }
          },
          "parameters": {
            "location": {
              "type": "string"
            },
            "spokeName": {
              "type": "string"
            },
            "spokeVnetPrefix": {
              "type": "string"
            }
          },
          "variables": {
            "taggedVNETs": [
              "spokeA",
              "spokeB",
              "spokeC"
            ]
          },
          "resources": [
            {
              "type": "Microsoft.Network/virtualNetworks",
              "apiVersion": "2022-01-01",
              "name": "[format('vnet-{0}-{1}', parameters('location'), toLower(parameters('spokeName')))]",
              "location": "[parameters('location')]",
              "tags": "[if(contains(variables('taggedVNETs'), parameters('spokeName')), createObject('_avnm_quickstart_deployment', 'spoke'), createObject())]",
              "properties": {
                "addressSpace": {
                  "addressPrefixes": [
                    "[parameters('spokeVnetPrefix')]"
                  ]
                },
                "subnets": [
                  {
                    "name": "default",
                    "properties": {
                      "addressPrefix": "[replace(parameters('spokeVnetPrefix'), '.0.0/22', '.1.0/24')]"
                    }
                  }
                ]
              }
            }
          ],
          "outputs": {
            "vnetId": {
              "type": "string",
              "value": "[resourceId('Microsoft.Network/virtualNetworks', format('vnet-{0}-{1}', parameters('location'), toLower(parameters('spokeName'))))]"
            }
          }
        }
      },
      "dependsOn": [
        "[subscriptionResourceId('Microsoft.Resources/resourceGroups', parameters('resourceGroupName'))]"
      ]
    },
    {
      "type": "Microsoft.Resources/deployments",
      "apiVersion": "2022-09-01",
      "name": "vnet-spokeD",
      "resourceGroup": "[parameters('resourceGroupName')]",
      "properties": {
        "expressionEvaluationOptions": {
          "scope": "inner"
        },
        "mode": "Incremental",
        "parameters": {
          "location": {
            "value": "[parameters('location')]"
          },
          "spokeName": {
            "value": "spokeD"
          },
          "spokeVnetPrefix": {
            "value": "10.103.0.0/22"
          }
        },
        "template": {
          "$schema": "https://schema.management.azure.com/schemas/2019-04-01/deploymentTemplate.json#",
          "contentVersion": "1.0.0.0",
          "metadata": {
            "_generator": {
              "name": "bicep",
              "version": "0.20.4.51522",
              "templateHash": "8383771840688895095"
            }
          },
          "parameters": {
            "location": {
              "type": "string"
            },
            "spokeName": {
              "type": "string"
            },
            "spokeVnetPrefix": {
              "type": "string"
            }
          },
          "variables": {
            "taggedVNETs": [
              "spokeA",
              "spokeB",
              "spokeC"
            ]
          },
          "resources": [
            {
              "type": "Microsoft.Network/virtualNetworks",
              "apiVersion": "2022-01-01",
              "name": "[format('vnet-{0}-{1}', parameters('location'), toLower(parameters('spokeName')))]",
              "location": "[parameters('location')]",
              "tags": "[if(contains(variables('taggedVNETs'), parameters('spokeName')), createObject('_avnm_quickstart_deployment', 'spoke'), createObject())]",
              "properties": {
                "addressSpace": {
                  "addressPrefixes": [
                    "[parameters('spokeVnetPrefix')]"
                  ]
                },
                "subnets": [
                  {
                    "name": "default",
                    "properties": {
                      "addressPrefix": "[replace(parameters('spokeVnetPrefix'), '.0.0/22', '.1.0/24')]"
                    }
                  }
                ]
              }
            }
          ],
          "outputs": {
            "vnetId": {
              "type": "string",
              "value": "[resourceId('Microsoft.Network/virtualNetworks', format('vnet-{0}-{1}', parameters('location'), toLower(parameters('spokeName'))))]"
            }
          }
        }
      },
      "dependsOn": [
        "[subscriptionResourceId('Microsoft.Resources/resourceGroups', parameters('resourceGroupName'))]"
      ]
    },
    {
      "condition": "[equals(parameters('networkGroupMembershipType'), 'dynamic')]",
      "type": "Microsoft.Resources/deployments",
      "apiVersion": "2022-09-01",
      "name": "policy",
      "location": "[deployment().location]",
      "properties": {
        "expressionEvaluationOptions": {
          "scope": "inner"
        },
        "mode": "Incremental",
        "parameters": {
          "networkGroupId": {
            "value": "[reference(extensionResourceId(format('/subscriptions/{0}/resourceGroups/{1}', subscription().subscriptionId, parameters('resourceGroupName')), 'Microsoft.Resources/deployments', 'avnm'), '2022-09-01').outputs.networkGroupId.value]"
          },
          "resourceGroupName": {
            "value": "[parameters('resourceGroupName')]"
          }
        },
        "template": {
          "$schema": "https://schema.management.azure.com/schemas/2018-05-01/subscriptionDeploymentTemplate.json#",
          "contentVersion": "1.0.0.0",
          "metadata": {
            "_generator": {
              "name": "bicep",
              "version": "0.20.4.51522",
              "templateHash": "6205966345192356792"
            }
          },
          "parameters": {
            "networkGroupId": {
              "type": "string"
            },
            "resourceGroupName": {
              "type": "string"
            }
          },
          "resources": [
            {
              "type": "Microsoft.Authorization/policyDefinitions",
              "apiVersion": "2021-06-01",
              "name": "[uniqueString(parameters('networkGroupId'))]",
              "properties": {
                "description": "AVNM quickstart dynamic group membership Policy",
                "displayName": "AVNM quickstart dynamic group membership Policy",
                "mode": "Microsoft.Network.Data",
                "policyRule": {
                  "if": {
                    "allof": [
                      {
                        "field": "type",
                        "equals": "Microsoft.Network/virtualNetworks"
                      },
                      {
                        "field": "tags[_avnm_quickstart_deployment]",
                        "exists": true
                      },
                      {
                        "field": "id",
                        "like": "[format('{0}/resourcegroups/{1}/*', subscription().id, parameters('resourceGroupName'))]"
                      }
                    ]
                  },
                  "then": {
                    "effect": "addToNetworkGroup",
                    "details": {
                      "networkGroupId": "[parameters('networkGroupId')]"
                    }
                  }
                }
              },
              "metadata": {
                "description": "This is a Policy definition for dyanamic group membership"
              }
            },
            {
              "type": "Microsoft.Authorization/policyAssignments",
              "apiVersion": "2022-06-01",
              "name": "[uniqueString(parameters('networkGroupId'))]",
              "properties": {
                "description": "AVNM quickstart dynamic group membership Policy",
                "displayName": "AVNM quickstart dynamic group membership Policy",
                "enforcementMode": "Default",
                "policyDefinitionId": "[subscriptionResourceId('Microsoft.Authorization/policyDefinitions', uniqueString(parameters('networkGroupId')))]"
              },
              "dependsOn": [
                "[subscriptionResourceId('Microsoft.Authorization/policyDefinitions', uniqueString(parameters('networkGroupId')))]"
              ],
              "metadata": {
                "description": "Assigns above policy for dynamic group membership"
              }
            }
          ],
          "outputs": {
            "policyDefinitionId": {
              "type": "string",
              "value": "[subscriptionResourceId('Microsoft.Authorization/policyDefinitions', uniqueString(parameters('networkGroupId')))]"
            },
            "policyAssignmentId": {
              "type": "string",
              "value": "[subscriptionResourceId('Microsoft.Authorization/policyAssignments', uniqueString(parameters('networkGroupId')))]"
            }
          }
        }
      },
      "dependsOn": [
        "[extensionResourceId(format('/subscriptions/{0}/resourceGroups/{1}', subscription().subscriptionId, parameters('resourceGroupName')), 'Microsoft.Resources/deployments', 'avnm')]"
      ]
    },
    {
      "type": "Microsoft.Resources/deployments",
      "apiVersion": "2022-09-01",
      "name": "avnm",
      "resourceGroup": "[parameters('resourceGroupName')]",
      "properties": {
        "expressionEvaluationOptions": {
          "scope": "inner"
        },
        "mode": "Incremental",
        "parameters": {
          "location": {
            "value": "[parameters('location')]"
          },
          "hubVnetId": {
            "value": "[reference(extensionResourceId(format('/subscriptions/{0}/resourceGroups/{1}', subscription().subscriptionId, parameters('resourceGroupName')), 'Microsoft.Resources/deployments', 'vnet-hub'), '2022-09-01').outputs.hubVnetId.value]"
          },
          "spokeNetworkGroupMembers": {
            "value": [
              "[reference(extensionResourceId(format('/subscriptions/{0}/resourceGroups/{1}', subscription().subscriptionId, parameters('resourceGroupName')), 'Microsoft.Resources/deployments', 'vnet-spokeA'), '2022-09-01').outputs.vnetId.value]",
              "[reference(extensionResourceId(format('/subscriptions/{0}/resourceGroups/{1}', subscription().subscriptionId, parameters('resourceGroupName')), 'Microsoft.Resources/deployments', 'vnet-spokeB'), '2022-09-01').outputs.vnetId.value]",
              "[reference(extensionResourceId(format('/subscriptions/{0}/resourceGroups/{1}', subscription().subscriptionId, parameters('resourceGroupName')), 'Microsoft.Resources/deployments', 'vnet-spokeC'), '2022-09-01').outputs.vnetId.value]",
              "[reference(extensionResourceId(format('/subscriptions/{0}/resourceGroups/{1}', subscription().subscriptionId, parameters('resourceGroupName')), 'Microsoft.Resources/deployments', 'vnet-spokeD'), '2022-09-01').outputs.vnetId.value]"
            ]
          },
          "connectivityTopology": {
            "value": "[parameters('connectivityTopology')]"
          },
          "networkGroupMembershipType": {
            "value": "[parameters('networkGroupMembershipType')]"
          }
        },
        "template": {
          "$schema": "https://schema.management.azure.com/schemas/2019-04-01/deploymentTemplate.json#",
          "contentVersion": "1.0.0.0",
          "metadata": {
            "_generator": {
              "name": "bicep",
              "version": "0.20.4.51522",
              "templateHash": "4722921437161114326"
            }
          },
          "parameters": {
            "location": {
              "type": "string"
            },
            "spokeNetworkGroupMembers": {
              "type": "array"
            },
            "hubVnetId": {
              "type": "string"
            },
            "connectivityTopology": {
              "type": "string"
            },
            "networkGroupMembershipType": {
              "type": "string"
            }
          },
          "variables": {
            "groupedVNETs": [
              "[format('vnet-{0}-spokea', parameters('location'))]",
              "[format('vnet-{0}-spokeb', parameters('location'))]",
              "[format('vnet-{0}-spokec', parameters('location'))]"
            ]
          },
          "resources": [
            {
              "copy": {
                "name": "staticMemberSpoke",
                "count": "[length(parameters('spokeNetworkGroupMembers'))]"
              },
              "condition": "[and(equals(parameters('networkGroupMembershipType'), 'static'), contains(variables('groupedVNETs'), last(split(parameters('spokeNetworkGroupMembers')[copyIndex()], '/'))))]",
              "type": "Microsoft.Network/networkManagers/networkGroups/staticMembers",
              "apiVersion": "2022-09-01",
              "name": "[format('{0}/{1}/{2}', format('avnm-{0}', parameters('location')), format('ng-{0}-static', parameters('location')), format('sm-{0}', last(split(parameters('spokeNetworkGroupMembers')[copyIndex()], '/'))))]",
              "properties": {
                "resourceId": "[parameters('spokeNetworkGroupMembers')[copyIndex()]]"
              },
              "dependsOn": [
                "[resourceId('Microsoft.Network/networkManagers/networkGroups', format('avnm-{0}', parameters('location')), format('ng-{0}-static', parameters('location')))]"
              ]
            },
            {
              "condition": "[and(equals(parameters('networkGroupMembershipType'), 'static'), equals(parameters('connectivityTopology'), 'mesh'))]",
              "type": "Microsoft.Network/networkManagers/networkGroups/staticMembers",
              "apiVersion": "2022-09-01",
              "name": "[format('{0}/{1}/{2}', format('avnm-{0}', parameters('location')), format('ng-{0}-static', parameters('location')), format('sm-{0}', toLower(last(split(parameters('hubVnetId'), '/')))))]",
              "properties": {
                "resourceId": "[parameters('hubVnetId')]"
              },
              "dependsOn": [
                "[resourceId('Microsoft.Network/networkManagers/networkGroups', format('avnm-{0}', parameters('location')), format('ng-{0}-static', parameters('location')))]"
              ]
            },
            {
              "type": "Microsoft.Network/networkManagers",
              "apiVersion": "2022-09-01",
              "name": "[format('avnm-{0}', parameters('location'))]",
              "location": "[parameters('location')]",
              "properties": {
                "networkManagerScopeAccesses": [
                  "Connectivity"
                ],
                "networkManagerScopes": {
                  "subscriptions": [
                    "[format('/subscriptions/{0}', subscription().subscriptionId)]"
                  ],
                  "managementGroups": []
                }
              },
              "metadata": {
                "description": "This is the Azure Virtual Network Manager which will be used to implement the connected group for spoke-to-spoke connectivity."
              }
            },
            {
              "condition": "[equals(parameters('networkGroupMembershipType'), 'static')]",
              "type": "Microsoft.Network/networkManagers/networkGroups",
              "apiVersion": "2022-09-01",
              "name": "[format('{0}/{1}', format('avnm-{0}', parameters('location')), format('ng-{0}-static', parameters('location')))]",
              "properties": {
                "description": "Network Group - Static"
              },
              "dependsOn": [
                "[resourceId('Microsoft.Network/networkManagers', format('avnm-{0}', parameters('location')))]"
              ],
              "metadata": {
                "description": "This is the static network group for the spoke VNETs, and hub when topology is mesh."
              }
            },
            {
              "condition": "[equals(parameters('networkGroupMembershipType'), 'dynamic')]",
              "type": "Microsoft.Network/networkManagers/networkGroups",
              "apiVersion": "2022-09-01",
              "name": "[format('{0}/{1}', format('avnm-{0}', parameters('location')), format('ng-{0}-dynamic', parameters('location')))]",
              "properties": {
                "description": "Network Group - Dynamic"
              },
              "dependsOn": [
                "[resourceId('Microsoft.Network/networkManagers', format('avnm-{0}', parameters('location')))]"
              ],
              "metadata": {
                "description": "This is the dynamic group for spoke VNETs."
              }
            },
            {
              "condition": "[equals(parameters('connectivityTopology'), 'mesh')]",
              "type": "Microsoft.Network/networkManagers/connectivityConfigurations",
              "apiVersion": "2022-09-01",
              "name": "[format('{0}/{1}', format('avnm-{0}', parameters('location')), format('cc-{0}-spokes-mesh', parameters('location')))]",
              "properties": {
                "description": "Spoke-to-spoke connectivity configuration",
                "appliesToGroups": [
                  {
                    "networkGroupId": "[if(equals(parameters('networkGroupMembershipType'), 'static'), resourceId('Microsoft.Network/networkManagers/networkGroups', format('avnm-{0}', parameters('location')), format('ng-{0}-static', parameters('location'))), resourceId('Microsoft.Network/networkManagers/networkGroups', format('avnm-{0}', parameters('location')), format('ng-{0}-dynamic', parameters('location'))))]",
                    "isGlobal": "False",
                    "useHubGateway": "False",
                    "groupConnectivity": "DirectlyConnected"
                  }
                ],
                "connectivityTopology": "Mesh",
                "deleteExistingPeering": "True",
                "hubs": [],
                "isGlobal": "False"
              },
              "dependsOn": [
                "[resourceId('Microsoft.Network/networkManagers/networkGroups', format('avnm-{0}', parameters('location')), format('ng-{0}-dynamic', parameters('location')))]",
                "[resourceId('Microsoft.Network/networkManagers/networkGroups', format('avnm-{0}', parameters('location')), format('ng-{0}-static', parameters('location')))]",
                "[resourceId('Microsoft.Network/networkManagers', format('avnm-{0}', parameters('location')))]"
              ],
              "metadata": {
                "description": "This connectivity configuration defines the connectivity between VNETs using Direct Connection. The hub will be part of the mesh, but gateway routes from the hub will not propagate to spokes."
              }
            },
            {
              "condition": "[equals(parameters('connectivityTopology'), 'meshWithHubAndSpoke')]",
              "type": "Microsoft.Network/networkManagers/connectivityConfigurations",
              "apiVersion": "2022-09-01",
              "name": "[format('{0}/{1}', format('avnm-{0}', parameters('location')), format('cc-{0}-meshwithhubandspoke', parameters('location')))]",
              "properties": {
                "description": "Spoke-to-spoke connectivity configuration",
                "appliesToGroups": [
                  {
                    "networkGroupId": "[if(equals(parameters('networkGroupMembershipType'), 'static'), resourceId('Microsoft.Network/networkManagers/networkGroups', format('avnm-{0}', parameters('location')), format('ng-{0}-static', parameters('location'))), resourceId('Microsoft.Network/networkManagers/networkGroups', format('avnm-{0}', parameters('location')), format('ng-{0}-dynamic', parameters('location'))))]",
                    "isGlobal": "False",
                    "useHubGateway": "False",
                    "groupConnectivity": "DirectlyConnected"
                  }
                ],
                "connectivityTopology": "HubAndSpoke",
                "deleteExistingPeering": "True",
                "hubs": [
                  {
                    "resourceId": "[parameters('hubVnetId')]",
                    "resourceType": "Microsoft.Network/virtualNetworks"
                  }
                ],
                "isGlobal": "False"
              },
              "dependsOn": [
                "[resourceId('Microsoft.Network/networkManagers/networkGroups', format('avnm-{0}', parameters('location')), format('ng-{0}-dynamic', parameters('location')))]",
                "[resourceId('Microsoft.Network/networkManagers/networkGroups', format('avnm-{0}', parameters('location')), format('ng-{0}-static', parameters('location')))]",
                "[resourceId('Microsoft.Network/networkManagers', format('avnm-{0}', parameters('location')))]"
              ],
              "metadata": {
                "description": "This connectivity configuration defines the connectivity between the spokes using Hub and Spoke - traffic flow through hub requires an NVA to route it."
              }
            },
            {
              "condition": "[equals(parameters('connectivityTopology'), 'hubAndSpoke')]",
              "type": "Microsoft.Network/networkManagers/connectivityConfigurations",
              "apiVersion": "2022-09-01",
              "name": "[format('{0}/{1}', format('avnm-{0}', parameters('location')), format('cc-{0}-hubandspoke', parameters('location')))]",
              "properties": {
                "description": "Spoke-to-spoke connectivity configuration",
                "appliesToGroups": [
                  {
                    "networkGroupId": "[if(equals(parameters('networkGroupMembershipType'), 'static'), resourceId('Microsoft.Network/networkManagers/networkGroups', format('avnm-{0}', parameters('location')), format('ng-{0}-static', parameters('location'))), resourceId('Microsoft.Network/networkManagers/networkGroups', format('avnm-{0}', parameters('location')), format('ng-{0}-dynamic', parameters('location'))))]",
                    "isGlobal": "False",
                    "useHubGateway": "False",
                    "groupConnectivity": "None"
                  }
                ],
                "connectivityTopology": "HubAndSpoke",
                "deleteExistingPeering": "True",
                "hubs": [
                  {
                    "resourceId": "[parameters('hubVnetId')]",
                    "resourceType": "Microsoft.Network/virtualNetworks"
                  }
                ],
                "isGlobal": "False"
              },
              "dependsOn": [
                "[resourceId('Microsoft.Network/networkManagers/networkGroups', format('avnm-{0}', parameters('location')), format('ng-{0}-dynamic', parameters('location')))]",
                "[resourceId('Microsoft.Network/networkManagers/networkGroups', format('avnm-{0}', parameters('location')), format('ng-{0}-static', parameters('location')))]",
                "[resourceId('Microsoft.Network/networkManagers', format('avnm-{0}', parameters('location')))]"
              ],
              "metadata": {
                "description": "This connectivity configuration defines the connectivity between the spokes using Hub and Spoke - traffic flow through hub requires an NVA to route it."
              }
            },
            {
              "type": "Microsoft.ManagedIdentity/userAssignedIdentities",
              "apiVersion": "2022-01-31-preview",
              "name": "[format('uai-{0}', parameters('location'))]",
              "location": "[parameters('location')]",
              "metadata": {
                "description": "This user assigned identity is used by the Deployment Script resource to interact with Azure resources."
              }
            },
            {
              "type": "Microsoft.Authorization/roleAssignments",
              "apiVersion": "2022-04-01",
              "name": "[guid(resourceGroup().id, format('uai-{0}', parameters('location')))]",
              "properties": {
                "roleDefinitionId": "[subscriptionResourceId('Microsoft.Authorization/roleDefinitions', 'b24988ac-6180-42a0-ab88-20f7382dd24c')]",
                "principalId": "[reference(resourceId('Microsoft.ManagedIdentity/userAssignedIdentities', format('uai-{0}', parameters('location'))), '2022-01-31-preview').principalId]",
                "principalType": "ServicePrincipal"
              },
              "dependsOn": [
                "[resourceId('Microsoft.ManagedIdentity/userAssignedIdentities', format('uai-{0}', parameters('location')))]"
              ],
              "metadata": {
                "description": "This role assignment grants the user assigned identity the Contributor role on the resource group."
              }
            }
          ],
          "outputs": {
            "networkManagerName": {
              "type": "string",
              "value": "[format('avnm-{0}', parameters('location'))]"
            },
            "userAssignedIdentityId": {
              "type": "string",
              "value": "[resourceId('Microsoft.ManagedIdentity/userAssignedIdentities', format('uai-{0}', parameters('location')))]"
            },
            "connectivityConfigurationId": {
              "type": "string",
              "value": "[if(equals(parameters('connectivityTopology'), 'meshWithHubAndSpoke'), resourceId('Microsoft.Network/networkManagers/connectivityConfigurations', format('avnm-{0}', parameters('location')), format('cc-{0}-meshwithhubandspoke', parameters('location'))), if(equals(parameters('connectivityTopology'), 'hubAndSpoke'), resourceId('Microsoft.Network/networkManagers/connectivityConfigurations', format('avnm-{0}', parameters('location')), format('cc-{0}-hubandspoke', parameters('location'))), resourceId('Microsoft.Network/networkManagers/connectivityConfigurations', format('avnm-{0}', parameters('location')), format('cc-{0}-spokes-mesh', parameters('location')))))]"
            },
            "networkGroupId": {
              "type": "string",
              "value": "[coalesce(resourceId('Microsoft.Network/networkManagers/networkGroups', format('avnm-{0}', parameters('location')), format('ng-{0}-dynamic', parameters('location'))), resourceId('Microsoft.Network/networkManagers/networkGroups', format('avnm-{0}', parameters('location')), format('ng-{0}-static', parameters('location'))))]"
            }
          }
        }
      },
      "dependsOn": [
        "[extensionResourceId(format('/subscriptions/{0}/resourceGroups/{1}', subscription().subscriptionId, parameters('resourceGroupName')), 'Microsoft.Resources/deployments', 'vnet-hub')]",
        "[subscriptionResourceId('Microsoft.Resources/resourceGroups', parameters('resourceGroupName'))]",
        "[extensionResourceId(format('/subscriptions/{0}/resourceGroups/{1}', subscription().subscriptionId, parameters('resourceGroupName')), 'Microsoft.Resources/deployments', 'vnet-spokeA')]",
        "[extensionResourceId(format('/subscriptions/{0}/resourceGroups/{1}', subscription().subscriptionId, parameters('resourceGroupName')), 'Microsoft.Resources/deployments', 'vnet-spokeB')]",
        "[extensionResourceId(format('/subscriptions/{0}/resourceGroups/{1}', subscription().subscriptionId, parameters('resourceGroupName')), 'Microsoft.Resources/deployments', 'vnet-spokeC')]",
        "[extensionResourceId(format('/subscriptions/{0}/resourceGroups/{1}', subscription().subscriptionId, parameters('resourceGroupName')), 'Microsoft.Resources/deployments', 'vnet-spokeD')]"
      ]
    },
    {
      "type": "Microsoft.Resources/deployments",
      "apiVersion": "2022-09-01",
      "name": "[format('ds-{0}-connectivityconfigs', parameters('location'))]",
      "resourceGroup": "[parameters('resourceGroupName')]",
      "properties": {
        "expressionEvaluationOptions": {
          "scope": "inner"
        },
        "mode": "Incremental",
        "parameters": {
          "location": {
            "value": "[parameters('location')]"
          },
          "userAssignedIdentityId": {
            "value": "[reference(extensionResourceId(format('/subscriptions/{0}/resourceGroups/{1}', subscription().subscriptionId, parameters('resourceGroupName')), 'Microsoft.Resources/deployments', 'avnm'), '2022-09-01').outputs.userAssignedIdentityId.value]"
          },
          "configurationId": {
            "value": "[reference(extensionResourceId(format('/subscriptions/{0}/resourceGroups/{1}', subscription().subscriptionId, parameters('resourceGroupName')), 'Microsoft.Resources/deployments', 'avnm'), '2022-09-01').outputs.connectivityConfigurationId.value]"
          },
          "configType": {
            "value": "Connectivity"
          },
          "networkManagerName": {
            "value": "[reference(extensionResourceId(format('/subscriptions/{0}/resourceGroups/{1}', subscription().subscriptionId, parameters('resourceGroupName')), 'Microsoft.Resources/deployments', 'avnm'), '2022-09-01').outputs.networkManagerName.value]"
          },
          "deploymentScriptName": {
            "value": "[format('ds-{0}-connectivityconfigs', parameters('location'))]"
          }
        },
        "template": {
          "$schema": "https://schema.management.azure.com/schemas/2019-04-01/deploymentTemplate.json#",
          "contentVersion": "1.0.0.0",
          "metadata": {
            "_generator": {
              "name": "bicep",
              "version": "0.20.4.51522",
              "templateHash": "16058143652843159439"
            }
          },
          "parameters": {
            "location": {
              "type": "string"
            },
            "userAssignedIdentityId": {
              "type": "string"
            },
            "networkManagerName": {
              "type": "string"
            },
            "configurationId": {
              "type": "string"
            },
            "deploymentScriptName": {
              "type": "string"
            },
            "configType": {
              "type": "string",
              "allowedValues": [
                "Connectivity"
              ]
            }
          },
          "resources": [
            {
              "type": "Microsoft.Resources/deploymentScripts",
              "apiVersion": "2020-10-01",
              "name": "[parameters('deploymentScriptName')]",
              "location": "[parameters('location')]",
              "kind": "AzurePowerShell",
              "identity": {
                "type": "UserAssigned",
                "userAssignedIdentities": {
                  "[format('{0}', parameters('userAssignedIdentityId'))]": {}
                }
              },
              "properties": {
                "azPowerShellVersion": "8.3",
                "retentionInterval": "PT1H",
                "timeout": "PT1H",
                "arguments": "[format('-networkManagerName \"{0}\" -targetLocations {1} -configIds {2} -subscriptionId {3} -configType {4} -resourceGroupName {5}', parameters('networkManagerName'), parameters('location'), parameters('configurationId'), subscription().subscriptionId, parameters('configType'), resourceGroup().name)]",
                "scriptContent": "    param (\r\n      # AVNM subscription id\r\n      [parameter(mandatory=$true)][string]$subscriptionId,\r\n\r\n      # AVNM resource name\r\n      [parameter(mandatory=$true)][string]$networkManagerName,\r\n\r\n      # string with comma-separated list of config ids to deploy. ids must be of the same config type\r\n      [parameter(mandatory=$true)][string[]]$configIds,\r\n\r\n      # string with comma-separated list of deployment target regions\r\n      [parameter(mandatory=$true)][string[]]$targetLocations,\r\n\r\n      # configuration type to deploy. must be either connecticity or securityadmin\r\n      [parameter(mandatory=$true)][ValidateSet('Connectivity','SecurityAdmin','Routing')][string]$configType,\r\n\r\n      # AVNM resource group name\r\n      [parameter(mandatory=$true)][string]$resourceGroupName\r\n    )\r\n  \r\n    $null = Login-AzAccount -Identity -Subscription $subscriptionId\r\n  \r\n    [System.Collections.Generic.List[string]]$configIdList = @()  \r\n    $configIdList.addRange($configIds) \r\n    [System.Collections.Generic.List[string]]$targetLocationList = @() # target locations for deployment\r\n    $targetLocationList.addRange($targetLocations)     \r\n    \r\n    $deployment = @{\r\n        Name = $networkManagerName\r\n        ResourceGroupName = $resourceGroupName\r\n        ConfigurationId = $configIdList\r\n        TargetLocation = $targetLocationList\r\n        CommitType = $configType\r\n    }\r\n  \r\n    try {\r\n      Deploy-AzNetworkManagerCommit @deployment -ErrorAction Stop\r\n    }\r\n    catch {\r\n      Write-Error \"Deployment failed with error: $_\"\r\n      throw \"Deployment failed with error: $_\"\r\n    }\r\n    "
              },
              "metadata": {
                "description": "Create a Deployment Script resource to perform the commit/deployment of the Network Manager connectivity configuration."
              }
            }
          ]
        }
      },
      "dependsOn": [
        "[extensionResourceId(format('/subscriptions/{0}/resourceGroups/{1}', subscription().subscriptionId, parameters('resourceGroupName')), 'Microsoft.Resources/deployments', 'avnm')]",
        "[subscriptionResourceId('Microsoft.Resources/deployments', 'policy')]",
        "[subscriptionResourceId('Microsoft.Resources/resourceGroups', parameters('resourceGroupName'))]"
      ]
    }
  ],
  "outputs": {
    "policyDefinitionId": {
      "type": "string",
      "value": "[coalesce(reference(subscriptionResourceId('Microsoft.Resources/deployments', 'policy'), '2022-09-01').outputs.policyDefinitionId.value, 'not_deployed')]"
    },
    "policyAssignmentId": {
      "type": "string",
      "value": "[coalesce(reference(subscriptionResourceId('Microsoft.Resources/deployments', 'policy'), '2022-09-01').outputs.policyAssignmentId.value, 'not_deployed')]"
    }
  }
}

La plantilla define varios recursos de Azure:

Implementación de la plantilla

  1. Inicie sesión en Azure y abra la plantilla de Azure Resource Manager; para ello, seleccione el botón Implementar en Azure aquí. La plantilla crea la instancia de Azure Virtual Network Manager, la infraestructura de red y las configuraciones del administrador de red.

    Implementación en Azure

  2. En el Azure Portal, seleccione o escriba la siguiente información:

    Configuración Valor
    Suscripción Seleccione la suscripción que va a usar para la implementación.
    Detalles de instancia
    Nombre del grupo de recursos Usar el valor predeterminado de rg-avnm-sample
    Region Seleccione la región para implementar los recursos.
    Location Escriba la ubicación para implementar los recursos. El valor de ubicación se usa en la convención de nomenclatura de recursos
    La ubicación coincide con la Región que ha elegido y se escribe sin espacios. Por ejemplo, Este de EE. UU se escribe como EastUS.
    Topología de conectividad Seleccione la topología de conectividad que se va a implementar. Las opciones incluyen mesh, hubAndSpoke y meshWithHubAndSpoke.
    Tipo de pertenencia a grupos de red Seleccione el tipo de pertenencia a grupos de red. Las opciones incluyen estática y dinámica.
  3. Seleccione Revisar y crear para revisar la configuración y leer los términos y condiciones.

  4. Seleccione Crear para implementar la plantilla.

  5. La implementación tarda unos minutos en completarse. Una vez completada la implementación, aparece el mensaje Implementación correcta.

Validación de la implementación

  1. En la página Principal del Azure Portal, seleccione Grupos de recursos y rg-avnm-sample.

  2. Compruebe que todos los componentes se han implementado correctamente.

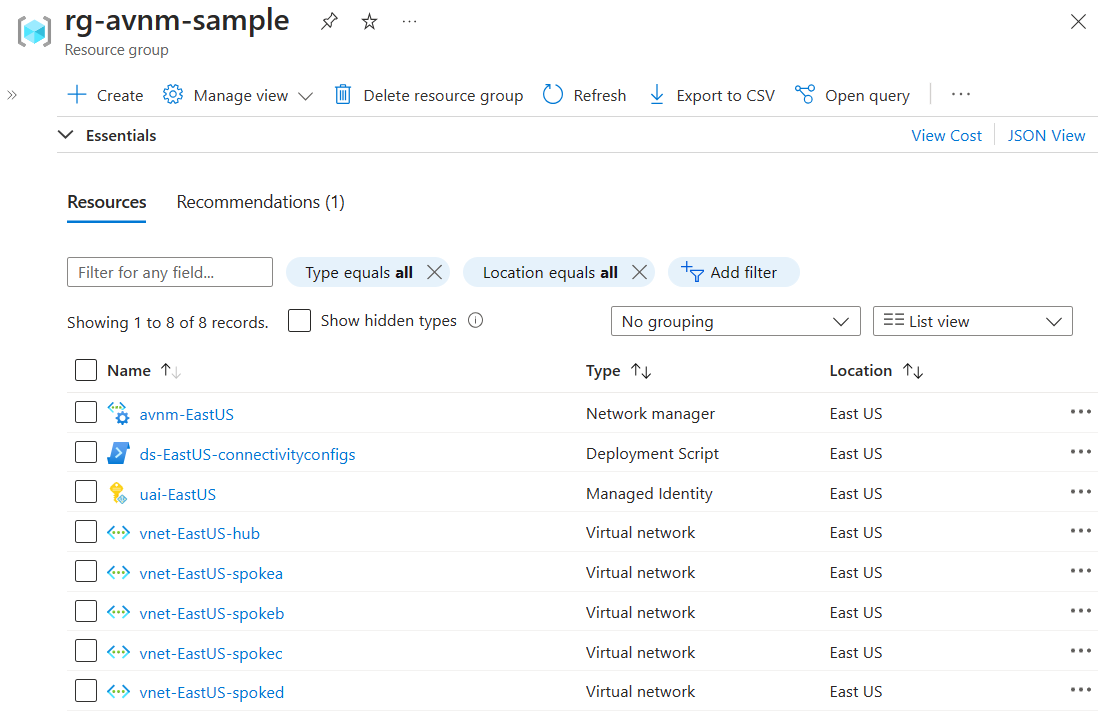

    Captura de pantalla de los todos los recursos implementados en Azure Portal.

  3. Seleccione el recurso avnm-EastUS.

  4. En la página Grupos de red, seleccione Configuración>NetworkGroups>ng-EastUS-static.

    Captura de pantalla de los grupos de red desplegados en Azure Portal.

  5. En la página ng-EastUS-static, seleccione Configuración>Miembros del grupo y compruebe que se implementa un conjunto de redes virtuales.

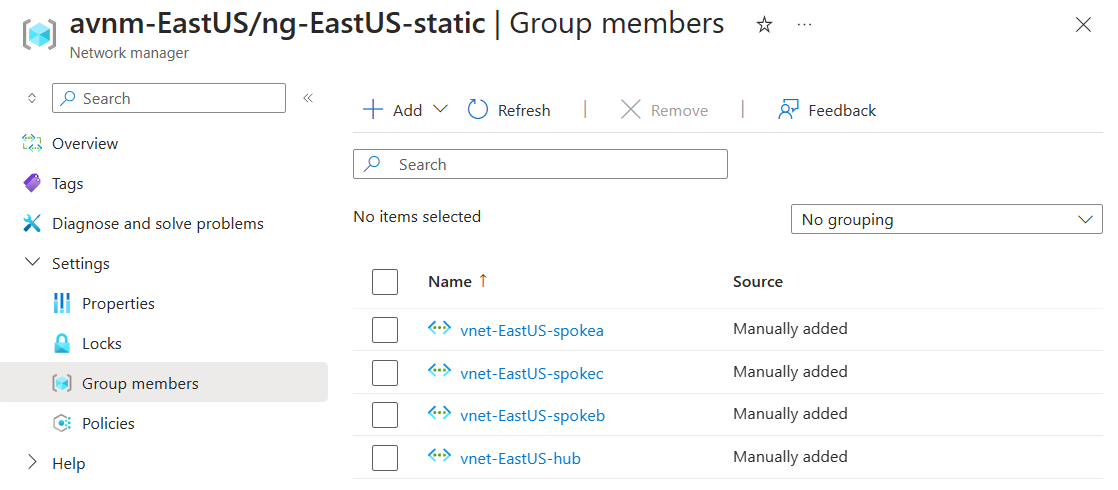

    Captura de pantalla de los miembros estáticos en el grupo de red para una implementación de topología estática.

Nota:

En función de las selecciones realizadas para la implementación, es posible que vea diferentes redes virtuales para los miembros del grupo.

Limpieza de recursos

Cuando ya no necesite los recursos que ha creado con el punto de conexión privado, elimine el grupo de recursos. Al hacer esto, se eliminan el punto de conexión privado y todos los recursos relacionados.

  1. Para eliminar el grupo de recursos, abra el grupo de recursos en el Azure Portal y seleccione Eliminar grupo de recursos.
  2. Escriba el nombre del grupo de recursos y, luego, seleccione Eliminar.
  3. Se elimina un grupo de recursos, compruebe que se elimine la instancia de Network Manager y todos los recursos relacionados.
  4. Si utilizó Membresía dinámica de grupo de red, elimine la definición y asignación de directivas de Azure implementada en el Portal y vaya a su Suscripción y seleccione Directivas. En Directivas, busque la Asignación denominada AVNM quickstart dynamic group membership Policy y elimínela; a continuación, haga lo mismo con la Definición denominada AVNM quickstart dynamic group membership Policy.

Pasos siguientes

Para más información sobre la implementación de Azure Virtual Network Manager, consulte:
