D2D1_RADIAL_GRADIENT_BRUSH_PROPERTIES structure (d2d1.h)
Contains the gradient origin offset and the size and position of the gradient ellipse for an ID2D1RadialGradientBrush.
Syntax
typedef struct D2D1_RADIAL_GRADIENT_BRUSH_PROPERTIES {
D2D1_POINT_2F center;
D2D1_POINT_2F gradientOriginOffset;
FLOAT radiusX;
FLOAT radiusY;
} D2D1_RADIAL_GRADIENT_BRUSH_PROPERTIES;
Members
center
Type: D2D1_POINT_2F
In the brush's coordinate space, the center of the gradient ellipse.
gradientOriginOffset
Type: D2D1_POINT_2F
In the brush's coordinate space, the offset of the gradient origin relative to the gradient ellipse's center.
radiusX
Type: FLOAT
In the brush's coordinate space, the x-radius of the gradient ellipse.
radiusY
Type: FLOAT
In the brush's coordinate space, the y-radius of the gradient ellipse.
Remarks

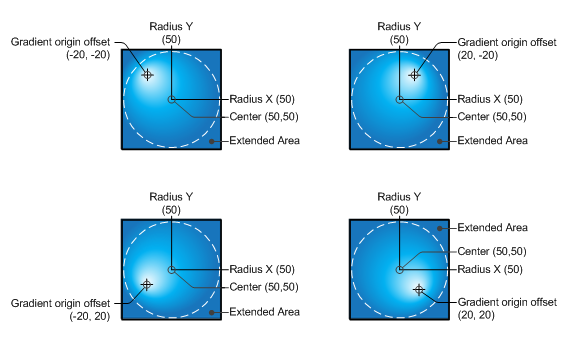

Different values for center, gradientOriginOffset, radiusX and/or radiusY produce different gradients. The following illustration shows several radial gradients that have different gradient origin offsets, creating the appearance of the light illuminating the circles from different angles.
![Illustration of four circles with radial gradients that have different origin offsets](images/radialgradient.png)
For convenience, Direct2D provides the D2D1::RadialGradientBrushProperties function for creating new D2D1_RADIAL_GRADIENT_BRUSH structures.
Examples
The following example calls CreateRadialGradientBrush to create an ID2D1RadialGradientBrush. It uses the D2D1::RadialGradientBrushProperties helper function to create a D2D1_RADIAL_GRADIENT_BRUSH structure that has a center value of (75, 5), a gradientOriginOffset of (0, 0), and a radiusX and radiusY of to 75 and passes the structure to the CreateRadialGradientBrush method. When the gradient brush is used to fill a rectangle, it produces output as shown in the following illustration.
![Illustration of a circle with a radial gradient brush](images/brushes_ovw_radials.png)
// The center of the gradient is in the center of the box.
// The gradient origin offset was set to zero(0, 0) or center in this case.
if (SUCCEEDED(hr))
{
hr = m_pRenderTarget->CreateRadialGradientBrush(
D2D1::RadialGradientBrushProperties(
D2D1::Point2F(75, 75),
D2D1::Point2F(0, 0),
75,
75),
pGradientStops,
&m_pRadialGradientBrush
);
}
For more information about radial gradient brushes, see the How to Create a Radial Gradient Brush topic and the Brushes Overview.
Requirements
Requirement | Value |
---|---|
Minimum supported client | Windows 7, Windows Vista with SP2 and Platform Update for Windows Vista [desktop apps | UWP apps] |
Minimum supported server | Windows Server 2008 R2, Windows Server 2008 with SP2 and Platform Update for Windows Server 2008 [desktop apps | UWP apps] |
Header | d2d1.h |
See also
D2D1::RadialGradientBrushProperties
