Exercise – Create a patient record in Dataverse

Completed

After you create the model-driven app, set up related services, and set up virtual health data tables, you can test the application. Testing the application demonstrates how you can use your new application to manage persisted data in Dataverse and remote FHIR services.

In this exercise, you post FHIR data to both services and observe how virtual health data tables provides access to the remote FHIR service that's relative to the Dataverse patient record. This exercise provides the initial setup of your Dataverse data with a patient who's connected to an Azure Health Data Services FHIR service entry.

Prerequisites

To complete the steps in this exercise, you need to meet the following prerequisites:

Set up the entity maps for Dataverse Healthcare APIs

To ensure processing of the uploaded FHIR bundle, you need to turn on the relevant entity maps and their child expansion maps.

  1. On the Data Integration Toolkit screen, on the left navigation pane, select Entity Maps.

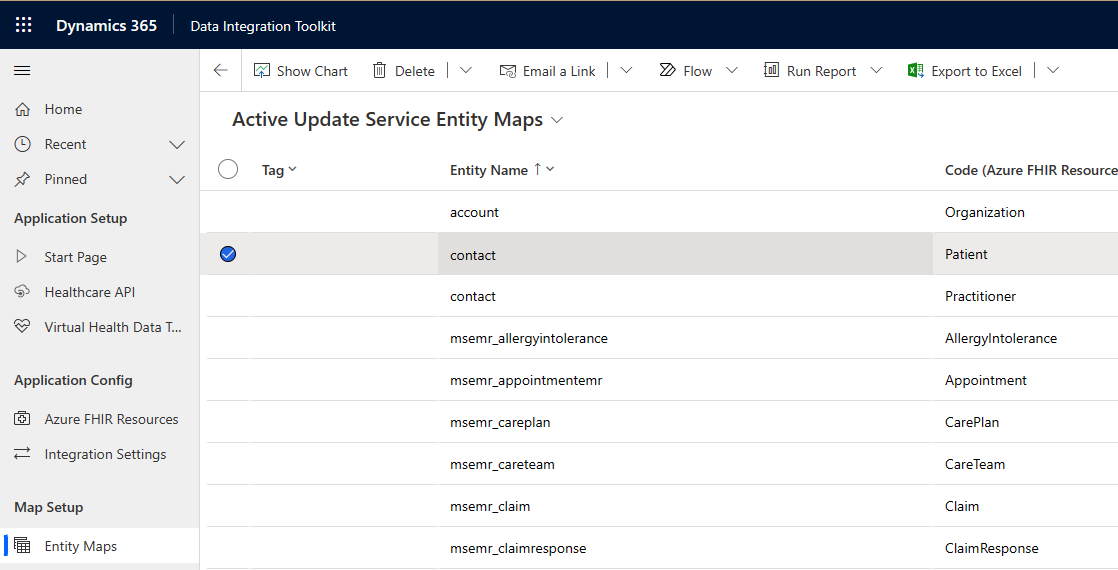

  2. Open the entity map that shows contact in the Entity Name column and Patient in the Code (Azure FHIR Resource) column.

    Screenshot of the entity map list with Patient selected.

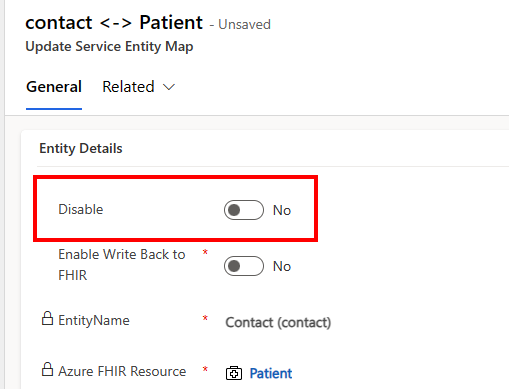

  3. In the Entity Details section, set the Disable toggle to No.

    Screenshot of the Disable toggle.

  4. Select Save.

  5. In the subgrid under the Related Attribute Maps section, filter the grid by the Action Type column on the Expand value.

    Screenshot of the filter fields.

  6. For each attribute map in the filtered list, open the related Expansion Entity Map. For Patient, the first Expansion Entity Map is named msemr_medicalidentifer <-> Patient. Select the link in the column to open the entity map record.

    Screenshot of the expansion entity map.

  7. Set the Disable toggle to No.

  8. Select Save & Close to return to the Patient Entity Map.

  9. Repeat the previous steps for each expansion entity map on the contact <-> Patient entity map.

  10. Repeat the previous steps for the following FHIR resource and Dataverse table pairs.

    Entity name Azure FHIR resource
    contact Practitioner
    account Organization
    msemr_location Location
    msemr_allergyintolerance Allergy/Sensitivity

The Dataverse Healthcare APIs are able to process FHIR bundles with these FHIR resources.

Post the patient and related records to Dataverse

A patient record in Dataverse that's synced with a FHIR resource is required for virtual health data tables to display its data. You can post a new patient to FHIR services and Dataverse by using the deployed logic app.

  1. Open the Azure portal and go to the storage account that you created by using the Azure Resource Manager template deployment from Microsoft Cloud Solution Center.

  2. Under the Data Storage section, select Containers and then open the container named bundles.

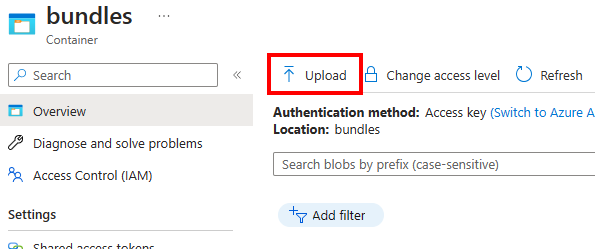

  3. Select Upload from the available tools in the bundles container view.

    Screenshot of the bundles container view with the Upload button.

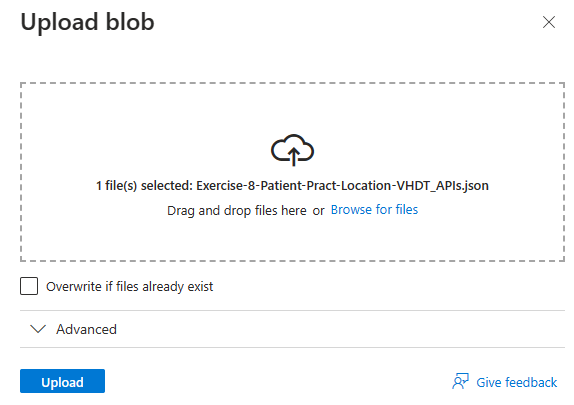

  4. In the right Upload blob panel, upload the sample bundle JSON named Exercise-8-Patient-Pract-Location-VHDT_APIs.json. This bundle contains resource entries for Patient, Practitioner, Location, and Organization.

Screenshot of the upload blob step.

  1. Select Upload.

  2. Go to the logic app that you created by using the Azure Resource Manager template deployment from Microsoft Cloud Solution Center.

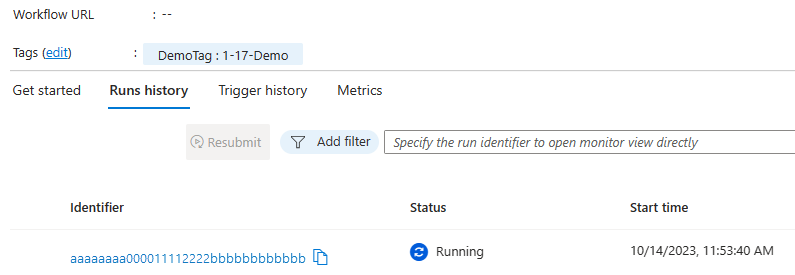

  3. Select Refresh from the list of tools in the logic app. A new entry now displays on the Runs history tab in the lower part of the page.

    Screenshot of the status changed to Running.

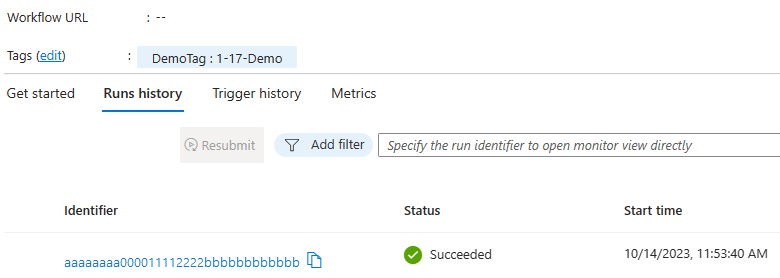

    The run might take a few moments, so you might need to refresh again until the logic app run succeeds.

    Screenshot of the status updated to Succeeded.

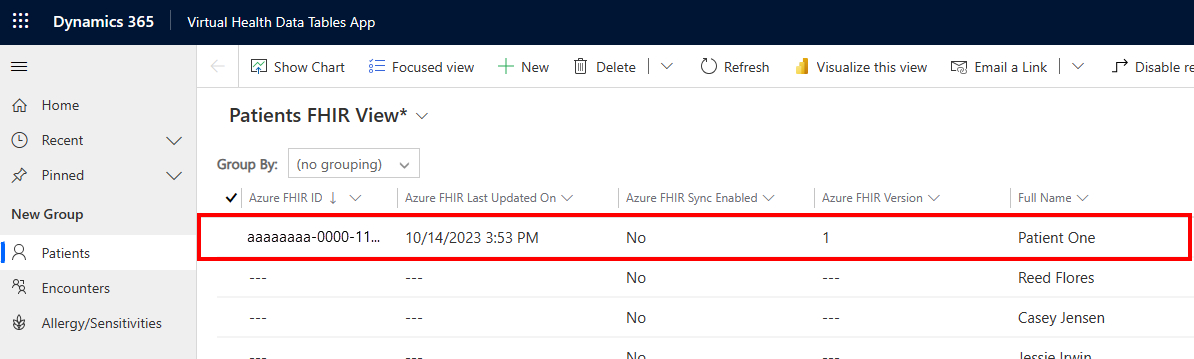

  4. Return to your new model-driven application and view the list of patients. Change the view to the Patient FHIR view to view the new patient in the list with a value for Azure FHIR ID.

    Screenshot of the new patient in the list.

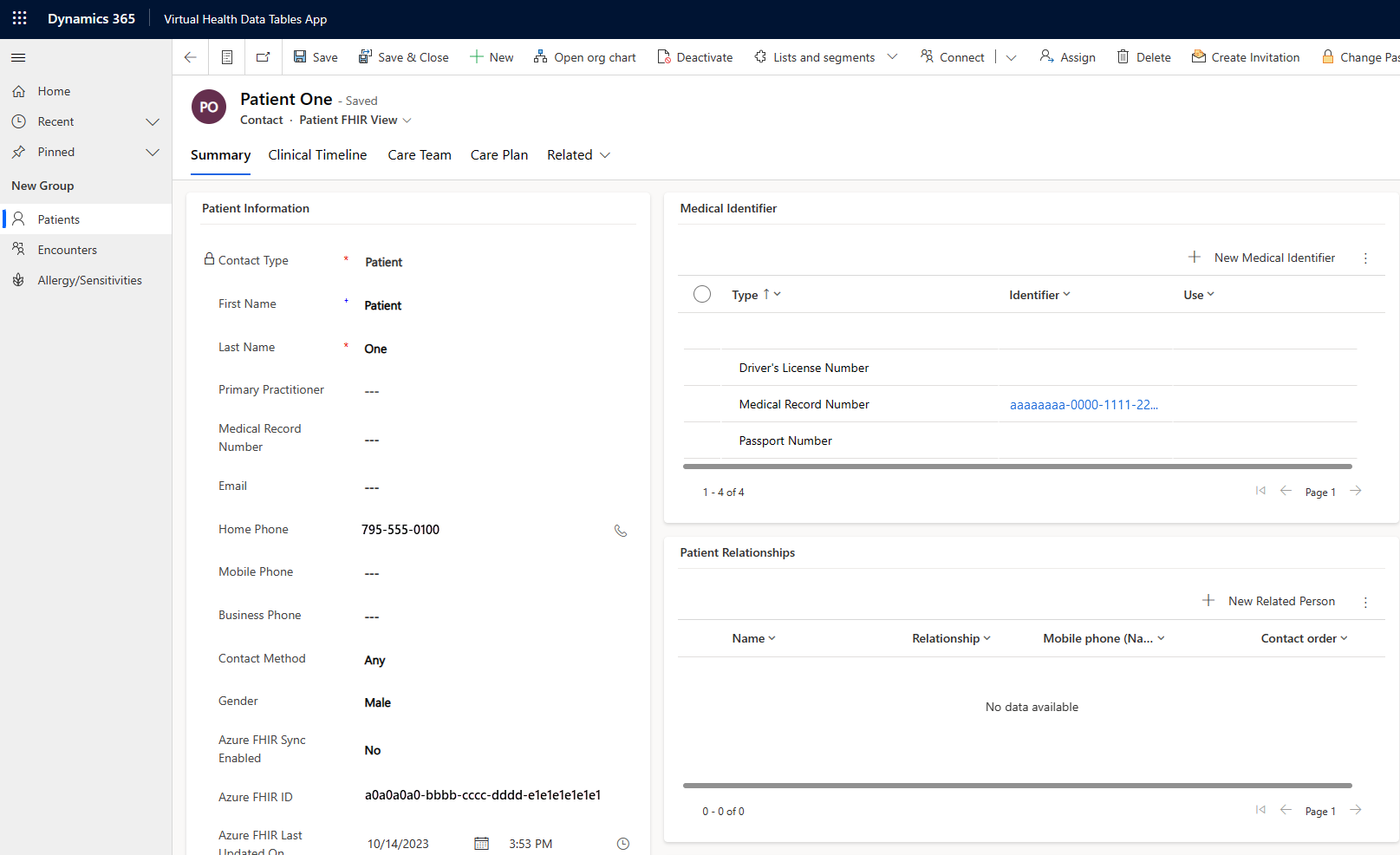

  5. From the Patients option on the left pane, open the new patient record for Patient One and then change the form to Patient FHIR View by using the selector beneath the name in the header. The data that's provided in the bundle is now posted to Dataverse as a new contact and related records in New Medical Identifier.

    Screenshot of the new patient details.

You've taken the first step in using your new model-driven application by using Dataverse Healthcare APIs to connect a patient record between Dataverse and Azure Health Data Services FHIR services.
