Add authentication to your Uno Platform app

Note

This product is retired. For a replacement for projects using .NET 8 or later, see the Community Toolkit Datasync library.

In this tutorial, you add Microsoft authentication to the TodoApp project using Microsoft Entra ID. Before completing this tutorial, ensure you've created the project and deployed the backend.

Tip

Although we use Microsoft Entra ID for authentication, you can use any authentication library you wish with Azure Mobile Apps.

Add authentication to your backend service

Your backend service is a standard ASP.NET 6 service. Any tutorial that shows you how to enable authentication for an ASP.NET 6 service works with Azure Mobile Apps.

To enable Microsoft Entra authentication for your backend service, you need to:

• Register an application with Microsoft Entra ID.
• Add authentication checking to the ASP.NET 6 backend project.

Register the application

First, register the web API in your Microsoft Entra tenant and add a scope by following these steps:

1. Sign in to the Azure portal.

2. If you have access to multiple tenants, use the Directories + subscriptions filter in the top menu to switch to the tenant in which you want to register the application.

3. Search for and select Microsoft Entra ID.

4. Under Manage, select App registrations > New registration.

   • Name: enter a name for your application; for example, TodoApp Quickstart. Users of your app will see this name. You can change it later.
   • Supported account types: Accounts in any organizational directory (Any Microsoft Entra directory - Multitenant) and personal Microsoft accounts (e.g. Skype, Xbox)

5. Select Register.

6. Under Manage, select Expose an API > Add a scope.

7. For Application ID URI, accept the default by selecting Save and continue.

8. Enter the following details:

   • Scope name: access_as_user
   • Who can consent?: Admins and users
   • Admin consent display name: Access TodoApp
   • Admin consent description: Allows the app to access TodoApp as the signed-in user.
   • User consent display name: Access TodoApp
   • User consent description: Allow the app to access TodoApp on your behalf.
   • State: Enabled

9. Select Add scope to complete the scope addition.

10. Note the value of the scope, similar to api://<client-id>/access_as_user (referred to as the Web API Scope). You need the scope when configuring the client.

11. Select Overview.

12. Note the Application (client) ID in the Essentials section (referred to as the Web API Application ID). You need this value to configure the backend service.

Open Visual Studio and select the TodoAppService.NET6 project.

1. Right-click on the TodoAppService.NET6 project, then select Manage NuGet Packages....

2. In the new tab, select Browse, then enter Microsoft.Identity.Web in the search box.



3. Select the Microsoft.Identity.Web package, then press Install.

4. Follow the prompts to complete the installation of the package.

5. Open Program.cs. Add the following to the list of using statements:

using Microsoft.AspNetCore.Authentication.JwtBearer;
using Microsoft.Identity.Web;

6. Add the following code directly above the call to builder.Services.AddDbContext():

builder.Services.AddAuthentication(JwtBearerDefaults.AuthenticationScheme)
  .AddMicrosoftIdentityWebApi(builder.Configuration);
builder.Services.AddAuthorization();

7. Add the following code directly above the call to app.MapControllers():

app.UseAuthentication();
app.UseAuthorization();

Your Program.cs should now look like this:

using Microsoft.AspNetCore.Datasync;
using Microsoft.EntityFrameworkCore;
using Microsoft.AspNetCore.Authentication.JwtBearer;
using Microsoft.Identity.Web;
using TodoAppService.NET6.Db;

var builder = WebApplication.CreateBuilder(args);
var connectionString = builder.Configuration.GetConnectionString("DefaultConnection");

if (connectionString == null)
{
  throw new ApplicationException("DefaultConnection is not set");
}

builder.Services.AddAuthentication(JwtBearerDefaults.AuthenticationScheme)
  .AddMicrosoftIdentityWebApi(builder.Configuration);
builder.Services.AddAuthorization();
builder.Services.AddDbContext<AppDbContext>(options => options.UseSqlServer(connectionString));
builder.Services.AddDatasyncControllers();

var app = builder.Build();

// Initialize the database
using (var scope = app.Services.CreateScope())
{
  var context = scope.ServiceProvider.GetRequiredService<AppDbContext>();
  await context.InitializeDatabaseAsync().ConfigureAwait(false);
}

// Configure and run the web service.
app.UseAuthentication();
app.UseAuthorization();
app.MapControllers();
app.Run();

8. Edit the Controllers\TodoItemController.cs. Add an [Authorize] attribute to the class. Your class should look like this:

using Microsoft.AspNetCore.Authorization;
using Microsoft.AspNetCore.Datasync;
using Microsoft.AspNetCore.Datasync.EFCore;
using Microsoft.AspNetCore.Mvc;
using TodoAppService.NET6.Db;

namespace TodoAppService.NET6.Controllers
{
  [Authorize]
  [Route("tables/todoitem")]
  public class TodoItemController : TableController<TodoItem>
  {
    public TodoItemController(AppDbContext context)
      : base(new EntityTableRepository<TodoItem>(context))
    {
    }
  }
}

9. Edit the appsettings.json. Add the following block:

  "AzureAd": {
    "Instance": "https://login.microsoftonline.com",
    "ClientId": "<client-id>",
    "TenantId": "common"
  },

Replace the <client-id> with the Web API Application ID that you recorded earlier. Once complete, it should look like this:

{
  "AzureAd": {
    "Instance": "https://login.microsoftonline.com",
    "ClientId": "<client-id>",
    "TenantId": "common"
  },
  "ConnectionStrings": {
    "DefaultConnection": "Server=(localdb)\\mssqllocaldb;Database=TodoApp;Trusted_Connection=True"
  },
  "Logging": {
    "LogLevel": {
      "Default": "Information",
      "Microsoft.AspNetCore": "Warning"
    }
  },
  "AllowedHosts": "*"
}

Publish your service to Azure again:

1. Right-click on the TodoAppService.NET6 project, then select Publish....
2. Select the Publish button in the top-right corner of the tab.

Open a browser to https://yoursite.azurewebsites.net/tables/todoitem?ZUMO-API-VERSION=3.0.0. Note that the service now returns a 401 response, which indicates that authentication is required.

Register your app with the identity service

The Microsoft Data sync Framework has built-in support for any authentication provider that uses a Json Web Token (JWT) within a header of the HTTP transaction. This application uses the Microsoft Authentication Library (MSAL) to request such a token and authorize the signed in user to the backend service. For more information on integrating MSAL into an Uno Platform project, review their documentation;

Configure a native client application

You can register native clients to allow authentication to Web APIs hosted in your app using a client library such as the Microsoft Identity Library (MSAL).

1. In the Azure portal, select Microsoft Entra ID > App registrations > New registration.

2. In the Register an application page:

   • enter a Name for your app registration. You may want to use the name native-quickstart to distinguish this one from the one used by your backend service.
   • Select Accounts in any organizational directory (Any Microsoft Entra directory - Multitenant) and personal Microsoft accounts (e.g. Skype, Xbox).
   • In Redirect URI:
     • Select Public client (mobile & desktop)
     • Enter the URL quickstart://auth

3. Select Register.

4. Select API permissions > Add a permission > My APIs.

5. Select the app registration you created earlier for your backend service. If you don't see the app registration, make sure that you added the access_as_user scope.



6. Under Select permissions, select access_as_user, and then select Add permissions.

7. Select Authentication > Mobile and desktop applications.

8. Check the box next to https://login.microsoftonline.com/common/oauth2/nativeclient.

9. Check the box next to msal{client-id}://auth (replacing {client-id} with your application ID).

10. Select Add URI, then add http://localhost in the field for extra URIs.

11. Select Save at the bottom of the page.

12. Select Overview. Make a note of the Application (client) ID (referred to as the Native Client Application ID) as you need it to configure the mobile app.

We have defined three redirect URLs:

• http://localhost is used by WPF applications.
• https://login.microsoftonline.com/common/oauth2/nativeclient is used by UWP applications.
• msal{client-id}://auth is used by mobile (Android and iOS) applications.

Add the Microsoft Identity Client to your app

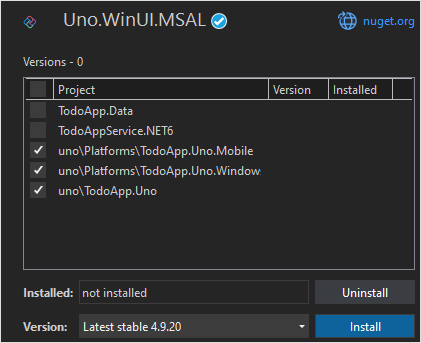

Open the TodoApp.sln solution in Visual Studio. Add the Uno.WinUI.MSAL to each of the TodoApp.Uno projects:

1. Right-click on the solution, then select Manage NuGet Packages for Solution....

2. Select the Browse tab.

3. Enter Uno.WinUI.MSAL in the search box, then press Enter.

4. Select the Uno.WinUI.MSAL result.

5. In the right hand panel, select each of the TodoApp.Uno projects.

6. Select Install.



7. Accept the license agreement to continue the installation.

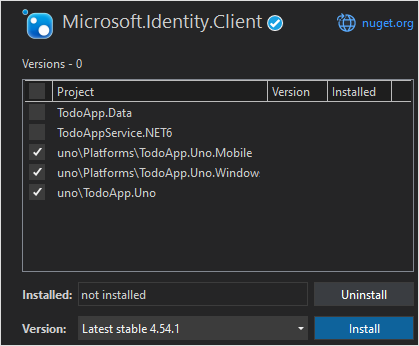

Use the same technique to add the Microsoft.Identity.Client library to each of the TodoApp.Uno projects:

1. Enter Microsoft.Identity.Client in the search box, then press Enter.

2. Select the Microsoft.Identity.Client result.

3. In the right hand panel, select each of the TodoApp.Uno projects.

4. Select Install.



5. Accept the license agreement to continue the installation.

Note

Ensure you install the latest versions of these two libraries. The minimum version numbers are:

• Uno.WinUI.MSAL v4.9.20
• Microsoft.Identity.Client v4.54.1

Add the native client ID and backend scope to the configuration.

Open the TodoApp.Data project and edit the Constants.cs file. Add constants for ApplicationId and Scopes:

  public static class Constants
  {
      /// <summary>
      /// The base URI for the Datasync service.
      /// </summary>
      public static string ServiceUri = "https://demo-datasync-quickstart.azurewebsites.net";

      /// <summary>
      /// The application (client) ID for the native app within Azure Active Directory
      /// </summary>
      public static string ApplicationId = "<client-id>";

      /// <summary>
      /// The list of scopes to request
      /// </summary>
      public static string[] Scopes = new[]
      {
          "<scope>"
      };
  }

Replace the <client-id> with the Native Client Application ID you received when registering the client application in Microsoft Entra ID, and the <scope> with the Web API Scope you copied when you used Expose an API while registering the service application.

Open the MainPage.xaml.cs file in the top folder of the TodoApp.Uno project.

Add the following using statements to the top of the file:

using Microsoft.Datasync.Client;
using Microsoft.Identity.Client;
using System.Diagnostics;
using System.Linq;
using Uno.UI.MSAL;

Replace the fields and constructor with the following code:

    private readonly IPublicClientApplication _identityClient;
    private readonly TodoListViewModel _viewModel;
    private readonly ITodoService _service;

    public MainPage() {
        this.InitializeComponent();

        _identityClient = PublicClientApplicationBuilder
            .Create(Constants.ApplicationId)
            .WithAuthority(AzureCloudInstance.AzurePublic, "common")
#if __IOS__ || __MACOS__ || __ANDROID__
            .WithRedirectUri($"msal{Constants.ApplicationId}://auth")
#else
            .WithRedirectUri("https://login.microsoftonline.com/common/oauth2/nativeclient")
#endif
#if __IOS__
            .WithIosKeychainSecurityGroup("com.microsoft.adalcache")
#endif
            .WithUnoHelpers()
            .Build();
        _service = new RemoteTodoService(GetAuthenticationToken);
        _viewModel = new TodoListViewModel(this, _service);
        mainContainer.DataContext = _viewModel;
    }

Add the following method into the MainPage class:

    public async Task<AuthenticationToken> GetAuthenticationToken()
    {
        var accounts = await _identityClient.GetAccountsAsync();
        AuthenticationResult? result = null;
        bool tryInteractiveLogin = false;

        try
        {
            result = await _identityClient
                .AcquireTokenSilent(Constants.Scopes, accounts.FirstOrDefault())
                .ExecuteAsync();
        }
        catch (MsalUiRequiredException)
        {
            tryInteractiveLogin = true;
        }
        catch (Exception ex)
        {
            System.Diagnostics.Debug.WriteLine($"MSAL Silent Error: {ex.Message}");
        }

        if (tryInteractiveLogin)
        {
            try
            {
                result = await _identityClient
                    .AcquireTokenInteractive(Constants.Scopes)
                    .WithUnoHelpers()
                    .ExecuteAsync();
            }
            catch (Exception ex)
            {
                System.Diagnostics.Debug.WriteLine($"MSAL Interactive Error: {ex.Message}");
            }
        }

        return new AuthenticationToken
        {
            DisplayName = result?.Account?.Username ?? string.Empty,
            ExpiresOn = result?.ExpiresOn ?? DateTimeOffset.MinValue,
            Token = result?.AccessToken ?? string.Empty,
            UserId = result?.Account?.Username ?? string.Empty
        };
    }

The GetAuthenticationToken() method works with the Microsoft Identity Library (MSAL) to get an access token suitable for authorizing the signed-in user to the backend service. This function is then passed to the RemoteTodoService for creating the client. If the authentication is successful, the AuthenticationToken is produced with data necessary to authorize each request. If not, then an expired bad token is produced instead.

Configure the Android app for authentication

Open the TodoApp.Uno.Mobile project and expand the Android folder. Create a new class MsalActivity.Android.cs (alongside the existing MainActivity.Android.cs) with the following code:

using Android.Content;
using Microsoft.Identity.Client;

namespace TodoApp.Uno.Droid
{
    [Activity(Exported = true)]
    [IntentFilter(new[] { Intent.ActionView },
       Categories = new[] { Intent.CategoryBrowsable, Intent.CategoryDefault },
       DataHost = "auth",
       DataScheme = "msal{client-id}")]
    public class MsalActivity : BrowserTabActivity
    {
    }
}

Replace {client-id} with the application ID of the native client (which is the same as Constants.ApplicationId).

If your project targets Android version 11 (API version 30) or later, you must update your AndroidManifest.xml to meet the Android package visibility requirements. Open TodoApp.Uno.Mobile/Android/AndroidManifest.xml and add the following queries/intent nodes to the manifest node:

<manifest>
  ...
  <queries>
    <intent>
      <action android:name="android.support.customtabs.action.CustomTabsService" />
    </intent>
  </queries>
</manifest>

Edit the MainActivity.Android.cs class; add the OnActivityResult method:

using Android.Views;
using Microsoft.Identity.Client;

namespace TodoApp.Uno.Droid
{
    [Activity(
        MainLauncher = true,
        ConfigurationChanges = global::Uno.UI.ActivityHelper.AllConfigChanges,
        WindowSoftInputMode = SoftInput.AdjustNothing | SoftInput.StateHidden
    )]
    public class MainActivity : Microsoft.UI.Xaml.ApplicationActivity
    {
        protected override void OnActivityResult(int requestCode, Result resultCode, Android.Content.Intent data)
        {
            base.OnActivityResult(requestCode, resultCode, data);
            AuthenticationContinuationHelper.SetAuthenticationContinuationEventArgs(requestCode, resultCode, data);
        }
    }
}

When the Android requires authentication, it obtains an identity client, then switch to an internal activity that opens the system browser. Once authentication is complete, the system browser redirects to the defined redirect URL (msal{client-id}://auth). The MasalActvity traps the redirect URL, which then switches back to the main activity by calling OnActivityResult(). The OnActivityResult() method calls the MSAL authentication helper to complete the transaction.

Test the Android app

Set TodoApp.Uno.Mobile as the startup project, select an android emulator as the target, then press F5 to build and run the app. When the app starts, you're prompted to sign in to the app. On the first run, you're also asked to consent to the app. Once authentication is complete, the app runs as normal.

Next steps

Next, configure your application to operate offline by implementing an offline store.

Further reading

• Quickstart: Protect a web API with the Microsoft identity platform
